Char-Broil Quickset Assembly Manual

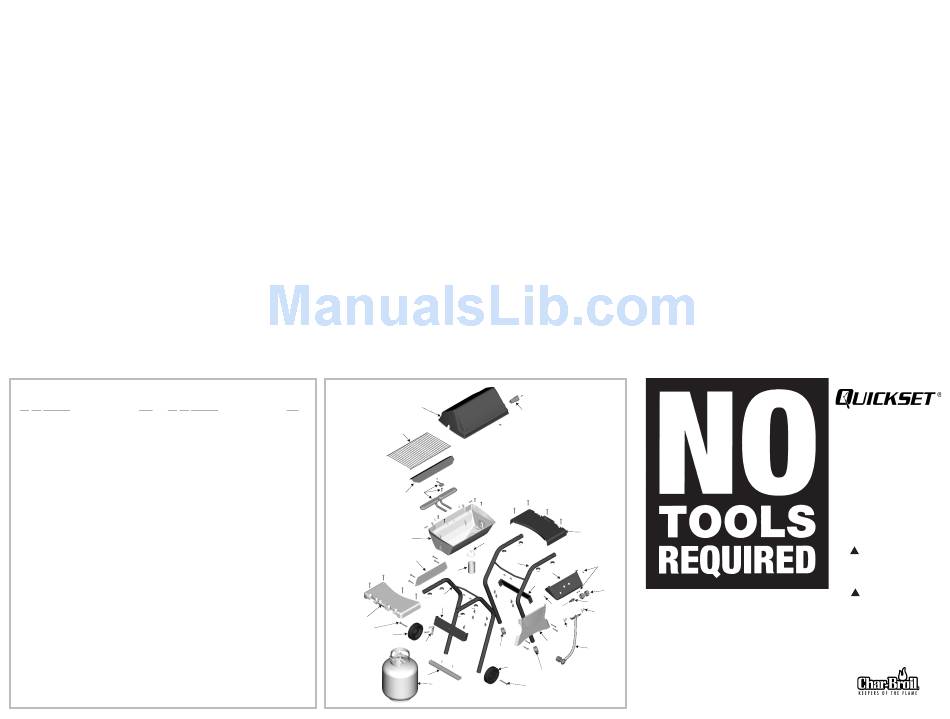

Parts List - Model 463531705
Key Qty. Description Part # Key Qty. Description
A 1 Grease Cup . . . . . . . . . . . . . . . . . . . . . . . . . 4150349 V 2 Axle Bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . 4080155
B 1 Vaporiser Bar . . . . . . . . . . . . . . . . . . . . . . . . 4151037 W 2 Leg Extenders . . . . . . . . . . . . . . . . . . . . . . . 4154541
C 2 Side Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154279 1 Hardware Bag, Cart . . . . . . . . . . . . . . . . . . . 4254079
D 1 Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154430 2 Hardware Bag, Shelves . . . . . . . . . . . . . . . . 4254074
E 1 Cooking Grate . . . . . . . . . . . . . . . . . . . . . . . 4156465
F 2 Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154569
G 1 LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . 4158015
H 1 Back Support Brace . . . . . . . . . . . . . . . . . . . 4503070
I 1 Tank Support Bracket . . . . . . . . . . . . . . . . . . 4502093
J 1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . 4502118
K 2 Side Support Brace . . . . . . . . . . . . . . . . . . . 4502373
L 2 Leg Assembly . . . . . . . . . . . . . . . . . . . . . . . . 4502376
M 4 #10x1/2", T-20, Self-Tap Screw . . . . . . . . . . 4080043
N 2 Valve Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . 4151043
O 1 Burner/Collector Assembly . . . . . . . . . . . . . . 4505081
P 1 Control Panel Assembly . . . . . . . . . . . . . . . . 4530249
Q 2 Control Knob . . . . . . . . . . . . . . . . . . . . . . . . 4154470
R 1 Grill Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . 4580427
S 1 Gill Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4581716
T 1 Tank Retainer Wire. . . . . . . . . . . . . . . . . . . . 4151018
U 1 Grease Clip . . . . . . . . . . . . . . . . . . . . . . . . . 5156607
Optional Assembly Hardware
We realize some customers prefer to use tools.
nuts have been provided for you to use.
S
Part#
E
O
B
R
H
L
K
C
V
F
T
I
G
Optional hex
D
C
U
L
M
A
P
K
Q
P
M
N
N
J
P
W
F
W
V
Register your grill online at
WWW.GRILLREGISTRATION.COM
STOP
If you have any problems with this product,
call 1-800-241-7548
24 Hours a Day - 7 Days a Week
Before returning this product to the store.
We can help with damaged or missing parts,
assembly and operation questions.
Printed in USA 463531705 / 1–4165462 (05-12-05)
463531705
ASSEMBLY MANUAL
THIS GRILL IS FOR
OUTDOOR USE ONLY
CAUTION: Read and follow all safety
statements, assembly instructions,
and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER: Leave
these instructions with consumer.
CONSUMER: Keep this manual for
future reference.
WARNING
!
Failure to follow all manufacturer's
instructions could result in serious
personal injury and/or property
damage.
CAUTION
!
Some parts may contain sharp edges
– especially as noted in the manual!
Wear protective gloves if necessary.
If you have any questions or need
assistance during assembly, please
call 1-800-241-7548.
Visit us on the web at:
www.charbroil.com
C O L U M B U S , G A
© 2005 W. C. Bradley Co., All Rights Reserved
