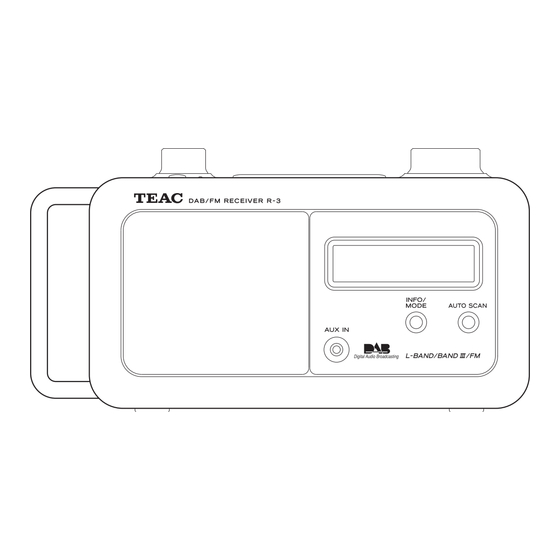

- Page 1 9A10358400 DAB L-BAND/DAB BAND- /FM Radio OWNER’S MANUAL...
-
Page 2: Table Of Contents
Contents Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit. Before Using the Unit ....3 Rechargeable Batteries . -
Page 3: Before Using The Unit
Before Using the Unit Maintenance < As the unit may become warm during operation, always leave sufficient space If the surface of the unit gets dirty, wipe around the unit for ventilation. with a soft cloth or use a diluted mild liquid soap. -
Page 4: Rechargeable Batteries
R-3 on 1. Remove the battery compartment cover. battery power. The R-3 can be used for 3 to 2. Disconnect the battery pack connector, 3.5 hours after batteries are fully charged. -
Page 5: About Dab
About DAB With this unit you can receive and listen to Each Ensemble is transmitted in a set Digital Audio Broadcast (DAB) programmes. frequency range and received by this unit for DAB uses digital, not analogue signals, decoding. You can receive Ensembles resulting in near CD-quality audio with broadcast in the 174-240 MHz (Band III) or virtually interference-free reception. -
Page 6: Connections
Connections AC Outlet... -
Page 7: Telescopic Antenna
< Turning the volume of the mini player up too high may cause the sound from your R-3 to be distorted. If this is the DC IN 12V case, reduce the volume of the mini player until the distortion stops and then... -
Page 8: Unit Functions
Unit Functions... - Page 9 STANDBY/ON FUNCTION (DAB/FM/AUX) Use this button to turn the unit on or Use this button to select DAB, FM or standby. AUX. The indicator lights when the unit is When a component is connected to the turned on. AUX IN jack, select AUX to listen to the <...
-
Page 10: Basic Operation
Press the STANDBY/ON button. To turn off the main power (To save battery) When the R-3 is not being used, you can < If the MAIN POWER switch on the rear save battery power by turning off the panel is turned off, press the switch to MAIN POWER switch on the rear panel. -
Page 11: System Resetting
System Resetting Listening through headphones If you want to initialize the Insert the headphones plug into the setting: phones jack ( ), and adjust the volume. In DAB mode: The sound from the speaker will be cut 1. Press and hold the INFO/MODE button for off. -
Page 12: Listening To The Dab Radio
Listening to the DAB Radio 1 The unit will start scanning the stations that you can listen to. (10A to 13F) Auto Tuning Press the STANDBY/ON button to turn the unit on. < Press and hold the AUTO SCAN button for longer than 2 seconds to activate ‘Full Scan’... - Page 13 When the scanning process has Select the station you want to listen finished, turn the TUNING knob to select DAB-ensemble that Turn the TUNING knob until the station contains the station you want to you want to listen to is displayed. listen to.
-
Page 14: Manual Tuning
Listening to the DAB Radio 2 Turn the TUNING knob to select the frequency of DAB-ensemble that contains the station you want to listen to. Manual Tuning (How to listen to L-band) While listening to a DAB station, Band name Frequency press and hold the INFO/MODE button for longer than 2 seconds. -
Page 15: Auto Select Function
Select the station you want to listen Auto Select function To switch the Auto Select function ON Turn the TUNING knob until the station or OFF, press and hold the ENTER you want to listen to is displayed. button for 2 seconds in DAB mode. ON: After selecting the station, it is automatically tuned in without pressing the ENTER button. -
Page 16: Display Setting Of The Dab
Display Setting of the DAB You can choose the type of information Ensemble name displayed in the second line of the display This displays the name of the Ensemble while listening to DAB. that is broadcasting the programme. Station Each time the INFO/MODE button is pressed, the information is displayed as follows. -
Page 17: Software Version
Signal level Software version Signal strength display to check the To display the software version: antenna adjustment or positioning for the best reception. 1. Press and hold the INFO/MODE button for longer than 2 seconds. In DAB mode ‘Manual tune’ is displayed. In FM mode ‘System Reset’... -
Page 18: Listening To Fm Radio
Listening to the FM Radio Press the AUTO SCAN button briefly: Frequency display begins to increase and when a station is tuned in the tuning process will stop automatically. Repeat this until the station you want to listen to is found. TUNING/ Press and hold the AUTO SCAN button MULTI JOG... -
Page 19: Fm Mode
Preset Stations FM mode How to preset stations Pressing the ENTER button in FM mode In each DAB and FM broadcast, up to 5 alternates between Auto(Stereo) mode stations can be stored in preset memories. and Mono mode. Tune in a station to be stored as a preset station. -
Page 20: Listening To An External Source
Connect the PHONES jack (audio Repeatedly press the FUNCTION output jack) of a portable audio button to select AUX. player to the AUX IN jack of the R-3 using the supplied stereo mini plug cable. Play the source, and adjust the volume using the VOLUME knob of the R-3 and the audio player. -
Page 21: Sleep Timer
Sleep Timer 90, 75, 60, 45, 30, 15: The power will be switched off after a specified amount of time. OFF: The sleep timer is off. Press the ENTER button twice. The power can be switched off after a specified amount of time. Press and hold the SLEEP button for more than 2 seconds. -
Page 22: Timer 1
Timer 1 Turn the MULTI JOG knob to select ENTER the alarm ON and then press the ENTER button. ALARM TUNING/ MULTI JOG < The clock is automatically set when the DAB broadcast is received. Turn the MULTI JOG knob to set the <... - Page 23 Turn the MULTI JOG knob to select Press the ENTER button to complete RADIO or BUZZ and then press the the timer setting. ENTER button. When the current source is AUX, select AUX or BUZZ. ‘ ’ appears on the display. The unit will turn on at the specified time every day and after 60 minutes the unit turns off.
-
Page 24: To Turn The Timer Off
Timer 2 To check the timer setting ENTER Press the ALARM button briefly. ALARM TUNING/ MULTI JOG Clock and the alarm status will appear on the display. To turn the timer off When the timer is ON: Press and hold the ALARM button for Clock more than 2 seconds. -
Page 25: Snooze Function
Snooze Function To stop the timer working After the timer has turned on the unit, If you want to stop the timer working press the SNOOZE button. after the timer has turned on the unit, press the ALARM button or the ‘z’... -
Page 26: Troubleshooting
DAB stations start e Pull out the headphone’s plug from the broadcasting. headphones jack. e Ensure that the R-3 has been able to locate DAB stations. Display goes out or displays ‘service off air’. e This may occur if a broadcaster changes The sound is noisy. -
Page 27: Specifications
Specifications Cannot listen to the selected station. Frequency Range (DAB): e Ensure you have pressed the ENTER Band III: 5A to 13F button when you want to listen to your (174.928 MHz to 239.200 MHz) selection. The station you are currently L-band: LA to LW listening to will be displayed on the first (1452.960 MHz to 1490.624 MHz) - Page 28 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A. De C.V Campesinos N°184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810, México DF Phone: (525) 581-5500 TEAC UK LIMITED Unit 19 &...
