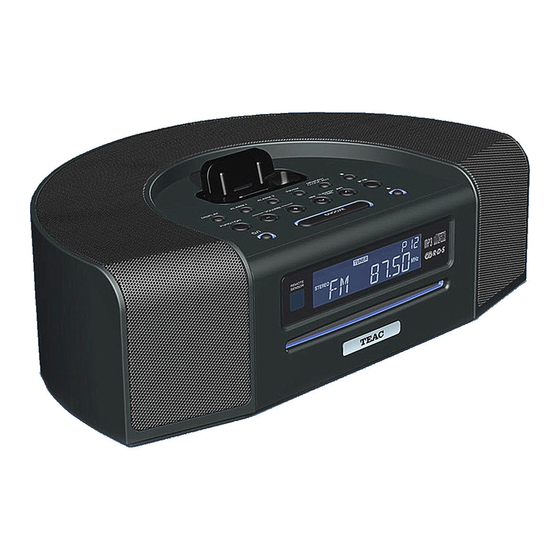

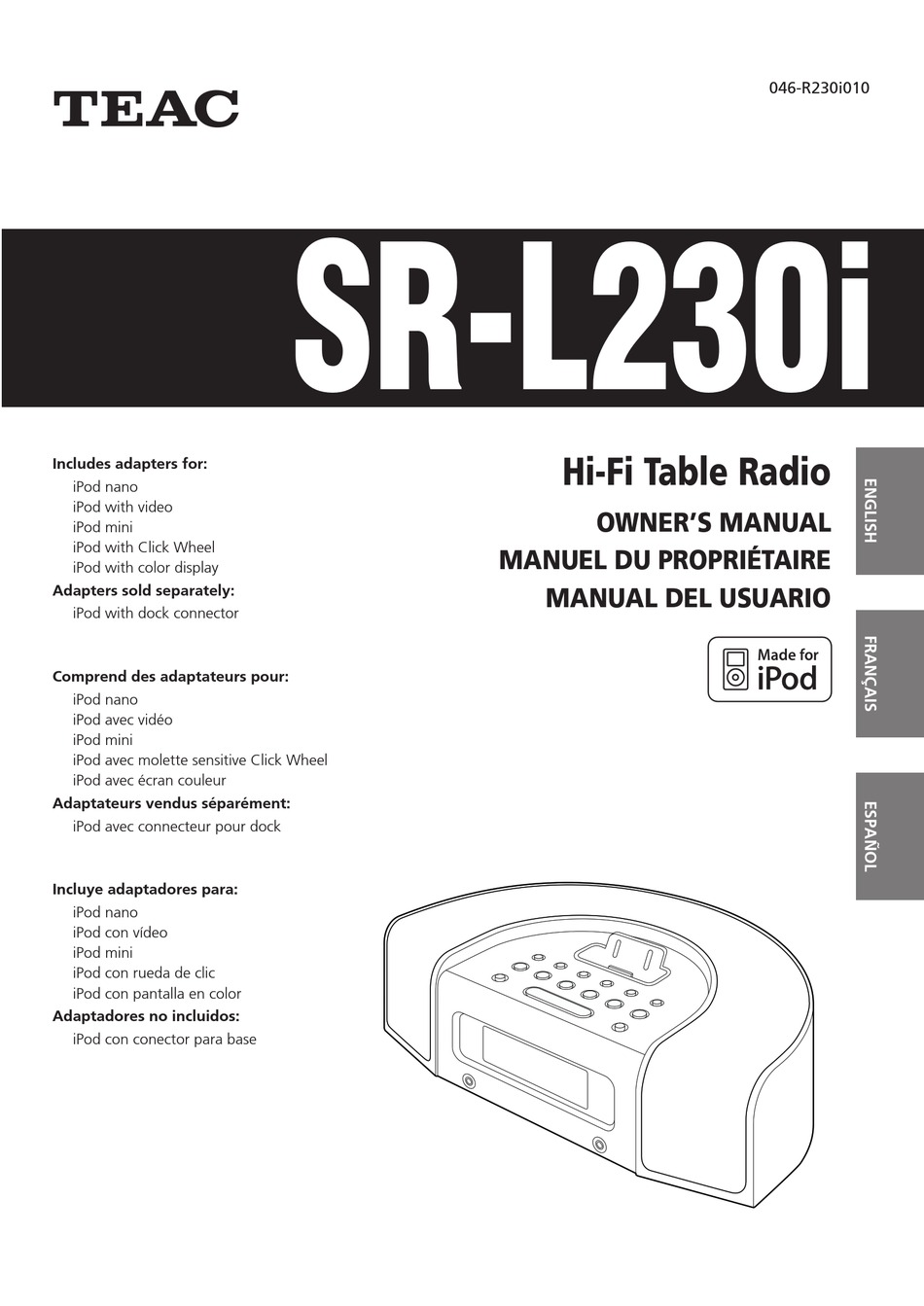

046-R230i010 SR-L230i Hi-Fi Table Radio Includes adapters for: iPod nano iPod with video OWNER’S MANUAL iPod mini iPod with Click Wheel MANUEL DU PROPRIÉTAIRE iPod with color display Adapters sold separately: MANUAL DEL USUARIO iPod with dock connector Comprend des adaptateurs pour: iPod nano iPod avec vidéo iPod mini...
Page 2
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. CAUTION: TO REDUCE THE RISK OF ELECTRIC 3) Heed all warnings. SHOCK, DO NOT REMOVE COVER (OR BACK). NO 4) Follow all instructions. USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 5) Do not use this apparatus near water.
Page 3
< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS particular installation. If this equipment does cause PRODUCT, CONTACT TEAC FOR A SERVICE harmful interference to radio or television reception, REFERRAL. DO NOT USE THE PRODUCT UNTIL IT which can be determined by turning the equipment HAS BEEN REPAIRED.
Contents Before Using the Unit Thank you for choosing TEAC. Read this manual Read this before attempting any operations. carefully to get the best performance from this unit. < As the unit may become warm during operation, always leave sufficient space around the unit for ventilation.
Remote Control Unit The provided remote control unit allows the unit to be Precautions concerning batteries operated from a distance. < Be sure to insert the batteries with correct positive When operating the remote control unit, point it “+” and negative “_” polarities. towards the remote sensor on the front panel of the unit.
Connections CAUTION: < Switch off (standby) the power before making connections. < Read the instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, do not bundle the connection cords. AC wall socket...
FM antenna Battery compartment While in FM mode, tune in an FM station and The battery supplies a backup power to the built- extend the lead to find the best position for the in clock and memory, when the unit is reception.
Unit Functions Q P O N Speakers (Stereo) STANDBAY/ON FUNCTION SLEEP Use this button to set sleep timer. ALARM MENU FM/AM ALARM 1, ALARM 2 PRESET/SCROLL SELECT FM MODE Hold down these buttons for more than 2 seconds to enter the timer setting mode. Also these buttons are used to turn on or off the timer function.
Page 9
FM/AM FUNCTION In TUNER mode, press this button to select FM or Use these buttons to select the source you want to listen to. Play/Pause (y/J) PRESET/SCROLL (‡/°) Use this button to start or pause playback of iPod. In TUNER mode, use these buttons to select a preset station.
Display Getting Started The SR-L230i comes mounted with an adapter “60GB (color) + Photo 40/60GB”. To play your iPod through the SR-L230i, you have first to check if the factory mounted adapter fits your model of iPod. If it does not, you have to replace it with a correct one, as explained below.
Page 11
3. Insert the adapter into the Dock of the SR- Compatible iPod Software L230i. In case your iPod will not work with the SR-L230i or Fit the front edge of the adapter into the Dock, and with the remote control unit, software update may then press the back edge of the adapter onto the solve the problem.
Setting the Clock Press the skip button (.//) to set the current hour. Press the CLOCK ADJ button. CLOCK ADJ The “minute” value blinks. < You cannot set the clock when the source is “TUNER”. Press the CLOCK ADJ button to display the clock.
Basic Operation 1 Dimmer Press the button to turn the unit on. You can change the front panel’s display brightness. Use the DIMMER button to change the brightness between three levels. < The unit turns on with the source that was last selected.
Basic Operation 2 Adjusting the bass and treble sound Sleep timer You can change the bass and treble sound between Each press of the SLEEP button permits setting an “–5” to “+5”. interval (from 90 down to 10 minutes). The unit will automatically turn off and then into Standby mode.
Listening to iPod Insert the iPod into the Dock of the SR-L230i. To select iPod mode Then push the Play/Pause button (y/J) on the Select “iPod” using the FUNCTION button. If an iPod or the SR-L230i. The SR-L230i will iPod is already docked, playback will start. automatically turn on and start playback from the iPod’s music list.
Operating iPod To go back to the previous menu MENU Press the MENU button. This button works with the To suspend playback temporarily (pause same functions as its iPod counterpart. mode) Select the menu item PRESET/SCROLL Press the Play/Pause button (G/J) during playback. Playback stops at the current position.
Listening to an External Source Connect the PHONES jack (audio output jack) Play the source, and adjust the volume of both of a portable audio player to the AUX IN jack the SR-L230i and the audio player. of the SR-L230i using the supplied stereo mini plug cable.
Listening to the Radio Checking the tuner frequency Press the DISPLAY button. The current band and frequency displays for 20 seconds. DISPLAY Select “TUNER” using the FUNCTION button. If the reception is poor For the best reception, rotate the FM or the AM antenna until you get stations clearly.
Preset Tuning You can program 20 FM & 20 AM channel presets. How to select a preset station To select FM or AM, press the FM/AM button. Tune in a station you want to listen to (see FM/AM page 18). Press the MEMORY button.
Timer 1 Press the skip buttons (. or /) to set the minute, and then press the ALARM 1 or ALARM 2 button. Now the on time is set. “OFF” and the off time value blink. ALARM 1, ALARM 2 <...
Page 21
Set the volume using the skip buttons (.//), and then press the ALARM 1 or ALARM 2 button. The volume for timer operation is adjustable from 10 to max. Setting the timer is now completed. ALARM 1, ALARM 2 To turn on the timer After setting the timer, press the ALARM 1 or ALARM 2 button to turn the timer on.
Timer 2 Specifications To turn off the timer TUNER Section Frequency Range ..FM: 87.5 MHz to 108.0 MHz When you don’t use the timer, press the ALARM 1 AM: 530 kHz to 1,710 kHz or ALARM 2 button to turn it off. SPEAKER SYSTEM Section Type .
Player this chart and see if you can solve the problem Cannot insert the iPod. yourself before calling your dealer or TEAC service e Check the dock adapter (see page 10). center. e Remove dust or obstacles from the Dock connector of the SR-L230i and the iPod, and insert the iPod again.
Avant d’employer l’appareil Nous vous remercions pour l’achat d’un appareil Lisez ce qui suit avant toute utilisation TEAC. Lire ce manuel avec attention pour obtenir < Comme l’appareil peut chauffer durant son les meilleures performances possibles de cet fonctionnement, laissez toujours assez d’espace autour appareil.
Boîtier de télécommande Le boîtier de télécommande fourni permet la Précautions à observer concernant les piles commande à distance de l’appareil. < Placez bien les piles en respectant les polarités plus Pour l’utilisation du boîtier de télécommande, dirigez-le + et moins _ . vers le capteur de télécommande du panneau avant de l’appareil.
Connexions ATTENTION: < Eteignez l’appareil avant de faire des connexions. < Lisez les instructions concernant chaque élément que vous voulez employer avec cet appareil. < Veillez à bien insérer chaque fiche de connexion. Pour prévenir les ronflements et bruits, ne regroupez pas les cordons de connexion.
Page 27
Antenne FM Logement de la pile En mode FM, réglez-vous sur la station FM et La pile fournit du courant de secours à l’horloge étendez le fil d’antenne pour trouver la meilleure intégrée et à la mémoire lorsque l’appareil est position de réception.
Fonctions de l’appareil Q P O N Haut-parleurs (stéréo) STANDBAY/ON FUNCTION SLEEP Utilisez ce bouton pour régler la minuterie ALARM MENU FM/AM d’extinction. PRESET/SCROLL SELECT FM MODE ALARM 1, ALARM 2 Maintenez ces boutons enfoncé pendant plus de 2 secondes pour passer en mode de réglage de réveil. Ces boutons est également utilisé...
Page 29
FM/AM Standby/on ( En mode TUNER, appuyez sur ce bouton pour Utilisez ce bouton pour allumer l’appareil ou le sélectionner FM ou AM. mettre en veille (standby). Lecture/Pause (y/J) FUNCTION Utilisez ce bouton pour lancer ou mettre en pause Utilisez cette touche pour sélectionner une source la lecture de l’iPod.
Affichage Pour commencer Le SR-L230i est fourni avec un adaptateur “60GB (color) + Photo 40/60GB” monté en usine. Pour écouter des morceaux de votre iPod sur le SR-L230i, il vous faut tout d’abord vérifier si l’adaptateur prémonté est approprié pour votre modèle d’iPod. S’il ne l’est pas, il faut le remplacer avec un adaptateur approprié, comme expliqué...
Page 31
3. Insérez l’adaptateur dans le dock du SR-L230i. Logiciel iPod compatible Faites entrer le bord avant de l’adaptateur dans le Au cas où votre iPod ne fonctionnerait pas avec le SR- dock puis appuyez sur le bord arrière de L230i ou sa télécommande, une mise à jour du logiciel l’adaptateur pour l’enfoncer dans le dock jusqu’à...
Réglage de l’horloge Appuyez sur la touche skip (. ou /) pour spécifier l’heure actuelle. Appuyez sur la touche CLOCK ADJ. CLOCK ADJ La valeur des minutes clignote. < Vous ne pouvez pas régler l’horloge lorsque la source est sur “TUNER”. Appuyez sur le bouton CLOCK ADJ pour afficher l'horloge.
Fonctionnement de base 1 Dimmer (atténuateur) Appuyez sur le bouton pour allumer l’appareil. Vous pouvez modifier la luminosité de l'affichage de la face avant. Utilisez le bouton DIMMER pour changer la luminosité entre trois niveaux. < L’appareil s’allume avec la dernière source <...
Page 34
Fonctionnement de base 2 Réglage du son des basses et des Minuterie d’arrêt différé aigus À chaque fois que vous appuyez sur la touche SLEEP, cela vous permet de spécifier l’intervalle (de Vous pouvez modifier le son des basses et des aigus 90 à...
Ecoute de l’iPod Insérez l’iPod dans le dock du SR-L230i. Sélectionner le mode iPod Ensuite appuyez sur le bouton Lecture/Pause Sélectionnez “iPod” avec le bouton FUNCTION. Si (y/J) de l’iPod ou du SR-L230i. Le SR-L230i se un iPod se trouve déjà sur le dock, la lecture mettra automatiquement sous tension et commencera.
Contrôle de l’iPod Pour revenir au menu précédent MENU Appuyez sur le bouton MENU. Ce bouton a les Suspendre temporairement la lecture (mode même fonctions que celui de l’iPod. pause). Select the menu item PRESET/SCROLL Appuyez sur le bouton Lecture/Pause (G/J) durant la lecture.
Ecoute d’une source externe Reliez la prise PHONES (prise de sortie audio) Mettez la source en lecture et réglez le volume d’un lecteur audio portable à la prise d’entrée sonore de l’SR-L230i et du lecteur audio. auxiliaire AUX IN du SR-L230i à l’aide du câble à...
Ecoute de la radio Vérification de la fréquence du syntoniseur Appuyez sur le bouton DISPLAY. La bande et la fréquence actuelle s'affichent pendant 20 secondes. Sélectionnez “TUNER” avec le bouton DISPLAY FUNCTION. Si la réception est faible Sélectionnez FM ou AM avec le bouton FM/AM. Pour la meilleure réception, tournez l’antenne FM ou l’antenne AM jusqu’à...
Préréglage de stations Vous pouvez prérégler (“programmer”) 20 stations FM Comment rappeler des stations et 20 stations AM. préréglées Pour sélectionner FM ou AM, appuyez sur le bouton FM/AM. Réglez l’appareil sur une station que vous voulez écouter (voir les étapes pour cela en FM/AM page 38).
Réveil 1 Appuyez sur les boutons skip (. ou /) pour régler les heures, puis appuyez sur le bouton ALARM 1 ou ALARM 2. L’heure d’activation est maintenant réglée. ALARM 1, ALARM 2 “OFF” et l’heure de désactivation clignotent. < Deux réglages de réveil différents peuvent être définis séparément sur l'appareil.
Page 41
Réglez le volume avec les boutons skip (. // ), puis appuyez sur le bouton ALARM 1 ou ALARM 2. Le volume du réveil se règle de 10 à max. Le réglage du réveil est maintenant terminé. ALARM 1, ALARM 2 Pour activer le réveil Après avoir réglé...
Réveil 2 Caractéristiques Pour couper le réveil Section SYNTONISEUR Plage de fréquences . FM: 87,50 MHz à 108,00 MHz Si vous n’utilisez pas le réveil, appuyez sur le AM: 530 kHz à 1.710 kHz bouton ALARM 1 ou ALARM 2 pour le couper. Section SYSTEME DE HAUT-PARLEURS Type .
Impossible d’insérer l’iPod. vous-même avant d’appeler votre revendeur ou le e Vérifiez l’adaptateur de dock (voir page 30). centre technique TEAC. e Retirez la poussière ou les obstacles du connecteur de dock du SR-L230i et de l’iPod, et réinsérez l’iPod.
Índice Antes de utilizar la unidad Enhorabuena por la adquisición de un TEAC. Lea Léase antes de realizar ninguna operación detenidamente este manual a fin de obtener el < La unidad puede calentarse durante mejor rendimiento de esta unidad. funcionamiento, por lo que habrá que dejar espacio suficiente alrededor para su ventilación.
Mando a distancia El mando a distancia suministrado le permite controlar Precauciones con las pilas el aparato a distancia. < Asegúrese de insertar las pilas con sus polaridades Cuando utilice el mando a distancia, diríjalo hacia el positiva “+“ y negativa “_“ correctas. sensor remoto en el panel frontal del aparato.
Conexiones PRECAUCIÓN: < Apague la unidad antes de realizar las conexiones. < Lea las instrucciones de cada uno de los componentes que tiene intención de usar con esta unidad. < Inserte correctamente los conectores. Para evitar zumbidos y ruidos, no tienda los cables de conexión en el mismo mazo.
Page 47
Antena de FM Compartimento de la pila En el modo FM, sintonice una emisora de La pila suministra energía de reserva al reloj y la frecuencia modulada y despliegue el cable hasta memoria integrados cuando la unidad está lograr la mejor recepción. La antena quizá deba temporalmente desconectada de la corriente.
Funciones Q P O N Bocinas (estereo) STANDBAY/ON FUNCTION SLEEP Use este botón para programar la desconexión ALARM MENU FM/AM automática. PRESET/SCROLL SELECT FM MODE ALARM 1, ALARM 2 Mantenga presionado estos botones más de dos segundos para entrar en el modo de ajuste del temporizador.
Page 49
FM/AM Standby/on ( En modo TUNER, use este botón para seleccionar Use este botón para encender o apagar la unidad. AM o FM. FUNCTION Reproducción/Pausa (y/J) Use este botón para seleccionar una fuente (iPod, Use este botón para iniciar la reproducción o activar TUNER, AUX).
Pantalla Primeros pasos El SR-L230i es suministrado con un adaptador “60GB (color) + Photo 40/60GB” premontado. Para escuchar el iPod en el SR-L230i, usted primero tiene que comprobar si el adaptador premontado es apropiado por su modelo de iPod. Si esto no lo es, tiene que sustituirlo por uno correcto, como explicado debajo.
Page 51
3. Inserte el adaptador en la base del SR-L230i. Software de iPod compatible Ajuste el borde frontal del adaptador en la base, y Si el iPod no funciona con el SR-L230i o con el mando después presione el borde posterior hasta que oiga a distancia, una actualización de software puede un ligero clic, que indicará...
Ajuste del reloj Pulse el botón skip (. o /) para ajustar la hora actual. Pulse el botón CLOCK ADJ. CLOCK ADJ Parpadea el valor de “minuto”. < No podrá ajustar la hora mientras la fuente sea “TUNER”. Pulse el botón CLOCK ADJ para mostrar el reloj.
Funcionamiento básico 1 Intensidad luminosa Pulse el botón para encender la unidad. Puede cambiar el brillo del panel frontal. Utilice el botón DIMMER (atenuación) para cambiar el brillo en tres niveles. < La unidad se enciende con la última fuente de sonido seleccionada.
Page 54
Funcionamiento básico 2 Ajuste de graves (bass) y agudos Temporizador (treble) Al pulsar repetidamente el botón SLEEP se puede ajustar un intervalo (de 90 a 10 minutos), después Puede cambiar los sonidos graves y agudos en un de lo cual se apagará la unidad automáticamente y escala de “–5”...
Escucha de iPod Inserte el iPod en la base del SR-L230i. Selección del modo iPod Despues pulse el botón de reproducción/pausa Seleccione “iPod” con el botón FUNCTION. Si ya (y/J) del iPod o del SR-L230i. El SR-L230i se hay un iPod conectado a la base, se iniciará la apagará...
Control del iPod Para retroceder al menú anterior MENU Pulse el botón MENU. Este botón tiene las mismas Para interrumpir momentáneamente la funciones que el mismo botón del iPod. reproducción (pausa). Para elegir una opción de menú PRESET/SCROLL Pulse el botón de reproducción/pausa (G /J ) durante la reproducción.
Audición de una fuente externa Conecte el jack PHONES (salida de audio) de Reproduce la fuente sonora y ajuste el un reproductor de audio portátil a la entrada volumen tanto del iPod como del reproductor AUX IN del SR-L230i utilizando el cable con de audio.
Escucha de la radio Compruebe la frecuencia del sintonizador Pulse el botón DISPLAY. La banda y la frecuencia actuales aparecen durante 20 segundos. DISPLAY Seleccione “TUNER” con el botón FUNCTION. Si la recepción de FM o AM es de baja calidad Seleccione FM o AM con el botón FM/AM.
Presintonías Puede almacenar emisoras de FM y AM en los canales Cómo seleccionar presintonías del 1 al 20. Pulse el botón FM/AM para seleccionar FM o Sintonice una emisora (pasos en página 58). FM/AM Pulse el botón MEMORY. MEMORY/ CLOCK ADJ Pulse les botónes PRESET (‡/°) repetidas veces hasta localizar la presintonía deseada.
Temporizador 1 Pulse los botones de salto (. o /) para ajustar los minutos y, a continuación, pulse los botones ALARM 1 o ALARM 2. La hora de activación ha sido ajustada. ALARM 1, ALARM 2 Parpadean “OFF” y el valor de la hora de desactivación.
Page 61
Ajuste el volumen con los botones de salto (.//), y a continuación pulse ALARM 1 o ALARM 2. El volumen del modo de temporizador se puede ajustar entre 10 y max. El temporizador ya está programado. ALARM 1, ALARM 2 Para activar el temporizador Una vez programado el temporizador, pulse el botón ALARM 1 o ALARM 2 para activarlo.
Temporizador 2 Especificaciones Para desactivar el temporizador Sección de sintonizador Margen de frecuencias . . FM: 87.5 MHz-108.0 MHz Si no va a utilizar el temporizador, pulse el botón AM: 530 kHz-1,710 kHz ALARM 1 o ALARM 2 para desactivarlo. Sección de altavoces Tipo .
No se puede insertar el iPod. cuenta antes de llamar a su distribuidor o al centro de e Compruebe el adaptador de la base (véase página asistencia técnica de TEAC. 50). e Limpie o despeje de obstáculos el conector de la base del SR-L230i y el iPod, e insértelo de nuevo.
Page 64
