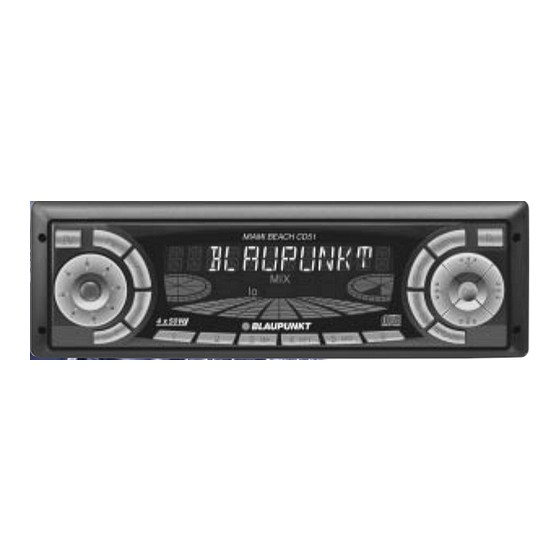

Blaupunkt Miami Beach CD51 Operating And Installation Manual
Radio / cd
Hide thumbs
Also See for Miami Beach CD51:
- Operating instructions manual (33 pages) ,
- Operating and installation instructions (28 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Blaupunkt Miami Beach CD51
Summary of Contents for Blaupunkt Miami Beach CD51
- Page 1 Radio / CD Miami Beach CD51 Operating and installation instructions...
- Page 2 Open here...
- Page 4 CONTROLS button – to unlock the OK button – confirms menu removable control panel (release entries and starts the scan func- panel) tion < Volume control X-BASS button – to set the X-Bass feature Button – switches the unit on/off, volume mute AUDIO button (audio) –...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Notes and accessories .... 6 Scanning tracks (SCAN) ....14 Repeating tracks (REPEAT) ... 14 Road safety ........6 Pausing playback (PAUSE) .... 14 Installation ........6 Changing the display ..... 15 Accessories ........6 Ejecting a CD ........ 15 International telephone information ... -
Page 6: Notes And Accessories
CDC A 071 CD changers by using an from afar. For this reason, set the adapter cable (Blaupunkt no.: 7 607 889 volume of whatever you are listen- 093). ing to to a reasonable level. -
Page 7: Removable Control Panel
REMOVABLE CONTROL PANEL ➮ button 1. Removable control panel Press the The control panel locking mechanism Theft protection opens. As a way of protecting your car radio ➮ First, pull the control panel straight against theft, the unit is equipped with off the unit and then out towards a removable control panel (flip-release the left. -
Page 8: Switching On/Off
SWITCHING ON/OFF Switching on/off Switching on by inserting a CD If the unit is switched off and there is no There are various ways of switching the CD inserted in the drive, unit on/off: ➮ button 9. press the Switching on/off using the vehicle The flip-release panel opens. -
Page 9: Adjusting The Volume
ADJUSTING THE VOLUME Adjusting the volume Instantaneous volume reduction (mute) The volume can be adjusted in steps from 0 (off) to 66 (maximum). This feature allows you to instanta- neously reduce (mute) the volume to a ➮ To increase the volume, turn the level preset by you. -
Page 10: Setting The Volume Of The Confirmation Beep
ADJUSTING THE VOLUME ➮ You can find out from your Blaupunkt Set the volume using the buttons :. “0” means beep off, “9” dealer which navigation systems can be used with your car radio. means maximum beep volume. You can set the volume level at which... -
Page 11: Radio Mode
RADIO MODE Radio mode Setting the sensitivity for station seek tuning Switching to radio mode You can configure the radio to only tune If you are in CD, CD changer or AUX into stations with a strong reception or mode, to also tune into those with a weak re- ➮... -
Page 12: Storing Stations Automatically (Travelstore)
RADIO MODE Storing stations automatically Stopping SCAN and continuing listening to a station (Travelstore) ➮ Press the OK button ;. You can automatically store the six sta- tions with the strongest reception in the Scanning is stopped and the station that region. -
Page 13: Setting The Display
RADIO MODE CD MODE ➮ button : to set CD mode Press the the country/region. You can use this unit to play standard When you have finished making your CDs with a diameter of 5 inches. changes, Risk of damage to the CD drive! ➮... -
Page 14: Selecting Tracks
CD MODE Note: Selecting tracks You can set the scantime. For fur- ● ➮ Press one of the arrow buttons : ther details, please read the sec- to select the next or previous track. tion entitled “Setting the scantime” button : once, If you press the in the “Radio mode”... -
Page 15: Changing The Display
CD MODE CD CHANGER MODE Changing the display CD changer mode ➮ To switch between the track num- Note: ber and clock display / track num- Information on handling CDs, in- ● ber and playing time display, press serting CDs and operating the CD / DIS button 7 once or sev- changer can be found in the oper- eral times for longer than two sec-... -
Page 16: Changing The Display
CD CHANGER MODE “MIX ALL” appears briefly and MIX lights Changing the display up in the display. ➮ To switch between the track num- ber and clock display / track num- Note: ber and playing time display / CD In the case of the CDC A 08 and ●... -
Page 17: Pausing Playback (Pause)
CD CHANGER MODE CLOCK - TIME Pausing playback (PAUSE) CLOCK - Time ➮ >. Press button 3 Briefly displaying the time “PAUSE” appears in the display. ➮ To display the time, briefly press / DIS button 7. Cancelling pause ➮ >... - Page 18 CLOCK - TIME Selecting 12/24-hour clock Briefly displaying the time when mode the unit is switched off ➮ Press the MENU button 8. To briefly display the time when the unit is off, “MENU” appears in the display. ➮ / DIS button 7. press the ➮...
-
Page 19: Sound And Volume Distribution Settings
SOUND AND VOLUME DISTRIBUTION SETTINGS Sound and volume Setting the left/right volume distribution (balance) distribution settings ➮ To set the left/right volume distribu- You can adjust the sound and volume tion (balance), press the AUDIO distribution settings separately for each button =. -
Page 20: X-Bass
X-BASS SPECTROMETER X-BASS Setting the spectrometer The X-BASS feature can be used to The spectrometer (level display) briefly boost the bass at low volume levels. provides a symbolic display of the vol- ume and the audio control settings Adjusting the X-BASS boost whilst you are adjusting them. -
Page 21: External Audio Sources
You can obtain this adapter ca- 87.5 – 107.9 MHz ble (BP no.: 7 607 897 093) from your 530 – 1710 kHz authorised Blaupunkt dealer. Frequency ranges Asia and Europe: Switching the AUX input on/off 87.5 – 108 MHz ➮... -
Page 22: Installation Instructions
Installation instructions Speaker out RR+ Radio Mute Speaker out RR- Speaker out RF+ Permanent +12V Speaker out RF- Aut. antenna Speaker out LF+ Illumination Speaker out LF- Kl.15/Ignition Speaker out LR+ Ground Speaker out LR- Line Out LR Telefon / Navi NF in + Bus - In Line Out RR Telefon / Navi NF in –... - Page 23 +12V (max. 150 mA) Relais 4 Ohm 4 Ohm 4 Ohm 4 Ohm Kl. 15 +12V 1 3 5 Radio Mute (low) 1 2 V This information is subject to change without notice!
