Data Sheet

Cisco Unified IP Phone 7962G

Product Overview
®
Cisco
Unified Communications Solutions unify voice, video, data, and mobile applications on
fixed and mobile networks, delivering a media-rich collaboration experience across business,
government agency, and institutional workspaces. These applications use the network as the
platform to enhance comparative advantage by accelerating decision time and reducing
transaction time. The security, resilience, and scalability of the network enable users in any
workspace to easily connect anywhere, anytime, and anyplace, using any media, device or
operating system. Cisco Unified Communications is part of a comprehensive solution that includes
network infrastructure, security, wireless, management applications, lifecycle services, flexible
deployment and outsourced management options, and third-party applications.
The Cisco Unified IP Phone 7962G (Figure 1) is a full-featured IP phone with speakerphone and
handset designed for wideband audio. It is intended to meet the needs of managers and
administrative assistants. It has six programmable backlit line/feature buttons and four interactive
soft keys that guide you through all call features and functions. The phone has a large, 4-bit
grayscale graphical LCD (Figure 2) that provides features such as date and time, calling party
name, calling party number, digits dialed, and presence information. The crisp graphic capability of
the display allows for the inclusion of higher value, more visibly rich Extensible Markup Language
(XML) applications, and support for localization requiring double-byte Unicode encoding for fonts.
A hands-free speakerphone and handset designed for hi-fidelity wideband audio are standard on
the Cisco Unified IP Phone 7962G, as is a built-in headset connection and an integrated Ethernet
switch.

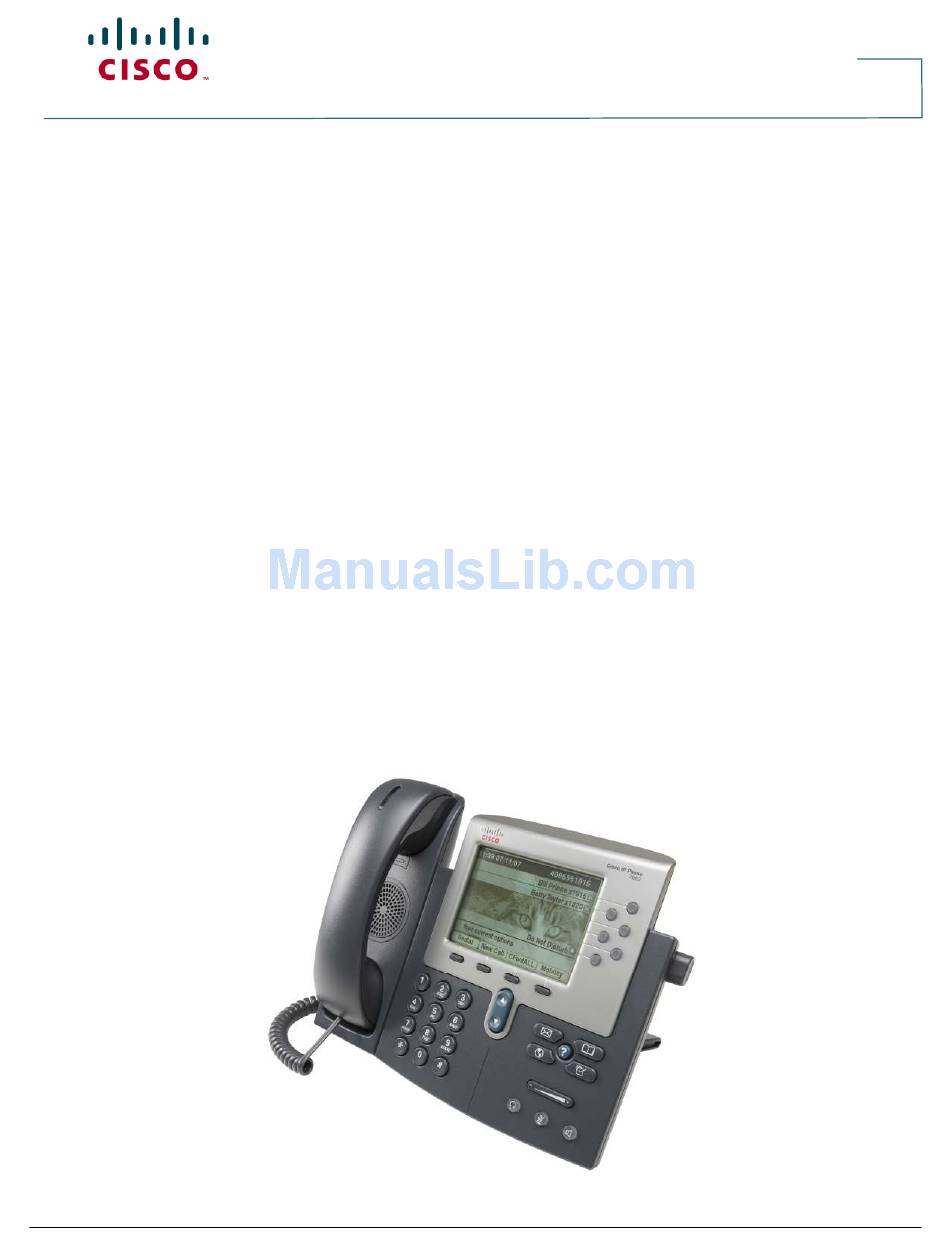

Figure 1.
Cisco Unified IP Phone 7962G
© 2011 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 1 of 5

Advertisement

loading

Related Manuals for Cisco 7962G

Summary of Contents for Cisco 7962G

  • Page 1: Cisco Unified Ip Phone 7962G

    The Cisco Unified IP Phone 7962G (Figure 1) is a full-featured IP phone with speakerphone and handset designed for wideband audio. It is intended to meet the needs of managers and administrative assistants.

  • Page 2: Features And Benefits

    Cisco.com. No hands-on moves and changes are required with the phone—you can simply pick up the phone and move to a new location anywhere on your network. The Cisco Unified IP Phone 7962G also provides many accessibility features. Table 1 lists the phone’s features.
  • Page 3 Supports IEEE 802.3af PoE (Class 2). Also supports Cisco Prestandard Power over Ethernet (PoE), allowing powering from any of the Cisco Inline Power-capable blades and boxes, plus Cisco midspan. 48VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (part number CP-PWR-CUBE-3=) or power injector (CP-PWR-INJ=).

  • Page 4: Ordering Information

    Single-port midspan power injector with integrated power supply, specifically designed and tested for use with all Cisco Unified IP Phones. May be used as an alternative to the existing Cisco phone local power adapter (CP-PWR-CUBE-3=), and can support a maximum distance of 100 meters between an unpowered switch and a Cisco Unified IP Phone.
  • Page 5 For more information about the Cisco Unified IP Phone 7962G, visit http://www.cisco.com/en/US/products/hw/phones/ps379/index.html or contact your local account representative. Printed in USA C78-418620-02 02/11 © 2011 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 5...
