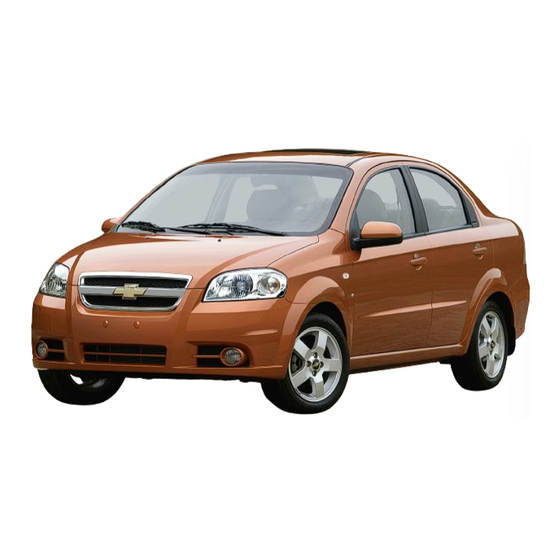

Page 1 2007 Chevrolet Aveo Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 8 Rear Seats ... 13 Safety Belts ... 19 Child Restraints ... 39 Airbag System ... 68 Restraint System Check Features and Controls ... 87 Keys ...
Page 2 Headlamp Aiming ... 309 Bulb Replacement ... 309 Windshield Wiper Blade Replacement Tires ... 319 Appearance Care ... 345 Vehicle Identiﬁcation ... 354 Electrical System ... 355 Capacities and Speciﬁcations Normal Maintenance Replacement Parts ... 369 Maintenance Schedule ... 371 Maintenance Schedule ...
Page 3: Canadian Owners
GENERAL MOTORS, GM, the GM Emblem, CHEVROLET, the CHEVROLET Emblem, and the name AVEO are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited”...
Page 4: How To Use This Manual
How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Page 5: Vehicle Symbols
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Table Of Contents
Section 1 Front Seats ... 8 Manual Seats ... 8 Driver Seat Height Adjuster ... 9 Manual Lumbar (Sedan) ... 9 Reclining Seatbacks ... 10 Head Restraints ... 12 Rear Seats ... 13 Rear Seat Operation (Sedan) ... 13 Rear Seat Operation (Hatchback) ... 15 Safety Belts ...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Driver Seat Height Adjuster
Driver Seat Height Adjuster To adjust the height of the driver’s seat cushion, turn the knob located on the outboard side of the seat cushion. Turn the knob forward to raise the height of the seat cushion and rearward to lower it. Manual Lumbar (Sedan) Your vehicle may have manually operated lumbar support for the driver’s seat.
Page 10: Reclining Seatbacks
Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 11 To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked.
Page 12: Head Restraints
Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chances of a neck injury in a crash. Pull the head restraint up to raise it. To lower it, press the button, located on the top of the seatback, and push the head restraint down.
Page 13: Rear Seats
The front head restraints can also be removed. To remove the restraint, press the button located on the top of the seatback, and lift the head restraint from the guide sleeve. Replace the head restraint before driving. The rear seats have head restraints that are adjustable up and down, but they do not tilt.
Page 14 3. Pull up the release knob located on top of the rear seatback. 4. Fold the rear seatback forward and down. To return the seatback to the upright position, do the following: 1. Hook the safety belts into the safety belt guide.
Page 15: Rear Seat Operation (Hatchback)
CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 16 Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat. 4. Move the safety belt buckles and safety belt in the center seating position out of the space between the seatback and the seat cushion so they are not in the way as the seat is being...
Page 17 Unfolding the Seats To return the rear seats to the normal seating position, do the following: 1. Unclip the hook from the front seat head restraint. 2. Remove the safety belt buckles and center seat safety belt from the storage area. Notice: Damage to the safety belt buckle or rear seat locking mechanism can occur if the safety belt and buckles are pinched under the...
Page 18 CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 19: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 20: Why Safety Belts Work
In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one.
Page 21 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 22 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
Page 23: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
Page 24: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
Page 25: Driver Position
Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 3.
Page 26 6. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
Page 27 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 28 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 29 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 30 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 31 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 32: Shoulder Belt Height Adjustment
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 33: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 34: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 35 2. Push the latch plate into the buckle until it clicks. Be sure you are using the correct buckle and that the latch plate clicks when inserted into the buckle. If the belt stops before it reaches the buckle, tilt the latch plate and keep pulling until you can buckle it.
Page 36 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 37: Center Rear Passenger Position
To unlatch the belt, just push the button on the buckle. Center Rear Passenger Position Your vehicle has a retractable safety belt in the center rear seating position. Here is how to use the center rear safety belt. 1. Pull the center rear safety belt from the retractor.
Page 38: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are located on the retractor part of the safety belts. They help the safety belts reduce a person’s forward movement in a moderate to severe frontal or near frontal crash.
Page 39: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 40 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 41 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 42: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 43 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for CAUTION: (Continued) CAUTION: (Continued) young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 44 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 45: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 46 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 47 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 48 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the...
Page 49 Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 50: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 51 There are a couple of things you need to know about using child restraints in your rear seat: If you use a child restraint in the center rear seating position, the safety belts and the child restraint LATCH anchors for the rear outside seating positions will not be accessible.
Page 52: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system Make sure that a LATCH-compatible child restraint...
Page 53 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 54 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Each seating position with lower anchors has two labels, near the crease between the seatback and the seat cushion, showing where the anchors are located.
Page 55 Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed. Hatchback For hatchback models, the top tether anchors (B) are located in the rear cargo area, attached to the back wall (A) of the vehicle.
Page 56 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
Page 57 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been...
Page 58 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2.1. Find the top tether anchor. 2.2.
Page 59: Securing A Child Restraint In A
If the position you are using has a head restraint and you are using a dual tether, route the tether under the head restraint and in between the head restraint posts. If the position you are using has an adjustable head restraint and you are using a single tether, route the tether under...
Page 60 3. Buckle the belt. Be sure the latch plate clicks 4. Pull the rest of the shoulder belt all the way when you put it into the buckle. This means you out of the retractor to set the lock. are using the correct buckle. Also, make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 61 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 62: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger’s airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 50. In addition, your vehicle has a passenger sensing system.
Page 63 CAUTION: (Continued) Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag and side airbag (if equipped), if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag or airbags will not deploy under some unusual circumstance, even though it is turned off.
Page 64 You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1.
Page 65 4. Buckle the belt. Make sure the release button 5. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
Page 66 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 67 If after reinstalling the child restraint and restarting the vehicle, the off symbol is still not lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion. If this happens, slightly recline the vehicle’s seatback and adjust the seat cushion if possible.
Page 68: Airbag System
Airbag System Your vehicle has a frontal airbag for the driver anda frontal airbag for the right front passenger. Your vehicle may also have side impact airbags. Side impact airbags are available for the driver and right front passenger. If your vehicle has a side impact airbag for the driver and/or the right front passenger, the word AIRBAG will appear on the airbag covering on the side of the seatback closest to the door.
Page 69 CAUTION: (Continued) crashes. They are not designed to inﬂate in rollover, rear crashes, or in many side crashes. And, for some unrestrained occupants, frontal airbags may provide less protection in frontal crashes than more forceful airbags have provided in the past. Side impact airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your...
Page 70 CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 71: Where Are The Airbags
Where Are the Airbags? The driver’s frontal airbag is in the middle of the steering wheel. The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side.
Page 72 If your vehicle has a side impact airbag for the driver, it is in the side of the driver’s seatback closest to the door. If your vehicle has a side impact airbag for the right front passenger, it is in the side of the passenger’s seatback closest to the door.
Page 73: When Should An Airbag Inﬂate
CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag...
Page 74 Frontal airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbags could inﬂate at a different crash speed than if the vehicle hits a moving object. • If the vehicle hits an object that deforms, the airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.
Page 75: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag. The inﬂator, the airbag and related hardware are all part of the airbag modules.
Page 76: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After an airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Some components of the airbag module — the steering wheel hub for the driver’s frontal airbag, the instrument panel for the right front passenger’s frontal airbag, and for seating positions with side impact airbags, the side of the...
Page 77: Passenger Sensing System
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After they inﬂate, you will need some new parts for your airbag system.
Page 78 United States – Canada – Hatchback Hatchback If you have a hatchback, the airbag off symbol will be visible in the Secondary Information Center (SIC) during the system check. See Secondary Information Center (SIC) (Hatchback Only) on page 175. When the system check is complete, the airbag off symbol will be visible under certain conditions.
Page 79 CAUTION: (Continued) This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag and side impact airbag (if equipped) if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy...
Page 80 If a child restraint has been installed and the off symbol is not lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint following the child restraint manufacturer’s directions and refer to Securing a Child Restraint in the Right Front Seat Position on page 62.
Page 81 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag and side airbag (if equipped).
Page 82: Servicing Your Airbag-Equipped Vehicle
You might want to consider not using seat covers or other aftermarket equipment if your vehicle has the passenger sensing system. See Adding Equipment to Your Airbag-Equipped Vehicle on page 83 for more information about modiﬁcations that can affect how the system operates. Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced.
Page 83: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 84: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 85 If you have had a crash, do you need new belts or LATCH system parts? After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new parts.
Page 86 NOTES...
Page 87: Features And Controls
Section 2 Keys ... 88 Remote Keyless Entry System ... 90 Remote Keyless Entry System Operation ... 91 Doors and Locks ... 94 Door Locks ... 94 Central Door Unlocking System ... 95 Door Ajar Reminder ... 96 Rear Door Security Locks ... 96 Lockout Protection ...
Page 88: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 89 One key is used for the ignition, the doors and all other locks. When a new vehicle is delivered, the dealer removes the key tag and gives it to the ﬁrst owner. The tag has a code on it that tells your dealer how to make extra keys.
Page 90: Remote Keyless Entry System
Remote Keyless Entry System If the vehicle has the keyless entry system, it operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 91: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation You can lock and unlock your vehicle’s doors from about 20 ft (6 m) away using the Remote Keyless Entry (RKE) transmitter. Hatchback The following functions may be available if your vehicle has the RKE system: Hatchback (Lock): Press this button to lock all of the doors.
Page 92 Sedan (Lock/Unlock): Press this button to lock all of the doors. The hazard lamps will ﬂash once to indicate that locking has occurred and that the theft-deterrent system is active. Press this button again to unlock all of the doors. The hazard lamps will ﬂash twice to indicate that unlocking has occurred and that the theft-deterrent system is deactivated.
Page 93 Battery Replacement Under normal use, the battery in your RKE transmitter should last about two years. The battery is weak if the LED fails to illuminate or if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 94: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 95: Central Door Unlocking System
To manually unlock the front doors from the outside, insert the key and turn it toward the front of the vehicle. To manually lock the doors from the outside, insert the key and turn it toward the rear of the vehicle. All doors, except for the driver’s door, can be locked by pushing down the manual door lock and then closing the door.
Page 96: Door Ajar Reminder
Door Ajar Reminder If one of the doors on the sedan is not closed properly while the ignition is on, the door ajar light on the instrument panel comes on and stays on until the doors are closed. If one of the doors on the hatchback is not closed properly while the ignition is on, the door ajar light on the secondary information center comes on and stays on until the doors are closed.
Page 97: Lockout Protection
Opening a Rear Door When the Security Lock is On 1. Unlock the door from the inside. 2. Open the door from the outside. If you do not cancel the security lock, adults or older children who ride in the rear will not be able to open the rear door from the inside.
Page 98: Trunk
Trunk CAUTION: It can be dangerous to drive with the trunk lid open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk lid:...
Page 99 If your vehicle has a trunk release lever located on the outboard side of the driver’s seat, you can open the trunk from inside your vehicle by pulling the release lever. Trunk Release Lever Emergency Trunk Release Handle Notice: Do not use the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk as it could damage the handle.
Page 100: Liftgate (Hatchback)
Liftgate (Hatchback) CAUTION: It can be dangerous to drive with the liftgate open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate:...
Page 101: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 102: Manual Windows
Manual Windows Use the window crank to open and close each window. The rear windows do not open fully. Power Windows If your vehicle has power windows, the switches are located on the driver’s door. In addition, each passenger door has a switch for its own window. The ignition must be turned to ON to use the power windows.
Page 103: Sun Visors
Sun Visors To block out glare you can swing down the visors. You can also remove them from the center mount and swing them to the side. Visor Vanity Mirror Your vehicle has vanity mirrors located on the back of the sun visors. Swing down the sun visor to expose the vanity mirror.
Page 104 3. Lock the doors by pressing the lock button on the remote keyless entry transmitter. • The LED light on the transmitter will ﬂash once. • All of the doors will lock. • The hazard warning lamps will ﬂash once and the horn will chirp.
Page 105 Disarming the System To disarm the system, do one of the following: • Unlock the driver’s or passenger’s front door using the key. • Press the unlock button on the remote keyless entry transmitter. − The LED light on the transmitter will ﬂash once.
Page 106: Immobilizer
Immobilizer This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This device complies with RSS-210 of Industry Canada.
Page 107: Starting And Operating Your Vehicle
When trying to start the vehicle, if the engine does not start and the security light continues ﬂashing, the key may have a damaged transponder. Turn the ignition off and try again. If the engine still does not start, and the key appears to be undamaged, try another key.
Page 108: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn the key to four different positions. CAUTION: On manual transaxle vehicles, turning the key to LOCK and removing it will lock the steering column and result in a loss of ability to steer the vehicle.
Page 109: Starting The Engine
START: This position starts the engine. When the engine starts, release the key. The switch will return to ON for normal driving. Do not turn the key to START if the engine is running. Even if the engine is not running, ACC and ON allow you to operate electrical accessories, such as the radio.
Page 110: Engine Coolant Heater
3. If the engine still will not start, or starts but then stops, it could be ﬂooded with too much gasoline. Try pushing your accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for about three seconds. If the vehicle starts brieﬂy but then stops again, do the same thing, but this time keep the pedal down for ﬁve or six seconds.
Page 111: Automatic Transaxle Operation
CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a ﬁre. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord will not reach, use a heavy-duty three-prong extension cord rated for at least 15 amps.
Page 112 PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily. CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set.
Page 113 CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, your vehicle could move very rapidly. You could lose control and hit people or objects. Do not shift into a drive gear while your engine is running at high speed.
Page 114: Hold Mode
FIRST (1): This position gives you even more power but lower fuel economy than SECOND (2). You can use it on very steep hills, or in deep snow or mud. If the shift lever is put in FIRST (1), the transaxle will not shift into ﬁrst gear until the vehicle is going slowly enough.
Page 115: Manual Transaxle Operation
For the Hatchback, the HOLD light will light up on the secondary information center. For the Sedan, the HOLD light will light up on the instrument panel cluster. See Hold Mode Light on page 181. When hold mode is activated, the transaxle is ﬁxed in the gear selected.
Page 116: Shift Speeds
You can shift into FIRST (1) when you are going less than 20 mph (32 km/h). If you have come to a complete stop and it is hard to shift into FIRST (1), put the shift lever in NEUTRAL and let up on the clutch.
Page 117: Parking Brake
Parking Brake The parking brake lever is located between the bucket seats. To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on.
Page 118: Shifting Into Park (P)
Shifting Into Park (P) (Automatic Transaxle) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 119: Shifting Out Of Park (P)
Torque Lock (Automatic Transaxle) If you are parking on a hill and you do not shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 120: Parking Your Vehicle
4. Insert the key into the shift-lock release slot and press and hold the key. 5. Shift to NEUTRAL (N). 6. Remove the key from the shift-lock release slot, insert the key into the ignition and start the engine. 7. Replace the shift-lock release slot cover. 8.
Page 121: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
Page 122: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 123 CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle. See the earlier caution under Engine Exhaust on page 122. Also, idling in a closed-in place can let deadly carbon monoxide (CO) into your vehicle even if the climate control fan is at the highest setting.
Page 124: Mirrors
Mirrors Manual Rearview Mirror While sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Grip the mirror in the center to move it up or down and side to side. The control at the bottom of the mirror is the day/night feature that allows adjustment to the mirror so that the glare of headlamps from behind is reduced.
Page 125: Outside Power Mirror
Outside Power Mirror For sedan models, the control for the power mirrors is located on the instrument panel, left of the steering wheel. To adjust the mirrors, do the following: 1. Select the mirror you want to adjust by moving the selector switch to L for the driver’s side mirror or R for the passenger’s side mirror.
Page 126: Outside Convex Mirror
Outside Convex Mirror CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your inside mirror or glance over your shoulder before changing lanes.
Page 127: Glove Box
Glove Box Open the glove box by pulling the bottom of the handle upward. Cupholder(s) There are two cupholders located in the center instrument panel, below the climate control system. To use the cupholder, push in on its outer edge. Then pull out the cupholder.
Page 128: Sunroof
Sunroof If the vehicle has this feature, the switch is located on the headliner between the sun visors. The sunroof will only operate when the ignition is turned to ON. The sunroof can be opened to a vent position or it can be opened all of the way. You must manually open and close the sunshade.
Page 129 Section 3 Instrument Panel Overview ... 132 Hazard Warning Flashers ... 135 Other Warning Devices ... 136 Horn ... 136 Tilt Wheel ... 136 Turn Signal/Multifunction Lever ... 137 Turn and Lane-Change Signals ... 137 Headlamp High/Low-Beam Changer ... 138 Flash-to-Pass ...
Page 130 Section 3 Daytime Running Lamps (DRL) Indicator Light ... 172 Door Ajar Light ... 173 Fuel Gage ... 173 Low Fuel Warning Light ... 174 Secondary Information Center (SIC) ... 175 Secondary Information Center (SIC) (Hatchback Only) ... 175 Clock (Hatchback Only) ... 176 Safety Belt Reminder Light ...
Page 131 NOTES...
Page 132: Instrument Panel Overview
Instrument Panel Overview United States Hatchback shown, Canada Hatchback similar...
Page 133 The main components of your instrument panel are the following: A. Air Outlet. See Outlet Adjustment on page 154. B. Instrument Panel Cluster. See Instrument Panel Cluster on page 158. C. Digital Clock and Secondary Information Center. See Clock on page 150 and Secondary Information Center (SIC) (Hatchback Only) on page 175.
Page 134 United States Sedan Shown, Canada Sedan similar...
Page 135: Hazard Warning Flashers
The main components of your instrument panel are the following: A. Air Outlet. See Outlet Adjustment on page 154. B. Instrument Panel Cluster. See Instrument Panel Cluster on page 158. C. Digital Clock. See Clock on page 150. D. Hood Release. See Hood Release on page 274.
Page 136: Other Warning Devices
Other Warning Devices If you carry reﬂective triangles, you can set them up at the side of the road about 300 feet (100 m) behind your vehicle. Horn Press near or on the horn symbols on your steering wheel pad to sound the horn. Tilt Wheel Your vehicle has a tilt wheel which allows you to adjust the steering wheel before you drive.
Page 137: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever Uplevel shown, Base similar The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 137. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 138.
Page 138: Headlamp High/Low-Beam Changer
If a bulb is burned out, replace it to help avoid an accident. If the arrows do not go on at all when you signal a turn, check for burned-out bulbs and then check the fuse. See Fuses and Circuit Breakers on page 356.
Page 139 Use this lever located on the right side of the steering wheel to operate the windshield wipers. The ignition must be turned to ON to operate the windshield wipers. HI (High Speed): Move the lever to this position for wiping at high speed. LO (Low Speed): Move the lever to this position for steady wiping at low speed.
Page 140: Windshield Washer
Windshield Washer To wash your windshield, pull the windshield washer/wiper lever toward you with the ignition turned to ON. CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision.
Page 141: Cruise Control
The rear window washer uses the same ﬂuid bottle as the windshield washer. However, the rear window washer will run out of ﬂuid before the windshield washer. If you can wash your windshield but not your rear window, check the ﬂuid level. Cruise Control If your vehicle has cruise control, you can maintain a speed of about 24 mph (39 km/h) or more without...
Page 142 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 143 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake pedal, or the clutch pedal if you have a manual transaxle. This, of course, shuts off the cruise control. But you do not need to reset it. Once you are going about 24 mph (39 km/h) or more, you can brieﬂy press the RESUME button.
Page 144 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: • Press the SET button until you reach the lower speed you want, then release it. • To slow down in very small amounts, brieﬂy press the SET button.
Page 145: Exterior Lamps
Exterior Lamps Uplevel shown, Base similar The lever on the left side of the steering column operates the exterior lamps. The exterior lamp band has three positions: (Headlamps): Turn the band to this position to turn on the headlamps, together with the following: •...
Page 146: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 147: Fog Lamps
Fog Lamps If your vehicle has fog lamps, use them for better visibility in foggy or misty conditions. The band located on the middle of the turn signal/ multifunction lever controls the fog lamps. While using the fog lamps, the ignition must be turned to ON and the low-beam headlamps or parking lamps must be on.
Page 148: Dome Lamp
Dome Lamp Your vehicle will have one of the following dome lamp switches. Without Sunroof The switches have three positions. ON: The light comes on and stays on. (Door): The light comes on when a door is opened. The light turns off when all the doors are closed.
Page 149: Ashtray(S) And Cigarette Lighter
Certain electrical accessories may not be compatible with the accessory power outlet and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer for additional information on accessory power outlets. Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should.
Page 150: Clock
Clock If you have a sedan there is a digital clock located in the center of the instrument panel, above the center air outlets. When the ignition is turned to ACC or ON, the time is displayed in the digital clock.
Page 151 Uplevel shown, Base similar, Sedan only Temperature Control: Turn the left knob clockwise or counterclockwise to manually increase or decrease the temperature inside your vehicle. Turn the knob to the blue area for cool air and to the red area for warm air. (Fan): Turn the middle knob clockwise or counterclockwise to increase or decrease the fan speed.
Page 152 If your vehicle has a recirculation button (uplevel model), press the button to turn the recirculation mode on. When the button is pressed, an indicator light in the button will come on. Press the button again to return to outside air mode. If your vehicle has a lever (base model), move the lever to choose the recirculation mode.
Page 153: Defogging And Defrosting
The air conditioning system removes moisture from the air, so you may sometimes notice a small amount of water dripping underneath your vehicle while idling or after turning off the engine. This is normal. Defogging and Defrosting Fog on the inside of windows is a result of high humidity or moisture condensing on the cool window glass.
Page 154: Outlet Adjustment
Rear Window and Outside Mirror Defogger Your vehicle may have a rear window and outside mirror defogger. This feature will only work when the ignition is turned to ON. The rear window defogger uses a warming grid to remove fog or frost from the rear window. Before using this feature, clear as much snow from the rear window as possible.
Page 155: Passenger Compartment Air Filter
Passenger Compartment Air Filter Your vehicle may have a passenger compartment air ﬁlter. It is located behind the glove box and can be accessed after removing the glove box from its housing. The ﬁlter traps most of the pollen from air entering the module.
Page 156 3. For hatchback models remove the four screws on the knee bolster and remove the knee bolster. 4. Then reverse the steps to install the new air ﬁlter and replace the glove box. View the air ﬂow arrows on the ﬁlter before installing to ensure you install the ﬁlter correctly.
Page 157: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 158: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using, and many other things you will need to drive safely and economically.
Page 159 United States Automatic Transaxle Sedan shown, Canada Manual Transaxle Sedan similar...
Page 160: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven in either miles, used in the United States, or kilometers, used in Canada. Trip Odometer The trip odometer can record the number of miles, used in the United States, or kilometers, used in...
Page 161: Safety Belt Reminder Light
Safety Belt Reminder Light The safety belt light will come on and stay on until the driver’s safety belt is buckled. If the driver’s belt is already buckled, the light will not come on. Safety Belt Reminder Tone If your vehicle has this feature, a tone will sound for several seconds when the ignition is turned to ON to remind people to fasten their safety belts.
Page 162: Passenger Airbag Status Indicator
If the airbag readiness light stays on after you start the vehicle or comes on when you are driving, your airbag system may not work properly. Have your vehicle serviced right away. CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly.
Page 163 See Passenger Sensing System on page 77 for more on this, including important safety information. If the off symbol is not lit on the passenger airbag status indicator, it means that the right front passenger’s frontal airbag and side impact airbag (if equipped) are enabled (may inﬂate).
Page 164: Charging System Light
Charging System Light The charging system light will come on brieﬂy when you turn on the ignition, and the engine is not running, as a check to show you it is working. Then it should go out when the engine is started. If it stays on, or comes on while you are driving, you may have a problem with the electrical charging system.
Page 165: Anti-Lock Brake System Warning Light
If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push or the pedal may go closer to the ﬂoor. It may take longer to stop. If the light is still on, have the vehicle towed for service.
Page 166: Hold Mode Light
If the regular brake system warning light is not on, you still have brakes, but you do not have anti-lock brakes. If the regular brake system warning light is also on, you do not have anti-lock brakes and there is a problem with your regular brakes. See Brake System Warning Light on page 164.
Page 167: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage United States Hatchback United States Sedan Your vehicle has an engine coolant temperature gage. With the ignition turned to ON, this gage shows the engine coolant temperature. If the gage pointer moves into the red area, your engine is too hot.
Page 168: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle has a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 169: If The Light Is On Steady
This light will also come on during a malfunction in one of two ways: • Light Flashing — A misﬁre condition has been detected. A misﬁre increases vehicle emissions and may damage the emission control system on your vehicle. Diagnosis and service may be required.
Page 170 Did you just drive through a deep puddle of water? If so, your electrical system may be wet. The condition will usually be corrected when the electrical system dries out. A few driving trips should turn the light off. Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel.
Page 171: Oil Pressure Light
Oil Pressure Light If your vehicle has low engine oil pressure, this light will stay on after you start your engine, or come on when you are driving. This indicates that your engine is not receiving enough oil. The engine could be low on oil, or could have some other oil problem.
Page 172: Fog Lamp Light
Fog Lamp Light If your vehicle has this feature, the fog lamps light will come on when the fog lamps are in use. The light will go out when the fog lamps are turned off. See Fog Lamps on page 147 for more information.
Page 173: Door Ajar Light
See Daytime Running Lamps (DRL) on page 146 for more information. Door Ajar Light The door ajar light will come on whenever a door is opened, regardless of the ignition position. If the key is in the ignition while the driver’s door is open, you will also hear a warning chime.
Page 174: Low Fuel Warning Light
Your fuel gage tells you about how much fuel you have left when the ignition is turned to ON. When the tank nears empty, the low fuel warning light will come on. You still have a little fuel left, but you should get more soon.
Page 175: Secondary Information Center (Sic)
Secondary Information Center (SIC) Secondary Information Center (SIC) (Hatchback Only) United States shown, Canada similar The secondary information center (SIC) displays some of the warning lights and indicators. The SIC is located in the center of the instrument panel, above the center air outlets. The digital clock is also located in the center of the SIC.
Page 176: Clock (Hatchback Only)
Clock (Hatchback Only) Your vehicle has a digital clock. The clock is located in the secondary instrument cluster on the center of the instrument panel, above the center air outlets. When the ignition is turned to ACC or ON, the time is displayed in the digital clock.
Page 177 This light will come on when you start your vehicle, and it will ﬂash for a few seconds. Then the light should go out. This means the system is ready. If the airbag readiness light stays on after you start the vehicle or comes on or ﬂashes when you are driving, your airbag system may not work properly.
Page 178: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator (Hatchback) Your vehicle has passenger airbag status indicator. United States — Hatchback If you have a hatchback, the airbag off symbol is visible in the Secondary Information Center (SIC) during the system check. When the ignition key is turned to ON or START, the passenger airbag status indicator will light for several seconds as a system check.
Page 179 CAUTION: If the off symbol in the passenger airbag status indicator does not come on when you have a rear-facing child restraint installed in the right front passenger’s seat, it means that the passenger sensing system has not turned off the passenger’s frontal airbag and side airbag (if equipped).
Page 180: Charging System Light
Charging System Light The charging system light will come on brieﬂy when you turn on the ignition, and the engine is not running, as a check to show you it is working. Then it should go out when the engine is started. If it stays on, or comes on while you are driving, you may have a problem with the electrical charging system.
Page 181: Hold Mode Light
The ABS warning light will come on brieﬂy when you turn the ignition to ON. This is normal. If the light does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem. Hold Mode Light If your vehicle has this feature, this light will...
Page 182 This may prevent more serious damage to your vehicle. This system is also designed to assist your service technician in correctly diagnosing any malfunction. Notice: If you keep driving your vehicle with this light on, after awhile, your emission controls may not work as well, your fuel economy may not be as good, and your engine may not run as smoothly.
Page 183 If the Light Is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady” following. If the light continues to ﬂash, when it is safe to do so, stop the vehicle.
Page 184 Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 266. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration.
Page 185: Oil Pressure Light
Oil Pressure Light If your vehicle has low engine oil pressure, this light will stay on after you start your engine, or come on when you are driving. This indicates that your engine is not receiving enough oil. The engine could be low on oil, or could have some other oil problem.
Page 186: Fog Lamp Light
Fog Lamp Light If your vehicle has this feature, the fog lamps light will come on when the fog lamps are in use. The light will go out when the fog lamps are turned off. See Fog Lamps on page 147 for more information.
Page 187 CAUTION: This system provides you with a far greater access to audio stations and song listings. Giving extended attention to entertainment tasks while driving can cause a crash and you or others can be injured or killed. Always keep your eyes on the road and your mind on the drive —...
Page 188: Am-Fm Radio
AM-FM Radio (Single Display, Base Level) Playing the Radio (Power): Press this knob to turn the system on or off. (Volume): Turn this knob to increase or to decrease the volume. VOL will appear on the display. Finding a Station AM/FM: Press this button to switch between FM1, FM2, or AM.
Page 189 Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM) can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM/FM to select FM1, FM2, or AM. 3.
Page 190: Base Level)
AM-FM Radio (Double Display, Base Level) Playing the Radio (Power/Volume): Press this knob to turn the system on or off. Turn this knob clockwise or counterclockwise to increase or decrease the volume. Press and hold this knob for more than two seconds to silence the system.
Page 191 TUNE: Press the up or down TUNE arrow to go to the next or to the previous radio station. SCAN: Push and release this button to scan radio stations. The radio will go to a station, play for a few seconds, then go on to the next station. Push this button again to stop scanning.
Page 192 Setting the Tone (Bass/Midrange/Treble) SOUND (Bass/Midrange/Treble): Press this button until BAS appears on the display. Turn the power/volume knob to increase or to decrease the bass. The display will show the bass level. When ﬁnished making the selection, press this button to select the bass level.
Page 193 Setting the EQ (Equalization) SOUND (Equalization): Press this button until EQ OFF appears on the display to select customized equalization settings designed for classic, dance, rock, jazz, pop, voice, and techno. Turn the power/volume knob until the desired equalization setting appears on the display. When ﬁnished making the selection, press the SOUND button to select the equalization setting.
Page 194: Radio With Cd (Mp3/Wma)
To use a portable audio player, connect a 3.5 mm (1/8 inch) cable to the radio’s front auxiliary input jack. When a device is connected, turn the portable audio player on. Press and hold the radio AM/AUX button for more than two seconds or until audio from the device begins to play over the car speakers.
Page 195 Finding a Station AM: Press this button to switch to an AM station. The display shows the selection. FM: Press this button to switch to an FM station. The display shows the selection. TUNE: Press this button to select radio stations.
Page 196 4. Press and hold one of the six numbered buttons for more than two seconds. The preset button number one through six ﬂashes on the display when the station has been set. Whenever that numbered preset button is pressed, that preset station returns. 5.
Page 197 Setting the Equalization The order for displayed customized equalization settings are EQ OFF, CLASSIC, DANCE, ROCK, JAZZ, POP, VOICE, TECHNO, EQ OFF. SOUND (Equalization): Press this button until EQ OFF (equalization) appears on the display to select customized equalization settings designed for classic, dance, rock, jazz, pop, voice and techno.
Page 198 If playing a CD-R, the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. There may be an increase in skipping, difficulty in ﬁnding tracks, and/or difficulty in loading and ejecting.
Page 199 FM: Press this button to listen to the radio while a CD is playing. The inactive CD remains safely inside the radio for future listening. CD/AUX: Press this button to play a CD while listening to the radio. CDP appears on the display when the CD player has been selected.
Page 200: Using The Auxiliary Input Jack
If any error occurs repeatedly or if an error cannot be corrected, contact your dealer. If the radio displays an error message, write it down and provide it to your dealer when reporting the problem. Using the Auxiliary Input Jack Your radio system has an auxiliary input jack located on the lower right side of the faceplate.
Page 201: Radio With Six-Disc Cd (Mp3/Wma)
Radio with Six-Disc CD (MP3/WMA) Playing the Radio (Power/Volume): Press and release this knob to turn the system on or off. Turn the power/volume knob clockwise or counterclockwise to increase or decrease the volume. Press and hold this knob for more than two seconds to silence the system.
Page 202 AST (Automatic Store) Six FM1 preset stations with the strongest reception in the region can be automatically stored. Press the AST button for more than one second. The display shows AUTO SCANNING and then SCANNING ﬂashes on the display. Once the stations are stored, the radio switches to FM1 and the ﬁrst preset station begins to play.
Page 203 Press this button until TRE (treble) appears on the display. Turn the power/volume knob to increase or to decrease the treble. The display shows the treble level. After making the selection, press this button to select the treble level. If a station is weak or has static, decrease the treble.
Page 204: Playing A Cd(S)
Playing a CD(s) LOAD: Press this button to load CDs into the CD player. This CD player holds up to six CDs. 1. Press and release the load button. A message to select a slot number from 1 through 6 appears on display.
Page 205 If there is no apparent damage, try a known good CD. Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen.
Page 206 FM: Press this button to listen to the radio while a CD is playing. The inactive CD remains inside the radio for future listening. CD/AUX: Press this button to play a CD while listening to the radio. CDP appears on the display when the CD player has been selected.
Page 207 If any error occurs repeatedly or if an error cannot be corrected, contact your dealer. If the radio displays an error message, write it down and provide it to your dealer when reporting the problem. Using the Auxiliary Input Jack AUX IN (Auxiliary Input): Your radio system has an auxiliary input jack located on the lower right side of the faceplate.
Page 208: Using An Mp3 (Radio With Cd Player)
Using an MP3 (Radio with CD Player) MP3/WMA CD-R Disc MP3 Format If you burn your own MP3/WMA disc on a personal computer: • Make sure the MP3/WMA ﬁles are recorded on a CD-R disc. • Do not mix standard audio and MP3/WMA ﬁles on one disc.
Page 209 Empty Directory or Folder If a root directory or a folder exists somewhere in the ﬁle structure that contains only folders/ subfolders and no compressed ﬁles directly beneath them, the player advances to the next folder in the ﬁle structure that contains compressed audio ﬁles.
Page 210 Playing an MP3/WMA With the ignition on, insert a CD partway into the slot, label side up. The player pulls it in, Loading, then Filecheck, and then MP3 or WMA appears on the display. The CD should begin playing. You cannot insert a CD with the ACC (accessory) off.
Page 211 All of the CD functions work the same while playing an MP3/WMA, except for those listed here. See “Playing a CD” earlier for more information. SCROLL (MP3/WMA Mode Only): Press the SOUND button for longer than two seconds. The song title or other available information of a song scrolls on/off.
Page 212: Using An Mp3
Using an MP3 (Radio with Six-Disc Player) MP3/WMA CD-R Disc MP3 Format If you burn your own MP3/WMA disc on a personal computer: • Make sure the MP3/WMA ﬁles are recorded on a CD-R disc. • Do not mix standard audio and MP3/WMA ﬁles on one disc.
Page 213 Empty Directory or Folder If a root directory or a folder exists somewhere in the ﬁle structure that contains only folders/ subfolders and no compressed ﬁles directly beneath them, the player advances to the next folder in the ﬁle structure that contains compressed audio ﬁles.
Page 214 Playing an MP3/WMA With the ignition on, insert a CD partway into the slot, label side up. The player pulls it in, Loading, then Filecheck, and then MP3 or WMA appears on the display. The CD should begin playing. You cannot insert a CD with the ACC (accessory) off.
Page 215 All of the CD functions work the same while playing an MP3/WMA, except for those listed here. See “Playing a CD” earlier for more information. SCROLL (MP3/WMA Mode Only): Press the SOUND button for longer than two seconds. The song title and other available information of the song scrolls on/off.
Page 216: Audio Steering Wheel Controls
Audio Steering Wheel Controls Front View of the Steering Wheel Controls If your vehicle has this feature, some audio controls can be adjusted at the steering wheel. They include the following: PWR (Power): Press this button to turn the audio system on or off.
Page 217: Radio Reception
Radio Reception You may experience frequency interference and static during normal radio reception if items such as cellphone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet.
Page 218: Fixed Mast Antenna (Hatchback)
Fixed Mast Antenna (Hatchback) The ﬁxed mast antenna can withstand most car washes without being damaged. If the mast should ever become slightly bent, straighten it out by hand. If the mast is badly bent, replace it. Check occasionally to make sure the mast is still tightened to the antenna base located on the roof of the vehicle.
Page 219: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 220 Defensive Driving ... 220 Drunken Driving ... 221 Control of a Vehicle ... 224 Braking ... 224 Anti-Lock Brake System (ABS) ... 225 Braking in Emergencies ... 227 Steering ... 227 Off-Road Recovery ...
Page 220: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 19. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 221: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 222 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 223 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 224: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 225: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. The brakes may not have time to cool between hard stops. The brakes will wear out much faster if you do a lot of heavy braking.
Page 226 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 227: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 228 Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here is why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves.
Page 229 Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 230: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 231 • Watch for traffic signs, pavement markings, and lines. If you can see a sign up ahead that might indicate a turn or an intersection, delay your pass. A broken center line usually indicates it is all right to pass, providing the road ahead is clear.
Page 232: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 233: Driving At Night
If you have the Anti-Lock Brake System (ABS), remember: It helps avoid only the braking skid. If you do not have ABS, then in a braking skid, where the wheels are no longer rolling, release enough pressure on the brakes to get the wheels rolling again.
Page 234: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to re-adjust to the dark. When you are faced with severe glare, as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps, slow down a little.
Page 235 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 236 Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle.
Page 237: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 238: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 239: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 240: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 241 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transaxle.
Page 242: Winter Driving
• Stay in your own lane when driving on two-lane roads in hills or mountains. Do not swing wide or cut across the center of the road. Drive at speeds that let you stay in your own lane. • As you go over the top of a hill, be alert. There could be something in your lane, like a stalled car or an accident.
Page 243 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction.
Page 244 But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall. Try to avoid driving on wet ice until salt and sand crews can get there. Whatever the condition —...
Page 245 Remember, unless you have ABS, if you brake so hard that your wheels stop rolling, you will just slide. Brake so your wheels always keep rolling and you can still steer. • Whatever your braking system, allow greater following distance on any slippery road. •...
Page 246 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 247: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with your headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold.
Page 248: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. Then shift back and forth between REVERSE (R) and a forward gear, or with a manual transaxle, between FIRST (1) or SECOND (2) and REVERSE (R), spinning the wheels as little as possible.
Page 249 Tire and Loading Information Label - United States Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms...
Page 250 Steps for Determining Correct Load Limit 1. Locate the statement The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs“ on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 251 Example 1 Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity 1,000 lbs (453 kg) Weight for Example 2 Subtract...
Page 252 Example 3 Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passenger, and cargo should never exceed your vehicle’s capacity weight.
Page 253 For more information on tires and inﬂation see Tires on page 319 and Inﬂation - Tire Pressure on page 326. There is also important loading information on the Certiﬁcation label. See “Certiﬁcation Label” later in this section. Steps for Determining Correct Load Limit 1.
Page 254 Example 1 Item Description Vehicle Capacity Weight or Maximum Load, for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity Weight or Maximum...
Page 255 Example 3 Item Description Vehicle Capacity Weight or Maximum Load for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers, and cargo should never exceed your vehicle’s maximum load weight.
Page 256 Label Example - Canada A vehicle speciﬁc Certiﬁcation label is attached to the center pillar (B-pillar), below the driver’s door latch. This label tells you the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel and cargo.
Page 257: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going.
Page 258 Here are some important things to consider before you do recreational vehicle towing: • What is the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 259: Towing A Trailer
Dolly Towing Notice: Towing your vehicle from the rear with the front wheels on the ground could cause transaxle damage. Do not tow the vehicle from the rear with the front wheels on the road. Your vehicle can be towed using a dolly. To tow your vehicle using a dolly, follow these steps: 1.
Page 260 NOTES...
Page 261: Service And Appearance Care
Section 5 Service ... 264 Accessories and Modiﬁcations ... 264 California Proposition 65 Warning ... 265 Doing Your Own Service Work ... 265 Adding Equipment to the Outside of Your Vehicle ... 266 Fuel ... 266 Gasoline Octane ... 266 Gasoline Speciﬁcations ...
Page 262 Section 5 Windshield Wiper Blade Replacement ... 318 Tires ... 319 Tire Sidewall Labeling ... 320 Tire Terminology and Deﬁnitions ... 323 Inﬂation - Tire Pressure ... 326 Tire Inspection and Rotation ... 327 When It Is Time for New Tires ... 329 Buying New Tires ...
Page 263 Section 5 Vehicle Identiﬁcation ... 354 Vehicle Identiﬁcation Number (VIN) ... 354 Service Parts Identiﬁcation Label ... 354 Electrical System ... 355 Add-On Electrical Equipment ... 355 Headlamp Wiring ... 355 Windshield Wiper Fuses ... 355 Service and Appearance Care Power Windows and Other Power Options ...
Page 264: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 265: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 266: Adding Equipment To The Outside Of Your Vehicle
Your vehicle has an airbag system. Before attempting to do your own service work, see Servicing Your Airbag-Equipped Vehicle on page 82. You should keep a record with all parts receipts and list the mileage and the date of any service work you perform.
Page 267: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 268: Fuels In Foreign Countries
Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines may be available in your area. General Motors recommends that you use these gasolines if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 269: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling.
Page 270 Hatchback shown. Sedan similar The tethered fuel cap is located behind a hinged fuel door on the passenger’s side of the vehicle. To remove the fuel cap, turn it slowly counterclockwise. The fuel cap has a spring in it; if the cap is released too soon, it will spring back to the right.
Page 271 Be careful not to spill fuel. Do not top off or overﬁll the tank and wait a few seconds after you have ﬁnished pumping before removing the nozzle. Clean fuel from painted surfaces as soon as possible. See Washing Your Vehicle on page 349.
Page 272: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 273: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing, and tools away from any underhood electric fan. CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 274: Hood Release
Hood Release To open the hood, do the following: 1. Pull the hood release handle inside the vehicle. It is located on the lower left side of the instrument panel. 2. Then go to the front of the vehicle and lift up on the secondary hood release lever, located under the front center of the hood.
Page 275 Before closing the hood, be sure all the ﬁller caps are on properly. Then lift the hood to relieve pressure on the hood prop. Remove the hood prop from the slot in the inner fender and return the prop to its retainer. Lower the hood 12 inches (30 cm) above the vehicle and release it so it fully latches.
Page 276: Engine Compartment Overview
Engine Compartment Overview When you open the hood, here is what you will see: Automatic shown, Manual similar...
Page 277: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 281. B. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 277. C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 277. D.
Page 278 Checking Engine Oil It is a good idea to check the engine oil every time you get fuel. In order to get an accurate reading, the oil must be warm and the vehicle must be on level ground. The engine oil dipstick handle is a yellow loop. See Engine Compartment Overview on page 276 for the location of the engine oil dipstick.
Page 279 What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 280 If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for the engine at extremely low temperatures.
Page 281: Engine Air Cleaner/Filter
What to Do with Used Oil Used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner.
Page 282 When to Inspect the Engine Air Cleaner/Filter Inspect the engine air cleaner/ﬁlter every 15,000 miles (25 000 km) and replace it every 30,000 miles (50 000 km). If you are driving in dusty/dirty conditions, inspect the ﬁlter at each engine oil change. How to Inspect the Engine Air Cleaner/Filter To inspect the engine air cleaner/ﬁlter remove the...
Page 283: Automatic Transaxle Fluid
Automatic Transaxle Fluid When to Check Automatic Transaxle Fluid Check your automatic transaxle ﬂuid level at least twice a year. Add ﬂuid if needed. See At Least Twice a Year on page 389. How to Check Automatic Transaxle Fluid Because this operation can be a little difficult, you may choose to have this done at the dealership service department.
Page 284 Checking the Fluid Level Prepare your vehicle as follows: 1. Park your vehicle on a level place. Keep the engine running. 2. With the parking brake applied, place the shift lever in PARK (P). 3. With your foot on the brake pedal, move the shift lever through each gear range, pausing for about three seconds in each range.
Page 285: Manual Transaxle Fluid
How to Add Automatic Transaxle Fluid Refer to the Maintenance Schedule to determine what kind of transaxle ﬂuid to use. See Part D: Recommended Fluids and Lubricants on page 396. If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level into the area between the two dimples in the hot range on the dipstick.
Page 286: Hydraulic Clutch
Hydraulic Clutch There is one reservoir for both the brake and the hydraulic clutch ﬂuid. See Brakes on page 299 for more information. The hydraulic clutch linkage in your vehicle is self-adjusting. The master cylinder reservoir is ﬁlled with hydraulic ﬂuid. A ﬂuid loss in this system could indicate a problem.
Page 287: Engine Coolant
Engine Coolant The cooling system in your vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst, if you add only DEX-COOL life coolant.
Page 288 What to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 289 Checking Coolant The engine coolant surge tank is located in the rear of the engine compartment on the driver’s side of the vehicle. See Engine Compartment Overview on page 276 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 290: Coolant Surge Tank Pressure Cap
Adding Coolant If you need more coolant, add the proper ® DEX-COOL coolant mixture at the coolant surge tank, but only when the engine is cool. If the coolant surge tank is empty, a special ﬁll procedure is necessary. See Engine Overheating on page 290 for instructions on “How to Add Coolant to the Coolant Surge Tank.”...
Page 291 If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 292: Cooling System
If the warning continues and you have not stopped, pull over, stop, and park your vehicle right away. If there is still no sign of steam, you can idle the engine for three minutes while you are parked. If you still have the warning, turn off the engine and get everyone out of the vehicle until it cools down.
Page 293 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing, and tools away from any underhood electric fan. If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down.
Page 294 How to Add Coolant to the Coolant Surge Tank Notice: This vehicle has a speciﬁc coolant ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. If you have not found a problem yet, check to see if coolant is visible in the surge tank.
Page 295 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
Page 296 2. Then keep turning the pressure cap slowly, 3. Fill the coolant surge tank with the proper and remove it. mixture to the Maximum mark on the coolant surge tank. Wait about ﬁve minutes, then check to see if the level is below the mark.
Page 297: Power Steering Fluid
4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan. By this time, the coolant level inside the coolant surge tank may be lower.
Page 298: Windshield Washer Fluid
How to Check Power Steering Fluid Turn the key off and let the engine compartment cool down. The level should be between the MIN (B) and MAX (A) marks on the reservoir. If the level drops below the MIN (B) mark, add power steering ﬂuid.
Page 299: Brakes
Notice: • When using concentrated washer ﬂuid, follow the manufacturer’s instructions for adding water. • Do not mix water with ready-to-use washer ﬂuid. Water can cause the solution to freeze and damage your washer ﬂuid tank and other parts of the washer system. Also, water does not clean as well as washer ﬂuid.
Page 300 So, it is not a good idea to top off your brake ﬂuid. Adding brake ﬂuid will not correct a leak. If you add ﬂuid when your linings are worn, then you will have too much ﬂuid when you get new brake linings.
Page 301 Notice: • Using the wrong ﬂuid can badly damage brake system parts. For example, just a few drops of mineral-based oil, such as engine oil, in your brake system can damage brake system parts so badly that they will have to be replaced. Do not let someone put in the wrong kind of ﬂuid.
Page 302 Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to GM torque speciﬁcations. If you have rear drum brakes, they do not have wear indicators, but if you ever hear a rear brake rubbing noise, have the rear brake linings inspected immediately.
Page 303: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 304: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 305 To avoid the possibility of the vehicles rolling, set the parking brake ﬁrmly on both vehicles involved in the jump start procedure. Put an automatic transaxle in PARK (P) or a manual transaxle in NEUTRAL before setting the parking brake. Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged.
Page 306 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 307 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery.
Page 308 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 309: Headlamp Aiming
Headlamp Aiming Headlamp aim has been preset at the factory and should need no further adjustment. However, if your vehicle is damaged in an accident, the headlamp aim may be affected. Aim adjustment to the low-beam headlamps may be necessary if it is difficult to see the lane markers (for horizontal aim), or if oncoming drivers ﬂash their high-beam headlamps at you (for vertical aim).
Page 310: Headlamps (Hatchback)
Headlamps (Hatchback) To replace a headlamp bulb, do the following: 1. Open the hood. See Hood Release on page 274 for more information. 2. Remove the ﬁve screws from top of the radiator grille. 3. Remove the radiator grille. 4. Remove the three bolts from the headlamp assembly.
Page 311: Headlamps (Sedan)
8. Release the spring that retains the bulb by loosing the screw. 9. Remove the old bulb. 10. Install the new bulb. 11. Install the bulb retaining spring. 12. Reverse Steps 1 through 8 to install the headlamp assembly. Headlamps (Sedan) To replace a headlamp bulb, do the following: 1.
Page 312: Front Turn Signal And Parking Lamps (Hatchback)
6. Release the spring that retains the bulb. 7. Remove the old bulb. 8. Install the new bulb. 9. Install the bulb retaining spring. 10. Reverse Steps 1 through 6 to install the headlamp assembly. Front Turn Signal and Parking Lamps (Hatchback) To replace a front turn signal or parking lamp bulb, do the following:...
Page 313: Front Turn Signal And Parking Lamps (Sedan)
3. Pull the front turn signal bulb socket out of the lamp housing. 4. Press the bulb inward and turn it counterclockwise to remove it from the bulb socket. 5. Install the new bulb into the socket by pressing it in and turning it clockwise. 6.
Page 314: Turn Signal Lamps (Side)
6. Install the new bulb into the socket by pressing it in and turning it clockwise. 7. Install the socket into the lamp housing by turning it clockwise. 8. Reverse Steps 1 through 2 under Headlamps (Hatchback) on page 310 or Headlamps (Sedan) on page 311 to install the assembly.
Page 315: Center High-Mounted Stoplamp (Chmsl) (Sedan)
Center High-Mounted Stoplamp (CHMSL) (Sedan) To replace a CHMSL bulb on the hatchback, contact your dealer. To replace a CHMSL bulb on the sedan do the following: 1. Open the trunk. See Trunk on page 98 for more information. 2. Remove the two screws and the lamp housing.
Page 316: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
Taillamps, Turn Signal, Stoplamps and Back-up Lamps To replace a taillamp, turn signal lamp, stoplamp, or back-up bulb, do the following: 1. Open the trunk or liftgate. See Trunk on page 98 or Liftgate (Hatchback) on page 100 for more information. Hatchback Sedan 2.
Page 317: License Plate Lamp
License Plate Lamp To replace one of these bulbs, do the following: 1. Remove the two screws holding each of the license plate lamps. 2. Turn and pull the license plate lamp forward through the opening. 3. Turn the bulb socket counterclockwise and pull the bulb straight out of the socket.
Page 318: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking. See “Wiper Blade Check” under Part B: Owner Checks and Services on page 389 for more information. Replacement blades come in different types and are removed in different ways. Here is how to remove the Shepherd’s Hook type: 1.
Page 319: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 320: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger car tire and a compact spare tire sidewall. Passenger Car Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 321 (E) Uniform Tire Quality Grading (UTQG): Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction and temperature resistance. For more information see Uniform Tire Quality Grading on page 332. (F) Maximum Cold Inﬂation Load Limit: Maximum load that can be carried and the maximum pressure needed to support that load.
Page 322 (B) Tire Ply Material: The type of cord and number of plies in the sidewall and under the tread. (C) Tire Identiﬁcation Number (TIN): The Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured.
Page 323: Tire Terminology And Deﬁnitions
(D) Construction Code: A letter code is used to indicate the type of ply construction in the tire. The letter R means radial ply construction; the letter D means diagonal or bias ply construction; and the letter B means belted-bias ply construction. (E) Rim Diameter: Diameter of the wheel in inches.
Page 324 DOT Markings: A code molded into the sidewall of a tire signifying that the tire is in compliance with the U.S. Department of Transportation (DOT) motor vehicle safety standards. The DOT code includes the Tire Identiﬁcation Number (TIN), an alphanumeric designator which can also identify the tire manufacturer, production plant, brand, and date of production.
Page 325 Passenger (P-Metric) Tire: A tire used on passenger cars and some light duty trucks and multipurpose vehicles. Recommended Inﬂation Pressure: Vehicle manufacturer’s recommended tire inﬂation pressure as shown on the tire placard. See Inﬂation - Tire Pressure on page 326 and Loading Your Vehicle on page 248.
Page 326: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 327: Tire Inspection And Rotation
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 328 When rotating your tires, always use the correct rotation pattern shown here. Do not include the compact spare tire in the tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the tire and loading information label.
Page 329: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining.
Page 330: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. If you need replacement tires, GM strongly recommends that you get tires that are the same size, brand, load range, speed rating, and construction type (radial and bias-belted tires) as your vehicle’s original tires.
Page 331: Different Size Tires And Wheels
CAUTION: If you use bias-ply tires on your vehicle, the wheel rim ﬂanges could develop cracks after many miles of driving. A tire and/or wheel could fail suddenly, causing a crash. Use only radial-ply tires with the wheels on your vehicle. Your vehicle’s original equipment tires are listed on the Tire and Loading Information Label.
Page 332: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum selection width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the Unites States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 333: Wheel Alignment And Tire Balance
Temperature — A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 334 Each new wheel should have the same load-carrying capacity, diameter, width, offset and be mounted the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new GM original equipment parts.
Page 335: Tire Chains
Tire Chains Notice: Use tire chains only where legal and only when you must. Use only SAE Class “S” type chains that are the proper size for your tires. Install them on the front tires and tighten them as tightly as possible with the ends securely fastened.
Page 336: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 337: Removing The Spare Tire And Tools
The following information will tell you how to use the jack and change a tire. Removing the Spare Tire and Tools The compact spare tire and tools you will need are located in the trunk. A. Jack C. Jack Handle B.
Page 338 1. Open the trunk or liftgate. See Trunk on page 98 or Liftgate (Hatchback) on page 100 for more information. 2. Lift the trim cover. 3. Remove the foam tray. 4. Remove the jack, the jack handle and the wheel wrench from the foam tray. 5.
Page 339: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire 1. If your vehicle has wheel covers, loosen the four plastic caps by hand or by using the wheel wrench. The plastic nuts do not come off of the cover. 2. Remove the wheel cover using the ﬂat end of the jack handle.
Page 340 Sedan 4. Locate the notch in the frame near each wheel which the jack head ﬁts in. 5. Position the jack and raise the jack head until it ﬁts ﬁrmly into the notch in the vehicle’s frame nearest the ﬂat tire. 6.
Page 341 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
Page 342 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 343 13. Install the wheel nuts with the rounded end of the nuts toward the wheel. Tighten each nut by hand clockwise until the wheel is held against the hub. 14. Lower the vehicle by turning the wheel wrench counterclockwise. Lower the jack completely.
Page 344: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.
Page 345: Appearance Care
Do not use your compact spare on other vehicles. And do not mix your compact spare tire or wheel with other wheels or tires. They will not ﬁt. Keep your spare tire and its wheel together. Notice: Tire chains will not ﬁt your compact spare.
Page 346: Fabric/Carpet
Dust may be removed from small buttons and knobs using a small brush with soft bristles. Your GM dealer has a product for cleaning your vehicle’s glass. Should it become necessary, you can also obtain a product from your GM dealer to remove odors from your vehicle’s upholstery.
Page 347: Leather
To clean, use the following instructions: 1. Saturate a lint-free, clean white cloth with water or club soda. 2. Wring the cloth to remove excess moisture. 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled.
Page 348: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt.
Page 349: Washing Your Vehicle
Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability. The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often with lukewarm or cold water. Do not wash the vehicle in the direct rays of the sun.
Page 350: Windshield And Wiper Blades
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage the vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non-abrasive cleaners that are marked safe for painted surfaces to remove foreign matter.
Page 351: Tires
Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish on chrome wheels only. The surface of these wheels is similar to the painted surface of the vehicle. Do not use strong soaps, chemicals, abrasive polishes, abrasive cleaners, cleaners with acid, or abrasive cleaning brushes on them because the surface could...
Page 352: Finish Damage
Finish Damage Any stone chips, fractures or deep scratches in the ﬁnish should be repaired right away. Bare metal will corrode quickly and may develop into major repair expense. Minor chips and scratches can be repaired with touch-up materials available from your GM dealer. Larger areas of ﬁnish damage can be corrected in your GM dealer’s body and paint shop.
Page 353: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil and Remover asphalt. Chrome Cleaner and Use on chrome or Polish stainless steel. White Sidewall Tire Removes soil and black Cleaner marks from whitewalls.
Page 354: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 355: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 356: Power Windows And Other Power Options
Power Windows and Other Power Options Circuit breakers in the fuse block protect the power windows and other power accessories. When the current load is too heavy, the circuit breaker opens and closes, protecting the circuit until the problem is ﬁxed or goes away. Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses,...
Page 357: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the end of the instrument panel on the driver’s side of the vehicle. Hatchback Sedan To access the fuses, open the fuse panel door by pulling the door out. To reinstall the door, ﬁrst insert the rear edge of the fuse panel door, then push the front of the door into the end of the instrument panel to secure it.
Page 358 Hatchback Fuses Usage AUX LTR Auxiliary Cigarette Lighter HORN, Horn, Rear Fog Lamps REAR/FOG Cigarette Lighter STOP Stop Lamp RADIO, CLK Audio, Clock CLSTR, Instrument Panel Cluster, Hazard HAZRD Flasher TRN/SIG Turn Signal DR/LCK Door Lock, Remote Keyless Entry CLSTR, CLK Instrument Panel Cluster, Clock Engine Control Module (ECM), ECM, TCM...
Page 359 Fuses Usage HVAC HVAC Blower AIRBAG 1 Airbag 1 BLANK Not Used Anti-lock Brake System DIODE (ABS) Anti-lock Brake System Diode AIRBAG 2 Airbag 2 BLANK Not Used CLK, RADIO Clock, Audio Sedan Fuses Usage Sensing and Diagnostic Module Windshield Wiper Switch, WIPER Windshield Wiper Motor Instrument Panel Cluster, Brake...
Page 360 Fuses Engine Room Fuse Block, Rear EMS1 HO2S, Transaxle Control Module, VSS, Fuel Pump STOP LAMP Brake Switch Cigarette Lighter, Auxiliary Power CIGAR Outlet AUDIO/CLOCK Radio, Clock On-Board Diagnostics, Immobilizer Trunk Lamp, Trunk Open Switch, ROOM LAMP Cluster, Dome Lamp DEFOGGER Rear Defogger SUNROOF...
Page 361: Engine Compartment Fuse Block
Engine Compartment Fuse Block The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery. See Engine Compartment Overview on page 276 for more information on location. Hatchback Sedan To access the fuses, pull out the top and bottom ﬂaps to release the cover.
Page 362 Fuses HI BEAM RT Passenger’s Side Headlamp High DIODE (FOG) Fog Lamp Diode Hatchback Usage HI BEAM LT BLANK Fuses Usage Driver’s Side Headlamp High Not Used...
Page 363 Fuses Usage LOW BEAM RT Passenger’s Side Headlamp Low Parking Lamp Right Side, ILLUM RT Illumination Circuit LOW BEAM LT Driver’s Side Headlamp Low Driver’s Side Parking Lamp, License ILLUM LT Plate Lamp INT LTS Room Lamp BLANK Not Used DEFOG Defogger S/ROOF...
Page 364 Relays BLANK Not Used COOL Cooling Fan Low FAN LOW HEAD Headlamp High LAMPS HI HEAD LAMPS Headlamp Low PWR WNDW Power Window FRT FOG Fog Lamp Usage Relays COOL FN CNTRL FUEL PUMP A/C COMPRSR Air Conditioning Compressor COOL FAN HI Cooling Fan High ILLUM LAMPS Illumination Lamps BLANK Usage...
Page 365 Fuses Usage BATT Instrument Panel Fuse Block Driver’s Side Parking Lamp, PK/LP LH Taillamp Sedan Fuses Passenger’s Side Parking Lamp, PK/LP RH Taillamp IGN2/ST Ignition Switch Usage...
Page 366 Fuses ACC/IGN1 Ignition Switch Hazard Lamps, Theft-Deterrent HAZARD System Passenger’s Side Low-Beam H/L LOW RH Headlamp FAN HI Cooling Fan High Speed H/L LOW LH Driver’s Side Low-Beam Headlamp FRT FOG Front Fog Lamps (Option) FAN LOW Cooling Fan Low Speed H/L HI High-Beam Headlamps Air Conditioning Compressor...
Page 367 Relays Usage H/L LOW Low-Beam Headlamp Relay RELAY FAN HI RELAY Cooling Fan High Speed Relay FUEL PUMP Fuel Pump Relay RELAY P/WINDOW Power Window Relay RELAY PARK LAMP Parking Lamp Relay RELAY FRT FOG Front Fog Lamps Relay RELAY Relays Usage H/L HI RELAY High-Beam Headlamp Relay...
Page 368: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Part D: Recommended Fluids and Lubricants on page 396 for more information. Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transaxle, Automatic Transaxle, Manual Wheel Nut Torque...
Page 369: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Normal Maintenance Replacement Parts Part Passenger Compartment Filter Engine Air Cleaner/Filter Engine Oil Filter Fuel Filter Spark Plugs Windshield Wiper Blade- Hatchback Driver’s Side Passenger’s Side Rear...
Page 370: Engine Drive Belt Routing
Engine Drive Belt Routing 1.6L L4 Engine...
Page 371: Maintenance Schedule
Section 6 Maintenance Schedule ... 372 Introduction ... 372 Maintenance Requirements ... 372 Your Vehicle and the Environment ... 372 How This Section is Organized ... 373 Part A: Scheduled Maintenance Services ... 374 Using the Maintenance Schedule ... 374 Selecting the Right Schedule ...
Page 372: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Maintenance intervals, checks, inspections and recommended ﬂuids and lubricants as prescribed in...
Page 373: How This Section Is Organized
How This Section is Organized This maintenance schedule is divided into ﬁve parts: “Part A: Scheduled Maintenance Services” explains what to have done and how often. Some of these services can be complex, so unless you are technically qualiﬁed and have the necessary equipment, you should let your GM dealer’s service department do these jobs.
Page 374: Part A: Scheduled Maintenance Services
Part A: Scheduled Maintenance Services In this part are scheduled maintenance services which are to be performed at the mileage intervals speciﬁed. Using the Maintenance Schedule We at General Motors want to keep your vehicle in good working condition. But we do not know exactly how you will drive it.
Page 375: Selecting The Right Schedule
Selecting the Right Schedule First you will need to decide which of the two schedules is right for your vehicle. Here is how to decide which schedule to follow: Short Trip/City Deﬁnition Follow the Short Trip/City Scheduled Maintenance if any one of these conditions is true for your vehicle: •...
Page 376 Long Trip/Highway Deﬁnition Follow this scheduled maintenance only if none of the conditions from the Short Trip/City Scheduled Maintenance are true. Do not use this schedule if the vehicle is driven in a dusty area or used off paved roads. Use the Short Trip/City schedule for these conditions.
Page 377: Short Trip/City Scheduled Maintenance
Short Trip/City Scheduled Maintenance The services shown in this schedule up to 100,000 miles (166 000 km) should be repeated after 100,000 miles (166 000 km) at the same intervals for the life of this vehicle. The services shown at 150,000 miles (240 000 km) should be repeated at the same interval after 150,000 miles (240 000 km) for the life of this vehicle.
Page 378 15,000 Miles (25 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. Inspect engine air cleaner ﬁlter.
Page 379 30,000 Miles (50 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. Replace engine air cleaner ﬁlter.
Page 380 45,000 Miles (75 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. Inspect engine air cleaner ﬁlter.
Page 381 60,000 Miles (100 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. Replace engine air cleaner ﬁlter.
Page 382 75,000 Miles (125 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. Inspect engine air cleaner ﬁlter.
Page 383 90,000 Miles (150 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. Replace engine air cleaner ﬁlter.
Page 384: Long Trip/Highway Scheduled Maintenance
Long Trip/Highway Scheduled Maintenance The services shown in this schedule up to 100,000 miles (166 000 km) should be repeated after 100,000 miles (166 000 km) at the same intervals for the life of this vehicle. The services shown at 150,000 miles (240 000 km) should be repeated at the same interval after 150,000 miles (240 000 km) for the life of this vehicle.
Page 385 22,500 Miles (37 500 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 327 for proper rotation pattern and additional information. (See footnote +.) 30,000 Miles (50 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst).
Page 386 45,000 Miles (75 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Replace passenger compartment air ﬁlter. If you drive regularly under dusty conditions, the ﬁlter may require replacement more often. Inspect engine air cleaner ﬁlter.
Page 387 67,500 Miles (112 500 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 327 for proper rotation pattern and additional information. (See footnote +.) 75,000 Miles (125 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst).
Page 388 Replace fuel ﬁlter. An Emission Control Service. (See footnote †.) Inspect drive belt(s). Inspect timing belt. Inspect EVAP canister, vapor lines and EVAP vent solenoid valve. An Emission Control Service. (See footnote †.) Inspect PCV system. An Emission Control Service. (See footnote †.) Change brake/clutch ﬂuid (or every 24 months, whichever occurs ﬁrst).
Page 389: Part B: Owner Checks And Services
Part B: Owner Checks and Services Listed in this part are owner checks and services which should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your vehicle. Be sure any necessary repairs are completed at once.
Page 390: At Least Once A Year
Also look for any opened or broken airbag coverings, and have them repaired or replaced. (The airbag system does not need regular maintenance.) Wiper Blade Check Inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield.
Page 391 Body Lubrication Service Lubricate all hood latch assemblies, secondary latch, pivots, spring anchor, release pawl, hood and body door hinges, rear compartment, and any folding seat hardware. Part D tells you what to use. More frequent lubrication may be required when exposed to a corrosive environment.
Page 392 Automatic Transaxle Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 393 Parking Brake and Automatic Transaxle Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 394: Part C: Periodic Maintenance Inspections
Part C: Periodic Maintenance Inspections Listed in this part are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let your dealer’s service department do these jobs. Make sure any necessary repairs are completed at once.
Page 395: Fuel System Inspection
Fuel System Inspection Inspect the complete fuel system for damage or leaks. Engine Cooling System Inspection Inspect the hoses and have them replaced if they are cracked, swollen or deteriorated. Inspect all pipes, ﬁttings and clamps; replace as needed. Clean the outside of the radiator and air conditioning condenser.
Page 396: Part D: Recommended Fluids And Lubricants
Part D: Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 397 Usage Fluid/Lubricant Multi-Purpose Lubricant, Superlube Key Lock (GM Part No. U.S. 12346241, in Cylinders Canada 10953474). Chassis Lubricant Manual (GM Part No. U.S. 12377985, Transaxle Shift in Canada 88901242) or lubricant Linkage meeting requirements of NLGI #2, Category LB or GC-LB. Chassis Lubricant (GM Part No.
Page 398: Part E: Maintenance Record
Part E: Maintenance Record After the scheduled services are performed, record the date, odometer reading, and who performed the service and any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record pages. Also, you should retain all maintenance receipts. Maintenance Record Odometer Date...
Page 399 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading...
Page 400 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading...
Page 401: Customer Assistance Information
Section 7 Customer Assistance and Information ... 402 Customer Satisfaction Procedure ... 402 Online Owner Center ... 405 Customer Assistance for Text Telephone (TTY) Users ... 406 Customer Assistance Offices ... 406 GM Mobility Reimbursement Program ... 407 Roadside Assistance Program ... 408 Courtesy Transportation ...
Page 402: Customer Assistance And Information
Customer Assistance and Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 403 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps 1 and 2, you should ﬁle with the BBB Auto Line Program to enforce your rights.
Page 404 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps 1 and 2, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration Program.
Page 405: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 406: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance for Text Telephone (TTY) Users To assist customers who are deaf, hard of hearing, or speech-impaired and who use Text Telephones (TTYs), Chevrolet has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Chevrolet by dialing: 1-800-833-CHEV (2438).
Page 407: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 408: Roadside Assistance Program
Roadside Assistance Program In the U.S., call 1-800-CHEV-USA (1-800-243-8872) In Canada, call 1-800-268-6800 Service available 24 hours a day, 365 days a year. As the owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 409 • Emergency Tow From a Public Roadway or Highway: Tow to the nearest dealership for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance when the vehicle is mired in sand, mud, or snow. • Flat Tire Change: If your vehicle has a spare tire, installation of the tire in good condition will be covered at no charge.
Page 410 • Trip Interruption Beneﬁts and Assistance: In the event of a warranty related vehicle disablement, while en route and over 250 kilometres from original point of departure, you may qualify for trip interruption expense assistance. This assistance covers reasonable reimbursement of up to a maximum of $500 (Canadian) for (A) meals (maximum of $50/day), (B) lodging (maximum of $100/ night) and (C) alternate ground transportation...
Page 411: Courtesy Transportation
Chevrolet and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 412 Scheduling Service Appointments When your vehicle requires warranty service, you should contact your dealer and request an appointment. By scheduling a service appointment and advising your service consultant of your transportation needs, your dealer can help minimize your inconvenience. If your vehicle cannot be scheduled into the service department immediately, keep driving it until it can be scheduled for service, unless, of course, the problem is safety-related.
Page 413 Public Transportation or Fuel Reimbursement If your vehicle requires overnight warranty repairs, and public transportation is used as ‘shuttle service,’ the reimbursement is limited to the associated shuttle allowance and must be supported by original receipts. In addition, for U.S. customers, should you arrange transportation through a friend or relative, limited reimbursement for reasonable fuel expenses may be available.
Page 414: Vehicle Data Collection And Event Data Recorders
Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for airbag deployment and, if the vehicle has the Anti-lock Brake System (ABS), to provide...
Page 415: Collision Damage Repair
In addition, once GM collects or receives data, GM may: • use the data for GM research needs, • make it available for research where appropriate conﬁdentiality is to be maintained and need is shown, or • share summary data which is not tied to a speciﬁc vehicle with non-GM organizations for research purposes.
Page 416 Recycled original equipment parts may also be used for repair. These parts are typically removed from vehicles that were total losses in prior accidents. In most cases, the parts being recycled are from undamaged sections of the vehicle. A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts...
Page 417 If your vehicle is leased, the leasing company may require you to have insurance that assures repairs with Genuine GM Original Equipment Manufacturer (OEM) parts or Genuine Manufacturer replacement parts. Read your lease carefully, as you may be charged at the end of your lease for poor quality repairs.
Page 418 • Gather the important information you will need from the other driver. Things like name, address, phone number, driver’s license number, vehicle license plate, vehicle make, model and model year, Vehicle Identiﬁcation Number (VIN), insurance company and policy number, and a general description of the damage to the other vehicle.
Page 419: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there.
Page 420: Reporting Safety Defects To The Canadian Government
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA 400 Seventh Street, SW. Washington, D.C. 20590 You can also obtain other information about motor vehicle safety from http://www.safercar.gov. Reporting Safety Defects to the Canadian Government If you live in Canada, and you believe that your...
Page 421: Service Publications Ordering Information
Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle suspension, brakes, electrical, steering, body, etc. Transmission, Transaxle, Transfer Case Unit Repair Manual This manual provides information on unit repair service procedures, adjustments, and speciﬁcations for GM transmissions, transaxles, and transfer cases.
Page 422 Owner Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 US + Processing Fee Without Portfolio: Owner’s Manual only.
Page 423 Accessories and Modiﬁcations ... 264 Accessory Power Outlet(s) ... 148 Adding Equipment to Your Airbag-Equipped Vehicle ... 83 Additives, Fuel ... 267 Add-On Electrical Equipment ... 355 Air Cleaner/Filter, Engine ... 281 Air Conditioning ... 150 Airbag Passenger Status Indicator ... 162 Readiness Light ...
Page 424 Appearance Care (cont.) Ashtray(s) ... 149 Audio System(s) ... 186 AM-FM Radio ... 188, 190 Audio Steering Wheel Controls ... 216 Backglass Antenna ... 218 Care of Your CD Player ... 217 Care of Your CDs ... 217 Fixed Mast Antenna ... 218 Radio with CD ...
Page 425 California Fuel ... 267 California Proposition 65 Warning ... 265 Canadian Owners ... 3 Capacities and Speciﬁcations ... 368 Carbon Monoxide ... 98, 100, 122, Care of Safety Belts ... 348 Your CD Player ... 217 Your CDs ... 217 CD, MP3 ...
Page 426 Compact Spare Tire ... 344 Control of a Vehicle ... 224 Coolant Engine Temperature Gage ... 167 Heater, Engine ... 110 Surge Tank Pressure Cap ... 290 Cooling System ... 292 Cruise Control ... 141 Cruise Control Light ... 172 Cupholder(s) ...
Page 427 Electrical System Add-On Equipment ... 355 Engine Compartment Fuse Block ... 361 Fuses and Circuit Breakers ... 356 Headlamp Wiring ... 355 Instrument Panel Fuse Block ... 357 Power Windows and Other Power Options ... 356 Windshield Wiper Fuses ... 355 Engine Air Cleaner/Filter ...
Page 428 Fuel (cont.) Filling Your Tank ... 269 Fuels in Foreign Countries ... 268 Gage ... 173 Gasoline Octane ... 266 Gasoline Speciﬁcations ... 266 Low Warning Light ... 174 System Inspection ... 395 Fuses Engine Compartment Fuse Block ... 361 Fuses and Circuit Breakers ...
Page 429 Horn ... 136 How to Use This Manual ... 4 How to Wear Safety Belts Properly ... 24 Hydraulic Clutch ... 286 Ignition Positions ... 108 Immobilizer ... 106 Immobilizer Operation ... 106 Infants and Young Children, Restraints ... 42 Inﬂation - Tire Pressure ...
Page 430 Light (cont.) Charging System ... 164, 180 Cruise Control ... 172 Daytime Running Lamps Indicator ... 172 Door Ajar ... 173, 186 Fog Lamp ... 172, 186 Highbeam On ... 172 Hold Mode ... 166, 181 Low Fuel Warning ... 174 Malfunction Indicator ...
Page 431 Maintenance Schedule (cont.) Part D - Recommended Fluids and Lubricants ... 396 Part E - Maintenance Record ... 398 Selecting the Right Schedule ... 375 Short Trip/City Scheduled Maintenance ... 377 Steering, Suspension and Front Drive Axle Boot and Seal Inspection ... 394 Using ...
Page 432 Paint, Damage ... 352 Park (P) Shifting Into ... 118 Shifting Out of ... 119 Parking Brake ... 117 Over Things That Burn ... 121 Parking Your Vehicle ... 120 Part A - Scheduled Maintenance Services ... 374 Part B - Owner Checks and Services ... 389 Part C - Periodic Maintenance Inspections ...
Page 433 Rearview Mirrors ... 124 Reclining Seatbacks ... 10 Recreational Vehicle Towing ... 257 Remote Keyless Entry System ... 90 Remote Keyless Entry System, Operation ... 91 Removing the Flat Tire and Installing the Spare Tire ... 339 Removing the Spare Tire and Tools ... 337 Replacement Bulbs ...
Page 434 Seats (cont.) Manual Lumbar ... 9 Rear Seat Operation ... 13, 15 Reclining Seatbacks ... 10 Secondary Information Center (SIC) ... 175 Securing a Child Restraint Rear Seat Position ... 59 Right Front Seat Position ... 62 Selecting the Right Schedule, Maintenance ...
Page 435 Tachometer ... 160 Taillamps Turn Signal, Stoplamps and Back-up Lamps ... 316 Theft-Deterrent System ... 103 Theft-Deterrent Systems ... 103 Immobilizer ... 106 Immobilizer Operation ... 106 Tilt Wheel ... 136 Time ... 150 Tires ... 319 Aluminum Wheels, Cleaning ... 350 Buying New Tires ...
Page 436 Vehicle Control ... 224 Damage Warnings ... 5 Loading ... 248 Parking Your ... 120 Symbols ... 5 Vehicle Data Collection and Event Data Recorders ... 414 Vehicle Identiﬁcation Number (VIN) ... 354 Service Parts Identiﬁcation Label ... 354 Ventilation Adjustment ... 154 Visors ...
