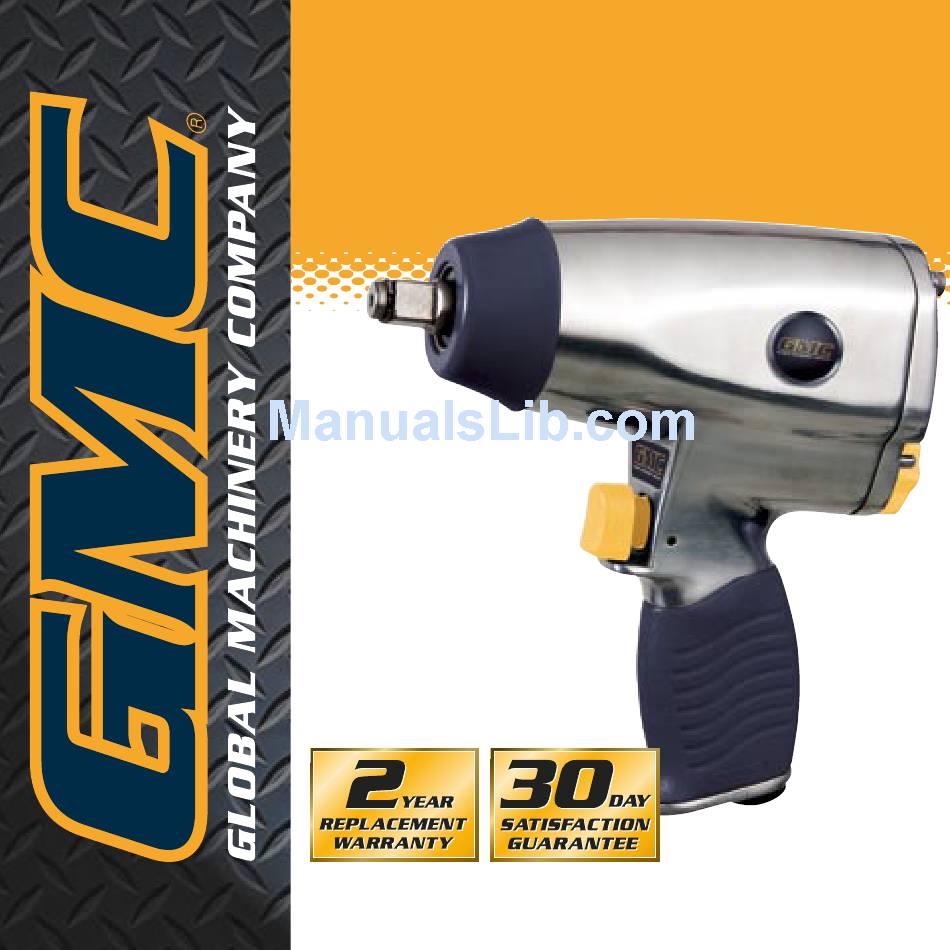

- Page 1 INSTRUCTION MANUAL Air Impact Wrench Kit 1/2” Square Drive • Melbourne • Perth • Auckland • Hong Kong • Shanghai • Taipei • New York • Verona • London • Paris ATIW1/2K 031117 PR ED04...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Scope of product Description of symbols Specifications General safety instructions Risk of eye or head injury Risk of fire or explosion Risk of loss of hearing Risk to breathing inhalation hazard Risk to injury Risk of electric shock Risk of entanglement Risk of cut or burns Additional safety instructions... -
Page 3: Warranty
Dear Customer If you require any help with your product, whether it is a Warranty claim, spare part or user information, please phone our Help Line for an immediate response. Phone 1300 880 001 in Australia or 0800 445 721 in New Zealand. Introduction Your new GMC tool will more than satisfy your expectations. - Page 4 1. Keep the work area clean and tidy. areas and benches invite accidents and injury. 2. Consider the environment in which you are working. Do not use air tools in damp or wet locations. Keep the work area well lit. Do not expose air tools to rain. Do not use air tools in the presence of flammable liquids or gases.
-
Page 5: Risk Of Eye Or Head Injury
Important safety instructions What could happen • Air powered equipment are capable of propelling materials such as fasteners, metal chips, saw dust, and other debris at high speed, which could result in serious eye injury. • Tool attachments can become loose or break and fly apart propelling particles at the operator and others in the work area. -
Page 6: Risk To Breathing Inhalation Hazard
What could happen • Abrasive tools, such as grinders, sanders, and cut-off tools generate dust and abrasive materials which can be harmful to human lungs and respiratory system. • Some materials such as adhesives and tar, contain chemicals whose vapors could cause serious injury with prolonged exposure. -
Page 7: Risk To Injury
• Loss of control of the tool can lead to injury to self or others. • Poor quality, improper, or damaged tools such as grinding wheels, chisels, sockets, drills, nailers, staplers, etc., can fly apart during operation, propelling particles throughout the work area causing serious injury. •... -
Page 8: Risk Of Electric Shock
What could happen • Using air tools to attach electrical wiring may result in electrocution or death. • Contact with a “live” wire will also make exposed metal parts of the tool “live” and may result in electrocution or death. •... -
Page 9: Know Your Product
Know your product Before using the impact wrench, familiarise yourself with all the operating features and safety requirements. Use the tool only for the applications intended. All other applications are expressly ruled out. 1.Drive anvil 2. Rubber nose guard 3. Body 4. -
Page 10: Additional Safety Instructions For Impact Wrenches
Additional safety instructions for impact wrenches This air impact wrench kit is designed for removing and installing nuts and bolts. With one hammer (Rocking Dog) impact mechanism and useful accessories, this kit is used as a general purpose tool kit by DIYers and hobbyists. 1. -
Page 11: Air Supply
5. Remove the screw and hold the oil port hole over a container to allow excess oil to drain. 6. If the oil is dirty, repeat the procedure above until the oil comes out clear. Install the screw and tighten. The residual oil remaining in the impact mechanism chamber is all that is needed for proper lubrication... -
Page 12: Troubleshooting
Trouble Possible cause(s) Tool runs slowly or will not 1. No oil in tool. operate. 2. Grit or gum in tool. 3. Low air pressure. 4. Air hose leaks. 5. Pressure drops. 6. Worn rotor blade. 7. Worn ball bearing. Troubleshooting Suggested remedy(s) 1. - Page 13 Trouble Possible cause(s) Moisture blowing out of 1. Water in tank. tool. 2. Water in air hoses. Impacts slowly or will not 1. Lack of lubrication. impact. 2. Tool regulator set in wrong position. 3. Inline regulator too low. Impacts rapidly but will 1.
