GEM PBT-020B-2 Specification Sheet

7 0
Unit: mm
This series of request to exit buttons can be mounted directly in
ANSI electrical box (Mortise mount)
Faceplate: Stainless steel
Type of actuation: Momentary
Contact arrangement: single pole single throw
Max. Ratings : 3A/125V AC, 6A/24VDC
Contact resistance: 50 mΩ Max.(initial)
Operating life(Mechanical) : Over 100,000 times
Operating travel: 2.0 mm
Faceplate: Stainless steel
Type of actuation: Momentary
Contact arrangement: Double pole double throw
Max. Ratings : 5A/125/250 VAC
Contact resistance: 50 mΩ Max.(initial)
Operating life(Mechanical) : Over 100,000 times
Operating travel: 2.7 mm
Cables included
Faceplate: Stainless steel
Type of actuation: Momentary
Contact arrangement: Double pole double throw
Max. Ratings : 5A 250 VAC, / 6A/24VDC
Contact resistance: 50 mΩ Max.(initial)
Operating life(Mechanical) : Over 100,000 times
Operating travel: 3.2 mm
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-PBT-ANSI Ver. J Published on 2011.02.14
ANSI single gang
electrical box
1 1 6
PBT-020B-2
1 9
m m
PBT-020B-4
1 9
m m
PBT-060B
1 6
m m
PBT Exit Button
ANSI size Stainless steel faceplate

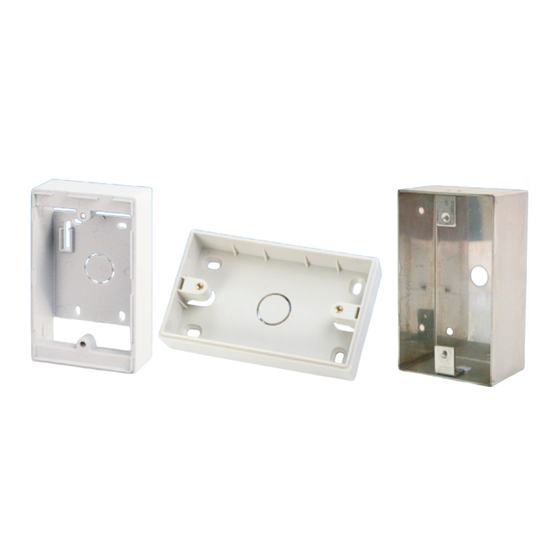

SMB-750 SMB-500
This series of request to exit can be mounted directly in ANSI
electrical box (Mortise mount) or with SMB-500 , SMB-050,
SMB-750 for surface mount.
Free Position
Operation Position
2mm
Free Position
Operation Position
2.7mm
Free Position
1 3
4 2
Operation Position
1 3
4 2
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
SMB-050
27mm
3mm
22mm
2.0
M19 x P0.75mm
(SWH-CN020)
34mm
2mm
22mm
2.0
M19 x P1.0mm
(SWH-040)
56mm
40mm
2.0
24mm
1 3
1,2=N/C
3,4=N/O
a,b (Null)
4 2
(S-SI-PBT)
