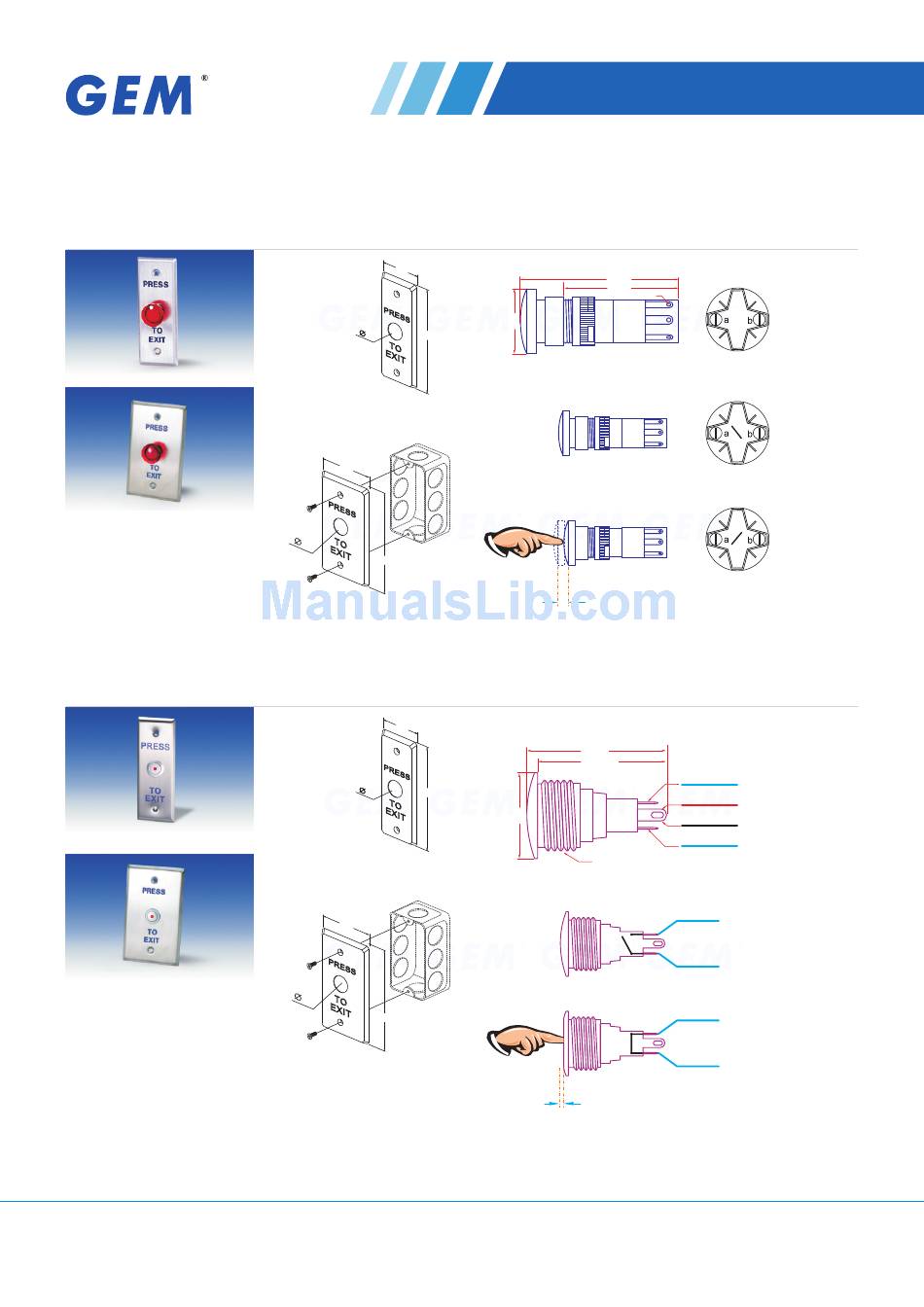

GEM PBT-010 Specification Sheet

Backlight Series offers an LED for the ease of use in the dark.
Materials(Button): PVC, Faceplate:
stainless steel
Type of actuation: Momentary
Contact arrangement: DPDT
Max. Rating : 5A/250 VAC, 6A/24VDC
Current Draw: 25mA/12VDC
Contact resistance: 50 mΩ Max.(initial)
Operating life(Mechanical) : Over 100,000 cycles
Operating travel: 3.2 mm
Materials(Button): Zinc alloy,
Faceplate: stainless steel
Type of actuation: Momentary
Contact arrangement: DPDT
Max. Ratings : 3A/125 VAC, 6A/24VDC
Current Draw: 15mA/12VDC
Contact resistance: 50 mΩ Max.(initial)
Operating life(Mechanical) : Over 100,000 cycles
Operating travel: 2 mm
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-PBT-Backlight Ver. H Published on 2011.06.22
4 3
PBT-010L
1 6 1 1 5
PBT-060BL
Unit: mm
7 0
1 6
ANSI box
1 1 3
4 3
PBT-015
1 1 5
1 6
PBT-015B
Unit: mm
7 0
1 6
ANSI housing
1 1 3
PBT Exit Button
Backlight series
56mm
40mm
2.0
24mm
Free Position
Operation Position
3.2mm
Operating travel:
3.2 mm
30mm
27.5mm
19.5mm
M16 x P1.0mm
Free Position
Operation Position
2.0mm
Operating travel:
2.0 mm
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
1,2=N/C
3
1
3,4=N/O
2 a=V0, b=V+
4
1 3
2
4
3
1
2
4
Blue=terminal
Red=power input V+
Black=power input V0
Blue=terminal
Blue=N/O output
Blue=N/O output
Blue=N/C output
Blue=N/C output
