Topcom TwinTalker 1100 User Manual

3
2
11
1

User Guide

3. LCD SCREEN
a. RX icon. Displayed when receiving a signal.
b. TX icon. Displayed when transmitting a signal.
c. Displays the current VOLUME LEVEL.
d. Displayed during the CHANNEL SCAN mode.
e. Button lock symbol
f. The current battery level charge.
g. Channel number. Changes from 1-8 as selected
by user.
4. GETTING STARTED
4.1. Turning the Unit ON/OFF
To activate; press and hold the POWER button ( ) . The unit will "beep" and
the LCD Screen will display the current channel.
To switch off; press and hold the POWER ( ) button again. The unit will "beep"
and the LCD Screen will turn blank.
4.2. Adjusting Speaker Volume.
The Speaker Volume can be adjusted using
is displayed on the LCD(see §3)
4.3. Receiving a Signal
The unit is continuously in the RECEIVE mode when the unit is ON and not
transmitting. When you receive a signal on the current channel, the RX icon is
displayed (see §3)
4.4. Transmitting a Signal
1. Press and hold the PTT button to TRANSMIT.
2. Hold the unit in a vertical position with the MICROPHONE 5 cm from the
mouth and speak into the microphone.
3. Release the PTT button when you have finished transmitting.
NOTE: To check the channel activity; press and hold the MONITOR
You'll hear static if the channel is unoccupied. Don't TRANSMIT if someone is
talking on the channel.
IMPORTANT: In order for other people to receive your transmission, they must
also be on the same channel.
6
5
7
8
4
9
10
12
U8006112/1
/ . The Speaker Volume level
button.

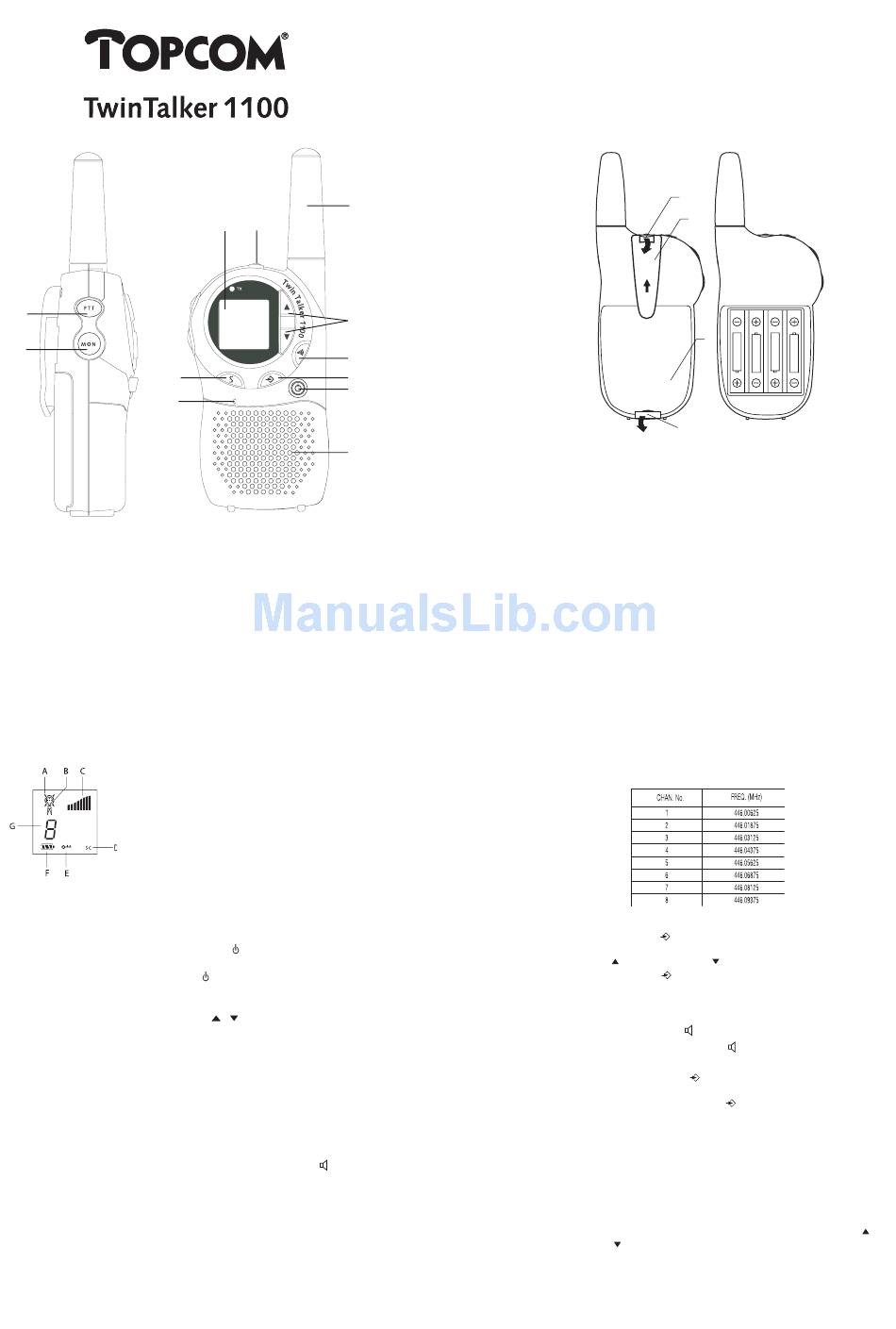

1. DESCRIPTION
(see front cover)
1. Microphone
2. Monitor button
3. Talk button
4. Call button
5. Ear/mic/charger
6. Antenna
2. INSTALLATION
1
2
4
2.1. Removing/Installing the Belt Clip
1. To remove the clip from the unit, push up on the belt clip (2) while pulling
the clip tab (1).
2. When re-installing the belt clip, a click indicates the BeltClip is locked into
position.
2.2. Battery Installation
1. Remove the belt clip (2).
2. Pull the Battery Cover Tab (4) and remove the Battery Cover (3).
3. Install four 'AAA' alkaline or rechargeable batteries following the polarity as
shown.
4. Re-install the Battery Cover (3) and Belt Clip (2).
5. OPERATION
5.1. Changing Channels
The PMR has 8 available channels.
To change channels:
1. Press the MENU button ( ) once, the current channel number flashes on
the LCD Screen.
2. Press the UP ( ) or DOWN button ( ) to change the channel.
3. Press the MENU button ( ) to confirm.
5.2. Monitor
You can use the MONITOR feature to check for weaker signals in the current
channel.
• Press the MONITOR button ( ) for normal monitoring.
• Press and hold the MONITOR button (
5.3. Button Lock
Press and hold the MENU button (
the BUTTON LOCK mode. The BUTTON LOCK icon is displayed on the LCD
Screen.Press and hold the MENU button (
LOCK
5.4. Channel Scan
CHANNEL SCAN performs searches for active signals in an endless loop from
channel 1 to 8.
1. Press the SCAN S button to activate CHANNEL SCAN.
2. When an active signal (one of 8 channels) is detected, CHANNEL SCAN
pauses and you will hear the active signal.
3. Press the TALK button to communicate through the active signal channel
and CHANNEL SCAN is deactivated.
4. When an active signal (one of 8 channels) is detected, press the UP ( ) or
DOWN button ( ) to bypass the current channel and continue to search for
another active channel
5. Press the SCAN button to deactivate CHANNEL SCAN mode.
7. LCD display
8. Up/Down button
9. Menu/Lock button
10.On/Off button
11.Scan button
12.Speaker
3
) for continuous monitoring.
) for 2 seconds to activate or deactivate
) again to deactivate BUTTON
