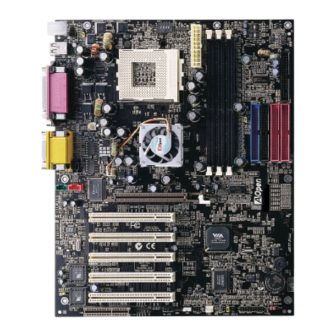

AOpen AK77 PLUS Manual
  1. Manuals
  2. Brands
  3. AOpen Manuals
  4. Motherboard
  5. AK77 PLUS
  6. Manual
AOpen AK77 PLUS Manual

AOpen AK77 PLUS Manual

Hide thumbs Also See for AK77 PLUS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Online Manual
A
K
7
7
P
l
u
s
/
A
K
7
7
P
r
o
O
n
l
i
n
e
M
a
n
u
a
l
A
K
7
7
P
l
u
s
/
A
K
7
7
P
r
o
O
n
l
i
n
e
M
a
n
u
a
l

AK77 Plus / AK77 Pro

DOC. NO.: AK77P-OL-E0110E
1

Advertisement

Table of Contents
loading

Related Manuals for AOpen AK77 PLUS

Summary of Contents for AOpen AK77 PLUS

  • Page 1: Ak77 Plus / Ak77 Pro

    AK77 Plus / AK77 Pro DOC. NO.: AK77P-OL-E0110E...

  • Page 2: Table Of Contents

    ’ ’ AK77 Plus / AK77 Pro..........................1 What’s in this manual ..............................2 You Must Notice................................8 Before You Start................................9 Overview..................................10 Feature Highlight ................................11 Quick Installation Procedure ............................15 Motherboard Map................................16 Block Diagram ................................17 Hardware Installation........................18 Clear CMOS Data .................................
  • Page 3 ATX Power Connector..............................33 AC Power Auto Recovery.............................. 34 JP28 Keyboard Wake-up .............................. 34 IDE, Floppy and IDE RAID (AK77 Plus only) Connector ....................35 IDE RAID Controller (AK77 Plus only) .......................... 37 IrDA Connector ................................38 WOM (Zero Voltage Wake on Modem) Connector......................39 WOL (Wake on LAN)..............................
  • Page 4 2000 ..................71 Installing VIA 4 in 1 Driver............................. 72 Installing Onboard Sound Driver ........................... 73 Install Onboard IDE RAID Driver (AK77 Plus only) ....................... 74 Install FastCheck™ Monitoring Utility (AK77 Plus only) ....................74 Installing Hardware Monitoring Utility ..........................75 ACPI Suspend to Hard Drive............................
  • Page 5 AC97..................................... 90 ACPI (Advanced Configuration & Power Interface) ....................... 90 AGP (Accelerated Graphic Port) ........................... 90 AMR (Audio/Modem Riser) ............................91 AOpen Bonus Pack CD..............................91 APM (Advanced Power Management)........................... 91 ATA (AT Attachment) ..............................91 ATA/66 ..................................91 ATA/100 ..................................92 BIOS (Basic Input/Output System) ..........................
  • Page 6 CODEC (Coding and Decoding)............................ 93 DDR (Double Data Rate) SDRAM ..........................93 DIMM (Dual In Line Memory Module)..........................93 DMA (Direct Memory Access) ............................93 ECC (Error Checking and Correction) ........................... 94 EDO (Extended Data Output) Memory .......................... 94 EEPROM (Electronic Erasable Programmable ROM) ....................94 EPROM (Erasable Programmable ROM) ........................

  • Page 7: A K 7 7 P L U S / A K 7 7 P R O O N L I N E M A N U A L

    PCI (Peripheral Component Interface) Bus ........................97 PDF Format .................................. 98 PnP (Plug and Play)..............................98 POST (Power-On Self Test) ............................98 RDRAM (Rambus DRAM) ............................. 98 RIMM (Rambus Inline Memory Module) ........................99 SDRAM (Synchronous DRAM)............................99 Shadow E PROM ................................

  • Page 8: You Must Notice

    All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

  • Page 9: Before You Start

    This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in format, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc...

  • Page 10: Overview

    ® Thank you for choosing AOpen AK77 Plus / AK77 Pro. The AK77 Plus / AK77 Pro is AMD Socket 462 motherboard (M/B) based on the ATX form factor featuring the VIA Apollo KT266 chipset. As high performance chipset built in the M/B, the AK77 Plus / AK77 Pro ®...

  • Page 11: Feature Highlight

    The AGP video cards support data transfer rate up to 1066MB/s. As AK77 Plus / AK77 Pro includes one AGP expansion slot for a bus mastering AGP graphic card, For AD and SBA signaling, AK77 Plus / AK77 Pro can support 133MHz 2X/4X mode.
  • Page 12 Memory With VIA Apollo KT266 chipset, the AK77 Plus / AK77 Pro can support Double-Data-Rate (DDR) SDRAM. The DDR SDRAM interface allows zero wait state bursting between the SDRAM and the data buffers at 66/100/133MHz. The six banks of DDR SDRAM can be composed of an arbitrary mixture of 1M/2M4M/8M/16M/32M/64MxN SDRAM and maximum up to 3GB.
  • Page 13 100~248 by 1MHz stepping, and lets your system can get maximum performance. Watch Dog Timer Includes AOpen “Watch Dog Timer” function that can auto-reset system in 4.8 seconds when you fail to system overclocking. Die-Hard BIOS with external controller (Upgrade Optional) The Die-Hard BIOS technology is a very effective hardware protection method that doesn’t involve any software or BIOS coding.
  • Page 14 Dr. LED (Upgrade Optional) The Dr. LED has 8 LEDs on AK77 Plus / AK77 Pro, which can easily show what kind of problem you may encounter. Power Management/Plug and Play The AK77 Plus / AK77 Pro supports the power management function that confirms to the power-saving standards of the U.S.

  • Page 15: Quick Installation Procedure

    This page gives you a quick procedure on how to install your system. Follow each step accordingly. Installing CPU and Fan Installing System Memory (DIMM) Connecting Front Panel Cable Connecting IDE and Floppy Cable Connecting ATX Power Cable Connecting Back Panel Cable Power-on and Load BIOS Setup Default Setting CPU Frequency Reboot...

  • Page 16: Motherboard Map

    ® PROMISE FastTrak 100™ ATA/33/66/100 IDE Lite IDE RAID Controller Connector x2 (AK77 Plus Only) JP14 CMOS Data Clear Jumper ATA/100 IDE RAID System & RAM Power Connector x2 (AK77 Plus Indicate LED Only) Chassis Intrusion Sensor Connector FDD Connector...

  • Page 17: Block Diagram

    PC1600/PC2100 DDR Supports ATA100 IDE RAID SDRAM Up to 3GB 0 and RAID 1 Solution (AK77 Plus Only) 32-bit PCI Slot x5 DDR SDRAM Socket x3 Primary Promise Channel FastTrak IDE Drive x4 100 IDE RAID Controller Secondary Channel 66/100/133MHz...

  • Page 18: Hardware Installation

    This chapter describes jumpers, connectors and hardware devices of this motherboard. Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component. Do not remove a component from its protective packaging until you are ready to install it. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component.

  • Page 19: Clear Cmos Data

    You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedures below. Turn off the system and unplug the AC power. Remove ATX power cable from connector PWR2. Locate JP14 and short pins 2-3 for a few seconds. Return JP14 to its normal setting by shorting pins 1 &...
  • Page 20 ® This motherboard supports AMD Athlon and Duron Socket 462 series CPU. Be careful of CPU orientation when you plug it into CPU socket. 2. Locate Pin 1 in the socket and look for a black dot or cut edge on the 1.

  • Page 21: Cpu Installation

    3. Press down the CPU socket lever and finish CPU installation. CPU cut edge Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, it may damage the CPU. Note: This picture is for example only, it may not exactly be the same motherboard.

  • Page 22: Jp21 Fsb/Pci Clock Ratio

    This jumper is used to specify the relationship of PCI and clock. Generally speaking, if you are not overclockers, we recommend you to set it to the default setting. Additionally, this motherboard also provides “1MHz Stepping Adjustment” feature for overclockers to adjust CPU FSB frequency via BIOS setup program. Based on the CPU type, the adjustment range has two levels: 100~129 (FSB=100, such as Athlon 800), 130~248 (FSB=133, such as Athlon 1000) MHz for your choosing.

  • Page 23: Cpu Jumper-Less Design

    CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency through the BIOS setup, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less designs are eliminated. There will be no worry of wrong CPU voltage detection. Clock Generator BIOS...
  • Page 24 This function is dedicated to overclockers, AOpen works together with Fairchild to develop a special chip FM3540 that supports Adjustable CPU Core Voltage from 1.1V to 1.85 by 0.05 stepping. But this motherboard can also automatically detect CPU VID signal and generates proper CPU core voltage.
  • Page 25 Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> key to restore the Home default setting (433MHz) or you can wait the AOpen “Watch Dog Timer” reset the system after five seconds and system will auto-detect hardware again.
  • Page 26 Core Frequency = CPU Clock * CPU Ratio PCI Clock = CPU Bus Clock / Clock Ratio Clock = PCI Clock x 2 EV6 Bus Speed = CPU external bus clock x 2 CPU Core Frequency EV6 Bus Clock Ratio Note: This motherboard support Athlon 800 800MHz...
  • Page 27 ” “ ” With this motherboard, AOpen provides a very special, useful feature for overclockers. When you power-on the system, the BIOS will check last system POST status. If it succeeded, the BIOS will enable “Watch Dog Timer” function immediately, and set the CPU frequency by user’s setting that stored in the BIOS.

  • Page 28: Cpu And Housing Fan Connector (With H/W Monitoring)

    Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you can also plug it on System Fan or AUX Fan (without H/W monitoring) connector. Fan3 Connector +12V CPU Fan Connector SENSOR Note: Some CPU fans do not have +12V sensor pin, so that cannot support fan SENSOR...

  • Page 29: Sdram Socket

    184-pin sockets, six banks of DDR SDRAM can be composed of an arbitrary mixture of 1M/2M/4M/8M/16M/32M/64MxN SDRAM with maximum up to 3GB. Warning: The AK77 Plus / AK77 Pro support DDR SDRAM, please do not install the SDRAM on the DDR SDRAM sockets.
  • Page 30 Please follow the procedure as shown below to finish memory installation. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below. Pin 1 52 pins 40 pins Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.

  • Page 31: System And Ram Power Indicate Led

    This LED indicates there is power applies to motherboard and memory. If you connect power to the motherboard, this LED will be lighting. It is useful to check the system power status when power on/off and stand-by mode or RAM power status during Suspend to RAM mode.

  • Page 32: Front Panel Connector

    Attach the power LED, EMPI, speaker, power and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while the system is in suspend mode. Locate the power switch cable from your ATX housing. It is 2-pin female connector from the housing front panel.

  • Page 33: Atx Power Connector

    The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction. PW-OK +3.3V 5VSB +3.3V +12V +3.3V -12V PS-ON...

  • Page 34: Ac Power Auto Recovery

    A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem.

  • Page 35: Ide, Floppy And Ide Raid (Ak77 Plus Only) Connector

    Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE/IDE RAID (AK77 Plus only) connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage. Primary Primary Master (1st) Slave (2nd) ATA 33/66/100 IDE Connector...
  • Page 36 IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode.

  • Page 37: Ide Raid Controller (Ak77 Plus Only)

    ® The AK77 Plus motherboard has added an onboard PROMISE FastTrak 100 Lite IDE RAID controller. If you want to enable or disable this controller, you may directly adjust them through the bios setup without adjusting any jumper.

  • Page 38: Irda Connector

    The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

  • Page 39: Wom (Zero Voltage Wake On Modem) Connector

    This motherboard implements special circuit to support Wake On Modem, both Internal modem card and external box modem are supported. Since Internal modem card consumes no power when system power is off, it is recommended to use an internal modem. To use internal modem, connect 4-pin cable from RING connector of modem card to the WOM connector on the motherboard.
  • Page 40 Traditional Green PC suspend mode does not really turn off the system power supply, it uses external box modem to trigger MB COM port and resume back to active. Serial Port (Modem Side) Pin 1 Pin 1 Serial Port (Motherboard Side) Note: This picture is for example only, it may not exactly be the same motherboard.
  • Page 41 With the help of the ATX soft power On/Off, it is possible to have a system totally power off, and wakeup to automatically answer a phone call as an answering machine or to send/receive a fax. You may identify whether or not your system is in true power off mode by checking to see if the fan of your power supply is off.

  • Page 42: Wol (Wake On Lan)

    This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to motherboard WOL connector. The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the system.
  • Page 43 WOL Connector (Ethernet Card Side) WOL Connector (Motherboard Side) Note: This picture is for example only, it may not exactly be the same motherboard.

  • Page 44: Agp (Accelerated Graphic Port) Expansion Slot

    The AK77 Plus / AK77 Pro provides an 4x slot. The AGP 4x is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4bytes x 2 = 528MB/s.

  • Page 45: Cnr (Communication And Network Riser) Expansion Slot

    is the latest riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel audio, and a variety of networking with Ethernet LAN, DSL, USB, wireless, or phone-line based home networking added. Owing to CPU computing power getting stronger, the digital processing job can be integrated into main chipset and share CPU power.

  • Page 46: Pc99 Color Coded Back Panel

    The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, Printer, USB, AC97 sound and game port. The view angle of drawing shown here is the back panel of the housing. SPP/EPP/ECP Parallel Port PS/2 Mouse Game Port Connector USB Port...

  • Page 47: Support 2 Nd & 3 Rd Usb Port

    & & This motherboard supports three USB ports and provides six USB connectors. Two of them are on the PC99 colored back panel, and 2 and 3 port connector is behind PCI3 slot. You can use proper cable to connect others USB connectors to the back panel or front panel of chassis.

  • Page 48: Chassis Intrusion Sensor

    You can use the 2-pin chassis intrusion sensor to connect with Case Open, and enable the chassis monitoring function of system BIOS. Please contact our local distributor or reseller for purchasing this sensor. And again, you also can visit our official web site: www.aopen.com.tw to get more information. Pin 1...

  • Page 49: Cd Audio Connector

    This connector is used to connect CD Audio cable from CD-ROM or DVD drive to onboard sound. Pin 1 GND GND CD-IN...

  • Page 50: Modem Audio Connector

    This connector is used to connect Mono In/MIC Out cable from internal modem card to onboard sound circuit. The pin 1-2 is Mono In, and the pin 3-4 is MIC Out. Please note that there is no standard for this kind of connector yet, only some internal modem cards implement this connector.

  • Page 51: Aux-In Connector

    This connector is used to connect MPEG Audio cable from MPEG card to onboard sound. AUX-IN...

  • Page 52: Front Audio

    If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove the jumper cap from the Front Audio Connector before you connect the cable. Do not remove this yellow jumper cap if housing without an audio port on the front panel.

  • Page 53: Die-Hard Bios (100% Virus Protection, Optional)

    BIOS ROM by setting JP30 to pin 2-3 if it fails to act normally. This motherboard comes with one BIOS ROM, you may contact our local distributor or reseller for purchasing the extra BIOS ROM. Please visit our website: www.aopen.com.tw for details. JP30...
  • Page 54 External Controller provides you a better and convenience way to switch the BIOS status between “Rescue” and “Normal” without opening the case of your computer. You have to plug the jumper cable to the connector pin (JP30) on the motherboard. Be careful of the orientation when you connect, the red wire should correspond to Pin1.
  • Page 55 Note: If you suspect your BIOS is infected by virus, just rescue your bios by following steps: Turn off the system, set the External Controller to “Rescue” to read from rescue ROM. Boot the system and set the switch back to “Normal”. Follow the BIOS upgrade procedure to rehabilitate BIOS.

  • Page 56: Dr. Led Connector (Upgrade Optional)

    In conjunction with Dr. LED (Upgrade Optional), which can easily show what kind of problem you may incur on your system during assembly. It can clearly indicate whether there is a component issue or an installed issue by the 8 LEDs on the front panel of Dr. LED.
  • Page 57 Dr. LED is a CD disc storage box with 8 LEDs on its front panel, the size of Dr. LED is exactly the same as 5.25 in floppy drive, so that it can be mount into normal 5.25 in drive bay of any housing. Boot O.K.

  • Page 58: Battery-Less And Long Life Design

    This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without using the battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.

  • Page 59: Over-Current Protection

    CPU, memory, HDD, add-on cards installed on this motherboard may be damaged because of component failure, human operating error or unknown nature reason. AOpen cannot guaranty the protection circuit will always work perfectly.

  • Page 60: Hardware Monitoring

    This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will continue to monitor your system’s working voltage, fan status and CPU temperature. If any of these systems’ status go wrong, there will be an alarm through the AOpen Hardware Monitoring Utility to warn the user.

  • Page 61: Resettable Fuse

    Traditional motherboard has fuse for Keyboard and port to prevent over-current or shortage. These fuses are soldered onboard that user cannot replace it when it is damaged (did the job to protect motherboard), and the motherboard remains malfunction. With expensive Resettable Fuse, the motherboard can resume back to normal function after fuse had done its protection job. Resettable Fuse...

  • Page 62: Year 2000 (Y2K)

    CMOS is a very slow device that degrades system performance. Operating System (such as Windows 98) The Tick Routine of the AOpen BIOS has 4 digits for year coding, as long as applications and the operating system follow the rule to get date/time information.

  • Page 63: Low Esr Capacitor

    μ μ The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.
  • Page 64 The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new Pentium III, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V and 2.140V.

  • Page 65: Layout (Frequency Isolation Wall)

    For high frequency operation, especially overclocking, layout is the most important factor to make sure chipset and CPU working in stable condition. The layout of this motherboard implements AOpen’s unique design called “ Frequency Isolation Wall”. Separating each critical portion of motherboard into...

  • Page 66: Fansink On North Bridge

    In order to provide a better effect of cooling and make the chipset work more stable, we especially design a fansink on the north bridge. After locating the fansink on the north bridge, plug the connector to the header marked AUX Fan on the motherboard.

  • Page 67: Driver And Utility

    There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows 98) before you can install any drivers or utilities.

  • Page 68: Auto-Run Menu From Bonus Cd Disc

    You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and select model name.

  • Page 69: Installing Windows 95

    First, don’t install any add-on card except card. Install Windows 95 OSR2 v2.1, 1212 or 1214 version and later with USB support. Otherwise, you need to install USBSUPP.EXE. Install the VIA 4 in 1 driver, which includes VIA AGP Vxd driver, VIA ATAPI Vendor Support driver and VIA registry (INF) program.

  • Page 70: Installing Windows 98

    First, don’t install any add-on card except card. Enable USB Controller in BIOS Setup > Advanced Chipset Features > OnChip USB, to make BIOS fully capable of controlling IRQ assignment. Install Window 98 into your system. Install the VIA 4 in 1 driver, which includes VIA AGP Vxd driver, IRQ Routing, VIA ATAPI Vendor Support driver and VIA registry (INF) program.

  • Page 71: Me & Windows

    ® ® ® ® ® ® & & ® ® ® If you are using Windows 98 Second Edition, Windows Millennium Edition or Windows 2000, you do not need to install the 4-in-1 ® driver as the IRQ Routing Driver and the ACPI Registry are already incorporated into the operating system. Users with Windows 98 SE may update the VIA Registry INF and AGP drivers by installing them individually.

  • Page 72: Installing Via 4 In 1 Driver

    You can install the VIA 4 in 1 driver (IDE Bus master (For Windows NT use), VIA ATAPI Vendor Support Driver, VIA AGP, IRQ Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD disc auto-run menu. Note: Installing this Bus Master IDE driver may cause Suspend to Hard Drive failure.

  • Page 73: Installing Onboard Sound Driver

    This motherboard comes with an AD 1885 AC97 CODEC and the sound controller is in VIA South Bridge chipset. You can find the audio driver from the Bonus Pack CD disc auto-run menu.

  • Page 74: Install Onboard Ide Raid Driver (Ak77 Plus Only)

    ® The onboard PROMISE FastTrak 100 Lite chipset provides DOS, Widows 3.1/95/98/98 SE/ME/NT/2000 driver for install. Please refer to the “ATA/100 IDE RAID Manual” for more detail information. ™ ™ You can monitor the operating status of disk array and drives configured on the IDE RAID channel using the supplies FastCheck™ monitoring utility for Windows-based operating system.

  • Page 75: Installing Hardware Monitoring Utility

    You can install Hardware Monitoring Utility to monitor CPU temperature, fans and system voltage. The hardware monitoring function is automatically implemented by the BIOS and utility software. No hardware installation is needed.

  • Page 76: Acpi Suspend To Hard Drive

    ACPI Suspend to Hard Drive is basically controlled by Windows operation system. It saves your current work (system status, memory and screen image) into hard disk, and then the system can be totally power off. Next time, when power is on, you can resume your original work directly from hard disk within few seconds without go through the Windows booting process and run your application again.

  • Page 77: System Requirement

    System Requirement AOZVHDD.EXE 1.30b or later. Delete config.sys and autoexec.bat. Fresh installation of Windows 98 on a new system 1. Execute "Setup.exe /p j" to install Windows 98 2. After Windows 98's installation is complete, go to the Control Panel > Power Management. a.
  • Page 78 Changing from APM to ACPI (Windows 98 only) 1. Run "Regedit.exe" a. Go through the following path HKEY_LOCAL_MACHINE SOFTWARE MICROSOFT WINDOWS CURRENT VERSION DETECT b. Select "ADD Binary" and name it as "ACPIOPTION". c. Right click and select Modify, add "01" after "0000" to make it "0000 01". d.
  • Page 79 4. Run "Add New Hardware" again and it will find "Advanced Power Management Resource". 5. Click "OK". Tip: Currently we found only ATI 3D Rage Pro AGP card would support ACPI suspend to disk. Please refer to AOpen web site for latest update...

  • Page 80: Acpi Suspend To Ram (Str)

    This motherboard supports ACPI Suspend to RAM function. With this function, you can resume your original work directly from SDRAM without going through the Windows 98 booting process and run your application again. Suspend to SDRAM saves your current work in the system memory, it is faster than Suspend to Hard Drive but requires power supplied to SDRAM, while Suspend to Hard Drive requires no power.
  • Page 81 To implement ACPI Suspend to DRAM, please follow the procedures as below: System Requirement An ACPI OS is required. Currently, Windows 98 is the only choice. Please refer to ACPI Suspend to Hard Drive of how to setup Windows 98 ACPI mode. The VIA 4 in 1 Driver must have been installed properly.

  • Page 82: Award Bios

    Most BIOS setting of AK77 Plus / AK77 Pro had been optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t fine-tune the chipset controlling the entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup procedures.

  • Page 83: How To Use Award™ Bios Setup Program

    Award™ BIOS setup program. The following table provides details about how to use keyboard in the Award™ BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3> key selecting preferred menu language to display.
  • Page 84 Load fail-save setting value from CMOS. Load turbo setting value from CMOS. Save changed setting and exit setup program. Note: AOpen always dedicates to give users a much more friendly computer system. Now, we include all function descriptions of BIOS setup program into the BIOS Flash ROM.

  • Page 85: How To Enter Bios Setup

    After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance. Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, SDRAM, HDD, etc.) are good enough for turbo setting.

  • Page 86: Bios Upgrade

    By doing so, you are taking a risk of BIOS flash failure. If you indeed intent on upgrading, PLEASE BE SURE to use the right BIOS revision for the right motherboard model. AOpen Easy Flash is a little bit different from traditional flash method. The BIOS binary file and flash routine are linked together and you simply run a single commend to complete the flash process.
  • Page 87 Below are the steps for easy flashing procedures: (applies for Award BIOS ONLY) 1. Download new BIOS upgrade file from AOpen's web site. For example, AK77P102.ZIP. 2. Run shareware PKUNZIP (http://www.pkware.com/) which supports miscellaneous operation systems to extract the binary BIOS file and the flash utility.

  • Page 88: Overclocking

    As a leading manufacturer in motherboard industry, AOpen always listens to what customers want and develop products to fit different user's requirements. Reliability, compatibility, leading technology and friendly features are our basic goals when designing motherboards. Other than above mentioned design criteria, there are power users who are always seeking to push the limitation of the system performance by overclocking who we call them "Overclocker".

  • Page 89: Vga Card & Hard Disk

    VGA and HDD is key components for overclocking, for your reference, the following list are what have been successful overclocked in our lab. Please note that AOpen can not guaranty they can be successful overclocked again. Please check the Available Vendor List (AVL) by link to our official website.

  • Page 90: Glossary

    AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4byte x 2 = 528MB/s. AGP is now moving to 4X mode, 66MHz x 4byte x 4 = 1056MB/s. AOpen is the first company...

  • Page 91: Amr (Audio/Modem Riser)

    Unlike ACPI, BIOS controls most APM power management functions. AOpen Suspend to Hard Drive is a good example of APM power management. ATA is the specification of diskette interface. In 80’s, many software and hardware manufacturers instituted the ATA specification together.

  • Page 92: Ata/100

    ATA/100 is a new IDE specification under developing. ATA/100 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 40ns. The data transfer rate is (1/40ns) x 2 bytes x 2 = 100MB/s. To use ATA/100, you need special 80-wire IDE cable, the same as ATA/66.

  • Page 93: Codec (Coding And Decoding)

    Normally, CODEC means a circuit that can do digital to analog conversion and also the analog to digital conversion. It is part of AC97 sound/modem solution. DDR SDRAM utilizes the existing SDRAM infrastructure and technology while doubling the nominal bandwidth available to systems in an easy to design and simple to adopt way.

  • Page 94: Ecc (Error Checking And Correction)

    The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only detect single-bit error.

  • Page 95: Ev6 Bus

    Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 256KB (2M bit). AOpen AX5T is the first board to implement 256KB (2Mbit) Flash ROM.

  • Page 96: Fsb (Front Side Bus) Clock

    FSB Clock means CPU external bus clock. CPU internal clock = CPU FSB Clock x CPU Clock Ratio See SMBus. IEEE 1394 is a low-cost digital interface originated by Apple Computer as a desktop LAN and developed by the IEEE 1394 working group.

  • Page 97: Pbsram (Pipelined Burst Sram)

    For Socket 7 CPU, one burst data read requires four QWord (Quad-word, 4x16 = 64 bits). PBSRAM only needs one address decoding time and automatically sends the remaining QWords to CPU according to a predefined sequence. Normally, it is 3-1-1-1, total 6 clocks, which is faster than asynchronous SRAM.

  • Page 98: Pdf Format

    A file format for electronic document, PDF format is independent from platform, you can read PDF file under Windows, Unix, Linux, Mac … with different PDF reader. You can also read PDF file by web browser such as IE and Netscape, note that you need to install PDF plug-in first (Included in Acrobat Reader).

  • Page 99: Rimm (Rambus Inline Memory Module)

    SDRAM comes in 64-bit 168-pin DIMM and operates at 3.3V. AOpen is the first company to support dual-SDRAM DIMMs onboard (AP5V), from Q1 1996 A memory space in Flash-ROM to simulate E PROM operation, AOpen motherboard uses Shadow E...

  • Page 100: Smbus (System Management Bus)

    SMBus is also called I2C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC). For example, set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it allows one host to communicate with CPU and many masters and slaves to send/receive message.

  • Page 101: Usb (Universal Serial Bus)

    USB is a 4-pin serial peripheral bus that is capable of cascading low/medium speed peripherals (less than 10Mbit/s) such as keyboard, mouse, joystick, scanner, printer and modem. With USB, the traditional complex cables from back panel of your PC can be eliminated.

  • Page 102: Troubleshooting

    If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem. Start Turn off the power and unplug the AC power cable, then remove all of the add-on cards and cables, including VGA, IDE, FDD, COM1, COM2 and printer.
  • Page 103 Continue Install the VGA card. Then connect your monitor and keyboard. Turn on the power and check if the power supply and CPU fan work properly. The problem is probably caused by power supply or motherboard failure. Next Please contact your reseller or local distributor for repairing.
  • Page 104 Continue Perhaps your VGA card Check if there is display? or monitor is defective. Press <Ctrl> and <Alt> key at the same time, hold them and then press <Del> to reboot the system. It is very possible that your Check if the system keyboard is defective.
  • Page 105 Continue During system rebooting, press <Del> to enter BIOS setup. Choose “Load Setup Default”. Turn off the system and re-connect IDE cable. The problem should be Check if the system can caused reboot successfully? cable or HDD itself. Re-install the operating system such as Windows 98.

  • Page 106: Technical Support

    Dear Customer, Thanks for choosing AOpen products. To provide the best and fastest service to our customer is our first priority. However, we receive numerous emails and phone-calls worldwide everyday, it is very hard for us to serve everyone on time. We recommend you follow the procedures below and seek help before contact us.
  • Page 107 News Group: Your problem probably had been answered by our support engineer or professional users on the news group. http://www.aopen.com.tw/tech/newsgrp/default.htm Contact Distributors/Resellers: We sell our products through resellers and integrators. They should know your system configuration very well and should be able to solve your problem more efficiently than us. After all, their attitude of service is an important reference for you if next time you want to buy something else from them.
  • Page 108 Model name and BIOS version can be found on upper left corner of first boot screen (POST screen). For example: AK77 Plus R1.00 FEb.01.2001 AOpen Inc. Award Plug and Play BIOS Extension v1.0A Copyright © 1998, Award Software, Inc. AK77 Plus is model name of motherboard, R1.00 is BIOS version.

  • Page 109: Product Registration

    Be able to join the discussions of web-based news groups. AOpen makes sure that the information you provide is encrypted, so that it cannot be read or intercepted by other people or companies. Further, AOpen will not disclose any of information you submitted under any conditions. Please consult our...
  • Page 110 Pacific Rim Europe America AOpen Inc. AOpen Computer b.v. AOpen America Inc. Tel: 886-2-2696-1333 Tel: 31-73-645-9516 Tel: 1-510-498-8928 Fax: 886-2-8691-2233 Fax: 31-73-645-9604 Fax: 1-408-922-2935, 1-408-432-0496 China Germany AOpen Computer GmbH. 艾尔鹏国际上海(股)有限公司 Tel: 49-2102-157700 Tel: 49-2102-157700 Fax: 49-2102-157799 Fax: 49-2102-157799 Web Site: www.aopen.com...
