CD-IN Connector
Front Audio Connector
Onboard AC97 CODEC RealTek ALC650
JP30 Die Hard BIOS Select Jumper
S/PDIF Connector
Die Hard BIOS with 100% Virus
Protection (User Upgrade Optional)
AUX-IN Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x5
(PCI 5 supports slave mode PCI card only)
nd
2
USB 1.1 Port Connector
IrDA Connector
WOM (Wake ON Modem) Connector
rd
th
3
and 4
USB 2.0 Port Connector
(Manufacturer Upgrade Optional)
WOL (Wake ON LAN) Connector
SYSFAN2 Connector
with H/W Monitoring
Dr. LED Connector
(User Upgrade Optional)
Front Panel Connector
JP14 CMOS Data Clear Jumper
STBY LED
Chassis Intrusion Sensor Connector
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
USB Port
(1.1)
PS/2 Keyboard
COM 1 Port
Connector
Game Port
COM 2 Port
MIC-In
Line-In
Speaker Out
Resetable Fuse
SYSCPU Fan Connector
with H/W Monitoring
ATX Power Connector
SYSFAN3 Connector
AGP 4x Expansion Slot
462-pin CPU Socket with Voltage
and Frequency Auto-Detection that
TM
TM
supports AMD
Athlon
TM
and Athlon
XP
SW1 CPU Ratio Select Switch
®
VIA
Apollo KT333 Chipset with
FANsink and VT8233A SB
(ATA100/133 supported)
JP21 FSB Select Jumper
184-pin DIMMx3 supports
DDR333/DDR266 (Max. to
3GB)
IDE Connector x2
(ATA/66/100/133 supported)
FDD Connector
TM
/ Duron
/
Advertisement
Table of Contents
Related Manuals for AOpen AK77-333
Summary of Contents for AOpen AK77-333

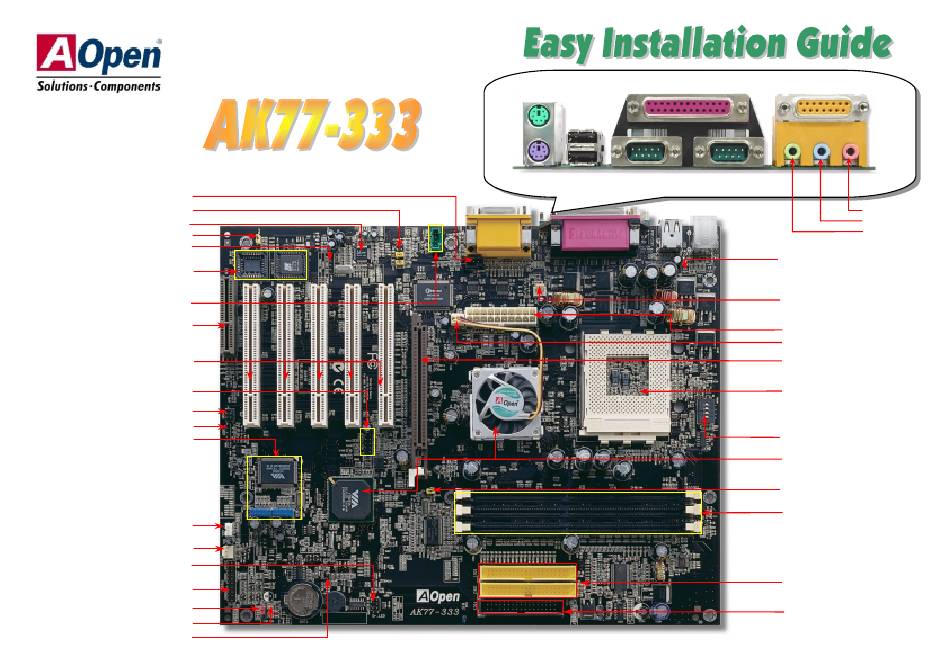

- Page 1 SPP/EPP/ECP PS/2 Mouse Parallel Port Game Port Connector USB Port (1.1) PS/2 Keyboard COM 1 Port COM 2 Port Connector CD-IN Connector MIC-In Front Audio Connector Line-In Onboard AC97 CODEC RealTek ALC650 Speaker Out JP30 Die Hard BIOS Select Jumper S/PDIF Connector Resetable Fuse Die Hard BIOS with 100% Virus...
-
