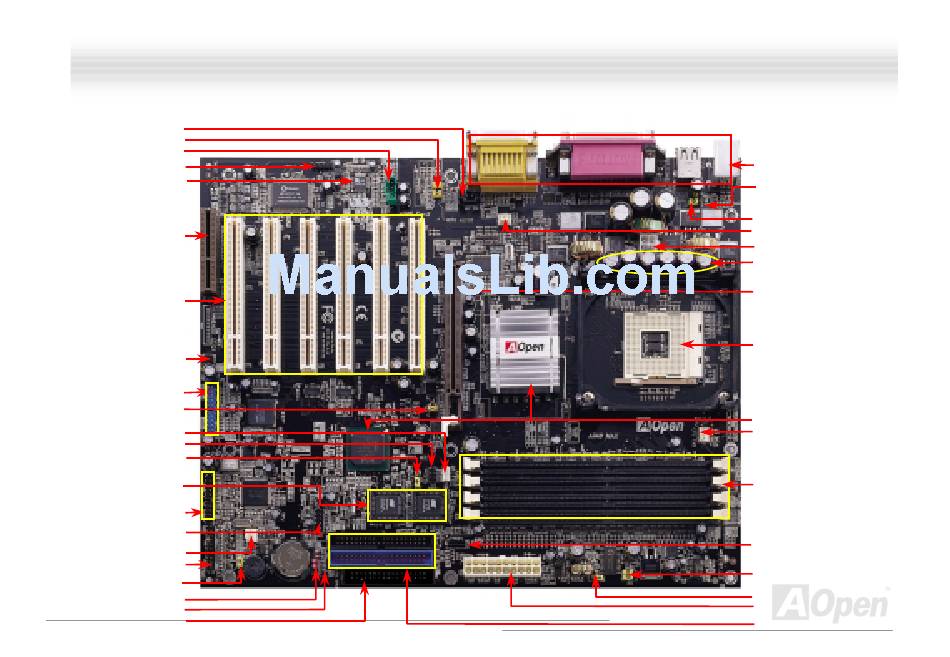

Motherboard Map - AOpen AX4B MAX Manual

A X 4 B M a
A X 4 B M a
CD-IN Connector
Front Audio Connector
AUX-IN Connector
SPDIF Connector
Onboard AC'97 CODEC
CNR Expansion Slot
32-bit PCI Expansion Slot x6
(AX4B Max: PCI 5&6 Slave
AX4B U2: PCI 5 Slave)
Dr. LED Connector
3rd and 4th USB Connectors
JP35 AGP1.5V Adjustable
WOL Connector
IrDA Connector
JP30 Die Hard BIOS Select
Jumper
Die Hard BIOS
(1 default, 1 optional)
IEEE 1394 Connector x2
(AX4B Max only)
nd
2 USB Connector
FAN3 Connector
Front Panel Connector
JP1 Buzzer Jumper
JP14 CMOS Clear Jumper
Chassis Intrusion Connector
FDD Connector
x / A X 4 B U 2
x / A X 4 B U 2

Motherboard Map
