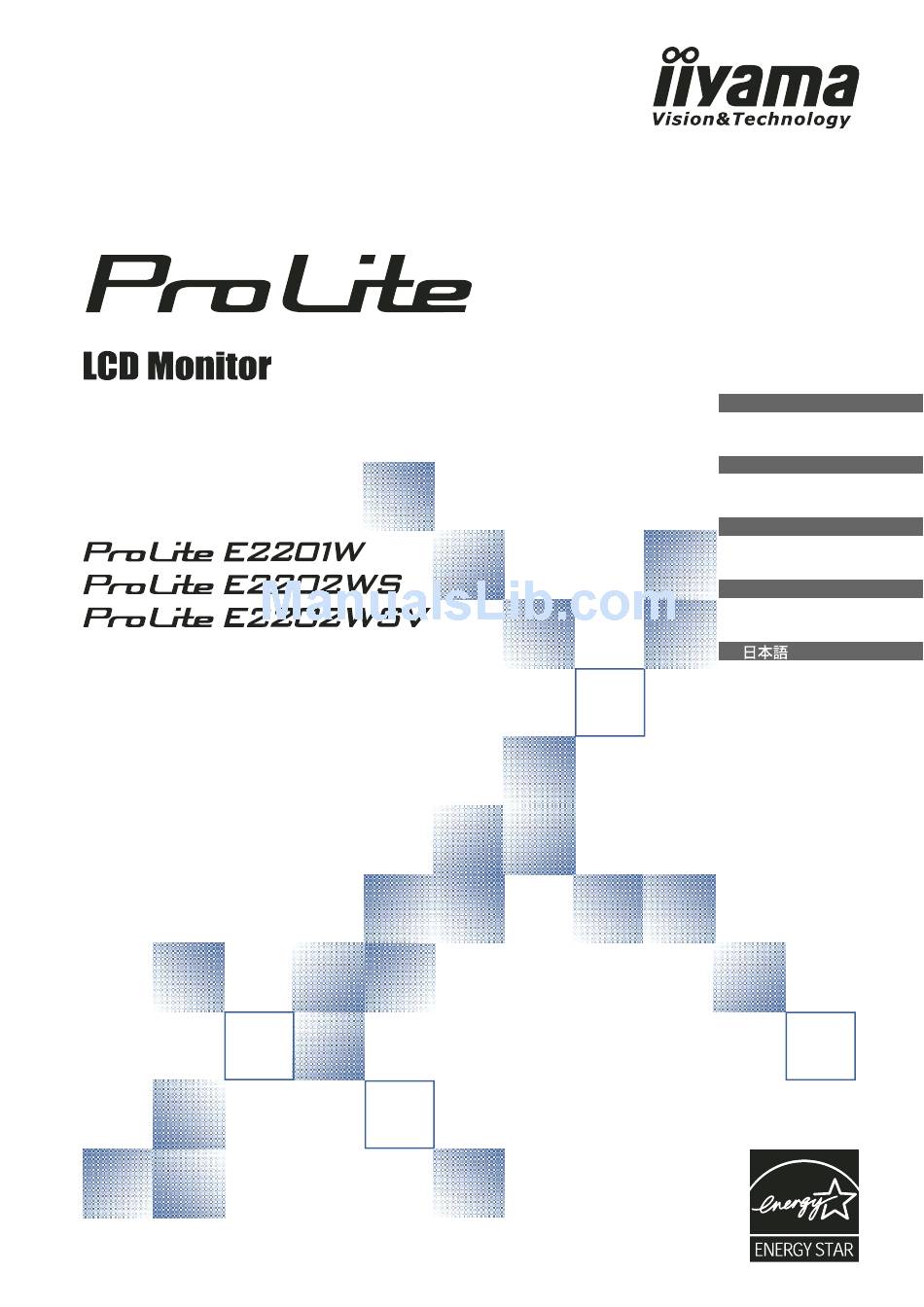

USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
ENGLISH
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
Advertisement
Table of Contents
Related Manuals for Iiyama ProLite E2201W
Summary of Contents for Iiyama ProLite E2201W
-
Page 1: User Manual
ENGLISH ENGLISH DEUTSCH FRANCAIS NEDERLANDS Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference. - Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
-
Page 3: Fcc Declaration Of Conformity
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE... -
Page 4: Table Of Contents
FEATURES ....................4 CHECKING THE CONTENTS OF THE PACKAGE ........5 FITTING AND REMOVAL OF BASE : ProLite E2201W ......6 FITTING AND REMOVAL OF BASE : ProLite E2202WS / E2202WSV ... 6 CONTROLS AND CONNECTORS : ProLite E2201W ......7 CONTROLS AND CONNECTORS : ProLite E2202WS / E2202WSV .. -
Page 5: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
(softOSM). ® Power Management (E and VESA DPMS Compliant) NERGY Ergonomic Design TCO ’03 and TÜV-Ergonomics Approved Digital Input (DVI-D, HDCP Compliant) for Clear Display : ProLite E2201W / E2202WS VESA Mounting Standard (100mm×100mm) Compliant BEFORE YOU OPERATE THE MONITOR... -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. -
Page 10: Fitting And Removal Of Base : Prolite E2201W
FITTING AND REMOVAL OF BASE : ProLite E2201W Install the stand on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 11: Controls And Connectors : Prolite E2201W
CONTROLS AND CONNECTORS : ProLite E2201W <Front> <Back> A Power Switch ( B Menu Button (MENU) C + Button ( + ) D – Button ( – ) E Auto Button (AUTO) F Input Button (SOURCE) G Power Indicator NOTE... -
Page 12: Controls And Connectors : Prolite E2202Ws / E2202Wsv
CONTROLS AND CONNECTORS : ProLite E2202WS / E2202WSV <Front> <Back> A Power Switch ( B Menu Button (MENU) C + Button ( D – Button ( E Auto Button (AUTO) F Input Button (SOURCE)* G Power Indicator NOTE Blue: Normal operation Orange: Power Management Auto (Signal Select) When no signal is received from the system, the display enters into its... -
Page 13: Connecting Your Monitor : Prolite E2201W
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 14: Connecting Your Monitor : Prolite E2202Ws / E2202Wsv
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 15: Computer Setting
Change to the desired signal timing listed on page 31: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 21 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
7 seconds will enable and disable the OSD Lock Out mode. is displayed while Lock Out is active. Available for ProLite E2202WS / E2202WSV only. Available for ProLite E2201W / E2202WS only. OPERATING THE MONITOR... - Page 18 Analog Input Menu : 1 (Analog) Menu:1 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Adjustment Item Problem / Option Button to Press Too dark Direct Brightness * Too bright Too dull Direct...
- Page 19 Menu : 2 M e n u : 2 (Analog) 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Adjustment Item Problem / Option Button to Press Return to Menu. Auto Set-up * Adjust Clock, Phase, V-Position and H-Position Direct...
- Page 20 Menu : 2 (Analog) Adjustment Item Problem / Option Normal Gamma Mode1 High contrast Mode2 Dark Normal Economy Mode Mode1 Brightness of back-light is reduced. Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Return to Menu Highlight “Menu : 2”...
- Page 21 Return to Menu. Reset Factory-preset data is restored. Return to Menu Highlight “Menu : 3” again. Available for ProLite E2202WS / E2202WSV only. Available for ProLite E2201W / E2202WS only. Direct See page 13 for Direct adjustment. OPERATING THE MONITOR...
- Page 22 Digital Input : Available for ProLite E2201W / ProLite E2202WS only. Menu:1 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Adjustment Item Problem / Option Button to Press...
- Page 23 Menu : 1 (Digital) Adjustment Item Problem / Option Normal Economy Mode Mode1 Brightness of back-light is reduced. Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Return to Menu Highlight “Menu : 1” again. OPERATING THE MONITOR...
- Page 24 Menu : 2 M e n u : 2 (Digital) 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Adjustment Item Problem / Option Button to Press Too soft Direct Volume * Too loud...
-
Page 25: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 26 C C C C C Press the Auto Button. (Auto Set-up) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
- Page 27 G G G G G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. – In case the strong flicker or blurs remain on a part of the screen, repeat steps F and NOTE NOTE G because the Clock may not be adjusted correctly.
-
Page 28: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of E NERGY ® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 29: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... - Page 30 Problem Check sound.* The audio equipment (computer etc.) is ON. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too* The audio output level of the audio equipment is within the specification of...
-
Page 31: Appendix
APPENDIX SPECIFICATIONS: ProLite E2201W LCD Panel a-Si TFT Active Matrix Driving system Size Diagonal: 56cm / 22" Pixel pitch 0.282mm H × 0.282mm V Brightness 300cd/m (Typical) Contrast ratio 1000 : 1 (Typical), 2000:1 (DCR) Viewable angle Right / Left: 85 degrees each, Up / Down: 80 degrees each... -
Page 32: Specifications: Prolite E2202Ws
SPECIFICATIONS: ProLite E2202WS LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 55cm / 22" Pixel pitch 0.277mm H × 0.277mm V Brightness 300cd/m (Typical) Contrast ratio 1000 : 1 (Typical), 2000:1 (DCR) Viewable angle Right / Left / Up / Down: 80 degrees each Response time 5ms (Black, white, black) Display Colors... -
Page 33: Specifications: Prolite E2202Wsv
SPECIFICATIONS: ProLite E2202WSV LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 55cm / 22" Pixel pitch 0.277mm H × 0.277mm V Brightness 300cd/m (Typical) Contrast ratio 1000 : 1 (Typical), 2000:1 (DCR) Viewable angle Right / Left / Up / Down: 80 degrees each Response time 5ms (Black, white, black) Display Colors... -
Page 34: Dimensions : Prolite E2201W
DIMENSIONS : ProLite E2201W 507.0mm/20.0" 74.0mm/2.9" 475.5mm/18.7" 260.0mm/10.2" DIMENSIONS : ProLite E2202WS / E2202WSV 506.0mm/19.9" 61.0mm/2.4" 467.0mm/18.4" 204.0mm/8.0" 30 APPENDIX... -
Page 35: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 37.500kHz 75.000Hz 31.500MHz 640 × 480 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 49.500MHz 46.875kHz 75.000Hz 50.000MHz 48.077kHz 72.188Hz 65.000MHz 48.363kHz 60.004Hz 1024 ×... -
Page 36: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Input Signal Input Signal Connector Red video Ground Green video Blue video Reserved port Data line (SDA)* Reserved port Ground Ground H-Sync Red video ground V-Sync Green video ground Clock line (SCL)* Blue video ground * Compliant to VESA DDC.
