ï Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-17L).
q Insert the battery pack with/with-
out the transceiver into the
charger.
• The charge indicator lights green.
w Charge the battery pack approx.
2 hours, depending on the
remaining power condition.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L (for 13.8 V
power source) or CP-17L (for 12
V cigarette lighter socket) can be
used instead of the AC adapter.
Transceiver
Turn power OFF
Battery
pack
AD-106 charger adapter
is installed in BC-119N.
BATTERY CHARGING

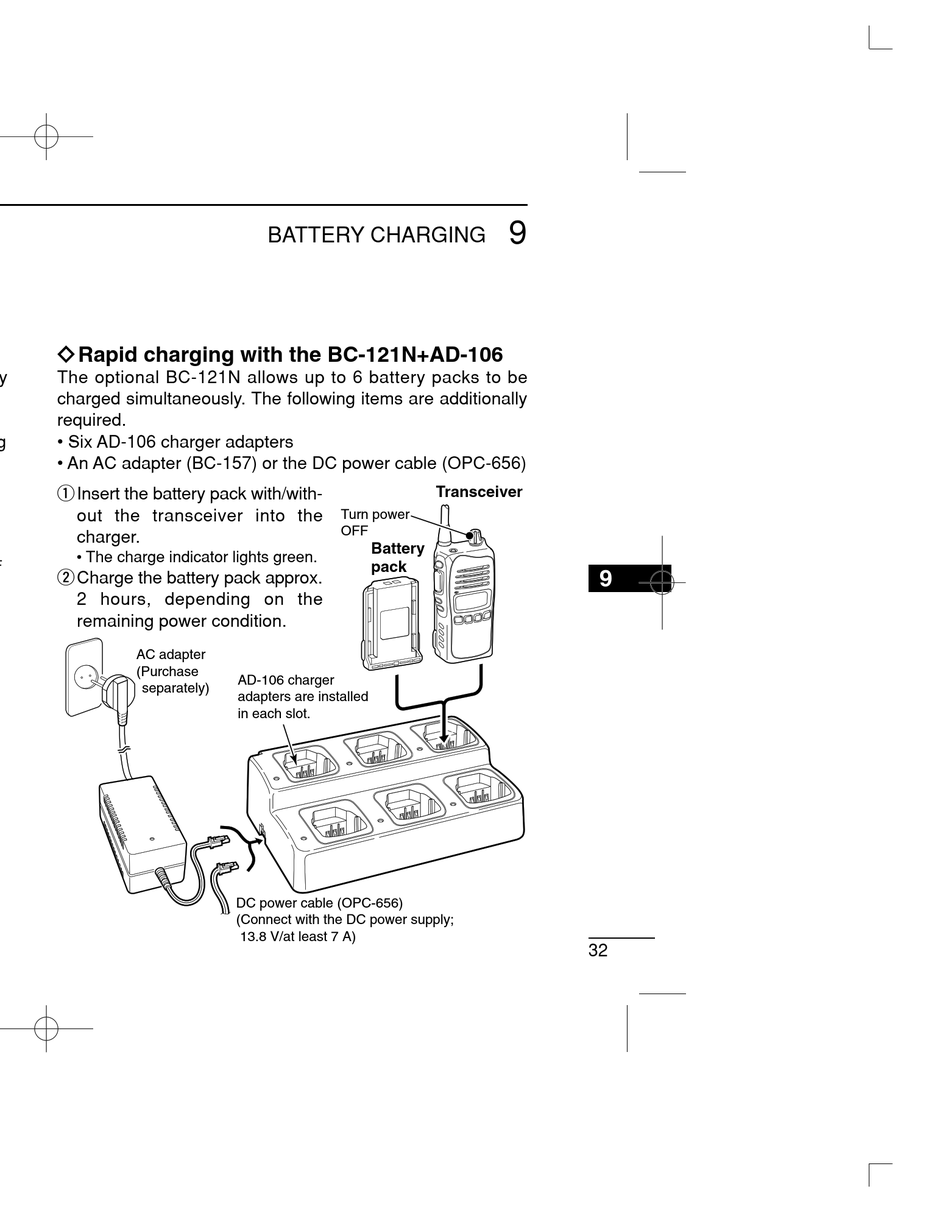

ï Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.
• Six AD-106 charger adapters
• An AC adapter (BC-157) or the DC power cable (OPC-656)
q Insert the battery pack with/with-
out the transceiver into the
charger.
• The charge indicator lights green.
w Charge the battery pack approx.
2 hours, depending on the
remaining power condition.
AC adapter
(Purchase
AD-106 charger
separately)
adapters are installed
in each slot.
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
9
Transceiver
Turn power
OFF
Battery
pack
9
32
