Section 1 - General Information; Generator Identification - Generac Power Systems 004701-0 Owner's Manual

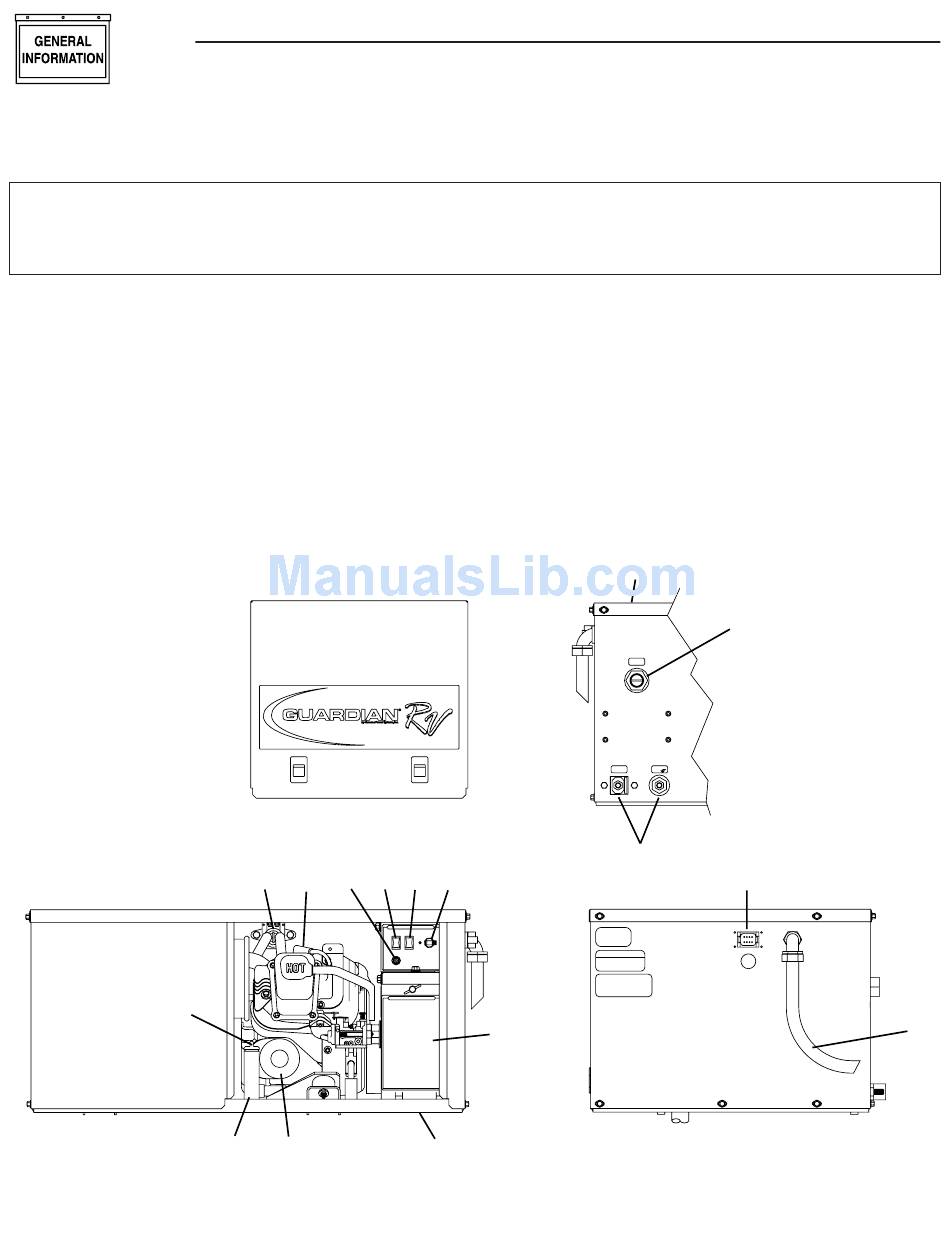

1.1

GENERATOR IDENTIFICATION

Please record the following information from the generator DATA LABEL or information decal.
1. Model Number _____________________
3. kW Rating _________________________
1. Generator Air Intake
2. Engine Start/Stop Switch
3. Fuse
4. Optional Remote Panel Receptacle (Side View)
5. Generator AC Output Leads (Side View)
6. Fuel Primer Switch
7. Circuit Breaker
8. Starter Contactor
9. Fuel Inlet
14/16
4
Section 1 – General Information
Recreational Vehicle Generator
8 3
17
13 12
2. Serial Number __________________
4. Rated Voltage __________________
10. Fuel Pump (Behind Access Panel)
11. LP Regulator/Solenoid
12. Oil Filter
13. Oil Drain Cap
14. Oil Dipstick
15. Air Filter (Behind Access Panel)
16. Oil Fill
17. Spark Plug
2 6 7
CONTROL CENTER
C .B .
S T A R T F U E L
3 0 A
S T O P P R IM E
F U S E
1 5 A
S E R V IC E A C C E S S P A N E L
AIR FILTER LOCATED BEHIND PANEL.
MAINTENANCE SCHEDULE
OIL LEVEL: CHECK DAILY
AIR FILTER: CLEAN PREFILTER
EVERY 100 HOURS. *
REPLACE ELEMENT
EVERY 250 HOURS. *
OIL & OIL FILTER: CHANGE EVERY 100
HOURS. (OR ANNUALLY) *
15
* PERFORM MORE OFTEN IN DUSTY CONDITIONS
SPARK PLUGS: INSPECT & CLEAN
PLUGS EVERY 100
HOURS. REPLACE PLUGS
EVERY 500 HOURS.
(IF NECESSARY)
FUEL FILTER: CHANGE EVERY 400
HOURS. (OR ANNUALLY)
REPLACEMENT INFORMATION
PREFILTER P/N: 0D4511
AIR FILTER P/N: 0D3262
OIL FILTER P/N: 070185
SPARK PLUG P/N: 072347
FUEL FILTER P/N: 087769
OIL CAPACITY WITH FILTER: 0.8L/0.84QT
TEMPERATURE SAE VISCOSITY
32°F AND HIGHER 30
10°F TO 100°F 15W-40
0°F TO 80°F 10W-30
-20°F TO 50°F 5W-30
WHEN SERVICE OR PARTS ARE NEEDED IN
THE USA OR CANADA, CONTACT THE GENERAC
SERVICE LOCATOR AT 1-800-333-1322.
1
11
9
FUEL
INLET
BATTERY BATTERY
POS. NEG.
10
4
REMOTE
5
