Installation Layout; Interconnections - Generac Power Systems Guardian Elite QT02516 Specification Sheet

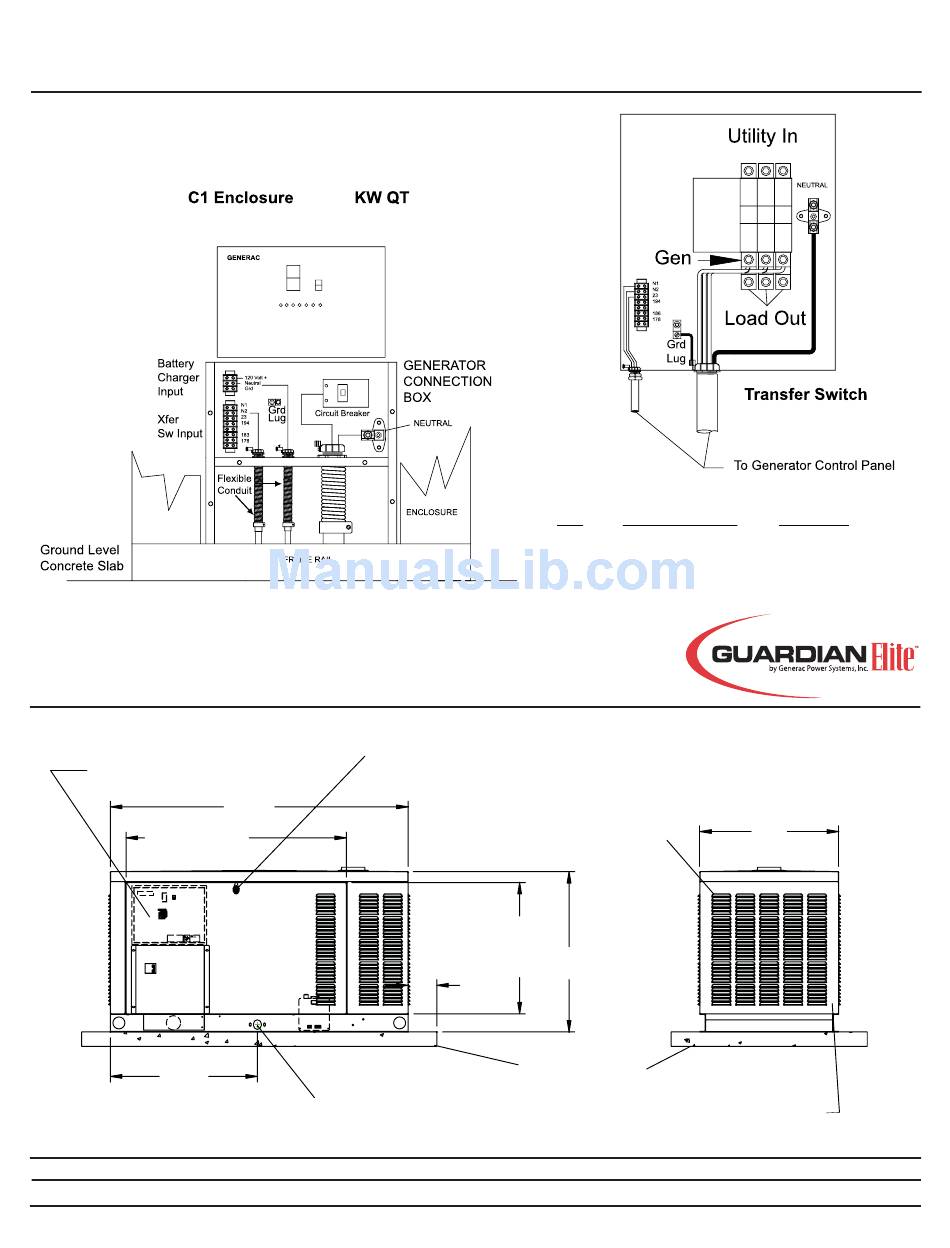

INTERCONNECTIONS

INSTALLATION LAYOUT

CONTROL PANEL R TYPE
BATTERY CHARGER IS
ENCLOSED WITHIN
46 46
DOOR TYP DOOR TYP
AUTO
OFF
OFF
ON
MANUAL SET
EXERCISE
TIME
OVER CRANK
OVER SPEED
LOW COOLANT LEVEL
HI COOLANT TEMPERATURE
LOW OIL PRESSURE
LOW BATTERY
LOW FUEL PRESSURE
SYSTEM READY
DANGER
FUSES
High voltage.
LOCATED Contact with terminals
INSIDE may result in personal
injury or death.
0F3215
30.7 30.7
UNIT WEIGHT: Steel 875 lbs.
GENERAC ® POWER SYSTEMS, INC. • P.O. BOX 297 • WHITEWATER, WI 53190
Bulletin 0174350SBY / Printed in USA 05.07
18-30
R-SERIES
CONTROL PANEL
VISE ACTION LATCH,
ONE PER DOOR, ONE LIFT-OFF
DOOR PER SIDE OF GENERATOR
62.2 62.2
RIGHT SIDE VIEW
FUEL LINE CONNECTION
3/4" NPT FEMALE COUPLING
WEBSITE: www.guardiangenerators.com
KW VOLTS / AMPS
25 208 3ø
25 240 3ø
EXHAUST AND AIR DISCHARGE
LOUVERS - FRONT AND SIDES
27.4
DOOR
33.5 33.5
TYP
6 6
MIN. MIN.
CONCRETE BASE
NOT INCLUDED
© 2007 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice.
COMMERCIAL 25 kW
CIRCUIT BREAKER SIZE
LUG SIZE
100 #6 - 300 MCM
90 #4 - 1/0
29 29
FRONT VIEW
EXHAUST MUFFLERS
ENCLOSED WITHIN,
COMMERCIAL SERIES
