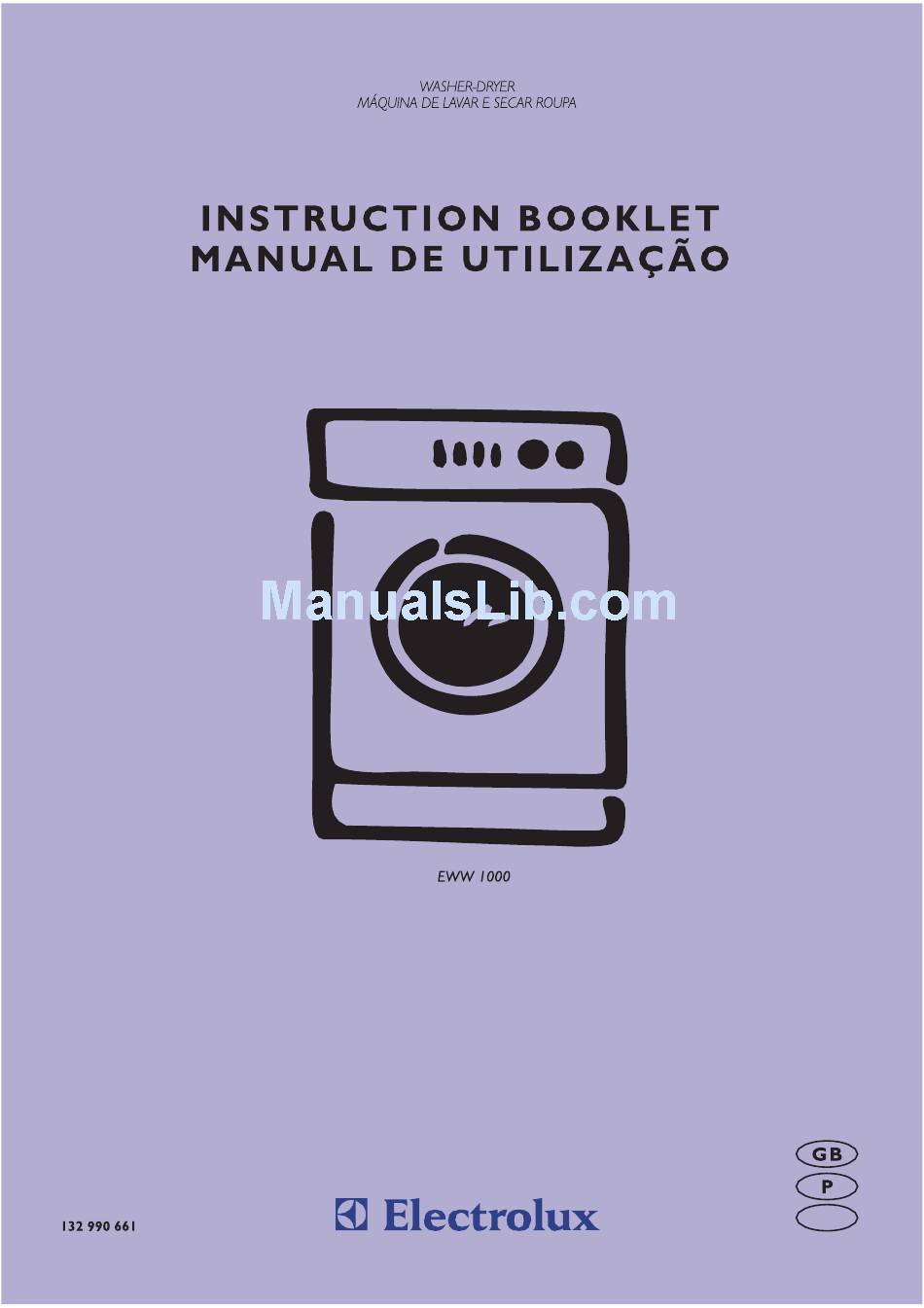

- Page 1 P L U N T H R I O R O U C W N ODHGIES GIA THN EGKATASTASH KAI TH CRHSH...
- Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Operating sequence 19-21 Warnings Washing programmes Disposal Special programmes Timed dryings Tips for environmental protection 5 International wash code symbols Technical specifications Maintenance Bodywork Installation Door seal Unpacking Detergent dispenser drawer Positioning Drain pump 26-27 Water inlet Water inlet filter Water drainage Emergency emptying out Electrical connection... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. • Use only the recommended quantities of fabric Installation softener. An excessive amount could damage the • All internal packing must be removed before using laundry. -
Page 5: Disposal
To disable this device and restore the possibility of Child safety closing the door, rotate the button anti-clockwise • Children are often not aware of how dangerous until the groove is vertical. electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 61 cm WASHING DRYING MAXIMUM LOAD Cotton 2.5 kg Synthetics 2.5 kg Delicates 2.5 kg Woollens/handwash SPIN SPEED 1000 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A... -
Page 7: Installation
Installation Unpacking 7. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. -
Page 8: Water Drainage
The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised. The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use. -
Page 9: Your New Washer-Dryer
Your new washer-dryer This new machine, which is fitted with the New Jet System, patented Electrolux, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel Position E corresponds to the ENERGY SAVING 1 Programme chart programme and position to “cold wash”. A programme chart is in the interior part of the At the end of the programme the selector dial detergent dispenser drawer or is provided with the must be turned to position O. -
Page 11: Electronic Drying Button
8 Extra rinse button Spin speed Can be used with all programmes except the The following speeds are available for the different wool/handwash programme. The machine fabrics. performs 4 rinses instead of 3. • Cotton, linen: This option is recommended for people who are 500/700/900 max 1000 r.p.m. - Page 12 Altering the delayed start Drying time • Depress START/PAUSE button The selected drying time is displayed in minutes or hours and minutes. • Depress DELAY START button until the required time is displayed. If you wish to cancel the delay, depress the button only once: the symbol 0 h is displayed.
-
Page 13: Programme Progress Display
Alarm codes Draining of water In the event of operating problems, some alarm By depressing the Start/Pause button codes can be displayed, for example E20 (see • The water of programme “A” (Soak) is emptied out paragraph “Something not working”). •... -
Page 14: Programme Information
End of programme Programme information When the door locked light has gone out, the door can be opened. The light (END) on the Wool/Handwash (Lã) programme progress display illuminates. Washing programme for machine washable wool as A flashing zero appears on the display. Turn the programme selector dial to O to switch the well as for hand washable woollens and delicate fabrics with the “hand washing”... - Page 15 programme “D” and depress the START/PAUSE button F = Spin (Centrifugação) Separate spin at the maximum speed for hand washed garments. You can reduce the speed by means of button to adapt it to the fabrics to be spun. G = Short programme (Programa Mini) This is a complete programme that can be combined with the following options: spin speed reduction, anti-crease and delayed start.
-
Page 16: Washing Hints
Laundry weights Washing hints The following weights are indicative: Sorting the laundry bathrobe 1200 g napkin 100 g Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. quilt cover 700 g Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 17: Detergents And Additives
residual marks with bleach. Quantity of detergent to be used Ink: depending on the type of ink, moisten the fabric The type and quantity of detergent will depend on first with acetone (*), then with acetic acid; treat any the type of fabric, load size, degree of soiling and residual marks on white fabrics with bleach and then hardness of the water used. -
Page 18: Drying Hints
Drying symbols on garment labels Drying hints Always look at the garment label to check whether As a dryer, the machine works on the condensation garments can be machine dried. principle. The following symbols refer to drying: Therefore, the water tap must be open and the drain hose must drain water into a sink or into Machine drying is usually possible the drain pipe, even during the drying cycle. -
Page 19: Operating Sequence
4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Washing only Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 20: Select The Required Options
7. Select the required options 9. Start the programme The light corresponding to the depressed button To start the selected programme, press the illuminates. START/PAUSE button ; the corresponding light stops flashing. The pilot light corresponding to the wash phase which is running is on. -
Page 21: Drying Only
Drying only Automatic washing and drying (NON-STOP programme) Warning! Do not exceed the maximum laundry loads: Warning! For NON-STOP programmes, it is also - 2.5 kg for linen and cottons essential not to exceed the maximum load sizes of 2.5 kg for cotton and 2 kg for synthetics. kg for synthetics. -
Page 22: Washing Programmes
Programme chart Washing programmes Consumption* Type of Programme Additional Max. Section Temp. fabric description functions load Energy Water Time min. black 90° White Wash at 90°C 5 kg cotton 3 rinses Normal spin black White cotton Wash at 60°C 5 kg economy 3 rinses Normal spin... -
Page 23: Special Programmes
Programme chart Special programmes Consumption* Selector Programme Additional Max. Section dial Programme description functions load Energy Water Time position min. light blue Soak Soak at 30°C 5 kg 0.23 (Demolhar) stop with water in tub. To drain, depress START/PAUSE button The machine automatically empties itself... -
Page 24: Timed Dryings
Programme table Timed drying Degree of Drying time Type of fabric Max. load Spin speed drying mins 2.5 kg 1000 Extra dry Cotton and linen Ideal for (bathrobes, bath towelling towels, etc.) materials 1.5 kg 1000 2.5 kg 1000 Cotton and linen (towels, T-shirts, bathrobes) Store dry (*) -
Page 25: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 26: Maintenance
Maintenance Detergent can also accumulate inside the drawer 1. Bodywork recess: clean it with an old toothbrush. Refit the Clean the outside of the machine with warm water drawer after cleaning. and a detergent used to handwash dishes. Rinse with clean water and dry with a soft cloth. Important: do not use methylated spirits, solvents or similar products to clean the bodywork. -
Page 27: Water Inlet Filter
• Remove any objects from the pump impeller by 5. Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 28: Something Not Working
