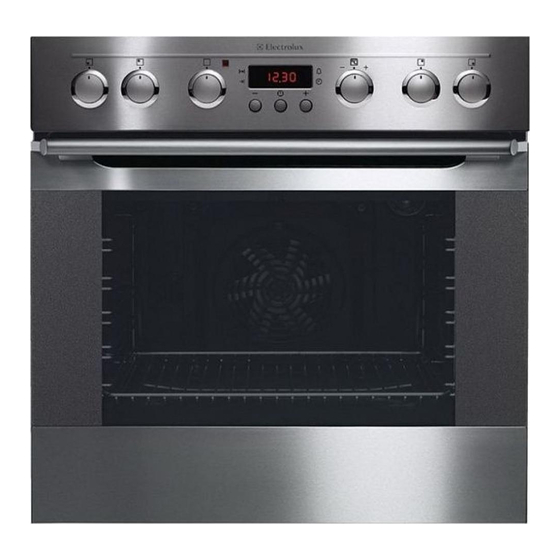

Electrolux EON33100 User Manual

Hide thumbs Also See for EON33100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
user manual
Cooker
EON33100

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EON33100

Summary of Contents for Electrolux EON33100

  • Page 1 Cooker EON33100...

  • Page 2: Table Of Contents

    2 electrolux Electrolux. Thinking of you. Share more of our thinking at www.electrolux.com Contents Safety instructions........3 Cleaning and Care......... 23 Description of the Appliance ....4 What to do if …........29 Before Using for the first time ....6 Installation Instructions ......

  • Page 3: Safety Instructions

    electrolux 3 Safety instructions Electrical safety How to avoid damage to the appliance • This appliance must be only connected • Do not line the oven with aluminium foil by a registered electrician. and do not place baking trays, pots, etc. on the oven floor, as the heat that builds •...

  • Page 4: Description Of The Appliance

    4 electrolux Description of the Appliance General Overview Control panel Door handle Full glass door Control Panel Time display Oven Power Indicator Temperature Pilot Light Temperature selector Oven Functions Clock function buttons Hob Cooking Zone Control Knobs Hob Cooking Zone Control Knobs...

  • Page 5: Oven Features

    electrolux 5 Oven Features Top heat and heating elements Oven lighting Shelf positions Bottom Heat Oven shelf runners, removable Oven accessories Roasting Pan Oven shelf For baking and roasting or as a pan for col- For cookware, cake tins, roasts and grilled lecting fat.

  • Page 6: Before Using For The First Time

    6 electrolux Before Using for the first time Setting and changing the time After approx. 5 seconds, the flashing stops and the clock displays the time set. The oven only operates when the time has been set. When the appliance has been connect- ed to the electrical supply or when there has been a power cut, the function indi- cator Time of day...

  • Page 7: Setting The Heat Setting

    electrolux 7 Heat settings 9 = highest output = double ring switching • Heat settings can be set from 1-9. • Intermediate positions are possible for Switch the cooking zone off approx. 5- settings 2-7. 10 minutes before cooking is finished to make use of the residual heat.

  • Page 8: Using The Oven

    8 electrolux resistance). The stop position will then Finally, turn back to the desired setting. be clearly detectable. After cooking, turn back to the OFF po- sition. To use the dual fry/cook area again af- terwards, the larger ring must be switched back on.

  • Page 9: Cooling Fan

    electrolux 9 fan continues to run to cool the appli- Cooling fan ance down, then switches itself off auto- The fan switches on automatically in or- matically. der to keep the appliance’s surfaces cool. When the oven is switched off, the Oven Functions The oven has the following functions: Oven function...

  • Page 10: Clock Functions

    10 electrolux Inserting the oven shelf: Inserting the oven shelf and roasting pan together Insert the oven shelf so that the feet point downwards. Lay the oven shelf on the roasting pan. Push the oven shelf between the guide bars Push the roasting pan between the guide of the selected oven level.
  • Page 11 electrolux 11 Using the button set the desired Countdown (max. 2 hours 30 minutes). To set the switch-off time for an oven func- tion. Time of day To set, change or check the time (See also section “Before Using for the First Time”).
  • Page 12 12 electrolux Duration When the time has elapsed, the function in- dicator flashes, an audible signal sounds for Press the Selection button repeated- 2 minutes and the oven switches itself off. ly until the function indicator Duration flashes. The signal and the programme can be Using the button set the desired stopped by pressing any button.
  • Page 13 electrolux 13 After approx. 5 seconds the display returns Using the Duration function, set the to showing the current time. time required for cooking the dish. The function indicator End lights up. In this example, 1 hour. When the time has elapsed, the function in- Using the End function, set the time dicator flashes, an audible signal sounds for...

  • Page 14: Uses, Tables And Tips

    14 electrolux And switches itself off again when the cook- In this case, at 14:05. ing time entered has elapsed. Uses, Tables and Tips Cooking table The information in the table is for guidance only. Heat Cooking- Cooking set- suitable for Hints process time...
  • Page 15 electrolux 15 • For Convection bright metal tins are the trays have cooled the distortion will also suitable. disappear again. Oven levels How to use the Baking Tables • Baking with Conventional is only pos- The tables give the required temperature sible on one level.

  • Page 16: Baking Table

    16 electrolux Baking table Time Type of Shelf Tempera- Ovenfunction Hours baking position ture °C mins. Baking in tins Ring cake or brioche Convection 150-160 0:50-1:10 Madeira cake/Fruitcakes Convection 140-160 1:10-1:30 Sponge cake Convection 0:25-0:40 Sponge cake Conventional 0:25-0:40 Flan base - short pastry Conventional 180-200 0:10-0:25...

  • Page 17: Tips On Baking

    electrolux 17 Time Type of Shelf Tempera- Ovenfunction Hours baking position ture °C mins. Short pastry biscuits Convection 150-160 0:06-0:20 Short pastry biscuits Convection 1 / 3 150-160 0:06-0:20 Viennese whirls Convection 0:20-0:30 Viennese whirls Convection 1 / 3 0:25-0:40 Viennese whirls Conventional 0:20-0:30...
  • Page 18 18 electrolux Baking results Possible cause Remedy Cake browns unevenly Oven temperature too high and baking Set a lower oven temperature and a time too short longer baking time Mixture is unevenly distributed Spread the mixture evenly on the baking tray Cake is not done within the Temperature too low Use a slightly higher oven setting...

  • Page 19: Roasting Table

    electrolux 19 a lid. This will keep the meat more suc- • To prevent escaping meat juices or fat culent. from burning on to the pan, we recom- mend placing some liquid in the roasting • All types of meat, that can be browned pan.

  • Page 20: Grill Sizes

    20 electrolux Temper- Time Shelf Type of meat Quantity Ovenfunction ature Hours position °C mins. Convection Saddle of lamb 1-1.5 kg 160-180 1:00-1:30 grilling Game Saddle of hare, leg of up to 1 kg Conventional 220-250 0:25-0:40 hare Saddle of venison 1.5-2 kg Conventional 210-220...

  • Page 21: Grilling Table

    electrolux 21 Grilling table Grilling time Food to be grilled Oven level 1st side 2nd side Burgers 8-10 mins. 6-8 mins. Pork fillet 10-12 mins. 6-10 mins. Sausages 8-10 mins. 6-8 mins. Fillet steaks, veal steaks 6-7 mins. 5-6 mins. Fillet of beef, roast beef 10-12 mins.

  • Page 22: Making Preserves

    22 electrolux • After this finish drying the food to be dried. Oven level Temperature Time in hours Food to be dried in °C (Guideline) 1 level 2 levels Vegetables Beans 60-70 1 / 4 Peppers (strips) 60-70 1 / 4 Vegetables for soup 60-70 1 / 4...

  • Page 23: Cleaning And Care

    electrolux 23 Cooking time until Continue to cook Temperature Preserve simmering at 100°C in°C in mins. in mins. Stone fruit Pears, quinces, plums 160-170 35-45 10-15 Vegetables Carrots 160-170 50-60 5-10 Cucumbers 160-170 50-60 Mixed pickles 160-170 50-60 Kohlrabi, peas, asparagus 160-170 50-60 15-20...

  • Page 24: Oven Lighting

    24 electrolux Removing the shelf support rails To re-insert, first hook the rail into place at the back (1) and then insert the front and press into place (2). First pull the front of the rail away from the oven wall (1) and then unhitch at the back (2). Oven Lighting Warning: Risk of electric shock! Prior to changing the oven light bulb:...

  • Page 25: Oven Ceiling

    electrolux 25 Oven Ceiling Repositioning the heating element The upper heating element can be folded down to make it easier to clean the oven ceil- ing. Folding down the heating element Move the heating element back up to- wards the oven ceiling. Pull the heating element forwards against the spring pressure and guide it over the oven support lug.

  • Page 26: Oven Door

    26 electrolux Oven door Take hold of the oven door with a hand For easier cleaning of the oven interior the oven door of your appliance can be taken off its hinges. Removing the oven door from its hinges Open the oven door as far as it will go. on each side and pull it away from the oven at an upwards angle (Take care: Undo the clamping levers (A) on both...

  • Page 27: Oven Door Glass

    electrolux 27 Open the oven door as far as it will go. Removing the door glass Open the oven door as far as it will go. Fold up the clamping levers (A) on both door hinges back into their original Undo the clamping levers (A) on both positions.
  • Page 28 28 electrolux Take hold of the door glass on its upper pushed between the outer door panel edge and take it out of the guide by pull- and the guide corner(D). ing it upwards. Cleaning the door glass Clean the door glass thoroughly with a solu- tion of water and washing up liquid.

  • Page 29: What To Do If

    electrolux 29 Fold up the clamping levers (A) on both Close the oven door. door hinges back into their original positions. What to do if … Problem Possible cause Remedy The cooking zones are not func- Consult the operating instructions for the built-in cooking surface tioning The oven does not heat up The oven is not switched on...

  • Page 30: Installation Instructions

    30 electrolux Installation Instructions Suitable separation devices include e.g. Attention: The new appliance may only cut-outs, fuses (screw fuses are to be be installed and connected by a regis- taken out of the holder), RCD’s and con- tered expert. tactors. Please comply with this.
  • Page 31 electrolux 31...
  • Page 32 32 electrolux...
  • Page 33 electrolux 33...

  • Page 34: Disposal

    34 electrolux Disposal Packaging material The packaging materials are environ- mentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging mate- rials in the appropriate container at the community waste disposal facilities.

  • Page 35: Guarantee/Customer Service

    electrolux 35 Guarantee/Customer Service European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appli- ance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qual-...
  • Page 36 36 electrolux Ireland +353 1 40 90 753 Long Mile Road Dublin 12 Italia +39 (0) 434 558500 C.so Lino Zanussi, 26 - 33080 Porcia (PN) Latvija +37 17 84 59 34 Kr. Barona iela 130/2, LV-1012, Riga Žirmūnų 67, LT-09001 Vilnius Lithuania +3702780607 Luxembourg...
  • Page 37 electrolux 37...
  • Page 38 38 electrolux...

  • Page 39: Service

    electrolux 39 Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating in- structions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.
  • Page 40 www.electrolux.com 387 996 892-A-280509-01...
