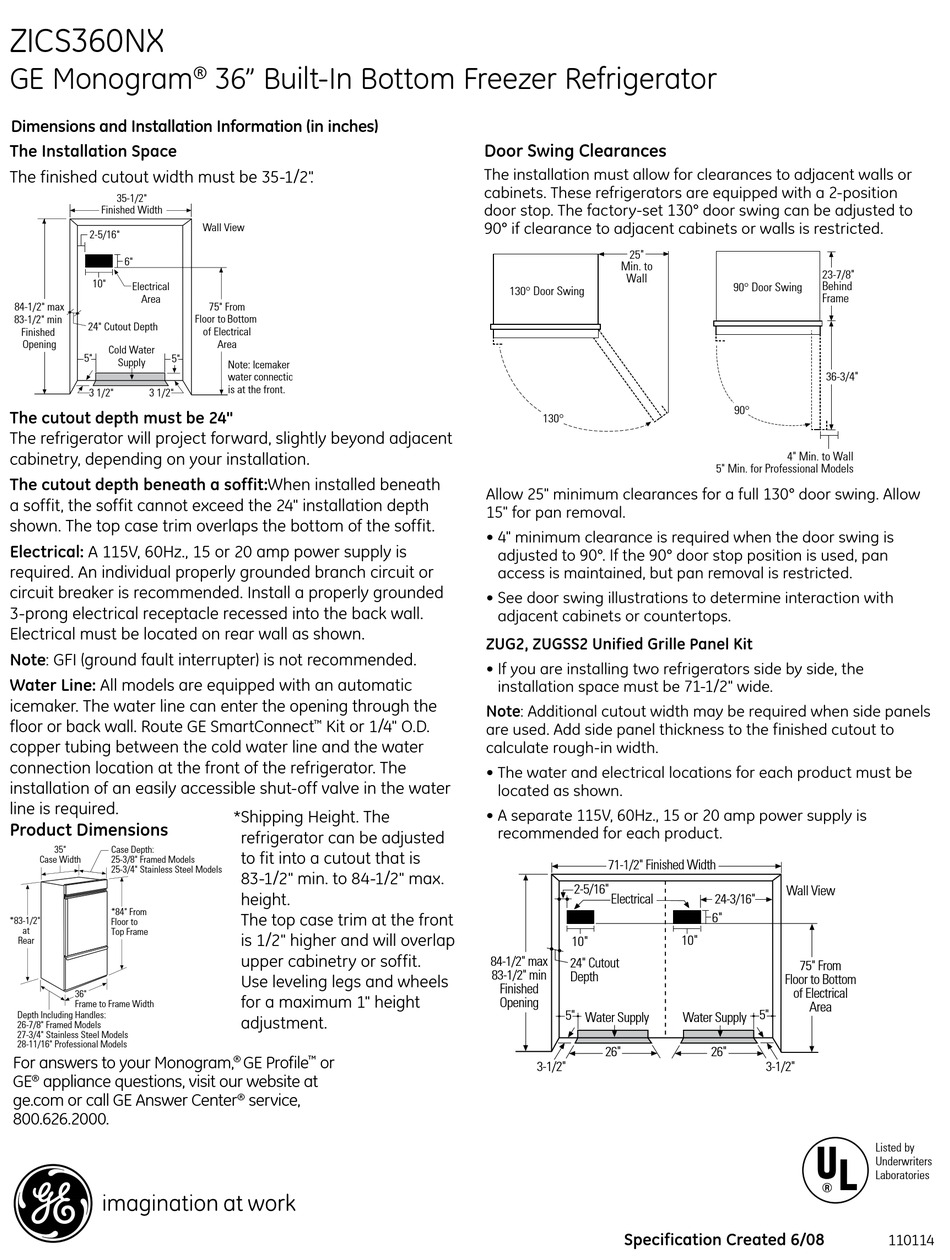

GE Monogram ZICS360NX Datasheet

ZICS360NX
GE Monogram
Dimensions and Installation Information (in inches)
The Installation Space
The finished cutout width must be 35-1/2" .
35-1/2"
Finished Width
2-5/16"
6"
10"
Electrical
Area
84-1/2" max
83-1/2" min
24" Cutout Depth
Finished
Opening
Cold Water
5"
5"
Supply
3 1/2" 3 1/2"
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinetry, depending on your installation.
The cutout depth beneath a soffit:When installed beneath
a soffit, the soffit cannot exceed the 24" installation depth
shown. The top case trim overlaps the bottom of the soffit.
696Dia7
Electrical: A 115V, 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch circuit or
circuit breaker is recommended. Install a properly grounded
3-prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line: All models are equipped with an automatic
icemaker. The water line can enter the opening through the
floor or back wall. Route GE SmartConnect
copper tubing between the cold water line and the water
connection location at the front of the refrigerator. The
installation of an easily accessible shut-off valve in the water
line is required.
Product Dimensions
35" Case Depth:
Case Width 25-3/8" Framed Models
25-3/4" Stainless Steel Models
*84" From
*83-1/2"
Floor to
at
Top Frame
Rear
36"
Frame to Frame Width
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models
28-11/16" Professional Models
For answers to your Monogram,
429Dia9
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
36" Built-In Bottom Freezer Refrigerator
®
Wall View
75" From
Floor to Bottom
of Electrical
Area
Note: Icemaker
water connection
is at the front.
Kit or 1/4" O.D.
™
* Shipping Height. The
refrigerator can be adjusted
to fit into a cutout that is
83-1/2" min. to 84-1/2" max.
height.
The top case trim at the front
is 1/2" higher and will overlap
upper cabinetry or soffit.
Use leveling legs and wheels
for a maximum 1" height
adjustment.
GE Profile or
® ™
service,
®
Door Swing Clearances
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
25"
Min. to
Wall
130° Door Swing
130°
Allow 25" minimum clearances for a full 130° door swing. Allow 605Dia20
15" for pan removal.
• 4" minimum clearance is required when the door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
ZUG2, ZUGSS2 Unified Grille Panel Kit
• If you are installing two refrigerators side by side, the
installation space must be 71-1/2" wide.
Note: Additional cutout width may be required when side panels
are used. Add side panel thickness to the finished cutout to
calculate rough-in width.
• The water and electrical locations for each product must be
located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is
recommended for each product.
71-1/2" Finished Width
2-5/16"
Electrical
10"
84-1/2" max
24" Cutout
83-1/2" min
Depth
Finished
Opening
5"
Water Supply
26"
3-1/2"
696Dia8
Specification Created 6/08
23-7/8"
Behind
90° Door Swing
Frame
36-3/4"
90°
4" Min. to Wall
5" Min. for Professional Models
605Dia21
Wall View
24-3/16"
6"
10"
75" From
Floor to Bottom
of Electrical
Area
5"
Water Supply
26"
3-1/2"
Listed by
Underwriters
Laboratories
110114
