ZICS36NA–GE Monogram 36" Built-In Stainless Steel Bottom Mount
Refrigerator with Automatic Icemaker
Design Information
Advanced Planning for a Flush or Semi-Flush Enclosure Installation

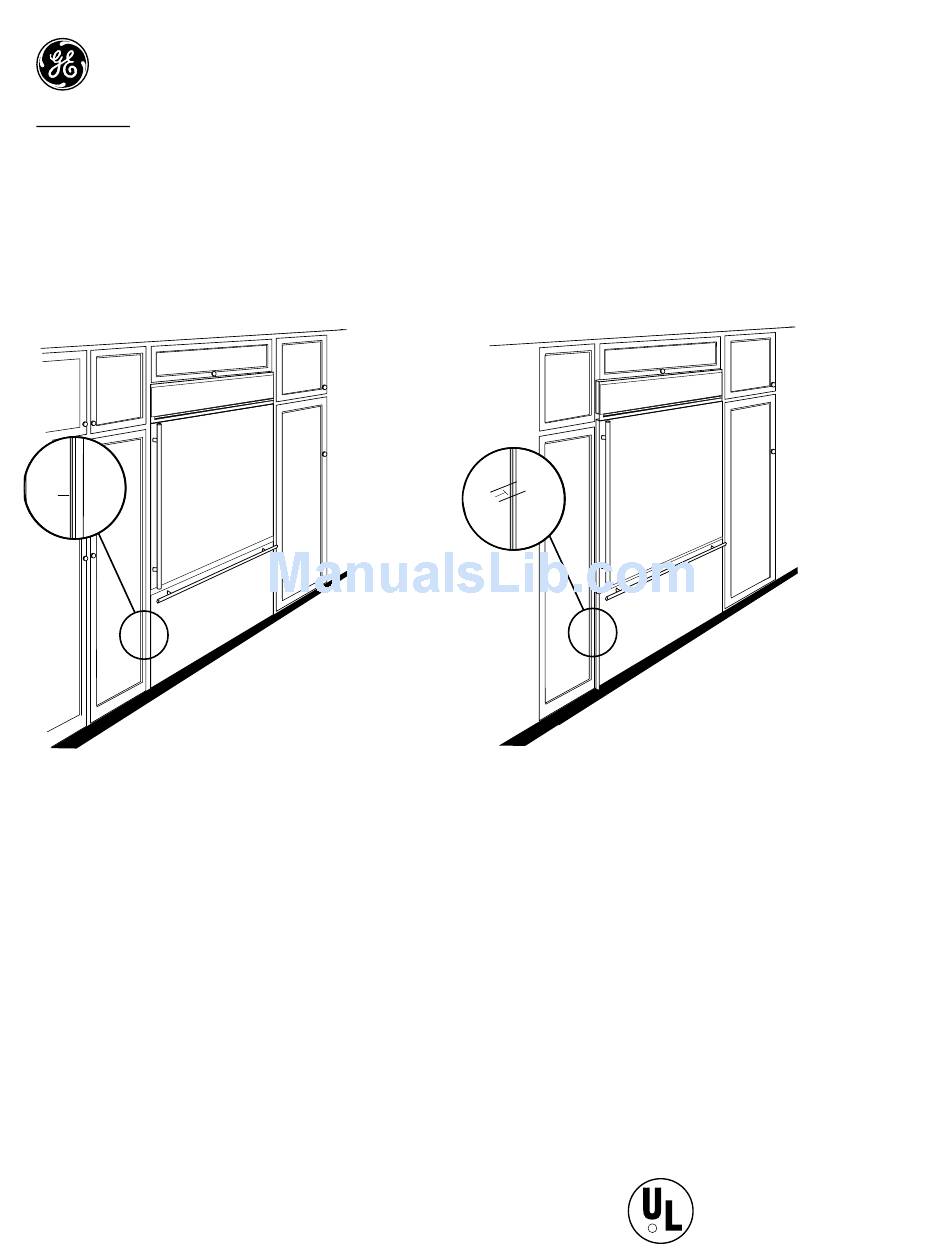

True Flush Installation
0"
Monogram built-in refrigerators can be installed flush
with typical 24-3/4" deep cabinetry.
When installed semi-flush, the case trim will conceal
slight gaps around the enclosure. The refrigerator will
project forward approximately 3/4" beyond the front face
of surrounding cabinetry.
Specification Revised 6/00
True Flush Installation
In a flush installation,
the refrigerator doors
will align evenly with the
front face of adjacent cabinet
doors. The refrigerator blends
into the surrounding cabinetry.
Semi-Flush Installation
3/4"
Side Panels Requirements:
• Side panels are not required whenever the refrigerator is installed
into an enclosure or between pantry and oven cabinets.
• Side panels are required whenever the sides of the refrigerator
are exposed.
• Side panel sizes vary depending on the type of installation
being made.
To accomplish an attractive installation,
you must:
1. Determine the need for side panels.
2. Determine side panel thickness.
3. Order matching side panels from the cabinet manufacturer. Be
sure to provide the exact dimensions.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile
GE Answer Center
Semi-Flush Installation
These refrigerators
can also be installed
semi-flush into an enclosure
using the minimum cutout
width. The case trim creates a
frame around the opening.
®
™
™ or GE appliance questions, call
® service, 800.626.2000.
