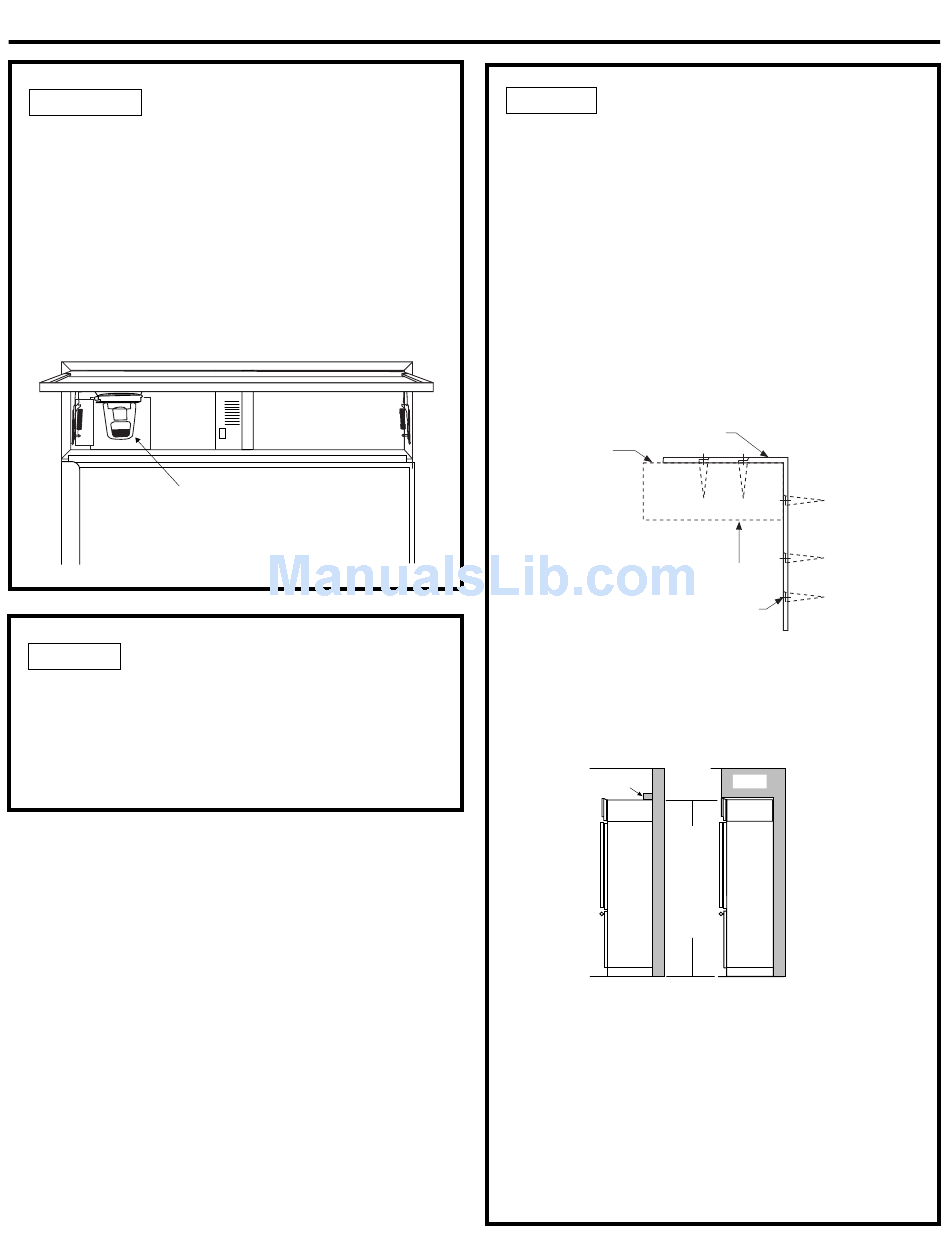

STEP 2A WATER LINE
INSTALLATION WITH A REVERSE
OSMOSIS SYSTEM
Skip this step when not using an RO System
If the water supply to the refrigerator is from a
Reverse Osmosis Water System use the refrigerator's
filter bypass plug. Using the refrigerator's water
filtration cartridge with the RO filter can result in
hollow ice cubes.
Filter Bypass Plug
STEP 3 INSTALL SIDE PANELS
Skip this step when not using side panels
If you are using 1/4" side panels, they should be
inserted into the case trim. Fasten the panels to the
refrigerator with the 3M Dual Lock adhesive strips
(provided) before setting refrigerator in place.
Installation Instructions
STEP 4 INSTALL ANTI-TIP
BRACKETS
WARNING:
The refrigerator is top-heavy and must be secured to
prevent the possibility of tipping forward.
ATTENTION:
BASCULEMENTS
Le réfrigérateur est beaucoup plus lourd en haut et il
faut le maintenir en place pour éviter la possibilité de
son basculement vers l'avant.
• Cut a 2" x 4" x 35" block and secure the block to
the mounting brackets provided using #12 or #14
wood screws.
Mounting Bracket
2 x 4 Cut
To 35" Length
Wood Screws Mounted into
Vertical Wood Studs
• Secure the bracket with wood block to the back wall
so that it is 84" (or your installation height) from the
finished floor. See illustration.
Brackets
Required
Block
• Screws must penetrate at least one inch into vertical
wall studs.
• Gently push refrigerator into the opening with
hands against front corners.
Important Note: When the refrigerator is installed under a soffit or if
there is not enough height for this method of security, brackets cannot
be used. Proceed to step 5 to level the refrigerator and then to step 6 to
secure refrigerator to cabinets. The refrigerator must be secured to
prevent tipping.
11
ANTI-TIP PRECAUTIONS
PRECAUTIONS CONTRE LES
Installation
Height
From Floor
Soffit
Brackets
Not Required
Beneath a
Soffit
Height
From
Floor
to
Bottom
of Wood
Block
Side View
