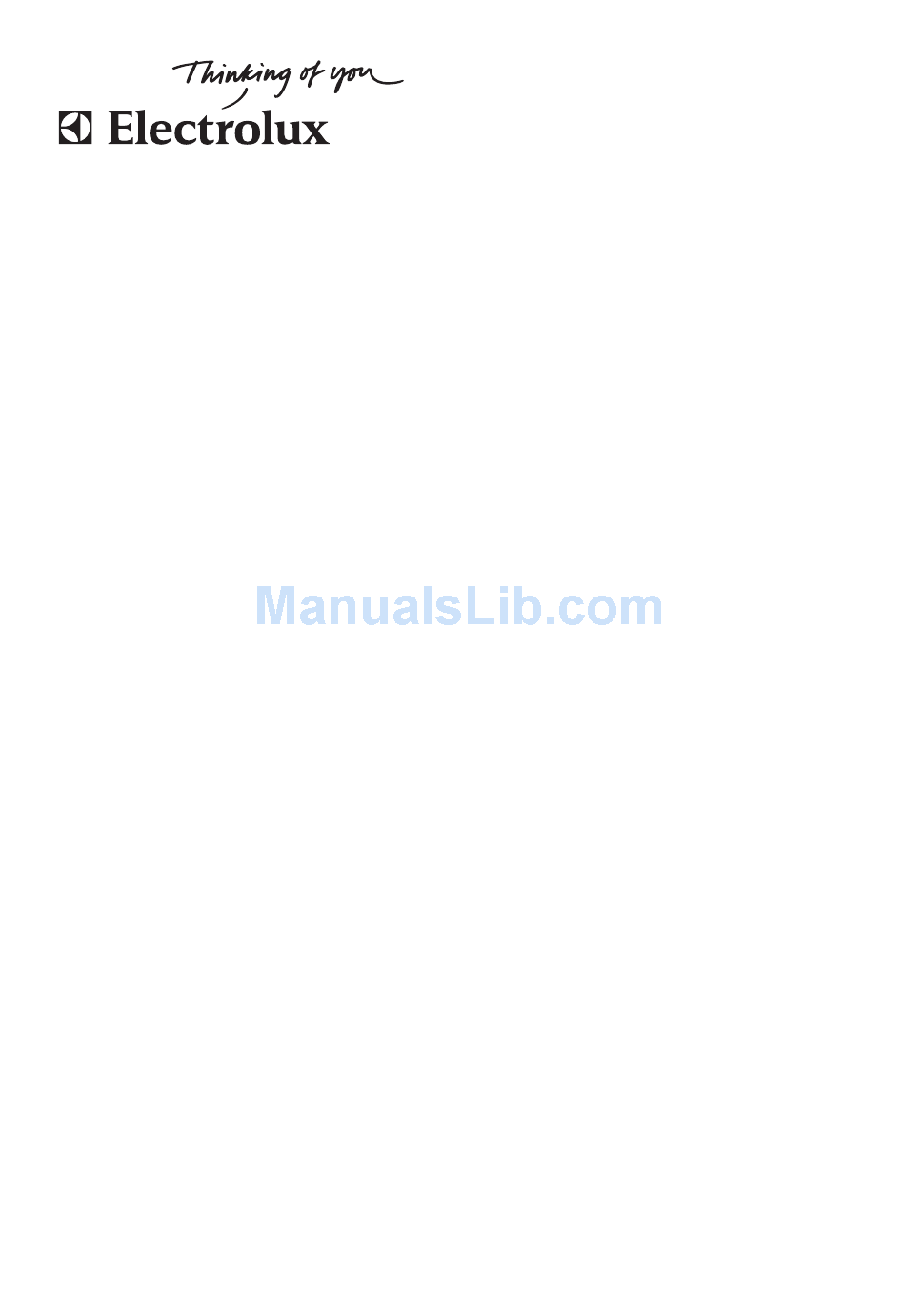

  • Page 1 Induction wok EHD36400U...
  • Page 2 We were thinking of you when we made this product...
  • Page 3 electrolux 3 Welcome to the world of Electrolux Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable.

  • Page 4: Table Of Contents

    4 electrolux contents Contents Safety instructions Description of the Appliance Operating the appliance Tips for cooking with the wok Cleaning and Care What to do if … Disposal Installation Instructions Assembly Installing more than one Frontline Guarantee/Customer Service Service and Spare Parts The following symbols are used in this user information: Warning! This must be read! Important advice for the safety of persons and information on avoiding damage to the appliance...

  • Page 5: Safety Instructions

    safety instructions electrolux 5 General safety • The appliance may only be installed and connected by trained, registered service engineers. Safety instructions • Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that Please comply with these instructions.
  • Page 6 6 electrolux safety instructions Safety when cleaning • For cleaning, the appliance must be switched off and cooled down. • For safety reasons, the cleaning of the appliance with steam jet or high- pressure cleaning equipment is not permitted. How to avoid damage to the appli- ance •...

  • Page 7: Description Of The Appliance

    description of the appliance electrolux 7 Description of the Appliance Cooking surface layout Wok niche 2300W with power function 3200W Frontline strip Control panel Control panel layout Child lock pilot Heat setting Timer indicator light indicator Heat setting On/Off pilot light indicator Timer...
  • Page 8 8 electrolux description of the appliance Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields. Touch the sensor fields from above, without covering other sensor fields. Sensor field Function On / Off To switch the appliance on and off Increase settings...
  • Page 9 description of the appliance electrolux 9 Displays Display Description ¾ Cooking zone is switched off Keep warm setting Keep warm setting is set ¿ Ç Heat settings Heat setting is set Fault Malfunction has occurred Pan detection Cookware is unsuitable or too small or no cookware has been placed on the cooking zone Residual heat...

  • Page 10: Operating The Appliance

    10 electrolux operating the appliance Operating the appliance Only use a wok pan that is suited to this appliance. Switching the appliance on and off Control panel Display Pilot light ¾ To switch on touch for 2 seconds lights up To switch off touch for 2 seconds / none...
  • Page 11 operating the appliance electrolux 11 Using the child safety device The child safety device prevents unin- tentional use of the appliance. Switching on the child safety device Step Control panel Display/Signal ¾ Switch on appliance. (Do not set a heat setting.) Touch for 4 seconds Appliance switches off.

  • Page 12: Using The Timer

    12 electrolux operating the appliance Using the timer Two functions are possible: Function Condition Outcome after time has elapsed Safety cut-out When a heat setting is set acoustic signal lights up Cooking zone switches Countdown timer When cooking zones are not acoustic signal used lights up...
  • Page 13 operating the appliance electrolux 13 Setting the time Step Control panel Display Touch Pilot light flashes Touch minutes The pilot light lights up. The time is set. The time counts down to 0. Switching timer function off Step Control panel Display Touch Pilot light flashes...

  • Page 14: Automatic Switch Off

    14 electrolux operating the appliance Automatic switch off Cooking surface • If after switching on the cooking sur- face, a heat setting is not set within approx. 10 seconds, the cooking surface automatically switches itself off. • If the cooking zone is switched off, the cooking surface automatically switches itself off after approx.

  • Page 15: Tips For Cooking With The Wok

    tips for cooking with the wok electrolux 15 Tips for cooking with the Information on acrylamides The induction wok is eminently suitable According to the latest scientific for preparing “á la minute” dishes, in knowledge, intensive browning of particular Chinese specialities. The food food, especially in products con- is continuously turned during the short taining starch, can constitute a...
  • Page 16 16 electrolux tips for cooking with the wok Cookware for the induction wok Suitability test Cookware is suitable for induction cook- ing, if … • ... a little water on an induction cook- ing zone set to heat setting 9 is heat- ed very quickly.
  • Page 17 tips for cooking with the wok electrolux 17 Methods of preparation in the Stewing • Cooking in its own juice, or possibly with the addition of a little fat and Stir frying other liquid. • Wok is swirled with oil. •...

  • Page 18: Cleaning And Care

    18 electrolux cleaning and care Cleaning and Care Take care! Risk of burns from resid- ual heat. Warning! Sharp objects and abra- sive cleaning materials will damage the appliance. Clean with water and washing up liquid. Warning! Residues from cleaning agents will damage the appliance.
  • Page 19 cleaning and care electrolux 19 Removing deposits 1. Place a scraper on the glass ceramic surface at an angle. 2. Remove residues by sliding the blade over the surface. 3. Wipe the appliance with a damp cloth and a little washing up liquid. 4.

  • Page 20: What To Do If

    20 electrolux what to do if … What to do if … Problem Possible cause Remedy The cooking zone cannot be More than 10 seconds have Switch the appliance on again. switched on or is not operating passed since the appliance was switched on The child safety device is Deactivate child safety device...
  • Page 21 what to do if … electrolux 21 If you are unable to remedy the problem by following the above suggestions, please contact your local Service Force Centre. Warning! Repairs to the appliance are only to be carried out by quali- fied service engineers.

  • Page 22: Disposal

    22 electrolux disposal Disposal Packaging material The packaging materials are envi- ronmentally friendly and can be re- cycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appro- priate container at the community waste disposal facilities.

  • Page 23: Installation Instructions

    installation instructions electrolux 23 Installation Instructions Risk of injury from electrical current. Loose and inappropriate plug and sock- et connections can make the terminal overheat. • Have the clamping connections cor- Safety instructions rectedly installed by a qualified elec- trician. Warning! This must be read! The laws, ordinances, directives and •...

  • Page 24: Assembly

    24 electrolux assembly Assembly...
  • Page 25 assembly electrolux 25...
  • Page 26 26 electrolux assembly...
  • Page 27 assembly electrolux 27...

  • Page 28: Installing More Than One Frontline Hob

    28 electrolux installing more than one frontline hob Installing more than one Frontline hob Additional parts: cross bar(s), heat re- sistant silicon, rubber block, shaving blade. Only use special heat-resistant silicon. Cut-out section Distance from the wall: at least 50 mm Depth:490 mm Width: The widths of all appliances to be built-in are added together, minus...
  • Page 29 installing more than one frontline hob electrolux 29 4. Screw / clip fixing plates / retaining grips into the appropriate holes in the protective boxes. 5. Place first appliance in the cut-out. Lay connecting cross bar in the cut- out and push up halfway against the appliance.
  • Page 30 30 electrolux installing more than one frontline hob 7. Loosely screw in fixing plates / re- taining grips from below on the worktop and on the connecting cross bar. 8. Place Frontline strips on the appli- ances. Check that the Frontline strips are in line with one another.
  • Page 31 installing more than one frontline hob electrolux 31 12.Press rubber block hard against the glass ceramic and draw it slowly along the gap. 13.Leave silicon until the next day to harden. 14.Carefully remove projecting silicon with a shaving blade. 15.Clean glass ceramic thoroughly. 16.Replace Frontline strips.
  • Page 32 32 electrolux installing more than one frontline hob Overview of all appliance widths 180 mm Worktop-mounted cooker hood 360 mm Glass ceramic cooking surface with 2 radiation cooking zones Glass ceramic cooking surface with 2 induction cooking zones Gas hob with 2 burners Grill Grill/Deep fat fryer Induction Teppanyaki...

  • Page 33: Rating Plate

    33 Rating Plate 941 177 712 ELECTROLUX 3,2 kW 220-240 V 50/60 EHD36400U 59 WOK 02 AG...

  • Page 34: Guarantee/Customer Service

    34 electrolux guarantee/customer service Guarantee/Customer Service Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by rea- son only of faulty workmanship or mate- rials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condi-...

  • Page 35: European Guarantee

    guarantee/customer service electrolux 35 European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appli- ance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qual-...
  • Page 36 36 electrolux guarantee/customer service www.electrolux.com Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane Belgique/België/ +32 2 363 04 44 Bergensesteenweg 719, 1502 Lembeek Belgien Èeská republika +420 2 61 12 61 12 Budìjovická 3, Praha 4, 140 21 Danmark +45 70 11 74 00 Sjællandsgade 2, 7000 Fredericia...
  • Page 37 guarantee/customer service electrolux 37 Electrolux Slovakia s.r.o., Electrolux Domáce Slovensko +421 2 43 33 43 22 spotrebièe SK, Seberíniho 1, 821 03 Bratislava Suomi www.electrolux.fi Electrolux Service, S:t Göransgatan 143, Sverige +46 (0)771 76 76 76 S-105 45 Stockholm Tarlabaþý caddesi no : 35 Taksim Türkiye +90 21 22 93 10 25 Istanbul...

  • Page 38: Service And Spare Parts

    38 electrolux service and spare parts Service and Spare Parts If the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning: 0870 5 929 929 Your telephone call will be automatically routed to the Service Force Centre cov- ering your post code area.
  • Page 40 www.electrolux.com 315 917 813-A-080508-01...
