Step-by-step installation instructions.

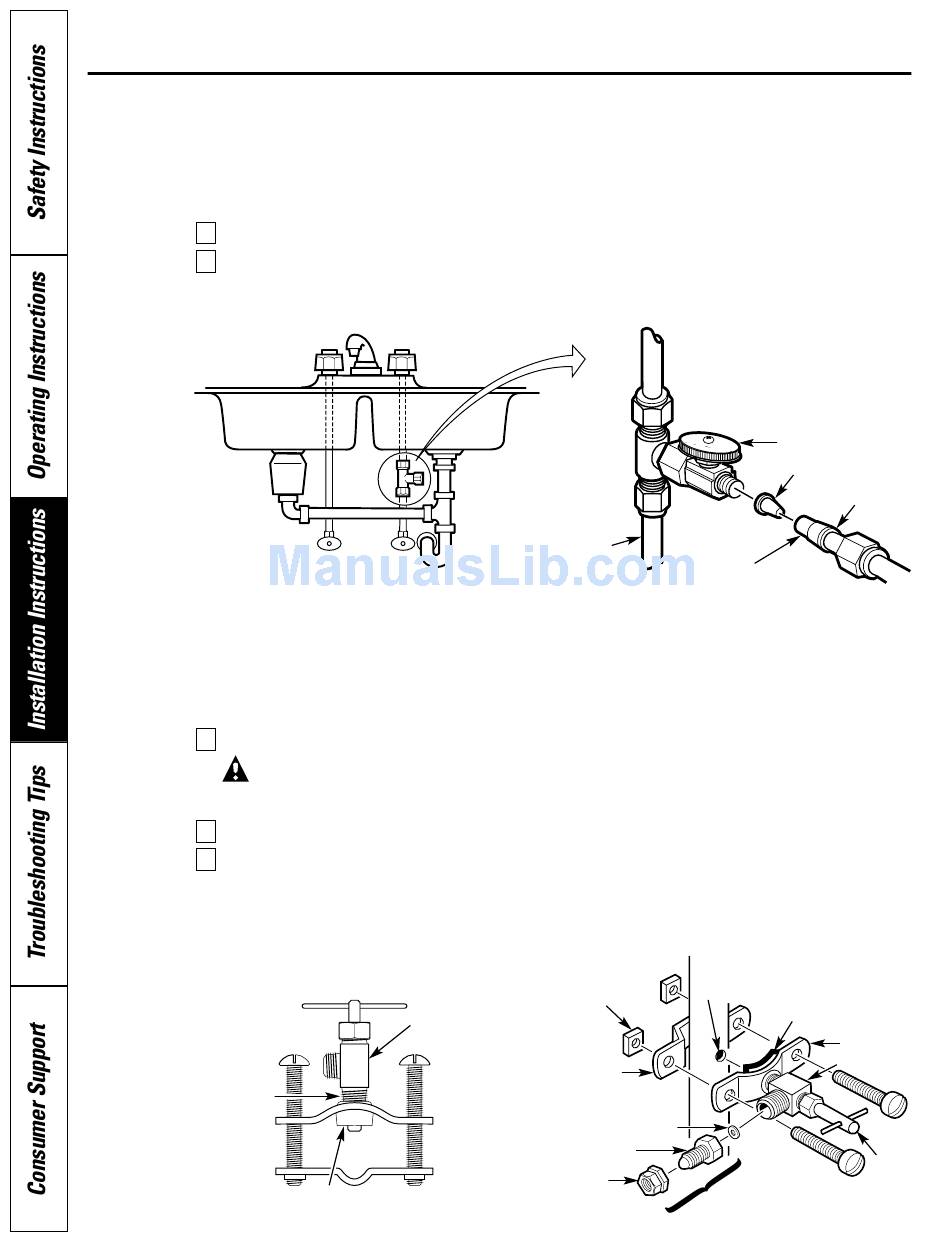

Feed Water Supply
Check and comply with local plumbing codes as you plan, then install a cold feed water supply fitting.
For new home installation using standard plumbing fittings, see first two illustrations below.
A typical installation for existing homes using the saddle valve is shown in third illustration below.
A. PREFERRED INSTALLATION
Turn off the cold water supply.
1
Complying with plumbing codes, install a fitting on the cold water pipe to adapt 3/8" OD tubing.
2
A typical connection is shown in illustrations at right (parts not included). Make sure a water
supply valve is used.
Fig. 2A.
Typical location
B. OPTIONAL HOME INSTALLATION Where codes permit
*For 1/2 " OD or larger metal tubing only.
NOTE: Codes in the state of Massachusetts require installation by a licensed plumber and do not permit the
use of the saddle valve. For installation, use plumbing code 248-CMR of the Commonwealth of Massachusetts.
Turn off the cold water supply and attach saddle valve as shown in illustration at right.
1
DANGER: To protect yourself from serious injury or fatal shock, use a battery-powered hand drill
only to make the hole. DO NOT USE AN ELECTRIC DRILL.
Close the water supply valve by turning the handle clockwise.
2
Open the main water supply valve and several house faucets to purge air from the system.
3
Close faucets when water runs smoothly.
Fig. 2B.
Some threads
should be visible
12
Cold
water
Snug valve into bracket
DO NOT OVERTIGHTEN
Rubber gasket
Preferred water supply connection
(using compression fitting)
Cold
water
pipe
Optional water supply connection (using saddle valve)*
*For 1/2 "OD or larger metal tubing only.
Nut (2)—not
required if holes
Pre-drill
in clamp are
1/4" hole
threaded
Clamp Z
Washer
Tubing adapter
Compression nut
Water supply valve
Insert (not included)
Ferrule
3/8" tubing to inlet
Seal—make sure the
seal is in place
Clamp X
Valve
Handle
Use to connect the tubing
