Scientific Atlanta Receiver User Manual

520-6088 NOVA SDTV DVR DM 1208.qxd:Layout 1
Complete these steps to connect your Cox cable receiver to your standard-definition (SD) TV. If you want to connect the cable receiver to other devices, such as a DVD player, refer to the instructions that came with
those devices or to the Cox Digital Cable User Manual that came in your Cox Universal Welcome Kit.
1
Pick a Location
Keep these considerations in mind when deciding where to place the cable receiver:
• Airflow is important – Allow at least 2 inches of space on the top and sides of the
cable receiver. Do not block any of the slots or openings.
• If you have the Digital Video Recorder (DVR), do not place the DVR near an
external heat source or on top of other electronic equipment that could raise the
temperature around the DVR.
• Place the receiver near the power outlet and TV set to accommodate cabling.
DVR Receiver
Digital Receiver
4
Connect the Coax Cable to the HDTV
• Connect one end of the coax cable to the CABLE OUT port on the back of the
cable receiver. Connect the other end of the cable to the coax connection
HDTV. Turn the connector clockwise on each end to obtain a secure
connection.
Do not plug the cable receiver power cable into the power source until you have
completed all connections between the cable receiver and all other equipment.
520-6088 12/08
1/6/09 2:24 PM Page 1

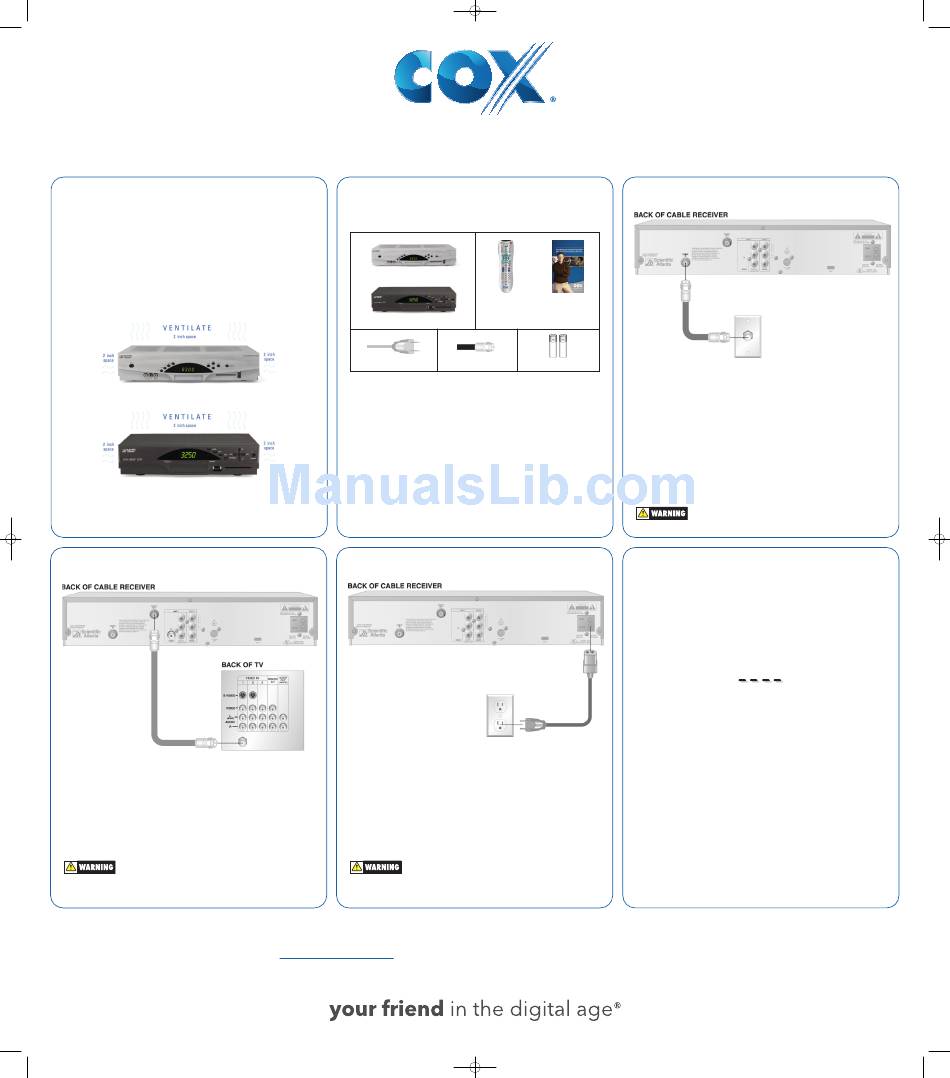

Basic Setup of a Cable Receiver or DVR
2
Unpack the Materials
Unpack the package containing the cable receiver and verify that you have
the following items:
DVR cable receiver
Digital receiver
Power cable
If you are missing any items, please call the Cox Customer Care phone number below
before proceeding with these instructions. You also will need the owner's manual that
came with your TV.
Recommended: Cox recommends that you use a surge protector to supply power to the
cable receiver and protect it from fluctuations in electrical power.
5
Connect the Power Cable
a. Plug one end of the power cable into the back of the cable receiver and the
other end into a wall outlet or surge protector.
b. Plug the TV into a power source.
Visit www.cox.com/support for success tips, tutorials, and additional set up information.
Please refer to the Welcome Handbook for customer service telephone numbers.
or
Remote control Cox Universal
(style may vary) Welcome Kit
Coaxial cable Remote control batteries (2)
Do not plug the cable receiver power cable into the power source until you have
completed all connections between the cable receiver and all other equipment.
3
Connect the Coax Cable
Note: The position of the ports on the
back of your cable receiver may
vary slightly from the illustration.
• Connect one end of the coax cable to the CABLE IN port on the back of the
cable receiver. Connect the other end of the cable to the cable wall outlet.
Turn the connector clockwise on each end to obtain a secure connection.
Do not plug the cable receiver power cable into the power source until you have
completed all connections between the cable receiver and all other equipment.
6
Wait for the Cable Receiver to Update
• The cable receiver begins updating services as soon as you plug it into the
power source. Do not turn on power at this time.
• This process typically takes 5 to 10 minutes, but could take up to 30 minutes
in some cases. During this time, you will see various characters appear in the
window on the cable receiver's front panel. Do not turn on the power at this
time.
• When 4 dashes appear on the cable receiver's front panel, the loading
process is complete.
• Do not proceed to step 7 until this process is complete. If it is not complete
within 30 minutes, please call Cox Customer Care at the phone number
below.
• Press POWER ON button.
• Did the cable receiver power light turn on?
• If yes, go to step 7.
• If no, wait approximately 5 minutes. If the power light is not on, press the
POWER button on the cable receiver's front panel to turn on the cable
receiver manually, and then go to step 7.
continued on reverse side...
