- Page 1 P-870H/HW Series VDSL2 4 port gateway /802.11bg Wireless VDSL2 4 port gateway Firmware v1.00 Edition 1, 9/2010 DEFAULT LOGIN DETAILS IP Address: http://192.168.1.1 Username: admin Password: 1234 Copyright 2010 ZyXEL Communications Corporation www.zyxel.com...

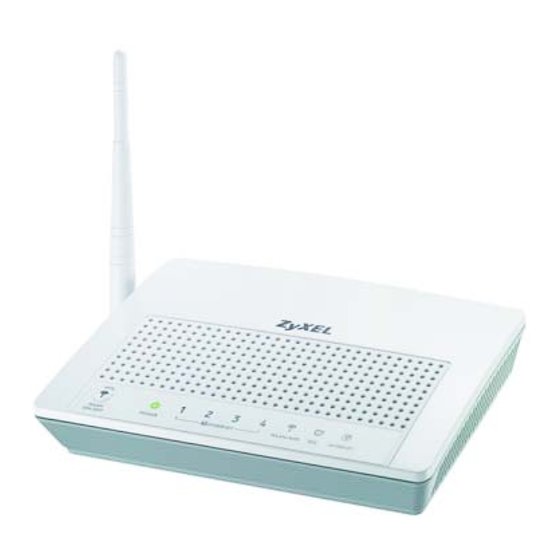

- Page 2 Device Panels WLAN/WPS Button LEDS (Lights) (P-870HW Series only) WLAN/WPS LED (P-870HW Series only) Antenna (P-870HW Series only) DSL Port (RJ-11 for over POTS/ Power Socket RJ-45 for over ISDN) and Power Switch Ethernet Ports...
- Page 3 Introduction The P-870H/HW Series is a VDSL2 gateway that provides super high- speed Internet access through a telephone line. The P-870H/HW Series has a built-in switch that allows you to connect up to four network devices. The P-870HW Series provides IEEE 802.11b/g wireless networking capability.
- Page 4 Before You Begin Make sure you have the following things before you set up your P-870H/ HW Series. • Internet access - account information provided by your ISP, such as user name, password, and so on. • Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions or Safari 2.0 and later versions.
- Page 5 Hardware Connections This section shows you how to set up your P-870H/HW Series. 1. DSL: Use a telephone wire to connect this port to a telephone jack (or the DSL or MODEM jack on a splitter, if one is already installed). 2.
- Page 6 Checking the LEDs (Lights) Look at the LEDs (lights) on the top panel of the P-870H/HW Series. • The POWER light blinks during start-up and is green once the P- 870H/HW Series is ready. • Each ETHERNET light turns on if the corresponding ETHERNET port is properly connected.
- Page 7 Testing Internet Connection After you have connected the hardware and turned on the P-870H/HW Series, open a web browser on your computer and go to any web site (for example, www.zyxel.com) to test your Internet connection. If you are prompted for a user name and password, enter the account information as given by your Internet service provider (ISP).
- Page 8 If the login screen does not display, make sure you allow web browser pop-up windows, JavaScripts and Java permissions. Your computer should be also set to get an IP address automatically from a DHCP server. See the appendices in your User's Guide for more information. Internet Setup Go to Network >...
- Page 9 2. Enable wireless LAN, enter a name to identify your wireless network (such as “ZyXEL“) in the SSID field, and select a channel which is not used by neighboring wireless devices. 3. Select your security mode and configure wireless security settings. In this example, the P-870HW Series uses WPA2-PSK for data encryption.
- Page 10 WLAN Setup with WPS This section applies to the P-870HW Series only. You can use Wi-Fi Protected Setup (WPS) to set up a secure wireless network and add wireless devices to your wireless network at the touch of a button. The other wireless devices must also support WPS.
- Page 11 Wall-mounting Take the following steps to hang your P-870H/HW Series on a wall. 1. Select a position free of obstructions on a sturdy wall. 2. Drill two holes for the screws, exactly 120 mm apart. 3. Be careful to avoid damaging pipes or cables located inside the wall when drilling holes for the screws.
- Page 12 7. The following are dimensions of an M4 tap screw and masonry plug used for wall mounting. All measurements are in millimeters (mm). How to View a Product’s Certifications 1. Go to www.zyxel.com. 2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
