Casio DT-X7 Series User Manual

Casio DT-X7 Series User Manual

Handheld terminal
Hide thumbs Also See for DT-X7 Series:
Table of Contents

Advertisement

Quick Links

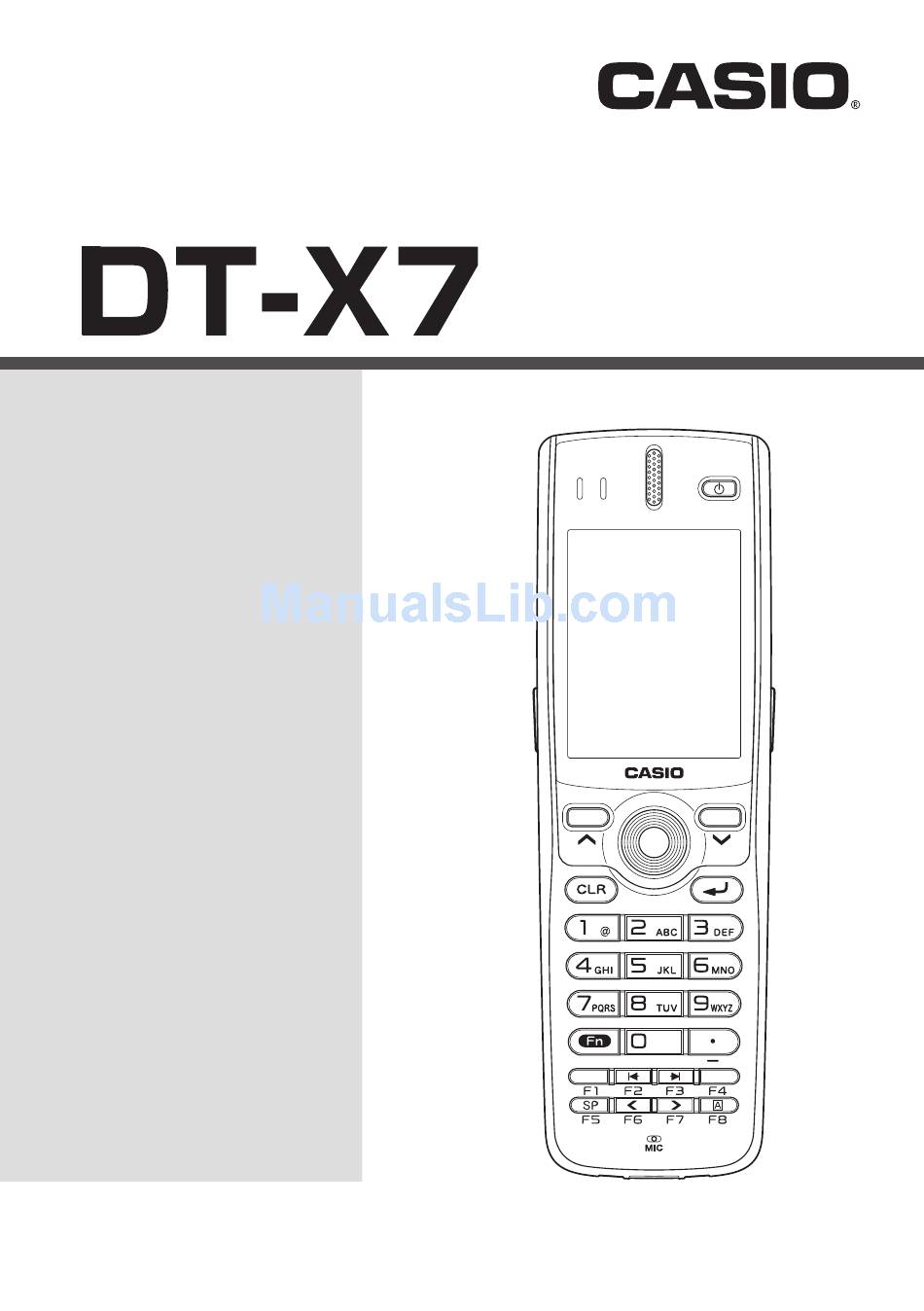

E
Handheld Terminal
Series
User's Guide
Be sure to read "Safety
Precautions" inside this
guide before trying to use
your Handheld Terminal.
After reading this guide,
keep it in a safe place for
future reference.
PN430049-002

Advertisement

Table of Contents
loading

Related Manuals for Casio DT-X7 Series

Summary of Contents for Casio DT-X7 Series

  • Page 1 Handheld Terminal Series User’s Guide Be sure to read “Safety Precautions” inside this guide before trying to use your Handheld Terminal. After reading this guide, keep it in a safe place for future reference. PN430049-002...
  • Page 2 Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Information in this document is subject to change without advance notice. CASIO Computer Co., Ltd. makes no representations or warranties with respect to the contents or use of this manual and specifi...

  • Page 3: Table Of Contents

    Contents Safety Precautions ..................E-3 Operating Precautions .................E-10 Important ......................E-11 Regulatory Information ................E-12 Checking in the Box ..................E-16 Handheld Terminal System Confi guration ..........E-17 General Guide ....................E-20 Loading and Removing the Battery Pack ...........E-23 Loading ......................E-24 Removing ......................E-25 Attaching the Hand Strap ................E-27 Setting up ......................E-28 Using the mouse emulator function ..............
  • Page 4 DT-X7 Specifi cations ...................E-40 Using the USB Cradle (HA-F60IO) ...............E-43 General Guide ....................E-43 Connecting the USB Cradle Power Supply ............E-45 Specifi cations .....................E-47 Using the Ethernet Cradle (HA-F62IO)............E-48 General Guide ....................E-48 Connecting the Ethernet Cradle Power Supply ..........E-50 Specifi...

  • Page 5: Safety Precautions

    Safety Precautions Congratulations upon your selection of this CASIO product. Be sure to read the following Safety Precautions before trying to use it for the fi rst time. Markings and Symbols The following are the meanings of the markings and symbols used in these Safety Precautions.
  • Page 6 Should any foreign matter get into the Handheld Terminal and its options, immediately turn off the power and contact your original vendor or an authorized CASIO service provider. Continued use creates the danger of fi re and electric shock. Dropping and Damage •...

  • Page 7: Lcd Screen

    Caution Foreign Objects • Take care to ensure that metals or combustible objects are not inserted into the openings of the Handheld Terminal and its options. Such the objects inside of the Handheld Terminal create the danger of fi re and electric shock. Location •...
  • Page 8 Optional Lithium-ion Battery Pack Danger • Never allow the battery pack to become wet. Water can create the danger of battery pack heat emission, explosion, and fi re. • Never use or leave the battery pack next to open fl ame, near a stove, or any other area exposed to high heat.
  • Page 9 • Danger of explosion if the battery pack is incorrectly replaced. • Replace only with same or equivalent type recommended by CASIO. Dispose of used batteries according to the local regulation. • Should fl uid from the battery pack accidentally get onto clothing or your skin, immediately rinse it off with clean tap water.
  • Page 10 • Should the power cord become severely damaged (to the point that wires are exposed or broken), contact an authorized CASIO service provider about repair or replacement. Use of a damaged electrical cord creates the danger of fi re and electric shock.
  • Page 11 Caution • Note that CASIO Computer Co., Ltd. shall not be held liable to you or any third party for any damages or loss caused by deletion or corruption of data due to use of the Handheld Terminal, malfunction or repair of the Handheld Terminal or its peripherals, or due to the batteries going dead.

  • Page 12: Operating Precautions

    Operating Precautions Your Handheld Terminal and its options are precision. Improper operation or rough handling can cause problems with data storage and other problems. Note and observe the following precautions to ensure proper operation. • Do not continue operating the Handheld Terminal when battery power is low. Doing so can cause data to be lost.

  • Page 13: Important

    The contents of this guide are subject to change without notice. • Note that CASIO COMPUTER CO., LTD. shall not be held liable to you or any third parties for any losses or damages arising from the use of this guide.

  • Page 14: Regulatory Information

    Model Number: HA-F60IO, HA-F62IO Trade Name: CASIO Responsible party: Casio America, Inc. Industrial Handheld Division Address: 2700 Augustine Drive Suite 155, Santa Clara, California 95054 Telephone number: 408-737-6300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 Spain, Sweden, United Kingdom EFTA: Switzerland, Iceland, Lichtenstein, Norway Member states with restrictive use NONE Manufacturer CASIO COMPUTER CO., LTD. Brand CASIO Type DT-X7M10E, DT-X7M10R are tested and found to conform with the essential requirements for protection of health and the safety of...
  • Page 16 Belgium limited to 2400-2483.5 Mhz Indoor, 2460-2483.5 Mhz Outdoor use. The information described above dates from January 2003 and may be subjected to future changes. Manufacturer: CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan Representative within the European Union: CASIO EUROPE GmbH...
  • Page 17 The CASIO DT-X7M10E, DT-X7M10R, and DT-X7M10U models are designed, tested and found to meet the relevant regulatory standards described below. DT-X7M10E, DT-X7M10R International standards: IEC 60825-1 IEC 60529, IP54 level Europe standards: EN 60950-1 EN 60825-1 EN 300 328 EN 301 489-17...

  • Page 18: Checking In The Box

    Checking in the Box Please check the contents of the box before using the Handheld Terminal for the fi rst time. Open the box and make sure that all the items shown here are included. Handheld Terminal Large-capacity Battery Pack Cover Contact Scanning Guide Hand Strap User's Guide (this manual)

  • Page 19: Handheld Terminal System Confi Guration

    Handheld Terminal System Confi guration Options USB Cradle HA-F60IO DT-X7 Series Ethernet Cradle HA-F62IO Cradle-type Battery Charger HA-F30CHG The illustration shows the USB Cradle(HA-F60IO). Cradle-type Dual Battery Charger HA-F36DCHG DT-X7M10E DT-X7M10R DT-X7M10U E-17...

  • Page 20: Battery Pack

    Options Battery Pack HA-F20BAT HA-F21LBAT (Battery Pack) (Large-capacity Battery Pack) Dual Battery Charger HA-F32DCHG AC Adaptor for USB Cradle/Ethernet Cradle/ Dual Battery Charger AD-S42120BE E-18...
  • Page 21 Options AC Adaptor for Cradle-type Battery Charger AD-S15050BE AC Adaptor for Cradle-type Dual Battery Charger AD-S60160BE AD-S60160BU Cable DT-380USB Dry-cell Battery Case HA-F22BC Hand Belt HA-F95HB E-19...

  • Page 22: General Guide

    General Guide DT-X7M10E DT-X7M10U DT-X7M10R Left Front Right Back Bottom Indicator 1 Orange: Charging Green: Charging complete Red: Battery pack error or the surrounding temperature is out of the charging temperature range. Indicator 2 Flashes in blue when operating via Bluetooth or in orange when operating via WLAN.
  • Page 23 Cursor Keys Perform the same functions as the up and down arrow keys on a PC keyboard. Enter Key Press when fi nishing entering numerical values or when moving to the next step. Numeric Keys Used to enter numeric values and decimal points. 10 Fn Key Used to make various settings in combination with the function keys or numeric keys or when starting a pre-registered...
  • Page 24 21 Strap Holes Used to attach the hand strap. Also used for the hand belt. 22 Reset Switch Used to reset the Handheld Terminal. 23 Hand Belt Holes Used to attach the hand belt. 24 Battery Pack Cover Used to lock the battery cover and to release. Lock Switch 25 Battery Pack Cover Used to cover the battery compartment that holds the battery...

  • Page 25: Loading And Removing The Battery Pack

    Loading and Removing the Battery Pack Your Handheld Terminal uses two types of battery: a battery pack and a memory backup battery. The battery pack is used to power normal operations and to store data, while the memory backup battery provides the power required to maintain memory contents when the battery pack power is unable to supply power for some reason.

  • Page 26: Loading

    Loading 1. Turn over the Handheld Terminal. 2. Remove the rechargeable battery pack cover as follows: Slide the left and right lock switches for the rechargeable battery pack cover simultaneously in the direction indicated by the arrows. While holding the switches back, hook your fi ngertips into the notches in the rechargeable battery pack cover and lift the cover up in the direction indicated by the arrow.

  • Page 27: Removing

    After putting back the cover, fi rmly press the cover so that it is locked in the position by the two Battery Pack Cover Lock Switches. • Ensure that both the switches returned all the way down to the home positions as indicated by the two arrows.
  • Page 28 4. Remove the battery pack by pulling up the removal tape as shown in the illustration. Loading the large-capacity battery pack into the Handheld Terminal After loading the large-capacity battery pack, you need to use the special large-capacity battery pack cover in place of the standard battery pack cover. “Loading and Removing”...

  • Page 29: Attaching The Hand Strap

    Attaching the Hand Strap The hand strap can be used to prevent the Handheld Terminal from dropping when carrying it around. Since there are two strap holes where the hand strap can be attached, use the hole that affords the greatest ease of use. Attach the hand strap according to the procedure described below.

  • Page 30: Setting Up

    Setting up Using the mouse emulator function The mouse emulator function lets you make settings and adjustments by using a mouse cursor. To use this function, activate it as follows. ■ Activating the mouse emulator function • While no mouse cursor is shown on the screen, press the “Fn” key followed by the “4”...
  • Page 31 Left double click Performing this action while the mouse cursor is on an icon starts an application, opens a fi le, etc. • Move the mouse cursor to the position where you want to double click, and press the “5” key twice. The double click timing follows the double tap setting of Windows CE.

  • Page 32: Adjusting Display Brightness

    Adjusting Display Brightness You can use the following procedures to adjust display brightness to make it easier to read under different lighting conditions. • Press the “Fn” key and then press the “5” key or “6” key after confi rming that “F” is displayed in the lower right corner of the screen.

  • Page 33: Using The Laser Scanner (Dt-X7M10E/Dt-X7M10R

    Using the Laser Scanner (DT-X7M10E/DT-X7M10R) 1. After turning on the power, position the laser scanner close to a bar code and then press the trigger key. 2. The laser emits light and scans the bar code. If scanning is completed normally, Indicator 2 displays a green light and a buzzer sounds.

  • Page 34: Warning Label

    Warning Label • This label is a warning and caution label for Class 2 laser products that comply with IEC60825-1:1993+A1:1997+A2:2001. • Although Class 2 laser light is only emitted momentarily, never look directly into the beam light. • The laser light emitted by this laser scanner has a maximum output of less than 1 mW and a wavelength of 650 nm.

  • Page 35: Adjusting The Laser Light Emission Width

    Adjusting the Laser Light Emission Width The emission width of the laser light emitted by the Handheld Terminal can be adjusted. Adjust the emission width when it has been changed. The mouse emulator function can also be used to make the adjustment. 1.
  • Page 36 4. Use the “ ”/“ ” keys to move the focus to [Calibration] and press the Enter key. The message appears as shown at right. 5. Press the Trigger Key to emit laser light, and align the light with the barcode for adjusting emission width. •...

  • Page 37: Using The Linear Imager (Dt-X7M10U

    Using the Linear Imager (DT-X7M10U) 1. After turning on the power, position the reader port close to a bar code and then press the Trigger key. 2. The LED emits light and scans the bar code. When scanning is completed normally, Indicator 2 displays a green light and a buzzer sounds.

  • Page 38: Performing Communications

    Performing Communications IR Communication IR communication can be used to transfer data between two Handheld Terminals. When performing IR communication, orient the IR ports of both Handheld Terminals so they are pointing directly at each other. The ports can be in direct contact with each other, or they can be separated by up to ⁄...

  • Page 39: Bluetooth ® Communication

    ® Bluetooth Communication ® Bluetooth interface can also be used to transfer data between two Handheld Terminals. ® With Bluetooth the two Handheld Terminals should be located within about three meters ⁄ ) (DT-X7M10E/DT-X7M10R) or 100 meters (328 ) (DT-X7M10U) from "...

  • Page 40: Resetting The Handheld Terminal

    Resetting the Handheld Terminal Resetting the Handheld Terminal is the same as restarting a PC. Performing a reset causes all unsaved inputs and edits to be lost, but data that is already stored in the memory as well as all settings should be unaffected. Use reset to restore normal operation whenever the Handheld Terminal operates abnormally due to misoperation or some other reason.

  • Page 41: Performing A Full Reset (Initialization

    Performing a Full Reset (Initialization) Performing a full reset initializes memory. This means that all data stored in the memory (RAM) is deleted and all the settings are returned to their initial factory settings. Perform a full reset whenever any one of the following conditions exists. •...

  • Page 42: Dt-X7 Specifi Cations

    DT-X7 Specifi cations Model: DT-X7M10E, DT-X7M10R, DT-X7M10U ® CPU: Marvell PXA270 416MHz Memory: 64MB RAM, 64MB Flash ROM (user defi ned: 30MB) ® ® Microsoft Windows CE5.0 operating system, English Version 2.4-inch, 320 × 240-dot transfl ective TFT color LCD Display: Laser Scanner (DT-X7M10E, DT-X7M10R): Readable symbologies:...
  • Page 43 Battery Life: Battery pack: DT-X7M10E/DT-X7M10U Approximately 15 hours (HA-F20BAT)* Approximately 26 hours (HA-F21LBAT)* DT-X7M10R Approximately 15 hours (HA-F20BAT)* Approximately 26 hours (HA-F21LBAT)* Approximately 10 hours (HA-F20BAT)** Approximately 17 hours (HA-F21LBAT)** under the conditions that CPU speed is set to the auto power save mode, backlight is set to off, and the ratio of cyclic operation of “Standby, Key input, and Scanning”...
  • Page 44 Dimensional Drawing Approx. Approx. 52.5mm (2 ") 23.5mm ( ") (Display) (Display) Approx. Approx. 51mm (2") 30.5mm (1 ") (Grip) (Grip) E-42...

  • Page 45: Using The Usb Cradle (Ha-F60Io

    Using the USB Cradle (HA-F60IO) The optionally available USB Cradle (HA-F60IO) makes it possible to transfer system data and fi le data between the Handheld Terminal and a PC via a USB connection (download or upload). You can also use the USB Cradle to charge the battery pack installed in the Handheld Terminal.
  • Page 46 USB Client Port This port is used to transfer system data and fi le data (download, upload) by connecting the Cradle to a PC using a USB cable (DT-380USB). A dedicated driver must be installed in the PC before connecting the Cradle to the PC. USB Host Port This port is used to connect a corresponding USB peripheral device.

  • Page 47: Connecting The Usb Cradle Power Supply

    Connecting the USB Cradle Power Supply Use the separately sold AC adaptor (AD-S42120BE) for the power supply of the USB Cradle. Always make sure to connect the AC adaptor to the USB Cradle before performing communication with the Handheld Terminal. Power to the Handheld Terminal is supplied from the USB Cradle.
  • Page 48 4. Connect the USB cable (DT-380USB) to the USB client port on the back of the USB Cradle, and then connect it to the PC. The USB host port is used when connecting the cradle with other USB peripheral device. USB peripheral device 5.

  • Page 49: Specifi Cations

    • Do not subject the Handheld Terminal and USB Cradle to vibration or impact during communication. This can cause communication to be interrupted. • When inserting the DT-X7, make sure that it is seated properly and that the power LED at the front of the USB Cradle is lit in green. Charging and communication will not proceed properly if the Handheld Terminal is not mounted properly.

  • Page 50: Using The Ethernet Cradle (Ha-F62Io

    Using the Ethernet Cradle (HA-F62IO) The optionally available Enthernet Cradle (HA-F62IO) makes it possible to transfer system data and fi le data between the Handheld Terminal and a PC via a USB or LAN connection (download or upload). You can also use the Ethernet Cradle to charge the battery pack installed in the Handheld Terminal.
  • Page 51 USB Client Port This port is used to transfer system data and fi le data (download, upload) by connecting the Ethernet Cradle to a PC using a USB cable (DT-380USB). The dedicated driver must be installed in the PC before connecting the Ethernet Cradle to the PC. USB Host Port This port is used to connect a corresponding USB peripheral device.

  • Page 52: Connecting The Ethernet Cradle Power Supply

    Connecting the Ethernet Cradle Power Supply Use the separately sold AC adaptor (AD-S42120BE) for the power supply of the Ethernet Cradle. Always make sure to connect the AC adaptor to the Ethernet Cradle before performing communication with the Handheld Terminal. Power to the Handheld Terminal is supplied from the Ethernet Cradle.
  • Page 53 4. Before using the cradle ports, remove the caps from the ports. When using a LAN, connect one end of the LAN cable to the LAN port and the other end to the PC or hub. When using a USB connection, connect one end of the USB cable (DT-380USB) to the USB port and the other end to the PC.

  • Page 54: Specifi Cations

    • When inserting the DT-X7, make sure that it is seated properly and that the power LED at the front of the Ethernet Cradle is lit in green. Charging and communication will not proceed properly if the Handheld Terminal is not mounted properly.

  • Page 55: Using The Cradle-Type Battery Charger (Ha-F30Chg

    Using the Cradle-type Battery Charger (HA-F30CHG) The optionally available Cradle-type Battery Charger (HA-F30CHG) lets you charge the Handheld Terminal’s battery simply by placing the Handheld Terminal onto the charger. General Guide Front Back Left AC Adaptor Jack Connect the AC adaptor here. Terminal Detect This switch detects when the DT-X7 is mounted correctly on the Switch...

  • Page 56: Connecting The Ac Adaptor For Cradle-Type Battery Charger

    Connecting the AC Adaptor for Cradle-type Battery Charger Use the separately sold AC adaptor (AD-S15050BE) for the power supply of the Cradle-type Battery Charger. 1. Plug the AC adaptor into the AC adaptor jack on the back of the charger. 2.
  • Page 57 Status of Indicator 1 on DT-X7: Orange: Charging Red: Standby due to battery pack error or the surrounding temperature is out of the charging temperature range (charging begins when the temperature is within the charging temperature range) Green: Charging complete Important ! •...

  • Page 58: Specifi Cations

    Specifi cations 1. Charging Specifi cations Charging Method: Constant current/voltage Charge Period: Approximately 3 hours (battery pack) Approximately 5.5 hours (large-capacity battery pack) 2. Power Supply Power Source: AC adaptor (AD-S15050BE) Consumption Current: 5V DC 1.6A Output to Handheld Terminal: 5V DC 1.6A (max.) 3.

  • Page 59: Using The Cradle-Type Dual Battery Charger (Ha-F36Dchg

    Using the Cradle-type Dual Battery Charger (HA-F36DCHG) The optionally available Cradle-type Dual Battery Charger (HA-F36DCHG) can be used to simultaneously charge two battery packs. General Guide Left Right Bottom Front AC Adaptor Jack This is used to supply power by connecting the AC adaptor (sold separately).
  • Page 60 Bundled Items Used when linking two or more Cradle-type Dual Battery Chargers. • Connection • Connection • Connection screws • Holding plate x 2 bracket (for rear) bracket (for side) (for rear and side), 2 each Attaching the holding plates 1.

  • Page 61: Charging Battery Pack

    Charging Battery Pack Use the separately sold AC adaptor (AD-S60160BE/AD-S60160BU) for the power supply of the Cradle-type Dual Battery Charger. 1. Plug the cord from the AC adaptor into the AC adaptor jack of the Cradle-type Dual Battery Charger. 2. Plug the AC cord into a wall outlet. AC Adaptor AC Adaptor Jack 3.

  • Page 62: Connecting Multiple Cradle-Type Dual Battery Chargers

    Connecting Multiple Cradle-type Dual Battery Chargers You can connect up to three Cradle-type Dual Battery Chargers. Doing so makes it possible to supply power to all the Cradle-type Dual Battery Chargers using one dedicated AC adaptor. 1. As shown in the illustrations below, remove the connector covers of the Cradle-type Dual Battery Chargers you want to connect to each other.

  • Page 63: Specifi Cations

    Specifi cations 1. Charging Specifi cation Charging Method: Constant current/voltage Charge Period: Approx. 3 hours (1 standard battery pack) Approx. 5.5 hours (1 large-capacity battery pack) 2. Power Supply Power Source: AC adaptor (AD-S60160BE/AD-S60160BU) Consumption Current: 1.25A, 16V DC (1 unit) 3.7A, 16V DC (3 units) Output to Handheld Terminal: 5V DC 1.6A (max.) 3.
  • Page 64 Important ! • Never short out the power contacts of the Cradle-type Dual Battery Charger. This can damage the Cradle-type Dual Battery Charger. • Allowing the power contacts become wet can cause an electric shock or fi re. In addition, if the contacts become soiled, contact may be impaired resulting in poor charging.

  • Page 65: Using The Dual Battery Charger (Ha-F32Dchg

    Using the Dual Battery Charger (HA-F32DCHG) The optionally available Dual Battery Charger (HA-F32DCHG) can be used to simultaneously charge two battery packs. General Guide Left Right Bottom Front Bundled Items Connection Bracket 2 screws E-63...
  • Page 66 Charge Indicator This LED indicates the charge status of the battery pack(s). Off: Not charging Red: Charging Red Flashing: Battery pack problem Green Flashing: Standby Green: Charging complete AC Adaptor Jack This is used to supply power by connecting the AC adaptor (sold separately).

  • Page 67: Charging Battery Pack

    Charging Battery Pack Use the separately sold AC adaptor (AD-S42120BE) for the power supply of the Dual Battery Charger. 1. Plug the cord from the AC adaptor into the AC adaptor jack of the Dual Battery Charger. 2. Plug the AC cord into a wall outlet. 3.Taking care that the battery pack is oriented correctly, insert it into the Dual Battery Charger.

  • Page 68: Connecting Multiple Dual Battery Chargers

    Connecting Multiple Dual Battery Chargers You can connect up to three Dual Battery Chargers. Doing so makes it possible to supply power to all the Dual Battery Chargers using one dedicated AC adaptor. 1. As shown in the illustrations below, remove the connector covers of the Dual Battery Chargers you want to connect to each other.

  • Page 69: Specifi Cations

    Specifi cations 1. Charging Specifi cation Charging Method: Constant current/voltage Charge Period: Approx. 3 hours (1 standard battery pack, normal temperature) Approx. 5.5 hours (1 large-capacity battery pack, normal temperature) When charging two battery packs: Approx. 5.5 hours (2 standard battery packs, normal temperature) Approx.

  • Page 70: Using Rechargeable Battery Pack

    Using Rechargeable Battery Pack HA-F20BAT HA-F21LBAT Your Handheld Terminal supports use of two battery pack types, one at a time, of different capacity. You can select the one that best suits your needs in terms of operating time, the type of options you need to use, etc.

  • Page 71: Attaching The Hand Belt (Ha-F95Hb

    Attaching the Hand Belt (HA-F95HB) To use the Hand Belt (HA-F95HB), attach it to the DT-X7 as follows. Items Included • Holdfast • Hand Belt • Screw (2pcs) Attaching the Hand Belt Attach the Hand Belt as described below. 1. Turn the DT-X7 over. 2.
  • Page 72 3. Thread the looped cord on the end of the Hand Belt through one of the strap holes at the bottom of the DT-X7. (You can use either hole.) 4. Feed the belt through the wire loop on the mount, fold it back and secure it with the hook-loop fastener.

  • Page 73: Using The Dry-Cell Battery Case (Ha-F22Bc

    Using the Dry-cell Battery Case (HA-F22BC) Alkaline Battery Handling Precautions Danger • Since there is the risk of blindness and other serious disorders when alkaline battery fl uid enters the eyes, seek medical treatment immediately after adequately fl ushing the eyes with a large amount of tap water or other clean water without rubbing.
  • Page 74 Caution • Promptly remove worn out batteries from the Handheld Terminal. Allowing worn out batteries to remain installed in the Handheld Terminal for a long period of time results in the risk of the generation of gas from the batteries causing the batteries to leak fl...

  • Page 75: Loading

    The Dry-cell Battery Case (HA-F22BC) is available as option, for use with dry-cell batteries installed in it in the event of a power failure or natural disaster. The Dry-cell Battery Case can power the DT-X7 for about 5 hours of continuous operation (with four fresh LR03 alkaline batteries inserted).

  • Page 76: Removing

    3. Attach the Dry-cell Battery Case Cover to the DT-X7. Removing 1. Remove the Dry-cell Battery Case Cover from the DT-X7, as shown in the illustration. Specifi cations LR03 alkaline batteries × 4pcs Power Source: Output: 4.7V DC Battery Life: Approximately 5 hours* Approximately 37(W) ×...

This manual is also suitable for:

Dt-x7m10eDt-x7m10rDt-x7m10u
