Barcode: 489 5012 10 000 5 00050

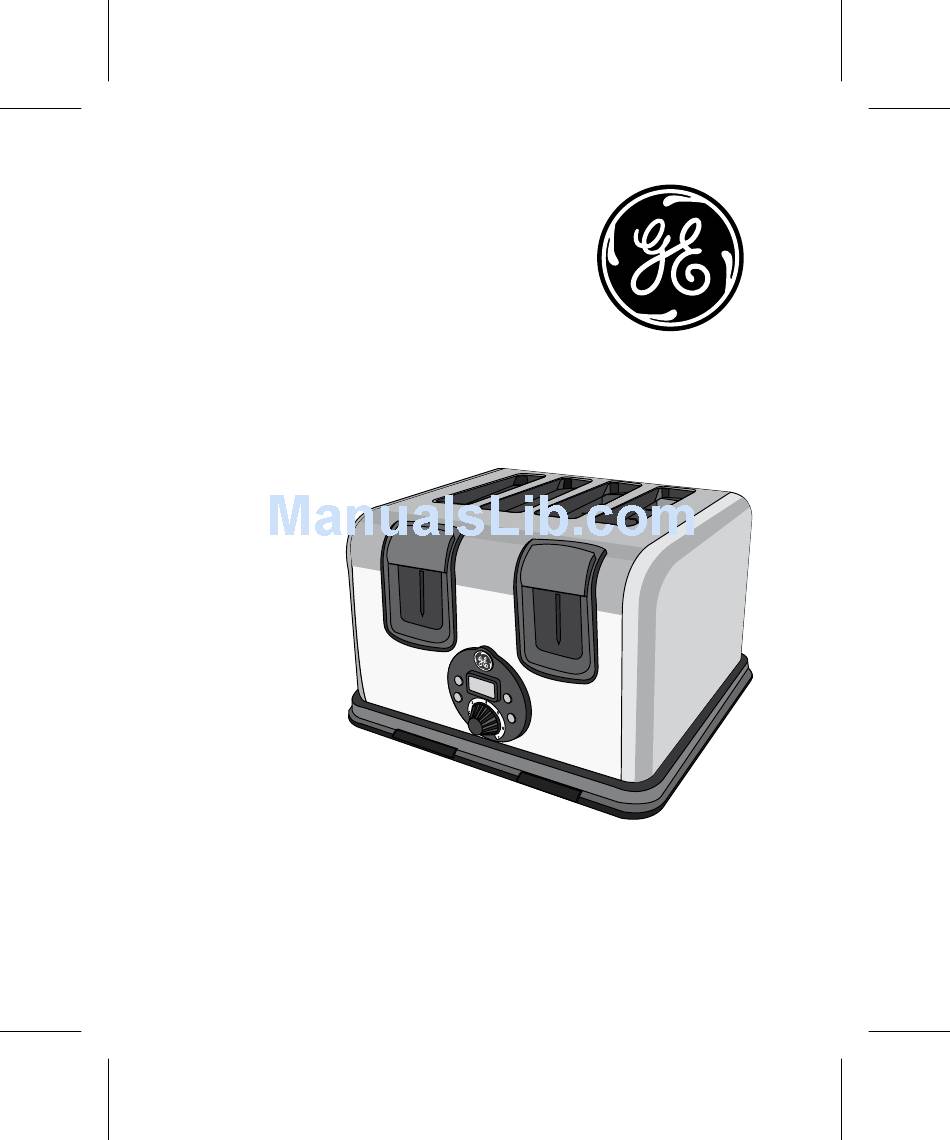

4-SLICE
TOASTER
Model Number:
169115
UPC: 681131691154
Customer Assistance
1 877 207 0923 (US)
1 877 556 0973 (Canada)
Thank you for purchasing a small GE appliance.
In keeping with the GE ecomagination initiative, please consider the option to recycle
the packaging material and donate the appliance you are no longer using.
To read more about GE's ecomagination commitment, visit:
Client:
Dickson
Project:
GE-4ST-169116
Language:
EN
ge.ecomagination.com
Date:
Version:
Page:
12.07.2007
05
1
(of 11 pages)
Advertisement
Table of Contents
Related Manuals for GE 169115
Summary of Contents for GE 169115
- Page 1 Barcode: 489 5012 10 000 5 00050 4-SLICE TOASTER Model Number: 169115 UPC: 681131691154 Customer Assistance 1 877 207 0923 (US) 1 877 556 0973 (Canada) Thank you for purchasing a small GE appliance. In keeping with the GE ecomagination initiative, please consider the option to recycle the packaging material and donate the appliance you are no longer using. To read more about GE's ecomagination commitment, visit: Client: Dickson Project: GE-4ST-169116 Language: ge.ecomagination.com Date: 12.07.2007 Version: Page: (of 11 pages)
-
Page 2: Important Safeguards
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. • Do not use outdoors. • Do not let cord hang over edge of table or counter, or touch hot surfaces. • Do not place on or near a hot gas or electric burner, or in a heated oven. • To disconnect, turn every control to “off”, then remove plug from the wall outlet. • Do not use this appliance for anything other than its intended use. • Oversized foods, metal foil packages, or utensils must not be inserted in the toaster as they may cause a risk of fire or electric shock. • A fire may occur if the toaster is covered or touching flammable material, including curtains, draperies, walls, etc., when in operation. • Do not attempt to dislodge food when toaster is plugged in. • Do not operate toaster unattended. • Risk of fire if the crumb tray is not cleaned regularly. • Do not use metal scouring pads for cleaning. Pieces can get broken, and there is a risk of electric shock if the pad comes in contact with electrical parts. • Do not cook, warm or toast rice cakes, fried foods, or non-bread items. SAVE ThESE INSTRUCTIONS! Client: Dickson (Wal*Mart) Project: GE-4ST-169116 Language: Date: 12.07.2007 Version: Page: (of 11 pages) -
Page 3: Additional Safeguards
CAUTION: To ensure continued protection against risk of electric shock, connect to properly ground outlets only. GROUNDING INSTRUCTIONS – US ONLY The appliance has a plug that looks like Figure A. An adaptor, as shown in Figure B, should be used for connecting a 3-prong grounding plug to a 2-wire receptacle. The grounding tab, which extends from the adaptor, must be connected to a permanent ground such as a properly grounded receptacle as shown in Figure C, using a metal screw. Circuit grounding conductor connected properly Grounding prong Client: Dickson (Wal*Mart) Project: GE-4ST-169116 Language: Adapter Metal mounting screw Grounding means Cover of grounded AA220 outlet box Date: 12.07.2007 Version: Page:... - Page 4 Barcode: 489 5012 10 000 5 00050 1. Slots with self-center guides 2. Levers with lift function 3. Power cord Reheat button Defrost button 6. Cord storage 7. Power plug 8. Countdown timer NOTE: This toaster contains two independently operating toasting units. Each unit consists of two toasting slots. Both units are controlled through one single display and one single set of operation buttons. Client: Dickson (Wal*Mart) Project: GE-4ST-169116 Language: PARTS 9. Slot pair indicator left slot pair in use right slot pair in use 10. Digital display 11. Crumb trays...
- Page 5 Barcode: 489 5012 10 000 5 00050 ILLUSTRATIONS Client: Dickson (Wal*Mart) Project: GE-4ST-169116 Language: Date: Version: Page: 12.07.2007 (of 11 pages)
-
Page 6: Before First Use
Barcode: 489 5012 10 000 5 00050 OPERATION Before first use • Remove all packaging material, labels, and/or stickers from your toaster. Make sure there is no packaging material remaining in the toasting slots. • Clean the toaster thoroughly before its first use ( Cleaning). NOTE: Due to the manufacturing process, the toaster may emit a slight burning odor. Let the toaster complete a few toasting cycles without food, until no odor or smoke is present. Note: use the toaster in a well ventilated area and select 7 as the highest setting. Operating instructions • Make sure no food or other objects are inside the slots (1). Place the toaster on a flat, level, and heat-resistant surface. Make sure the crumb trays (11) are inserted properly (ill. a ). • •... - Page 7 The symbols or (9) will appear to indicate which slot pair is in use. • The food will pop up when the timer reaches 0:00. Defrost Place the frozen food in one of the two slot pairs (1) (ill. b ). • Select the browning level with the browning control knob (12) (ill. c ). • • Press down the lever (2) until it is locked (ill. d ). • Press the Defrost button (5) within the next 5 seconds. The (5) lights up. The countdown timer (8) will appear together with or (9) to indicate the slot pair in use. • The food will pop up when the timer reaches 0:00. Client: Dickson (Wal*Mart) Project: GE-4ST-169116 Language: Defrost button Date: 12.07.2007 Version: Page: (of 11 pages)
-
Page 8: Combining Programs
Press down the lever of the second slot pair (2) until it is locked (ill. g ). • • Press the desired program button ( Reheat (4), 5 seconds. The button will light up. The digital display shows the countdown timer (8) together with or (9) to indicate the slot pair in use. • The food will pop up after the timer for each slot pair reaches 0:00. Combining programs It is possible to combine the functions. If the Bagel button is pressed before or after the Reheat or button, the toaster will operate on lower power setting. Client: Dickson (Wal*Mart) Project: GE-4ST-169116 Language: Defrost (5), Defrost (5), Bagel button (13) with the Defrost and Reheat Date: Version: Page: ). Place Bagel button (13) Bagel (13)) within Bagel (13)) within Defrost 12.07.2007 (of 11 pages) - Page 9 Reheat Bagel • Press Bagel (13) and Reheat (4) buttons. Both buttons will light up. • Reheat will start with low power setting. Fixed time of 1 minute. NOTE: Both buttons must be pressed within 5 seconds after the lever is locked in down position. CAUTION: Before cleaning and storing, unplug the toaster to prevent electric shock and let the toaster cool down completely. Clean the toaster regularly. This appliance contains no user serviceable parts and requires little maintenance. Leave any servicing or repairs to qualified personnel. • Never immerse the toaster and the power cord (3) in water or any other liquid. • Do not use a fork or other metallic utensils to remove lodged food as this may result in electric shock or fire (ill. k ). • For cleaning the outside of the toaster and the cord (3), use a soft cloth or a damp sponge and a mild detergent. Do not use any abrasive cleaning agents, metallic utensils, metal scouring pads, etc. To clean the crumb trays (11), first push the trays in, then pull them out completely •...
-
Page 10: Troubleshooting
Food ejects very quickly. If additional assistance is needed, please contact our Customer Assistance at 1.877.207.0923 (U.S.) or 1.877.556.0973 (Canada). TEChNICAL DATA Rated voltage: 120V ~60hz Rated current: Rated power input: 1600W Client: Dickson (Wal*Mart) Project: GE-4ST-169116 Language: Solution Check power connection. The plug (7) should be inserted properly in the outlet. Unplug the toaster and let cool. Carefully remove the slice(s) from the toaster. The selected browning setting is too high or too low. The selected browning setting is too high for the type of food that is being toasted. Press the Cancel button (14) to stop the toasting cycle. Push down the lever (2) completely (ills. d and g ). -
Page 11: Customer Assistance
What does your warranty cover? • Any defect in material or workmanship. For how long after the original purchase? • Two years. What will we do? • Provide you with a new one. • For those items still under warranty but no longer available, WAL-MART reserves the right to replace with a similar GE branded product of equal or greater value. How do you make a warranty claim? • Save your receipt. • Properly pack your unit. We recommend using the original carton and packing materials. • Return the product to your nearest WAL-MART store or call Customer Assistance at 1-877-207-0923 (U.S.)
