QuickSpecs
Overview
HP ProLiant ML310e Gen8, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate
changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical
applications or databases.

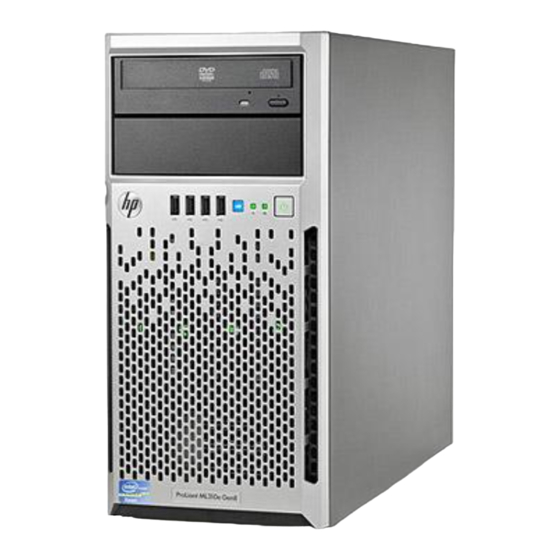

Front View:
1.
Quick removal access panel
2.
Power Supply
3.
Four DIMM slots
4.
System fan
5.
Processor Heatsink
6.
Four (4) PCIe expansion slots
7.
PCI Fan
8.
Half Height SATA DVD-ROM or DVD RW Optical Drive
9.
Media Drive Blank
10.
Power Button
11.
NIC Activity LED
12.
System Health
13.
UID LED button
14.
Four (4) USB connectors
15.
Four (4) LFF or Eight (8) SFF SAS/SATA HDD cage
What's New
Updating supported options
DA - 14339 Canada — Version 27 — December 13, 2013
HP ProLiant ML310e Generation 8 (Gen8)
Rear View:
1.
Power supply
2.
Slot 4 PCIex16
3.
Slot 3 PCIex8
4.
Slot 2 PCIex8
5.
Slot 1 PCIex4
6.
PCIe card bracket
7.
Serial Connector
8.
Video Connector
9.
UID LED Button
10.
iLO Dedicated Lan Port (optional)
11.
NIC Connector 1 (shared management)
12.
NIC Connector 2
13.
Four (4) USB Connectors
Page 1

Advertisement

loading

Related Manuals for HP ProLiant ML310e

Summary of Contents for HP ProLiant ML310e

  • Page 1 HP ProLiant ML310e Generation 8 (Gen8) Overview HP ProLiant ML310e Gen8, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical applications or databases.

  • Page 2: Standard Features

    QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Standard Features NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. Processor Entry Processors One of the following NOTE: Intel® Celeron® G540 supports up to 1066MHz DDR3 memory speed. Intel® Celeron® G1610 and depending on Model G1620 and Intel®...
  • Page 3 32 GB (4 x 8 GB UDIMM @1600MHz) (UDIMM) NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant ML310e Gen8 Server. NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1600MHz, 1333MHz, or 1066MHz.
  • Page 4 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Standard Features HP Server ROM HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
  • Page 5 One of the following 8 SFF hot-plug drive bays depending on model NOTE: HP ProLiant ML310e Series servers offer both SFF, and LFF versions in CTO. NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit.
  • Page 6 Standard Features Server Power Cords The ProLiant ML310e Gen8 server is a tower server that ships standard with a 6' country specific NEMA power cord that allows connection to wall outlets in a home or office. If customers require additional local power cords, they can check the power cord matrix for the appropriate country specific sku.
  • Page 7 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Standard Features Operating Systems and Microsoft Windows Server Virtualization Software Red Hat Enterprise Linux (RHEL) Support for ProLiant SUSE Linux Enterprise Server (SLES) Servers VMware NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport...
  • Page 8 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Standard Features Please go to the Intelligent Provisioning website at www.hp.com/go/intelligentprovisioning for additional information and to view usage videos. Use the Service Pack for ProLiant (SPP) at www.hp.com/go/spp to get firmware and software updates.
  • Page 9 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Standard Features downloaded from www.hp.com/go/spp/download. More information can be found: http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp http://www.hp.com/go/hpsum Security Power-on password Administrator's password Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers.

  • Page 10: Optional Features

    QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Optional Features HP Insight Management HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.
  • Page 11 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Optional Features environments. Data Replication Software HP offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting. Storage Device Management Software Maximize your investment in HP storage and networking with software that enables hardware- specific configuration, performance tuning and connectivity management.

  • Page 12: Service And Support

    QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Service and Support Service and Support HP Technology Services for Industry Standard Servers and BladeSystem Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment.That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.
  • Page 13 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Service and Support HP Installation and Startup for Insight Control Software / HP SIM Provides for the deployment and basic configuration of HP Insight Control or HP SIM (Systems Insight Manager) on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf...
  • Page 14 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Service and Support replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.
  • Page 15 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Pre-configured Models NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
  • Page 16 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Pre-configured Models HP ProLiant ML310e Gen8 Processor(s) (1) Intel® Core® i3-3220 (3.3GHz/2-core/3MB/65W, HT) Processor i3-3220 1P 2GB-U Non-hot Cache Memory 3MB (1 x 3MB) L3 cache Plug LFF 350W PS Entry Memory 2GB (1 x 2GB) PC3-12800E DDR3 UDIMM...
  • Page 17 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Smart Buys HP ProLiant ML310e Gen8 Processor(s) (1) Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W, HT) Processor E3-1220v2 1P 4GB-U Hot Cache Memory 8MB (1 x 8MB) L3 cache Plug 4 LFF 350W PS Memory 4GB (1 x 4GB) PC3-12800E DDR3 UDIMM...
  • Page 18 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Smart Buys HP ProLiant ML310e Gen8 Processor(s) (1) Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W, HT) Processor E3-1220v2 1P 4GB-U Non- Cache Memory 8MB (1 x 8MB) L3 cache Hot Plug 4 LFF 350W Memory 4GB (1 x 4GB) PC3-12800E DDR3 UDIMM...
  • Page 19 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Smart Buys HP ProLiant ML310e Gen8 Processor(s) (1) Intel® Xeon® E3-1240v2 (3.4GHz/4-core/8MB/69W, HT) E3-1240v2 1P 8GB-U Hot Cache Memory 8MB (1 x 8MB) L3 cache Plug 8 SFF 460W PS Memory 8GB (2 x 4GB) PC3-12800E DDR3 UDIMM...
  • Page 20 NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server. Step 1: Base Configuration (choose one of the following configurable models) HP Models HP ProLiant ML310e Gen8 Hot Plug 4 LFF Configure-to-order Server 675241-B21 Factory Integrated Model ships with: HP Ethernet 1Gb 2-port 330i Adapter...
  • Page 21 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Configuration Information - Factory Integrated Models Step 2: Choose Required Options (only one of the following from each list unless otherwise noted) HP Processors Entry Processors NOTE: Intel® Celeron® G540 supports up to 1066MHz DDR3 memory speed. Intel®...
  • Page 22 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Configuration Information - Factory Integrated Models HP 4U Redundant Power Supply Enablement Kit 675843-B21 NOTE: The HP 4U Redundant Power Supply Enablement Kit (675843-B21) must be installed when using HP Common Slot power supplies.
  • Page 23 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Core Options NOTE: Some options may not be integrated at the factory. Contact your local sales representative for additional information. HP Unique Options HP 4U 4 Large Form Factor Hot Plug Hard Drive Backplane Kit 674839-B21 NOTE: The LFF Kit is a backplane kit designed for going from NHP LFF to hot-plug LFF.
  • Page 24 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Core Options components. NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard...
  • Page 25 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Core Options HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 693687-B21 HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 628061-B21 HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 658079-B21 HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive...
  • Page 26 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Core Options 6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty 691860-B21 Solid State Drive HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty...
  • Page 27 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Core Options HP Power Supplies NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.

  • Page 28: Additional Options

    QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 29 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options HP Security HP Trusted Platform Module Option 488069-B21 NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.
  • Page 30 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18004.www1.hp.com/products/quickspecs/14336_ca/14336_ca.html (HBA H220) http://h18004.www1.hp.com/products/quickspecs/14222_ca/14222_ca.html (HBA H221) http://h18004.www1.hp.com/products/quickspecs/14337_ca/14337_ca.html (HBA H222) SCSI HBA HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter...
  • Page 31 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options HP Disk Backup NOTE: For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk backup products see: http://www.hp.com/storage/SPOCK. HP RDX Removable Disk Backup System HP RDX320 USB3.0 External Disk Backup System...
  • Page 32 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/14110_ca/14110_ca.html NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups. NOTE: For additional information on sizing your server, please reference: http://www.upssizer.com.
  • Page 33 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options HP Remote Monitoring HP Remote Monitored Power Distribution Unit: 1U Version Power Distribution Units HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit D9N43A (mPDU) HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit D9N46A HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit...
  • Page 34 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options HP 5xC13 Intelligent PDU Extension Bar G2 Kit AF547A HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar AF528A NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13650_ca/13650_ca.html...
  • Page 35 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Additional Options HP TAA 0x2x16xKVM Server Console G2 Switch AF626A NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/11834_ca/11834_ca.html (Worldwide) HP Server Console Switch G2 with Virtual Media & CAC...
  • Page 36 U6F74E Service HP 3 year 6 hour Call to Repair 24x7 ProLiant ML310e Proactive Care Service U6F79E HP 3 year 6 hour Call to Repair 24x7 w/ Defective Media Retention ProLiant ML310e U6F80E Proactive Care SVC Collaborative Support NOTE: Hardware break/fix plus 24x7 software diagnosis support with collaborative call management for a broad spectrum of 3rd Party software products including O/S and hypervisors.
  • Page 37 General Guidelines: The HP ProLiant ML310e Gen8 Server has four memory slots There are two channels per server with two DIMM slots per channel Memory channel 1 consists of the two (2) DIMMs that are closest to the processor Memory channel 2 consists of the two (2) DIMMs that are furthest from the processor Different types of processors have different types of memory support.
  • Page 38 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Memory Memory Slot DIMM1C DIMM2A DIMM3D DIMM4B Standard 2 GB Empty 2 GB Empty Empty (Base Model) Standard 4 GB Empty 4 GB Empty Empty (Performance Model) Maximum 32 GB 8 GB 8 GB...
  • Page 39 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Memory HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low 647907-B21 Voltage Memory Kit HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory 669324-B21 HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low...
  • Page 40 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Storage 1 - 8 8 x 2.5" (SFF) SAS/SATA hard drive bays Removable Optical Drive Removable Optical Drive NOTE. Once Redundant Power Supply is installed, Bay A will be the only media bay available for use.

  • Page 41: Technical Specifications

    QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Technical Specifications System Unit Tower Dimensions 14.5.x 6.89 x 18.71 in (36.82 x17.5 x 47.52 cm) (H x W x D) (with feet/bezel) Tower Weight Maximum 41.8 lb (18.96 kg) (all hard drives, power...
  • Page 42 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) Technical Specifications the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). Idle L WAd 4.3 B...
  • Page 43 10/100/1000Base-TX Category 5 or better; up to 328 ft (100 m) Environment-friendly End-of-life Management Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: Products and Approach and Recycling http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green...
