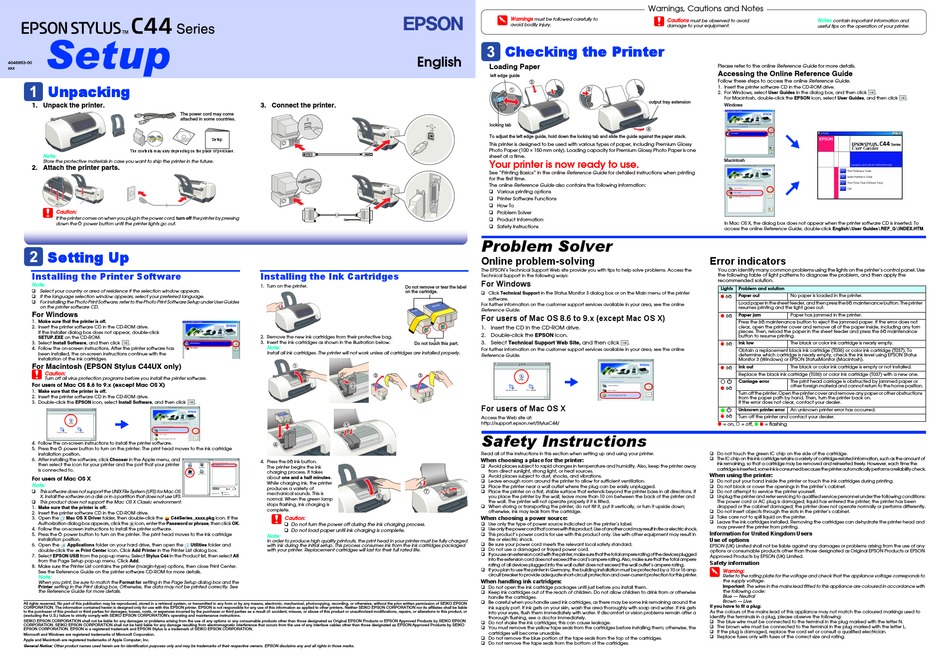

Epson Stylus C44UX series Setup

Setup
4046953-00
xxx
Unpacking Unpacking Unpacking Unpacking
1. Unpack the printer.
The power cord may come
attached in some countries.
The contents may vary depending on the place of purchase.
Note:
Store the protective materials in case you want to ship the printer in the future.
2. Attach the printer parts.
c Caution:
If the printer comes on when you plug in the power cord, turn off the printer by pressing
down the P power button until the printer lights go out.
Setting Up Setting Up Setting Up Setting Up
Installing the Printer Software
Note:
❏ Select your country or area of residence if the selection window appears.
❏ If the language selection window appears, select your preferred language.
❏ For installing the Photo Print Software, refer to the Photo Print Software Setup under User Guides
on the printer software CD.
For Windows
1. Make sure that the printer is off.
2. Insert the printer software CD in the CD-ROM drive.
If the Installer dialog box does not appear, double-click
SETUP.EXE on the CD-ROM.
3. Select Install Software, and then click .
4. Follow the on-screen instructions. After the printer software has
been installed, the on-screen instructions continue with the
installation of the ink cartridges.
For Macintosh (EPSON Stylus C44UX only)
c
Caution:
Turn off all virus protection programs before you install the printer software.
For users of Mac OS 8.6 to 9.x (except Mac OS X)
1. Make sure that the printer is off.
2. Insert the printer software CD in the CD-ROM drive.
3. Double-click the EPSON icon, select Install Software, and then click
4. Follow the on-screen instructions to install the printer software.
5. Press the P power button to turn on the printer. The print head moves to the ink cartridge
installation position.
6. After installing the software, click Chooser in the Apple menu, and
then select the icon for your printer and the port that your printer
is connected to.
For users of Mac OS X
Note:
❏ This software does not support the UNIX File System (UFS) for Mac OS
X. Install the software on a disk or in a partition that does not use UFS.
❏ This product does not support the Mac OS X Classic environment.
1. Make sure that the printer is off.
2. Insert the printer software CD in the CD-ROM drive.
3. Open the Mac OS X Driver folder, then double-click the C44Series_xxxx.pkg icon. If the
Authorization dialog box appears, click the icon, enter the Password or phrase, then click OK.
4. Follow the on-screen instructions to install the printer software.
5. Press the P power button to turn on the printer. The print head moves to the ink cartridge
installation position.
6. Open the Applications folder on your hard drive, then open the
double-click the Print Center icon. Click Add Printer in the Printer List dialog box.
7. Select EPSON USB from the pop-up menu. Select Stylus C44 in the Product list, then select All
from the Page Setup pop-up menu. Click Add.
8. Make sure the Printer List contains the printer (margin-type) options, then close Print Center.
See the Reference Guide on the printer software CD-ROM for more details.
Note:
When you print, be sure to match the Format for setting in the Page Setup dialog box and the
Printer setting in the Print dialog box. Otherwise, the data may not be printed correctly. See
the Reference Guide for more details.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON
CORPORATION. The information contained herein is designed only for use with this EPSON printer. EPSON is not responsible for any use of this information as applied to other printers. Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable
to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or
(excluding the U.S.) failure to strictly comply with SEIKO EPSON CORPORATION's operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON
CORPORATION. SEIKO EPSON CORPORATION shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as EPSON-Approved Products by SEIKO
EPSON CORPORATION. EPSON is a registered trademark and EPSON Stylus is a trademark of SEIKO EPSON CORPORATION.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Apple and Macintosh are registered trademarks of Apple Computer, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.
3. Connect the printer.
Setup
Installing the Ink Cartridges
1. Turn on the printer.
2. Remove the new ink cartridges from their protective bag.
3. Insert the ink cartridges as shown in the illustration below.
Note:
Install all ink cartridges. The printer will not work unless all cartridges are installed properly.
.
4. Press the b ink button.
The printer begins the ink
charging process. It takes
about one and a half minutes.
While charging ink, the printer
produces a variety of
mechanical sounds. This is
normal. When the green lamp
stops flashing, ink charging is
complete.
c Caution:
❏ Do not turn the power off during the ink charging process.
❏ Do not load paper until ink charging is complete.
Note:
In order to produce high quality printouts, the print head in your printer must be fully charged
Utilities folder and
with ink during the initial setup. This process consumes ink from the ink cartridges packaged
with your printer. Replacement cartridges will last for their full rated life.
w Warnings
must be followed carefully to
avoid bodily injury.
Checking the Printer Checking the Printer Checking the Printer Checking the Printer
English
Loading Paper
left edge guide
locking tab
To adjust the left edge guide, hold down the locking tab and slide the guide against the paper stack.
This printer is designed to be used with various types of paper, including Premium Glossy
Photo Paper (100 × 150 mm only). Loading capacity for Premium Glossy Photo Paper is one
sheet at a time.
Your printer is now ready to use.
See "Printing Basics" in the online Reference Guide for detailed instructions when printing
for the first time.
The online Reference Guide also contains the following information:
❏ Various printing options
❏ Printer Software Functions
❏ How To
❏ Problem Solver
❏ Product Information
❏ Safety Instructions
Problem Solver
Online problem-solving
The EPSON's Technical Support Web site provide you with tips to help solve problems. Access the
Technical Support in the following ways:
For Windows
Do not remove or tear the label
on the cartridge.
❏ Click Technical Support in the Status Monitor 3 dialog box or on the Main menu of the printer
software.
For further information on the customer support services available in your area, see the online
Reference Guide.
For users of Mac OS 8.6 to 9.x (except Mac OS X)
1. Insert the CD in the CD-ROM drive.
2. Double-click the EPSON icon.
3. Select Technical Support Web Site, and then click
Do not touch this part.
For further information on the customer support services available in your area, see the online
Reference Guide.
For users of Mac OS X
Access the Web site at:
http://support.epson.net/StylusC44/

Safety Instructions

Read all of the instructions in this section when setting up and using your printer.
When choosing a place for the printer:
❏ Avoid places subject to rapid changes in temperature and humidity. Also, keep the printer away
from direct sunlight, strong light, or heat sources.
❏ Avoid places subject to dust, shocks, and vibrations.
❏ Leave enough room around the printer to allow for sufficient ventilation.
❏ Place the printer near a wall outlet where the plug can be easily unplugged.
❏ Place the printer on a flat, stable surface that extends beyond the printer base in all directions. If
you place the printer by the wall, leave more than 10 cm between the back of the printer and
the wall. The printer will not operate properly if it is tilted.
❏ When storing or transporting the printer, do not tilt it, put it vertically, or turn it upside down;
otherwise, ink may leak from the cartridge.
When choosing a power source:
❏ Use only the type of power source indicated on the printer's label.
❏ Use only the power cord that comes with this product. Use of another cord may result in fire or electric shock.
❏ This product's power cord is for use with this product only. Use with other equipment may result in
fire or electric shock.
❏ Be sure your power cord meets the relevant local safety standard.
❏ Do not use a damaged or frayed power cord.
❏ If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged
into the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere
rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
❏ If you plan to use the printer in Germany, the building installation must be protected by a 10 or 16 amp
circuit breaker to provide adequate short-circuit protection and over-current protection for this printer.
When handling ink cartridges:
❏ Do not open the ink cartridge packages until just before you install them.
❏ Keep ink cartridges out of the reach of children. Do not allow children to drink from or otherwise
handle the cartridges.
❏ Be careful when you handle used ink cartridges, as there may be some ink remaining around the
ink supply port. If ink gets on your skin, wash the area thoroughly with soap and water. If ink gets
into your eyes, flush them immediately with water. If discomfort or vision problems remain after a
thorough flushing, see a doctor immediately.
❏ Do not shake the ink cartridges; this can cause leakage.
❏ You must remove the yellow tape seals from the cartridges before installing them; otherwise, the
cartridges will become unusable.
❏ Do not remove the blue portion of the tape seals from the top of the cartridges.
❏ Do not remove the tape seals from the bottom of the cartridges.
Warnings, Cautions and Notes
c Cautions
must be observed to avoid
damage to your equipment.
Please refer to the online Reference Guide for more details.
Accessing the Online Reference Guide
Follow these steps to access the online Reference Guide.
1. Insert the printer software CD in the CD-ROM drive.
2. For Windows, select User Guides in the dialog box, and then click
For Macintosh, double-click the EPSON icon, select User Guides, and then click
output tray extension
Windows
Macintosh
In Mac OS X, the dialog box does not appear when the printer software CD is inserted. To
access the online Reference Guide, double-click English\User Guides\REF_G\INDEX.HTM.
Error indicators
You can identify many common problems using the lights on the printer's control panel. Use
the following table of light patterns to diagnose the problem, and then apply the
recommended solution.
Lights Problem and solution
Paper out No paper is loaded in the printer.
b
O
Load paper in the sheet feeder, and then press the
resumes printing and the light goes out.
Paper jam Paper has jammed in the printer.
b
O
b
Press the maintenance button to eject the jammed paper. If the error does not
clear, open the printer cover and remove all of the paper inside, including any torn
pieces. Then, reload the paper in the sheet feeder and press the
button to resume printing.
.
b Ink low The black or color ink cartridge is nearly empty.
k
Obtain a replacement black ink cartridge (T036) or color ink cartridge (T037). To
determine which cartridge is nearly empty, check the ink level using EPSON Status
Monitor 3 (Windows) or EPSON StatusMonitor (Macintosh).
Ink out The black or color ink cartridge is empty or not installed.
b
O
Replace the black ink cartridge (T036) or color ink cartridge (T037) with a new one.
N P Carriage error The print head carriage is obstructed by jammed paper or
other foreign material and cannot return to the home position.
b
O
Turn off the printer. Open the printer cover and remove any paper or other obstructions
from the paper path by hand. Then, turn the printer back on.
If the error does not clear, contact your dealer.
Unknown printer error An unknown printer error has occurred.
k P
k b Turn off the printer and contact your dealer.
= on, N = off, = flashing
O k k
❏ Do not touch the green IC chip on the side of the cartridge.
❏ The IC chip on this ink cartridge retains a variety of cartridge-related information, such as the amount of
ink remaining, so that a cartridge may be removed and reinserted freely. However, each time the
cartridge is inserted, some ink is consumed because the printer automatically performs a reliability check.
When using the printer:
❏ Do not put your hand inside the printer or touch the ink cartridges during printing.
❏ Do not block or cover the openings in the printer's cabinet.
❏ Do not attempt to service the printer yourself.
❏ Unplug the printer and refer servicing to qualified service personnel under the following conditions:
The power cord or AC plug is damaged; liquid has entered the printer; the printer has been
dropped or the cabinet damaged; the printer does not operate normally or performs differently.
❏ Do not insert objects through the slots in the printer's cabinet.
❏ Take care not to spill liquid on the printer.
❏ Leave the ink cartridges installed. Removing the cartridges can dehydrate the printer head and
may prevent the printer from printing.
Information for United Kingdom Users
Use of options
EPSON (UK) Limited shall not be liable against any damages or problems arising from the use of any
options or consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by EPSON (UK) Limited.
Safety information
w Warning:
Refer to the rating plate for the voltage and check that the appliance voltage corresponds to
the supply voltage.
Important: The wires in the mains lead fitted to this appliance are coloured in accordance with
the following code:
Blue — Neutral
Brown — Live
If you have to fit a plug:
As the colours of the mains lead of this appliance may not match the coloured markings used to
identify the terminals in a plug, please observe the following:
❏ The blue wire must be connected to the terminal in the plug marked with the letter N.
❏ The brown wire must be connected to the terminal in the plug marked with the letter L.
❏ If the plug is damaged, replace the cord set or consult a qualified electrician.
❏ Replace fuses only with fuses of the correct size and rating.
Notes
contain important information and
useful tips on the operation of your printer.
.
.
b
maintenance button. The printer
b
maintenance
