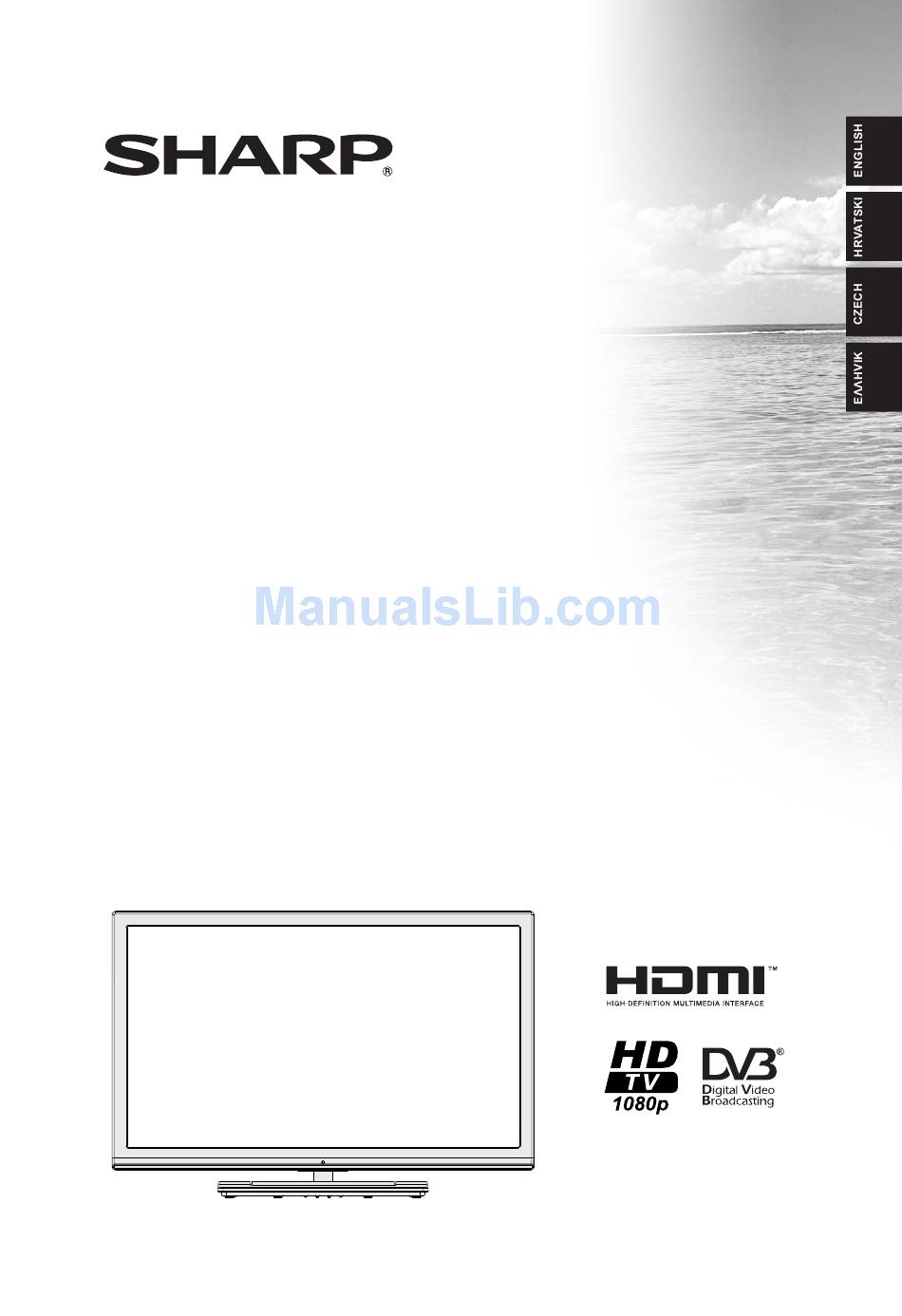

- Page 1 LC-22LE250V LCD COLOUR TELEVISION OPERATION MANUAL LCD TELEVIZOR U BOJI KORISNIČKI PRIRUČNIK BAREVNÝ LCD TELEVIZOR NÁVOD K POUŽITÍ ΕΓΧΡΩΜΗ ΤΗΛΕΟΡΑΣΗ LCD ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ...
-
Page 2: Table Of Contents
3 AM search and upgrade mode ......17 Contents Troubleshooting & Tips ......... 18 Features ..............3 Tv will not turn on ..........18 Dear SHARP customer ........... 3 Poor picture ............18 Introduction ............. 3 No picture ............18 Important safety precautions ........4 No sound ............18... - Page 3 SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked and of the same rating as above, which is also indicated on the pin face of the plug, must be used.
-
Page 4: Features
Features Dear SHARP customer • Remote controlled colour LCD TV. Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years • Fully integrated digital/cable TV (DVB-T/C) of trouble-free operation of your product, please read •... -
Page 5: Important Safety Precautions
Important safety precautions • Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical cloth to clean it. -
Page 6: Power Source
Lightning Safety Precautions In case of storm and lightning or when Read the following recommended safety going on holiday, disconnect the power precautions carefully for your safety. cord from the wall outlet. Power Source Replacement Parts The TV set should be operated only from a 220-240V When replacement parts are required, make sure that AC, 50Hz outlet. - Page 7 LCD Screen • “HDMI, the HDMI logo and High-Definition The LCD panel is a very high technology product with Multimedia Interface are trademarks or registered about a million thin film transistors, giving you fine trademarks of HDMI Licensing LLC.” picture details. Occasionally, a few non-active pixels •...
-
Page 8: Environmental Information
Environmental Information Package Contents This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feauture of this TV. To reduce energy consumption, you should take the following steps: You can use Power Save Mode setting, located in the Picture Settings menu. -
Page 9: Viewing The Tv
To turn the TV off: Press the middle of the button down Viewing the TV and hold it down for a few seconds, the TV will turn into standby mode. , switch is used for turning the TV on or off. Standby Notifications 1) If the TV does not receive any input signal (e.g. -
Page 10: Antenna/Cable Connection
Specification Antenna/Cable Connection Connect the “aerial” or “cable TV” plug to AERIAL INPUT (ANT) socket located on the back of the TV. TV Broadcasting PAL B/G D/K K Receiving Channels VHF (BAND I/III) - UHF Aerial or Cable (BAND U) - HYPERBAND N u m b e r o f P r e s e t 10000 Channels... -
Page 11: Viewing Remote Control
Viewing remote control Standby / On Channel list Volume up-down Menu on/off OK / Confirm Return / Back No Function My button 1 (*) My button 2 (**) 10. Coloured buttons (Red, Green, Yellow, Blue) 11. Mono-Stereo Dual I-II / Current language 12. -
Page 12: Viewing The Connections
Viewing the Connections Connector Type Cables Device Scart Connection (back) Connection (back) PC/YPbPr SIDE AV Audio Connection Side Audio/Video (side) Connection Cable PC Audio Cable (Supplied) (Not supplied) HDMI Connection (back) SPDIF Connection (back) Side AV SIDE AV (Audio/Video) Connection AV Connection Cable (side) (supplied) -
Page 13: Switching On/Off
channels are sorted according to the LCN (*), please Switching On/Off select “Yes” and than press OK. To Switch the TV On Press MENU button to quit channel list and watch TV. Connect the power cord to the 220-240V AC 50 Hz. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a Switch the “... -
Page 14: Timeshift Recording
Note: Lip Sync delay may occur during the timeshifting. Press the (STOP) button to stop a playback and Radio record is supported. The TV can record return to the Recordings Library. programmes up to ten hours. Slow Forward Recorded programmes are split into 4GB partitions. If you press (PAUSE) button while watching recorded If the writing speed of the connected USB disk is not... -
Page 15: Tv Menu Features And Functions
TV Menu Features and Functions Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema,Game,Sport,Dynamic and Natural. Contrast Sets the lightness and darkness values of the screen. Brightness Sets the brightness value for the screen. -
Page 16: Sound Menu Contents
Sound Menu Contents Volume Adjusts the volume level. Selects the equalizer mode. Custom settings can be made only when Equalizer in user mode. Balance This setting is used for emphasizing left or right speaker balance. Headphone Sets headphone volume. Sound Mode You can select a sound mode. -
Page 17: Install And Retune Menu Contents
Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use Audio Description this feature, only if the broadcaster supports that additional narration track. Note: Audio description sound feature cannot be available in recording or time shifting mode.. You can set the timeout value of auto off feature. -
Page 18: General Tv Operation
General TV Operation Record / Delete Record Timer Using the Channel List After you have selected a programme in the The TV sorts all stored stations in the Channel List. EPG menu, press the OK button. Select the You can edit this channel list, set favourites or set Record option and press the OK button. -
Page 19: Troubleshooting & Tips
Troubleshooting & Tips Tv will not turn on Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV. Poor picture • Have you selected the correct TV system? •... -
Page 20: Pc Input Typical Display Modes
AV and HDMI Signal Compatibility PC Input Typical Display Modes The following table is an illustration of some of the typical video Source Supported Signals Available display modes. Your TV may not support all resolutions. Your TV PAL 50/60 supports up to 1920x1080. NTSC 60 Index Resolution... -
Page 21: Dimensional Drawings
Dimensional Drawings English - 20 -... -
Page 22: End Of Life Disposal
End of life disposal English - 21 -... -
Page 23: Installing The Stand
Place the Stand Cover (2) on the Stand (3). Ensure the Stand Cover (3) is placed correctly and that you can see the screw holes on the back of the Sharp Television. DO NOT insert the screws before placing the plastic molding. -
Page 24: Uninstalling The Stand
Uninstalling the Stand English - 23 -... -
Page 25: Screw Dimensions Wall Mounting
Screw Dimensions Wall Mounting Screw length = A+B Screw Cabinet Wall mount angle TO THE PRODUCT MODEL VESA MIN. / MAX. SCREW LENGTH (A LENGTH) LC-22LE250E/V/K 75 x 75 (W x H) M4 X 6 / M4 X 10 LC-24LE250E/V/K-BK 75 x 75 (W x H) M4 X 6 / M4 X 10 LC-24LE250E/V/K-WH...
