GE Profile PT916BM Dimensions And Installation Information

Cutout width
PT916BM/CM/WM
28-1/2'' MIN.
28-5/8'' MAX.

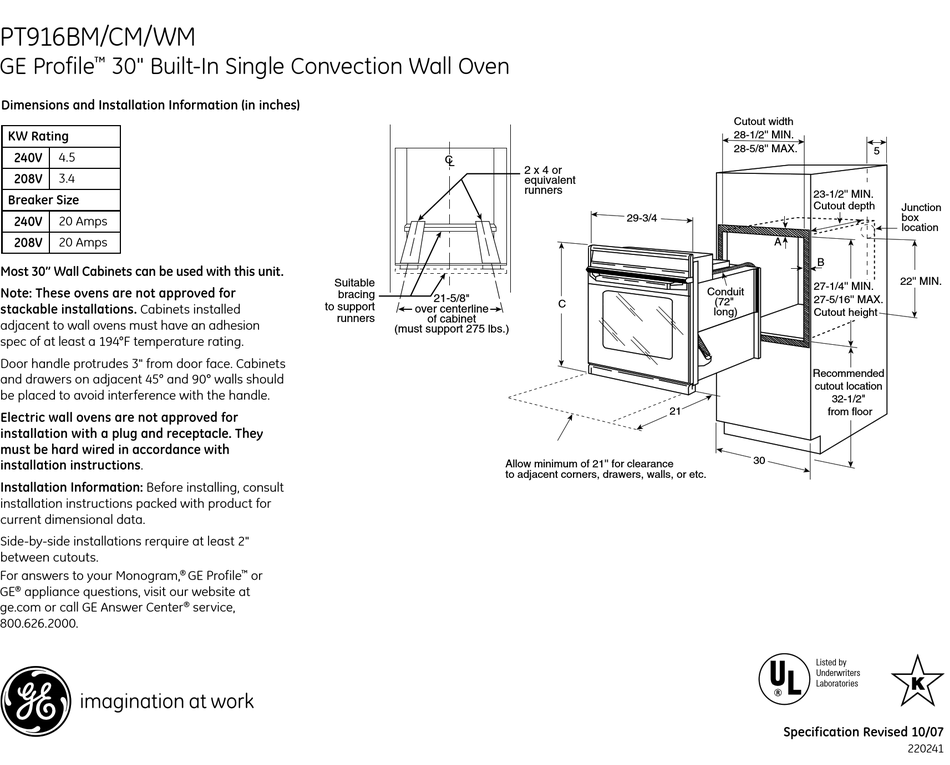

GE Profile 30" Built-In Single Convection Wall Oven
™
Dimensions and Installation Information (in inches)
23-1/2'' MIN.
Cutout depth
KW Rating
240V
4.5
A
208V 3.4
B
Breaker Size
240V 20 Amps
27-1/4'' MIN.
Conduit
208V 20 Amps
27-5/16'' MAX.
(72"
long)
Cutout height
Most 30" Wall Cabinets can be used with this unit.
Note: These ovens are not approved for
stackable installations. Cabinets installed
adjacent to wall ovens must have an adhesion
Recommended
spec of at least a 194°F temperature rating.
cutout location
Door handle protrudes 3" from door face. Cabinets
32-1/2"
and drawers on adjacent 45° and 90° walls should
from floor
be placed to avoid interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle. They
30
must be hard wired in accordance with
installation instructions.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
Side-by-side installations rerquire at least 2"
between cutouts.
For answers to your Monogram,
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
5
Junction
box
location
22'' MIN.
Suitable
bracing
to support
runners
GE Profile or
™
service,
C L
2 x 4 or
equivalent
runners
21-5/8"
C
over centerline
of cabinet
(must support 275 lbs.)
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
C=28-1/4" without trim and 28-3/4" with trim.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
23-1/2'' MIN.
Cutout depth
29-3/4
A
B
27-1/4'' MIN.
Conduit
27-5/16'' MAX.
(72"
long)
Cutout height
Recommended
cutout location
21
30
Listed by
Underwriters
Laboratories
Specification Revised 10/07
5
Junction
box
location
22'' MIN.
Suitab
bracin
to suppo
runne
32-1/2"
from floor
220241
