8. Specification
General Specification
Power Supply Requirement..................................................DC 12V
Maximum Power Output...................4 x 25W(measured at DC 14.4 V)
Dimensions(w x h x d)...........................................178 x 50 x 167mm
DVD Deck Specification
Format....................................DVD/VCD/JPEG/MP4/MP3/WMA/CD
Video System.......................................................PAL/AUTO/NTSC
Audio System..............................................................24 bit/96KHz
Loading System.......................................................... Auto Loading
Mounting Angle.................................................................0 to +/-30
Video Specification
Video Type...................................................................16:9 and 4:3
Video Output level......................................Composite:1.0
Horizontal Resolution................................................................500
Audio Specification
Audio Output(Analog audio)..........................................2.0
Frequency Response.............................20Hz ~ 20KHz(at 1KHz 0 dB)
S/N Ratio(Audio)............................................. 90dB(at 1KHz 0 dB)
Separation..............................................................................50dB
Radio Specification
FM Section
Frequency range..............................................87.5MHz - 107.9MHz
Usable sensitivity......................................................................3uV
I.F Frequency....................................................................10.7MHz
AM Section
Frequency..........................................................530KHz - 1710KHz
THIS PRODUCT INCORPORATES COPYRIGHT PROTECTION
TECHNOLOGY THAT IS PROTECTED BY U.S. PATENTS AND
OTHER INTELLECTUAL PROPERTY RIGHTS. USE OF THIS
COPYRIGHT PROTECTION TECHNOLOGY MUST BE
AUTHORIZED BY MACROVISION, AND IS INTENDED FOR
HOME AND OTHER LIMITED VIEWING USES ONLY UNLESS
OTHERWISE AUTHORIZED BY MACROVISION. REVERSE
ENGINEERING OR DISASSEMBLY IS PROHIBITED.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
U.S. Patent Nos. 4,631,603;4,577,216;4,819,098;4,907,093;5,315,448 and 6,516,132.
0.2Vp-p
Load impedance: 75 ohms
+0
Vrms
-1.0
Instruction Manual
Fully Compatible to These
Types of Discs: DVD, VCD,
JPEG,MP4,MP3,WMA,CD.
5 IN 1 CAR AUDIO SYSTEM
WITH DVD.VCD.JPEG.MP4.MP3.WMA.CD
USB MMC/SD PLAYER AND TV SET
AM/FM DIGITAL PLL TUNING RADIO
Remark: Any information subject to change without further notice
NX-668
Advertisement
Table of Contents
Related Manuals for Naxa NX-668
Summary of Contents for Naxa NX-668

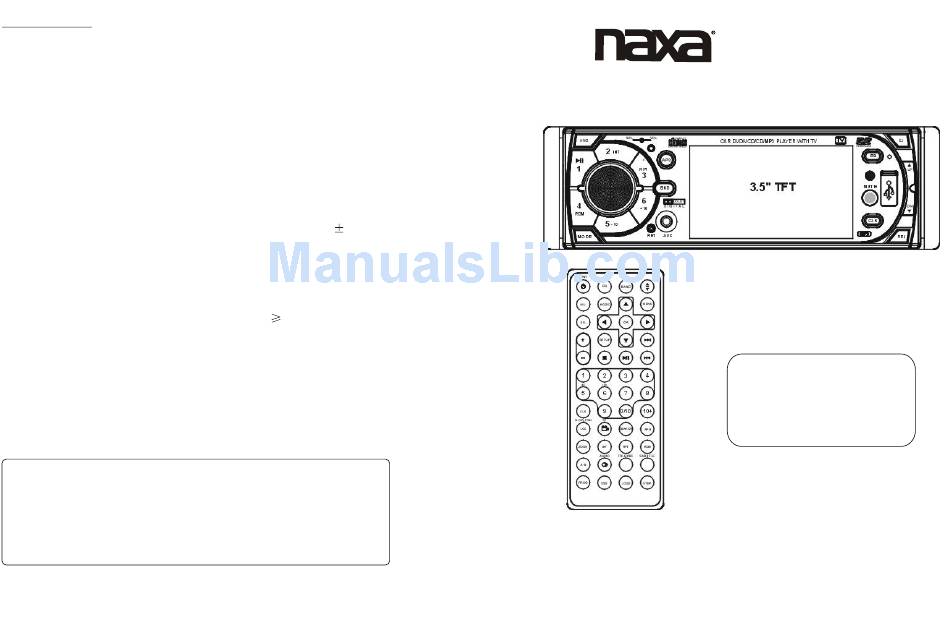

- Page 1 8. Specification General Specification NX-668 Power Supply Requirement..........DC 12V Maximum Power Output....4 x 25W(measured at DC 14.4 V) Dimensions(w x h x d)...........178 x 50 x 167mm Instruction Manual DVD Deck Specification Format........DVD/VCD/JPEG/MP4/MP3/WMA/CD Video System............PAL/AUTO/NTSC Audio System..............24 bit/96KHz Loading System............Auto Loading Mounting Angle..............0 to +/-30...
