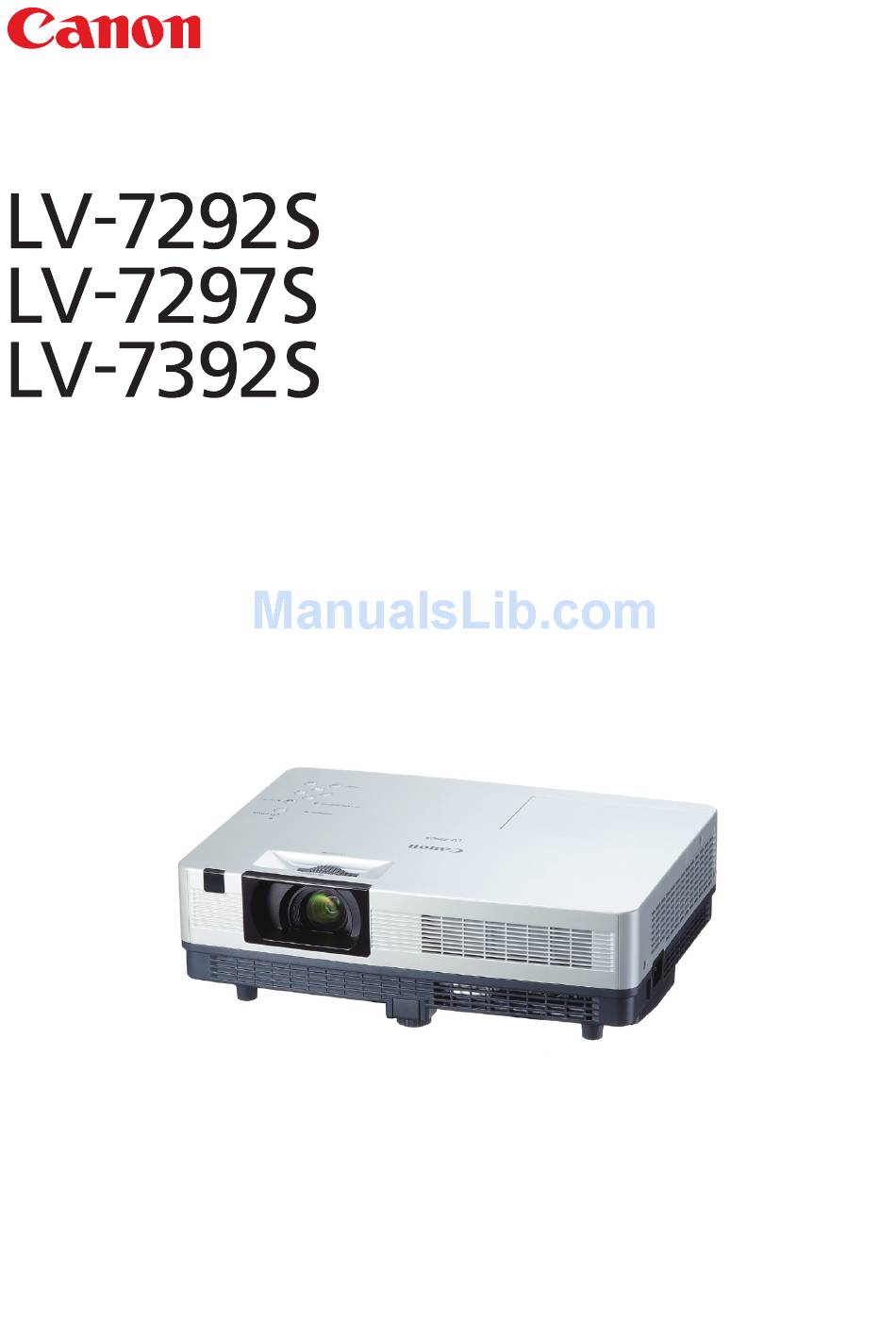

- Page 1 MULTIMEDIA PROJECTOR User’s Manual...
-
Page 2: Features And Design
Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ♦ Compact Design ♦... -
Page 3: Table Of Contents
Table of Contents Features and Design . . . . . . . . . . . . . . 2 Auto PC Adjustment Manual PC Adjustment Table of Contents . . . . . . . . . . . . . . . . . 3 Image Mode Selection To the Owner . -
Page 4: To The Owner
To the Owner Before installing and operating this projector, read Safety Precaution this manual thoroughly. This projector provides many convenient features WARNING: and functions. THIS APPARATUS MUST BE EARTHED. Operating the projector properly enables you to manage those features and maintains it in good TO REDUCE THE RISK OF FIRE OR condition for many years to come. Improper ELECTRIC SHOCK, DO NOT EXPOSE operation may result in not only shortening the THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 5: Safety Instructions
Safety Instructions All the safety and operating instructions should Never push objects of any kind into this projector be read before the product is operated. through cabinet slots as they may touch dangerous voltage points or short out parts that Read all of the instructions given here and retain could result in a fire or electric shock. - Page 6 Safety Instructions – When an extension cord is necessary, be WARNING sure that the total current load of all equipment connected to the extension cord does not Immediately turn the power off, unplug the exceed the specified rating of the extension projector, and contact your dealer under the cord.
- Page 7 Safety Instructions – Remove the batteries when they have been Precaution During Use exhausted or not in use for an extended period of time. – This projector is a precision machine. Do – Be sure to replace both batteries at the same not subject the projector to strong shocks or time.
-
Page 8: Air Circulation
Safety Instructions Installing the Projector in Proper Air Circulation Position Openings in the cabinet are provided for Install the projector properly. Improper installation ventilation. To ensure reliable operation of the may reduce the lamp life and cause a fire hazard. product and to protect it from overheating, these openings must not be blocked or covered. -
Page 9: Compliance
If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A., Inc. One Canon Plaza, Lake Success, NY 11042-1198, U.S.A. Tel No. (516)328-5600 Canadian Radio Interference Regulations This Class B digital apparatus complies with Canadian ICES-003. -
Page 10: Part Names And Functions
Part Names and Functions ① Top controls and Indicators Front ② Zoom Ring ③ Focus Ring ① ② ③ ④ Infrared Remote Receiver ⑤ Projection Lens ⑥ Lens Cap (See page 62 for attaching.) CAUTION Do not turn on a projector with lens cap attached. High temperature from light beam may damage lens cap and result in fire hazard. -
Page 11: Rear Terminal
Part Names and Functions Rear Terminal ① ② ③ ① CONTROL When the projector is controlled by a computer, connect to this jack with serial control cable. ② COMPUTER IN /S-VIDEO IN / COMPONENT IN Connect output signal from a computer, component video output, RGB scart 21- pin video output or S-VIDEO output to this terminal (pp.17-19). -
Page 12: Top Control
Part Names and Functions Top Control ⑤ POWER ⑧ WARNING ④ ③ ⑦ LAMP REPLACE AUTO SET ② ⑥ ① MENU ① OK button ⑤ POWER indicator – Execute the selected item (p.24). – Lights red when the projector is in stand-by –Zoom in or out the image in the Digital zoom mode. -
Page 13: Remote Control Unit
Part Names and Functions Remote Control Unit ③ COMPUTER button ① Select the COMPUTER input source. (pp.29, 39) ② ④ VIDEO button Select the VIDEO input source. (p.38) ③ ⑤ S-VIDEO button Select the S-VIDEO input source. (p.38) ④ ⑱ ⑥ Point ▲▼◄► buttons – Select an item or adjust the value in the ⑰... -
Page 14: Remote Control Unit Battery Installation
Part Names and Functions Remote Control Unit Battery Installation Open the battery Install new batteries Replace the compartment lid. into the compartment. compartment lid. Two AAA size batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment. WARNING To ensure safe operation, please observe the following precautions : ●... -
Page 15: Installation
• All measurements are approximate and may vary from the actual sizes. (Inch Diagonal) 300"(tele ) 300"(wide) Max. Zoom Min. Zoom 200" 150" 100" 40" (Center) For LV-7290, LV-7295 For LV-7292S, LV-7297S A : B = 13:1 A:B = 6:1 Screen Size 40” 100” 150” 200” 300” Screen Size 40” 100”... -
Page 16: Project Vertically To The Screen
Installation Project vertically to the screen Adjust the light axis vertically to the screen. Note: If the projector is too oblique to the screen, part of the focus may be deviated. 90˚ Light axis Screen Adjust the Height and the Incline angle of the projected image Projection angle can be adjusted up to 10.0 degrees with the adjustable foot. -
Page 17: Connecting To A Computer
Installation Connecting to a Computer Cables used for connection • VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.) Note: Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Monitor Output cable COMPUTER IN / S-VIDEO IN /COMPONENT IN... -
Page 18: Connecting To Video Equipment
Installation Connecting to VIDEO Equipment Cables used for connection • VIDEO Cable • S-VIDEO Cable • S-VIDEO-VGA Cable Note: Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Video, DVD player, etc. S-VIDEO Output Composite VIDEO S-VIDEO cable VIDEO cable... -
Page 19: Connecting To Component Video And Scart Equipment
Installation Connecting to COMPONENT VIDEO and SCART Equipment Cables used for connection • Scart-VGA Cable • COMPONENT Cable • COMPONENT-VGA Cable Note: Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Video, DVD player, etc. COMPONENT VIDEO Output RGB Scart 21- (Y, Pb/Cb, Pr/Cr) pin Output COMPONENT... -
Page 20: Using The Ferrite Core
Installation Using the ferrite core Before using the AC Power Cord, attach the ferrite core (supplied) as shown below. (See below for mounting location.) The Power Cord with ferrite core must be used for RF interference suppression. 0.39" (10 mm) Ferrite Core AC Power Cord Keep closing until it makes a clicking sound. -
Page 21: Basic Operation
Basic Operation Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red. Open the lens cap. The preparation display will disappear after 30 seconds. - Page 22 Basic Operation Enter a PIN code Use the Point ▲▼ buttons to enter a number. PIN Code Input Dialog Box Press the Point ► button to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄...
-
Page 23: Turning Off The Projector
Basic Operation Turning Off the Projector Press the POWER button on the top control or on the remote control unit, and Power off? appears on the screen. Press the POWER button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep Power off? disappears after 4 seconds. -
Page 24: How To Operate The On-Screen Menu
Basic Operation How to Operate the On-Screen Menu POWER The projector can be adjusted or set via WARNING Top Control the On-Screen Menu. The menus have a hierarchical structure, with a main menu that is LAMP REPLACE AUTO SET divided into submenus, which are further divided into other submenus. For each adjustment and POINT ▲▼◄► buttons setting procedure, refer to respective sections in this manual. -
Page 25: Main Menu
Basic Operation Main Menu For detailed functions of each menu, see “Menu Tree” on pages 68-69. Main Menu Sub-Menu ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Input Used to select an input source from COMPUTER or VIDEO. (pp.29, 38-39) ②... -
Page 26: Zoom And Focus Adjustment
Basic Operation Zoom and Focus Adjustment Rotate the Zoom Ring to zoom in and out. Zoom Ring Rotate the Focus Ring to adjust the focus of the image. Focus Ring Auto Setup Function Auto setup function is provided to automatically execute the setting of Auto setup (includes Auto input and Auto PC functions) in the setting menu by just pressing the AUTO SET button on the top control or the remote control unit. -
Page 27: Remote Control Unit Operation
Basic Operation Remote control unit Operation Using the remote control unit for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER, VIDEO, S-VIDEO and COMPONENT buttons Press the COMPUTER, VIDEO, S-VIDEO and COMPONENT buttons on the remote control unit Remote control unit to select the input source. - Page 28 Basic Operation BLANK button Press the BLANK button on the remote Remote control unit control unit to black out the image. To restore to normal, press the BLANK button again or press any button. When the projected image is captured and is set as User in the Logo selection (p.
-
Page 29: Computer Input
Computer Input Input Source Selection (ANALOG PC: COMPUTER) Direct Operation Choose COMPUTER (ANALOG PC) by pressing the COMPUTER button on the remote control unit. Remote control unit COMPUTER button COMPUTER (ANALOG PC) COMPUTER (SCART) Menu Operation Input Menu Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ►... -
Page 30: Computer System Selection
Computer Input Computer System Selection This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on page 71.) One of the following messages may appear when: When the projector cannot recognize... -
Page 31: Auto Pc Adjustment
Computer Input Auto PC Adjustment When the image is not stable or flicker, or when the image is not in right position as inputing ANALOG PC signal, press the AUTO SET button on the remote control unit to adjust the Fine sync, Total dots, Horizontal position and Vertical position to obtain best display. Press the MENU button to display the PC adjust Menu On-Screen Menu. -
Page 32: Manual Pc Adjustment
Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. - Page 33 Computer Input Reset To reset the adjusted data, select Reset and Mode free press the OK button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures. Mode free To clear the stored data, select Mode free and then press the Point ►...
-
Page 34: Image Mode Selection
Computer Input Image Mode Selection Direct Operation IMAGE button Select the desired image mode among Remote control unit Presentation, Standard, High contrast, Presentation Cinema, Blackboard (Green), Colorboard, User 1, User 2, User 3 and User 4 by pressing Standard the IMAGE button on the remote control unit. High contrast Menu Operation Cinema Blackboard (Green) -
Page 35: Image Adjustment
Computer Input Image Adjustment Press the MENU button to display the Image Adjust Menu On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ► or the OK button. Use the Point ▲▼ buttons to select the desired item and then press the OK button to display the adjustment dialog box. -
Page 36: Aspect Setting
Computer Input Aspect Setting This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the Aspect Menu On-Screen Menu. Use the Point ▲▼ buttons to select Aspect and then press the Point ►... - Page 37 Computer Input Digital zoom + Select Digital zoom +. The On-Screen Menu disappears and D. zoom + appears. Press the Remote control unit OK button to expand the image size. Use the Point ▲▼◄► buttons to pan the image. The P O I N T ▲ ▼ ◄ ► Panning function can work only when the image buttons is larger than the screen size.
-
Page 38: Video Input
VIDEO Input Input Source Selection (VIDEO, S-VIDEO) Direct Operation Choose VIDEO or S-VIDEO by pressing the Remote control unit VIDEO or the S-VIDEO button on the remote control unit. VIDEO button VIDEO S-VIDEO button S-VIDEO Menu Operation VIDEO Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ LV-RC07 buttons to select Input and then press the Point ►... -
Page 39: Input Source Selection (Component, Scart)
VIDEO Input Input Source Selection (COMPONENT, SCART) Direct Operation Choose COMPUTER (COMPONENT) or COMPUTER (SCART) by pressing the COMPONENT or the COMPUTER button on the remote control unit. Remote control unit COMPUTER button COMPUTER (ANALOG PC) COMPUTER (SCART) COMPONENT button COMPUTER (COMPONENT) Input Menu Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons LV-RC07 to select Input and then press the Point ►... -
Page 40: Video System Selection
VIDEO Input VIDEO System Selection Press the MENU button to display the AV System Menu (VIDEO or S-VIDEO) On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the OK button. Select VIDEO, COMPUTER (S-VIDEO) or COMPUTER (COMPONENT) input source. (pp. 38-39) Use the Point ▲▼ buttons to select System and then press the Point ►... -
Page 41: Image Mode Selection
VIDEO Input Direct Operation Image Mode Selection IMAGE button Select the desired image mode among Remote control unit Presentation Presentation, Standard, High contrast, Cinema, Blackboard (Green), Colorboard, User 1, User 2, User 3 and User 4 by pressing Standard the IMAGE button on the remote control unit. High contrast Menu Operation Cinema Press the MENU button to display the... -
Page 42: Image Adjustment
VIDEO Input Image Adjustment Press the MENU button to display the Image Adjust Menu On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ► or the OK button. Use the Point ▲▼ buttons select the desired item and then press the OK button to display the adjustment dialog box. - Page 43 VIDEO Input Noise reduction Noise interference on the screen can be reduced. Select one of the following options to get smoother images. Off ..Disabled. L 1 ..Lower reduction L 2 ..Higher reduction Progressive An interlaced video signal can be displayed in progressive mode.
-
Page 44: Aspect Setting
VIDEO Input Aspect Setting This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the Aspect Menu On-Screen Menu. Use the Point ▲▼ buttons to select Aspect and then press the Point ► or the OK button. Use the Point ▲▼... - Page 45 VIDEO Input Keystone This function is used to adjust keystone Keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Keystone To correct keystone distortion, press the OK button. Keystone appears on the screen. Use the Point ▲▼...
-
Page 46: Setting
Setting Setting This projector has a Setting menu that allows you to set up the other various functions described below. Press the MENU button to display the Setting Menu On-Screen Menu. Press the Point ▲▼ buttons to select Setting and press the Point ►... - Page 47 Setting Auto setup Auto setup This function enables Auto input and Auto PC adjustment by pressing the AUTO SET button on the top control or the remote control unit. Settings for those functions can be altered as follows: Auto input This function detects the input signal automatically.
- Page 48 Setting Background Select the background screen for when no input signal is detected. Press the Point ▲▼ buttons to switch between each option. blue..Project a blue background. User..Project an image captured in the Logo setting. Black..Project a black background. Display This function decides whether to display On-Screen Displays.
- Page 49 Setting Capture This function enables you to capture an image Capture being projected to use it for a starting-up display or interval of presentations. Select Capture and press the OK button. A confirmation box appears and select Yes to capture the projected image. After capturing the projected image, go to the Logo select function and set it to User.
- Page 50 Setting Enter a Logo PIN code Use the Point ▲▼ buttons to enter a number. Enter a Logo PIN code Press the Point ◄► buttons to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄►...
- Page 51 Setting Power management mode Power management mode For reducing power consumption as well as maintaining the lamp life, the Power management mode function turns off the projection lamp when the projector is not operated for a certain period. Time left before Lamp is off. Select one of the following options: Standby ..
- Page 52 Setting Standby mode X: disabled O: enabled This function can set the electric power when Serial the projector is standing by. Serial command Serial ..Does not restrict functionality even Direct power on in standby mode. Eco ..Restricts some functions in standby mode to reduce power consumption.
- Page 53 Setting Closed Caption Closed Caption Closed Caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4.
- Page 54 Setting Lamp mode This function allows you to change brightness of the screen. High ... Brighter than the Normal mode. Normal ..Normal brightness Eco .... Lower brightness reduces the lamp power consumption and extends the lamp life. Note: • Lamp mode can not be changed for a while after turning on the projector.
- Page 55 Setting Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock Key lock This function locks the top control and remote control unit buttons to prevent operation by unauthorized persons.
- Page 56 Setting Enter a PIN code Use the Point ▲▼ buttons to enter a number. Enter a PIN code Press the Point ◄ ► buttons to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄...
- Page 57 Setting This function provides the following options in the cooling fans’ operation when the projector is turned off (p.23). L 1 ..Normal operation L 2 ..Slower, lower-sound and longish-time than the normal operation (L 1). Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector.
- Page 58 Setting Filter counter This function is used to set a frequency for the Filter counter filter cleaning. Use the Point ▲▼ buttons to select Filter counter and then press the Point ► or the OK button to access the submenu items. Filter counter..Show the total accumulated time of the filter use timer setting.
-
Page 59: Information
Information Input Source Information Display The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. Remote control unit Direct Operation Press the INFO. button on the remote control unit to display the Information Menu. Menu Operation Press the Point ▲▼... -
Page 60: Maintenance And Cleaning
Maintenance and Cleaning WARNING indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red. When the temperature inside the projector Top Control reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. -
Page 61: Replacing The Filter
Maintenance and Cleaning Replacing the Filter Filter prevents dust from accumulating on the optical elements inside the projector. Should the Filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, replace the Filter immediately. -
Page 62: Attaching The Lens Cap
Maintenance and Cleaning Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, attach the lens cap. Attach the lens cap according to the following procedures. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place. -
Page 63: Lamp Replacement
Maintenance and Cleaning Lamp Replacement POWER WARNING When the projection lamp of the projector Top Control reaches its end of life, the Lamp replacement LAMP icon appears on the screen and LAMP LAMP REPLACE AUTO SET REPLACE REPLACE indicator lights yellow. Replace the indicator lamp with a new one promptly. - Page 64 Maintenance and Cleaning ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. ● Model No. of your projector : LV-7292S, LV-7297S, LV-7392S, Replacement Lamp Type No. : LV-LP35 ● CAUTION LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly.
-
Page 65: Appendix
Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 17-19. – Make sure all equipment is connected to AC outlet and the power is turned on. –... - Page 66 Appendix No image – Check the connection between your computer or video equipment and the projector. See pages 17-19. – See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output when connecting to a projector.
- Page 67 Appendix The Remote control unit does – Check the batteries. not work. – Make sure no obstruction is between the projector and remote control. – Make sure you are not too far from the projector when using the remote control unit. Maximum operating range is 16.4'(5 m). –...
-
Page 68: Menu Tree
Appendix Menu Tree Computer Input/VIDEO Input Setting Input COMPUTER ANALOG PC Language 20 languages provided. COMPONENT Menu position SCART Auto setup Auto input Off/On 1/On 2 S-VIDEO Auto PC On/Off Background Blue/User/Black VIDEO Display Off /On/Countdown off Logo Logo select Default User Capture Yes/No Image select... - Page 69 Appendix VIDEO Input Computer Input System (1) SVGA 1 Mode 1 Mode 2 System Auto System Auto - - - - 1080i 1035i SECAM * Systems displayed in the System Menu vary depending on an input signal. 720p NTSC 575p NTSC 4.43 PC adjust Auto PC 480p PAL-M...
-
Page 70: Indicators And Projector Condition
Appendix Indicators and Projector Condition Check the indicators for projector condition. Indicators Projector Condition POWER WARNING LAMP REPLACE red/green yellow The projector is off. (The AC power cord is unplugged.) The projector is in stand-by mode. Press the POWER button to turn on the projector. ... -
Page 71: Compatible Computer Specifications
Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN H-Freq. V-Freq. ON-SCREEN H-Freq. V-Freq. -
Page 72: Technical Specifications
Input Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 50–100 Hz Projection Image Size Adjustable from 40” to 300” (Diagonal) LV-7292S, LV-7297S: 4.3’ -38.7’ (1.3m - 11.8m) Throw Distance Optical LV-7392S: 3.6’ - 34.4’ (1.1m - 10.5m) Information F 2.0 ~ 2.15 lens with f 18.38 mm ~ 22.06 mm... -
Page 73: Optional Parts
Appendix Accessories User’s Manual (CD-ROM) Important Information and Quick Start Guide Warranty card AC Power Cord Remote controller and Batteries VGA Cable Lens Cap with String PIN Code Label Ferrite core Filter Cover for Ceiling Mount ● The specifications are subject to change without notice. ●... -
Page 74: Attaching The Filter Cover To The Projector
Appendix Attaching the Filter Cover to the Projector The supplied filter cover is designed for To Ceiling Mount preventing dust accumulation on the filter when mounting the projector on the ceiling. Drop-prevention Wire (not supplied) Turn over the projector. Place the filter cover on the filter as the picture shown below. -
Page 75: Pin Code Protection
Appendix PIN Code Protection While the projector is locked with the PIN code. Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code. -
Page 76: Dimensions
Appendix Dimensions Unit: mm(inch) Screw Holes for Ceiling Mount Screw: M4 Depth: 12.0(0.47) 247.0(9.72) 138.0(5.43) 2.9(0.11) 105.6(4.16) 4.6(0.18) 122.2(4.81) 24.0(0.94) 114.0(4.49) 80.2(3.16) 20.7(0.92) 98.1(3.86) 40.7(1.60) 122.3(4.48) 88.7(3.49) 126.3(4.97) 79.6(3.13) 46.2(1.82) 31.7(1.25) 64.6(2.54) 85.4(3.36) 83.8(3.30) - Page 77 Amadora, Portugal CANON Belgium N.V./S.A. Berkenlaan 3, 1831 Diegem (Mechelen), Belgium CANON U.S.A. INC. CANON Netherland NV One Canon Plaza, Lake Success, NY Neptunusstraat 1, 2132 JA Hoofddorp, 11042-1198, U.S.A. The Netherlands For all inquires concerning this product, call CANON LUXEMBOURG S.A.
