GE Monogram ZTD910SBSS Dimension Manual

Monogram. ™

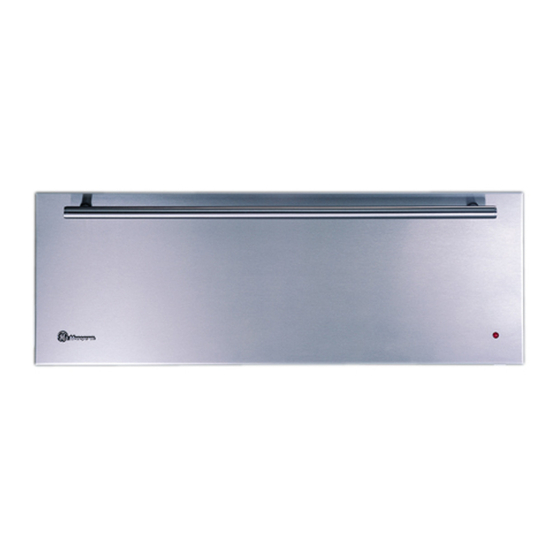

ZTD910SBSS - GE Monogram 30" Warming Drawer
Single Oven Installation (in inches)
23-1/2" Min.
Inside
Oven
Cutout
2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floor to 9"
Bottom of
9-1/4"
Block
28-1/2"
1" Min. Above Toekick or Adjust
to Oven Installation Height
Double Oven Installation (in inches)
23-1/2" Min.
Inside
Oven
Cutout
2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floor to
9"
Bottom of
9-1/4"
Block
28-1/2"
1" Min. Above Toekick
Note: Additional clearance between cutouts may be required.
Check to be sure that oven supports above the Warming
Drawer location do not obstruct the required interior 23-1/2"
depth and 9-1/4" height.
Specification Revised 11/99
2" Min.
Allow 5/8"
Overlap on
All Sides
23-1/4"
10-1/2"
30"
Allow 5/8"
Overlap on
All Sides
2" Min.
23-1/4"
10-1/2"
30"
Warming Drawer Dimensions (in inches)
27" 23-1/4"
Drawer
Open
1"
26"
Including Handle
Install
2x4 or 2x2
Anti-Tip Block
9" Against Rear
Cabinet Wall
9" From Floor
2x4 or 2x2
to Bottom
Runners or Solid Bottom
of Block
Undercounter Installation (in inches)
Install
Electrical Outlet 42" Max.
2x4 or 2x2
Anti-Tip Block
Electrical Outlet
Against Rear
Flush With Side
Cabinet Wall
of Cabinet 7" Max.
9" From Floor
to Bottom
Electrical
7"
of Block
Outlet 16" Max.
From Left Side.
9"
23-1/2" Min.
Note: When installing warming drawer with a cooktop, allow a 2"
minimum from cooktop burner box bottom to top of cut-out.
Important Installation Note:
Must provide anti-tip brace at the back of the cabinet and at the top of
the cutout.
Optional Accessories:
JXPN1–Optional Pan Set Accessory for Warming Drawer.
Five commercial pans with lids (4" deep)
• One large pan (14 quarts)
• Two medium pans (6 quarts each)
• Two small pans (3 quarts each)
ZXD30B–1/4" wood panel trim kit
For answers to your Monogram,
GE Profile Performance Series,
GE Profile
GE Answer Center
R
10-1/2"
9"
30"
From Right Side.
1-1/2" Cabinet Top
25"
2" Min.* 36"
Countertop
Height
9-1/4"
28-1/2"
®
™
™ or GE appliance questions, call
® service, 800.626.2000.
