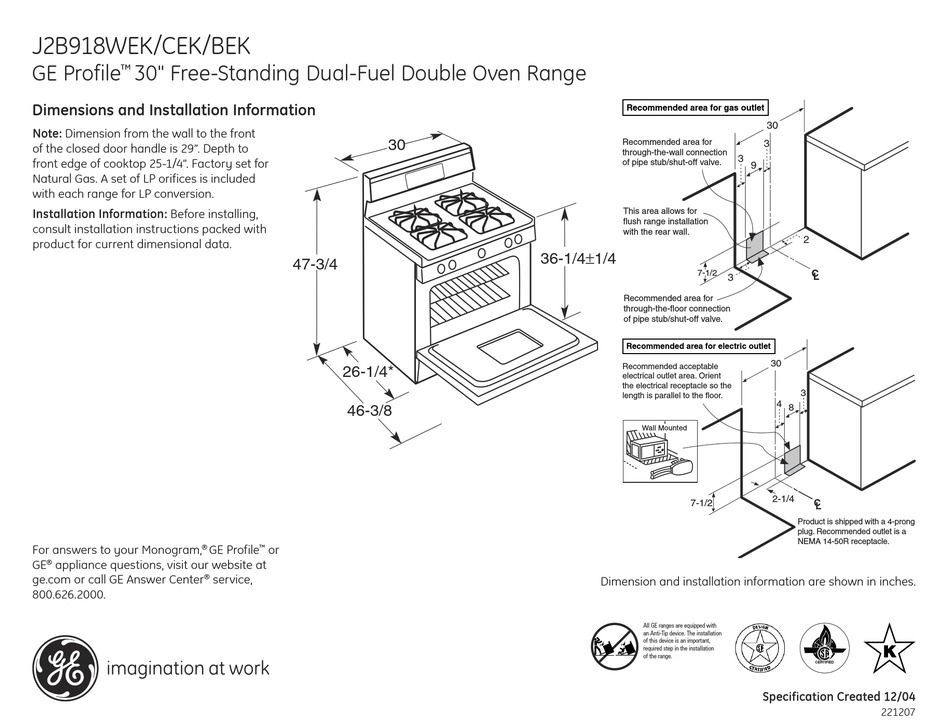

GE PROFILE J2B918BEK Dimension Manual

J2B918WEK/CEK/BEK
GE Profile 30" Free-Standing Dual-Fuel Double Oven Range
™
Dimensions and Installation Information
Note: Dimension from the wall to the front
of the closed door handle is 29". Depth to
front edge of cooktop 25-1/4". Factory set for
Natural Gas. A set of LP orifices is included
with each range for LP conversion.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
Installation Information (Dimensions in inches)
30
47-3/4
26-1/4*
46-3/8
or
™
service,
30" FS Gas Ranges-CL
Recommended area for gas outlet
Recommended area for
through-the-wall connection
of pipe stub/shut-off valve.
J2B900_elec_locate.eps
This area allows for
flush range installation
with the rear wall.
36-1/4±1/4
7-1/2
Recommended area for
through-the-floor connection
of pipe stub/shut-off valve.
Recommended area for electric outlet
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
Wall Mounted
7-1/2
Dimension and installation information are shown in inches.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
30
3
3
9
2
C L
3
30
3
4 8
2-1/4
C L
Product is shipped with a 4-prong
plug. Recommended outlet is a
NEMA 14-50R receptacle.
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
4
CERTIFIED
Specification Created 12/04
