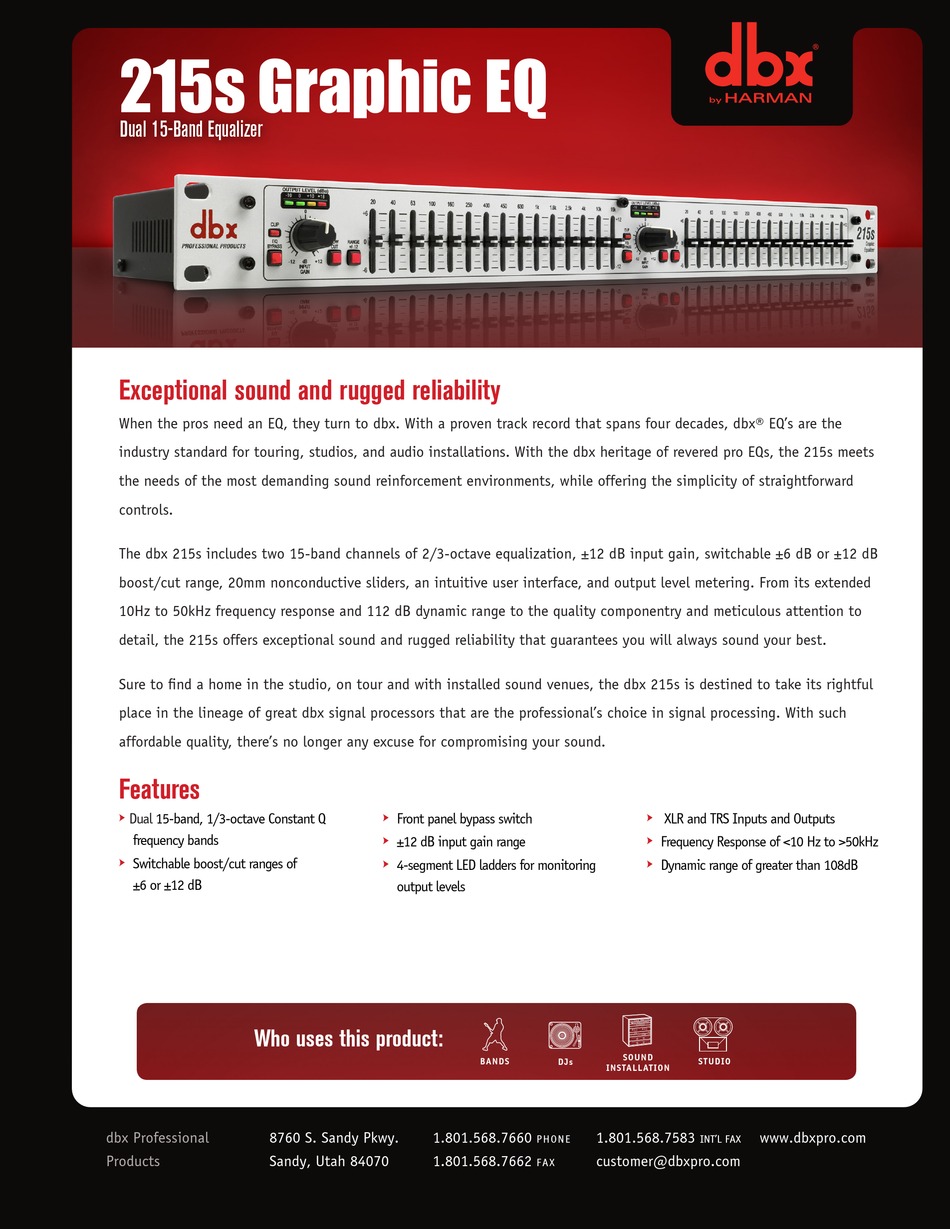

dbx 215s Graphic EQ Features

215s Graphic EQ
Dual 15-Band Equalizer
Exceptional sound and rugged reliability
When the pros need an EQ, they turn to dbx. With a proven track record that spans four decades, dbx® EQ's are the
industry standard for touring, studios, and audio installations. With the dbx heritage of revered pro EQs, the 215s meets
the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward
controls.
The dbx 215s includes two 15-band channels of 2/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB
boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. From its extended
10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to
detail, the 215s offers exceptional sound and rugged reliability that guarantees you will always sound your best.
Sure to find a home in the studio, on tour and with installed sound venues, the dbx 215s is destined to take its rightful
place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such
affordable quality, there's no longer any excuse for compromising your sound.
Features
Dual 15-band, 1/3-octave Constant Q
<
frequency bands
Switchable boost/cut ranges of
<
±6 or ±12 dB
Who uses this product:
dbx Professional 8760 S. Sandy Pkwy.
Products Sandy, Utah 84070
C o m p l e t e L o u d s p e a k e r M a n a g e m e n t Sy s t e m
Front panel bypass switch
<
±12 dB input gain range
<
4-segment LED ladders for monitoring
<
output levels
BANDS DJs
1.801.568.7660
PHON E
1.801.568.7662
FAX
XLR and TRS Inputs and Outputs
<
Frequency Response of <10 Hz to >50kHz
<
Dynamic range of greater than 108dB
<
SOUND
STUDIO
INSTALLATION
1.801.568.7583 www.dbxpro.com
INT'L FAX
