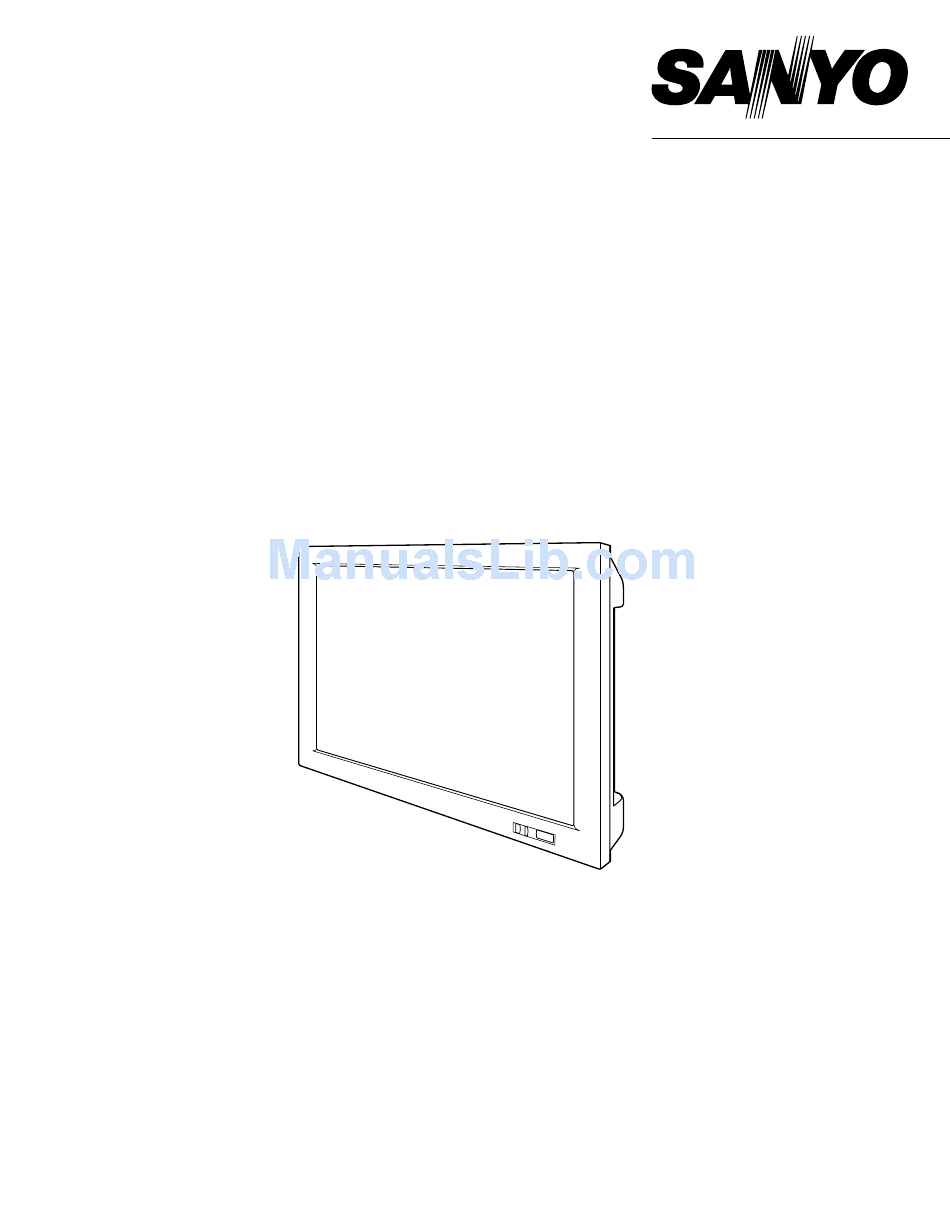

- Page 1 Multimedia Plasma Monitor PDP-32H1W MODEL Owner's Manual...
-
Page 2: Safety Precautions
TO THE OWNER Before operating this Plasma Monitor, read this manual thoroughly and operate the Plasma Monitor properly. This Plasma Monitor provides many convenient features and functions. Operating the Plasma Monitor properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. -
Page 3: Safety Instructions
Plasma Monitor exhibits a distinct change in SANYO Floor stand KA-TD-H10W performance-this indicates a need for service. SANYO Tilt mount unit KA-TI-H10 SANYO Wall mount unit KA-WA-H10WV When replacement parts are required, be sure the service SANYO Ceiling mount unit... -
Page 4: Declaration Of Conformity
Responsible party : SANYO Manufacturing Corporation Address : 3333 Sanyo Road, Forrest City, AR 72335 Telephone No. : (870) 633-5030 G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Table Of Contents
TABLE OF CONTENTS FEATURES AND DESIGN COMPUTER MODE SELECTING INPUT SOURCE SELECTING COMPUTER SYSTEM PC ADJUSTMENT PREPARATION NAME OF EACH PART OF PLASMA MONITOR 7 SETTING-UP PLASMA MONITOR VIDEO MODE SELECTING INPUT SOURCE SELECTING VIDEO SYSTEM CONNECTING PLASMA MONITOR TERMINALS OF PLASMA MONITOR CONNECTING TO VIDEO EQUIPMENT SETTING CONNECTING TO COMPONENT VIDEO EQUIPMENT... -
Page 6: Features And Design
FEATURES AND DESIGN This Plasma Monitor is designed with the most advanced technology. The Plasma Monitor utilizes built-in multimedia features, a palette of 16.77 million colors, and Plasma Display Panel technology. High Definition Plasma Panel Input Terminals G D-SUB, RGB input for PC (Up to XGA) Plasma Monitor This has 852 x 1,024 dots High... -
Page 7: Preparation
PREPARATION NAME OF EACH PART OF PLASMA MONITOR FRONT PLASMA DISPLAY PANEL FRONT CONTROLS AND INDICATORS MENU BUTTON CURSOR BUTTON FRONT CONTROLS Used to set and adjust the Used to select MENU menu data on On-Screen operation. (P18) Menu. (P18) OK BUTTON Used execute... - Page 8 PREPARATION NAME OF EACH PART OF PLASMA MONITOR BACK This Plasma Monitor detects COOLING FANS internal temperature and automatically controls operating power of Cooling Fans. TERMINALS AND CONNECTORS (SIDE) (Refer to page 11) SPEAKER OUTPUT TERMINALS (LEFT) TERMINALS SPEAKER OUTPUT AND CONNECTORS TERMINALS (BACK)
-
Page 9: Setting-Up Plasma Monitor
PREPARATION SETTING-UP PLASMA MONITOR CONNECTING AC POWER CORD This Plasma Monitor uses nominal input voltages of 100- 120 V AC. The Plasma Monitor automatically selects the correct input voltage. It is designed to work with single- phase power systems having a grounded neutral conductor. - Page 10 PREPARATION INSTALLATION OF OPTIONAL SPEAKERS AND STAND Please read the each option's instruction manual (or installation manual) for the installation. CAUTION IN INSTALLATION G Through installation work, handling with more than two people is recommended. G When holding (moving or lifting) the Plasma Monitor, hold the Monitor's body. Do not handle it by holding the attached accessory parts (the Speakers), otherwise damage could be result.
-
Page 11: Connecting Plasma Monitor
CONNECTING PLASMA MONITOR TERMINALS OF PLASMA MONITOR This Plasma Monitor has INPUT TERMINALS and OUTPUT TERMINALS on its side and back, for connecting computers and video equipment. Refer to the figure on pages 13 to 15 and connect properly. SIDE RS-232C TERMINAL When controlling this Plasma RS-232C... - Page 12 CONNECTING PLASMA MONITOR BACK VIDEO1 INPUT JACKS PC INPUT TERMINALS Connect video and audio outputs from video equipment. (Refer to P13.) Connect computer outputs to this terminals. (Refer to P15.) S-VIDEO (Mini DIN 4-type) VIDEO (RCA-type) RGB (D-SUB) AUDIO R and L(MONO) (RCA-type) AUDIO R/L (Stereo Mini Jack) VIDEO1 IN PC IN...
-
Page 13: Connecting To Video Equipment
CONNECTING PLASMA MONITOR CONNECTING TO VIDEO EQUIPMENT Cables used for connection ( Cables are not supplied with this Plasma Monitor.) • 21-PIN Video Cable (RCA x 6) NOTE : • Video Cable (RCA x 1) When connecting Plasma Monitor, AC Power •... -
Page 14: Connecting To Component Video Equipment
CONNECTING PLASMA MONITOR CONNECTING TO COMPONENT VIDEO EQUIPMENT Cables used for connection (Cables are not supplied with this Plasma Monitor • Video Cable (RCA x 3) or (BNC x 3) NOTE : • Audio Cable (RCA x 2) When connecting Plasma Monitor, AC Power Cords of both Plasma Monitor and external equipment should be disconnected from AC outlet. -
Page 15: Connecting To Computer
CONNECTING PLASMA MONITOR CONNECTING TO COMPUTER Cables used for connection • VGA Cable (HDB 15 pin) NOTE : • Video Cable (BNC x 5) ✽ When connecting the cable, AC Power Cords of ✽ • MAC Adapter (in the case of connecting Macintosh computer) Plasma Monitor both and external equipment... -
Page 16: Before Operation
BEFORE OPERATION OPERATION OF REMOTE CONTROL Remote Control Unit can be used as either Wired or Wireless. WIRED REMOTE JACK COMPONENT BUTTON When using as Wired Remote Used to select COMPONENT Control, connect Remote Control VIDEO input. (P22) Cable to this jack. (P17) POWER ON-OFF BUTTON Used to turn Plasma Monitor on VIDEO BUTTON... -
Page 17: Remote Control Batteries Installation
BEFORE OPERATION WIRED REMOTE CONTROL OPERATION When using this Remote Control Unit as Wired Remote Control, Connect Remote Control Unit to R/C JACK with Remote Control Cable (supplied). Batteries installation is required when using as Wired Remote Control Unit. Remote Control Cable (supplied) REMOTE CONTROL BATTERIES INSTALLATION Remove the battery Slide 2 batteries into... -
Page 18: Operating On-Screen Menu
BEFORE OPERATION OPERATING ON-SCREEN MENU You can control and adjust this Plasma Monitor through ON-SCREEN MENU. Refer to the following pages to operate each adjustment on ON-SCREEN MENU. BUTTONS OF ON-SCREEN MENU OPERATION OFF TIMER REMOTE CONTROL UNIT CURSOR Used to execute Used to select PICTURE MOVE UP... -
Page 19: Menu List
BEFORE OPERATION MENU LIST Contrast Contrast : Select : Adjust (P24) MENU : Return STATUS : Exit Contrast Brightness Brightness Brightness : Select : Adjust (P24) Color MENU : Return STATUS : Exit Tint Sharpness Color Color Sound : Select : Adjust Screen adjust (P24) -
Page 20: Basic Operation
BASIC OPERATION TURNING ON / OFF PLASMA MONITOR Complete the peripheral connections (with Computer, VCR, etc.) before turning on Plasma Monitor. (Refer to "CONNECTING PLASMA MONITOR" on Pages 13~15 for connecting that equipment.) Connect the Plasma Monitor's AC Power Cord into an AC outlet . VOLUME Press MAIN ON/OFF switch on Front Control of Plasma Monitor to turn ON. -
Page 21: Off Timer
BASIC OPERATION WHEN USE MULTIPLE MONITORS When you use multiple Plasma Monitors, you can use POWER ON button and POWER OFF button on Remote Control Unit instead of the STATUS MENU POWER ON-OFF button. POWER POWER Press POWER ON button to turn Plasma Monitor ON so as not to affect another Plasma Monitor which may be already turned ON. -
Page 22: Selecting Input Source
BASIC OPERATION SELECTING INPUT SOURCE VIDEO INPUT Select either "AV1 (VIDEO1)" or "AV2 (VIDEO2)" by pressing VIDEO button on Remote Control Unit. (Refer to "CONNECTING TO VIDEO EQUIPMENT" on Page 13.) COMPONENT INPUT Component Select "Component" by pressing COMPONENT button on Remote Control Unit. -
Page 23: Picture Image Level Select
BASIC OPERATION PICTURE IMAGE LEVEL SELECT IN VIDEO/COMPONENT MODE Select image level among Dynamic, Natural, Cinema and Memory by pressing PICTURE button on the Remote Control Unit. Dynamic Dynamic High contrast picture level preset on this Plasma Monitor. Natural Natural Normal picture level preset on this Plasma Monitor. -
Page 24: Image Level Adjustment
BASIC OPERATION IMAGE LEVEL ADJUSTMENT MENU Press MENU button and ON-SCREEN MENU will appear. Contrast Brightness Press buttons to select the item that you want to adjust, Color and then press OK button. The level of selected item is Tint displayed. -
Page 25: Wide Screen Operations
BASIC OPERATION WIDE SCREEN OPERATIONS With this function, you can select screen size. WIDE button SELECTING WIDE MODE Natural wide Select screen size among "Natural wide", "Zoom", "Zoom(Caption- Zoom IN)", "Full" and "Normal" by pressing WIDE button on the Remote Control Unit. -
Page 26: Power Button
BASIC OPERATION UP/DOWN PICTURE To move up/down the image vertically, press the MOVE UP / MOVE OFF TIMER DOWN buttons. PICTURE MOVE UP MUTE NOTE : MOVE UP Up/down picture function can work only when the input signal mode button is "AV1 (VIDEO1)", "AV2 (VIDEO2)"... -
Page 27: Sound Adjustment
BASIC OPERATION SOUND ADJUSTMENT VOLUME Indicates the roughly level (yellow) of volume. Press VOLUME (+/–) button(s) on Remote Control Unit or Front Control to adjust volume. Volume dialog box appears on the screen Volume for a few seconds. (+) button to increase volume, and (–) button decreasing. MUTE (red) Press MUTE button on Remote Control Unit to cut off sound. -
Page 28: Computer Mode
COMPUTER MODE SELECTING INPUT SOURCE REMOTE CONTROL OPERATION Select "PC" or "RGB1" by pressing PC/RGB button on Remote Control Unit. RGB1 FRONT CONTROL OPERATION RGB2 Select "PC" or "RGB1" by pressing INPUT button on Front Control. NOTE : "RGB2" is used for RGB Video signals from 21-PIN connector. (Refer to "CONNECTING TO VIDEO EQUIPMENT"... -
Page 29: Pc Adjustment
COMPUTER MODE PC ADJUSTMENT PC MODE ADJUSTMENT "PC mode adjustment" menu is provided to adjust "Auto setup", "Clock", "Phase", "Position", "Power save" and "Information" to conform to your computer. These function can be operated as follows. Press MENU button and ON-SCREEN MENU will appear. "PC mode adjustment"... - Page 30 COMPUTER MODE Power save Enable or disable Power save function. PC mode adjustment Enable Power save by choosing "Yes" with buttons. Power save : Adjust NOTE : MENU : Return STATUS : Exit The Power save function automatically reduces the Plasma Monitor's power consumption if the computer is not operated for a certain period of time.
-
Page 31: Compatible Computer Specifications
COMPUTER MODE COMPATIBLE COMPUTER SPECIFICATIONS Basically this Plasma Monitor can accept the signal from all computers with the V, H-Frequency mentioned below and less than 100 MHz of Dot Clock. SYSTEM H-Freq. V-Freq. RESOLUTION MODE (kHz) (Hz) 640 x 480 31.47 59.88 640 x 400... -
Page 32: Video Mode
VIDEO MODE SELECTING INPUT SOURCE VIDEO INPUT Select either "AV1 (VIDEO1)" or "AV2 (VIDEO2)" by pressing VIDEO button on Remote Control Unit. When the connection of 21-PIN video signals is on, "RGB2" should be selected by pressing PC/RGB button on Remote Control Unit. RGB2 COMPONENT INPUT Select "Component"... -
Page 33: Selecting Video System
VIDEO MODE SELECTING VIDEO SYSTEM VIDEO JACK OR S-VIDEO JACK "Setup menu" Press MENU button and ON-SCREEN MENU will appear. Language English Color system Auto Screen saver Press buttons to select "Setup menu" and then press OK Dynamic AI button. "Setup menu" will appear. Child lock ECO mode Start mode... -
Page 34: Setting
SETTING SCREEN SAVER FUNCTION Displaying a still picture (non-movement) on the screen for a long time cause a burning image on the screen. To neutralize the remaining image, Screen Saver function (3 modes) is provided in the Monitor. Use the function conveniently. SELECTING SCREEN SAVER "Screen saver"... -
Page 35: Setting Menu
SETTING SETTING MENU Press MENU button and ON-SCREEN MENU will appear. "Setup menu" Language English Color system Auto Screen saver Press buttons to select "Setup menu" and then press OK Dynamic AI button. "Setup menu" will appear. Child lock ECO mode Start mode Press buttons to select the item that you want to setup,... -
Page 36: Cleaning The Plasma Monitor
SETTING Color temperature This function is used for selecting color temperature. Select "Normal", "Cool" or "Warm" with buttons which you wish to select. No operation shut off timer This function turns off Plasma Monitor's power automatically, when there is no operation of Remote Control or Front Control for 3 hours. When "On"... -
Page 37: Appendix
APPENDIX TROUBLESHOOTING Before calling your dealer or service center for assistance, check the matters below once again. 1. Make sure you have connected Plasma Monitor to your equipment as described in the section "CONNECTING PLASMA MONITOR" on pages 13 ~ 15. 2. -
Page 38: Functions Of Product Safety Features
APPENDIX Problem: Try these Solution G There may be some tiny black points and/or bright points on PDP (Plasma Display There are tiny black Panel). These points are normal. points and/or bright points on the PDP. G The Plasma Monitor has trouble, and Self Diagnose function activates. The POWER (Refer to P39) indicator is flashing. -
Page 39: Information Menu
APPENDIX INTERNAL TEMPERATURE MONITOR This function activates due to the temperature inside Plasma Monitor. When the temperature inside Plasma Monitor exceeds the normal, after displaying a message, Plasma Monitor will be turned off automatically. When the message "Warning! Internal temperature is too high." is displayed. When this message is displayed, the internal temperature of Plasma monitor exceeds normal. -
Page 40: Technical Specifications
APPENDIX TECHNICAL SPECIFICATIONS Screen Diagonal Product name Multimedia Plasma Monitor Panel type Plasma Display Panel (16 x 9) Display area 716 mm (W) x 399 mm (H) Resolution / Color 852 x 1024 pixels / 16,770,000 colors Viewing Angle 160˚ (Vertical / Horizontal) Color System PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N PC Interface... -
Page 41: Measurement
APPENDIX MEASUREMENT (32.6) (4.8) (4.0) (32.6) (20.4) Size in mm (inch) OPTIONS The products listed below are optionally supplied. When ordering these products, give name and Type No. to sales dealer. Floor stand KA-TD-H10W Side rack KA-TD-R100 Tilt mount unit KA-TI-H10 Wall mount unit KA-WA-H10WV... - Page 42 APPENDIX CONFIGURATIONS OF RS232C TERMINALS RS232C TERMINAL Terminal : HDB9-PIN Connect the serial port of computer to this terminal with Serial Cross Cable (not supplied). No Connect Pin Configuration R x D No Connect T x D No Connect DTR (5V) No Connect Ground INTERFACE...
- Page 43 APPENDIX CONFIGURATIONS OF PC TERMINALS PC IN (D-SUB) TERMINAL Terminal : HDB15-PIN Connect the display output terminal of computer to this terminal with VGA Cable (supplied). When connecting the Macintosh computer, the MAC Adapter (not supplied) is required. Pin Configuration Red Input No Connect Green Input...
-
Page 44: United States And Canada Warranty
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. OBLIGATIONS For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. Should replacement be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first year from date of original purchase, Sanyo Manufacturing Corporation will provide a new Plasma Monitor via exchange at the retailer at no charge.
