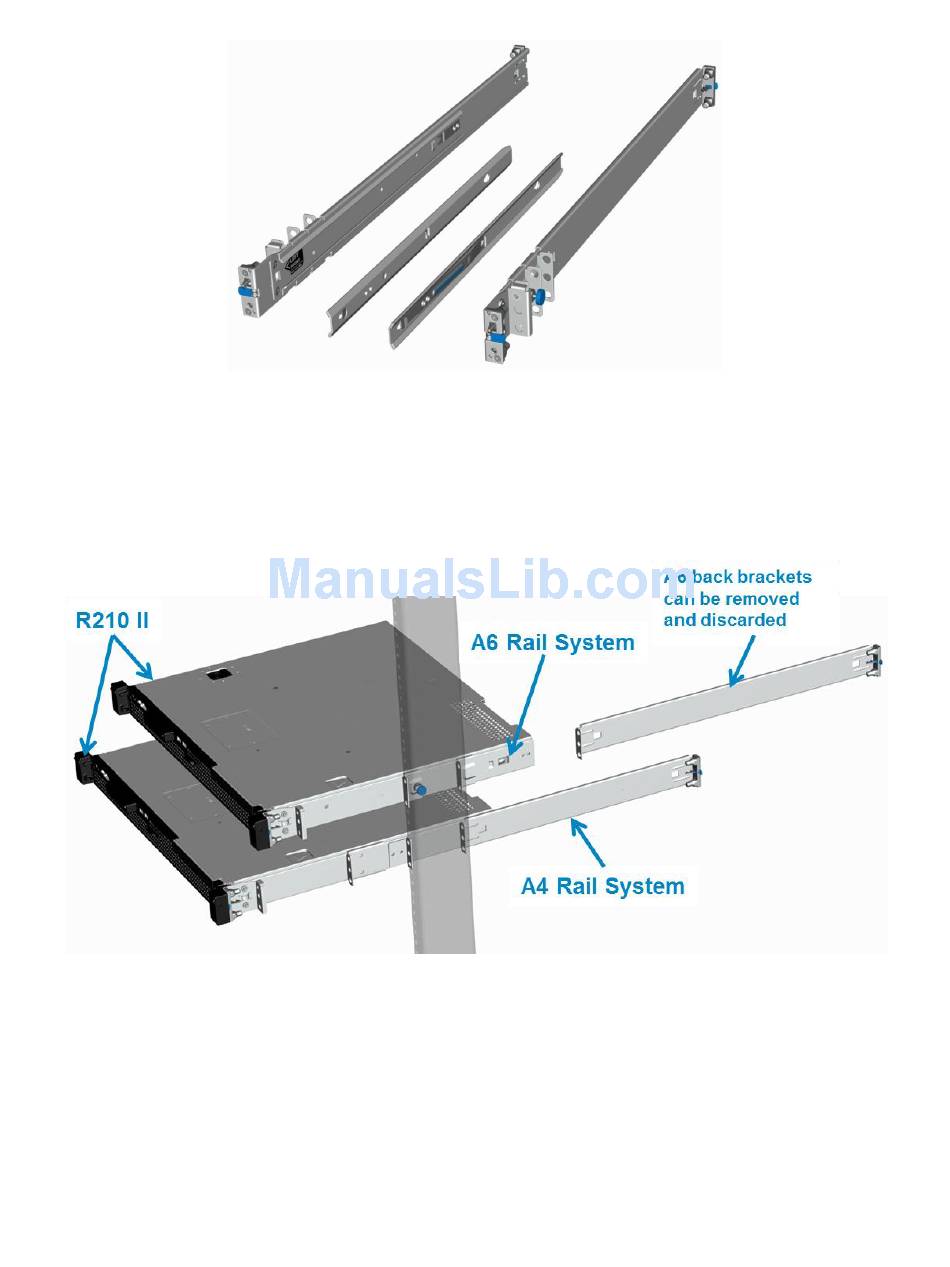

Figure 12. A6 Static Rail System

Figure 13 shows a view of the R210 II mounted in the A4 A6 rail systems in the 2-post center-mount
configuration. The rear brackets on the A6 rail system can be removed and discarded, providing a
much smaller mounting footprint than the A4 rail system.

Figure 13. A4 and A6 Rail Systems in 2-post Center-Mount Configuration

Dell PowerEdge R210 II Technical Guide
50
