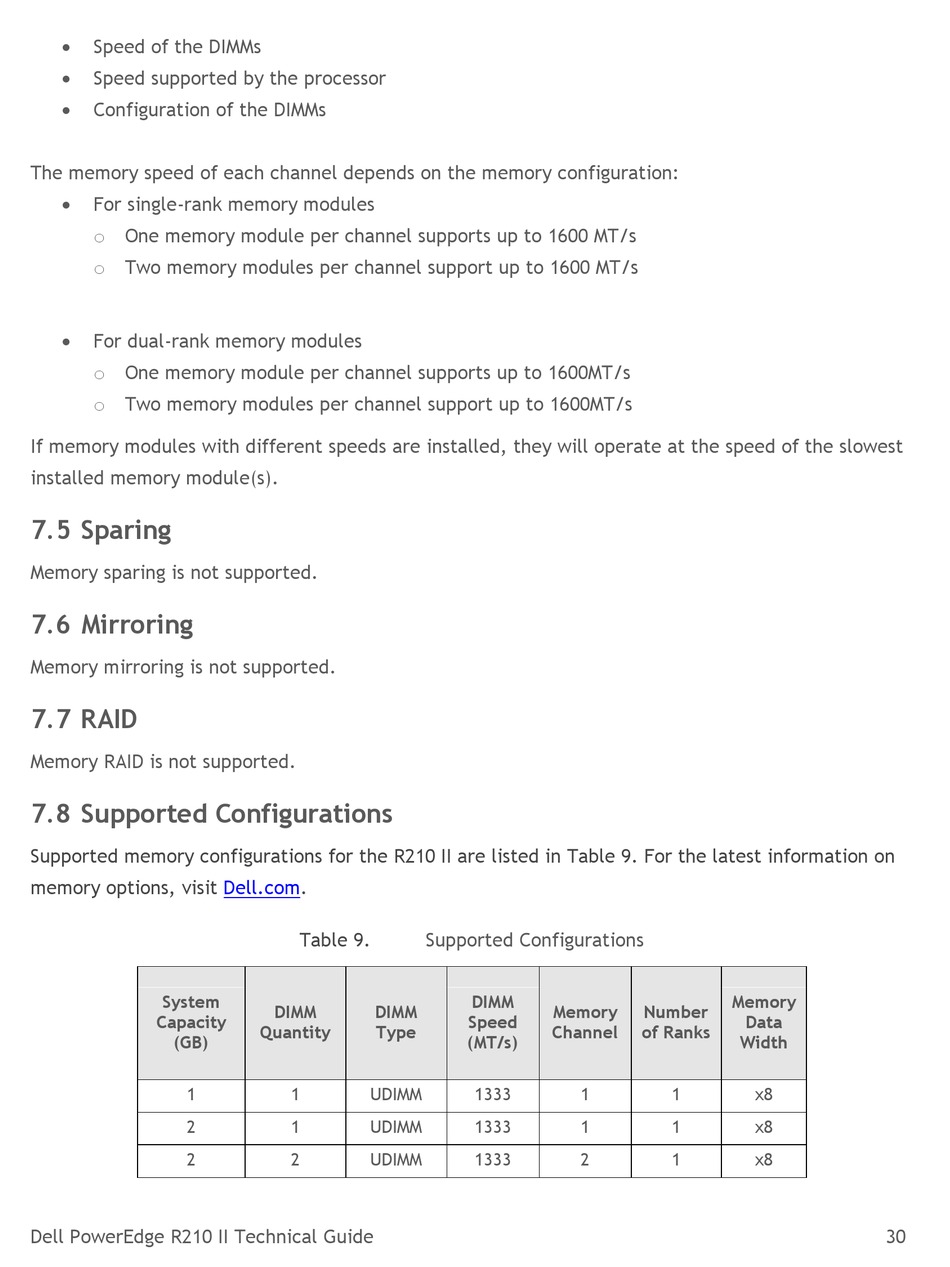

Sparing; Mirroring; Raid; Supported Configurations - Dell R210 II Technical Manual


Speed of the DIMMs

Speed supported by the processor

Configuration of the DIMMs
The memory speed of each channel depends on the memory configuration:

For single-rank memory modules
o One memory module per channel supports up to 1600 MT/s
o Two memory modules per channel support up to 1600 MT/s

For dual-rank memory modules
o One memory module per channel supports up to 1600MT/s
o Two memory modules per channel support up to 1600MT/s
If memory modules with different speeds are installed, they will operate at the speed of the slowest
installed memory module(s).

7.5 Sparing

Memory sparing is not supported.

7.6 Mirroring

Memory mirroring is not supported.

7.7 RAID

Memory RAID is not supported.

7.8 Supported Configurations

Supported memory configurations for the R210 II are listed in Table 9. For the latest information on
memory options, visit Dell.com.
System
Capacity
(GB)
1
2
2
Dell PowerEdge R210 II Technical Guide
Table 9. Supported Configurations
DIMM DIMM
Quantity Type
1 UDIMM
1 UDIMM
2 UDIMM
DIMM
Memory Number
Speed
Channel of Ranks
(MT/s)
1333 1
1333 1
1333 2
Memory
Data
Width
1 x8
1 x8
1 x8
30
