MAINTENANCE AND TROUBLESHOOTING

Inspect and properly tighten all parts of the elliptical
exerciser regularly. Replace any worn parts immedi-
ately.
The elliptical exerciser can be cleaned with a soft
cloth and a small amount of mild detergent. Do not
use abrasives or solvents. To prevent damage to
the console, keep liquids away from the console and
keep the console out of direct sunlight.
When storing the elliptical exerciser, remove the bat-
teries from the console. Keep the elliptical exerciser in
a clean, dry location, away from moisture and dust.
CONSOLE TROUBLESHOOTING
If the console does not function properly, replace the
batteries (see assembly step 9 on page 9).
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first see assembly step 8 on page 9 and
remove the Pedals (13, 14). Next, see step 7 on page
7 and remove the Pedal Arms (11, 12).
15
4
3
69
70
51
69
64
Next, remove all of the Screws (51, 70) from the right
Pedal Disc (15), and slide the Pedal Disc off. Remove
all Screws (52, 64, 69) from the Right Side Shield (4),
and remove the Right Side Shield. Remove all
Screws (52) from the Left Side Shield (3), and remove
the Left Side Shield.
64
52
12
64
14
64
52
70

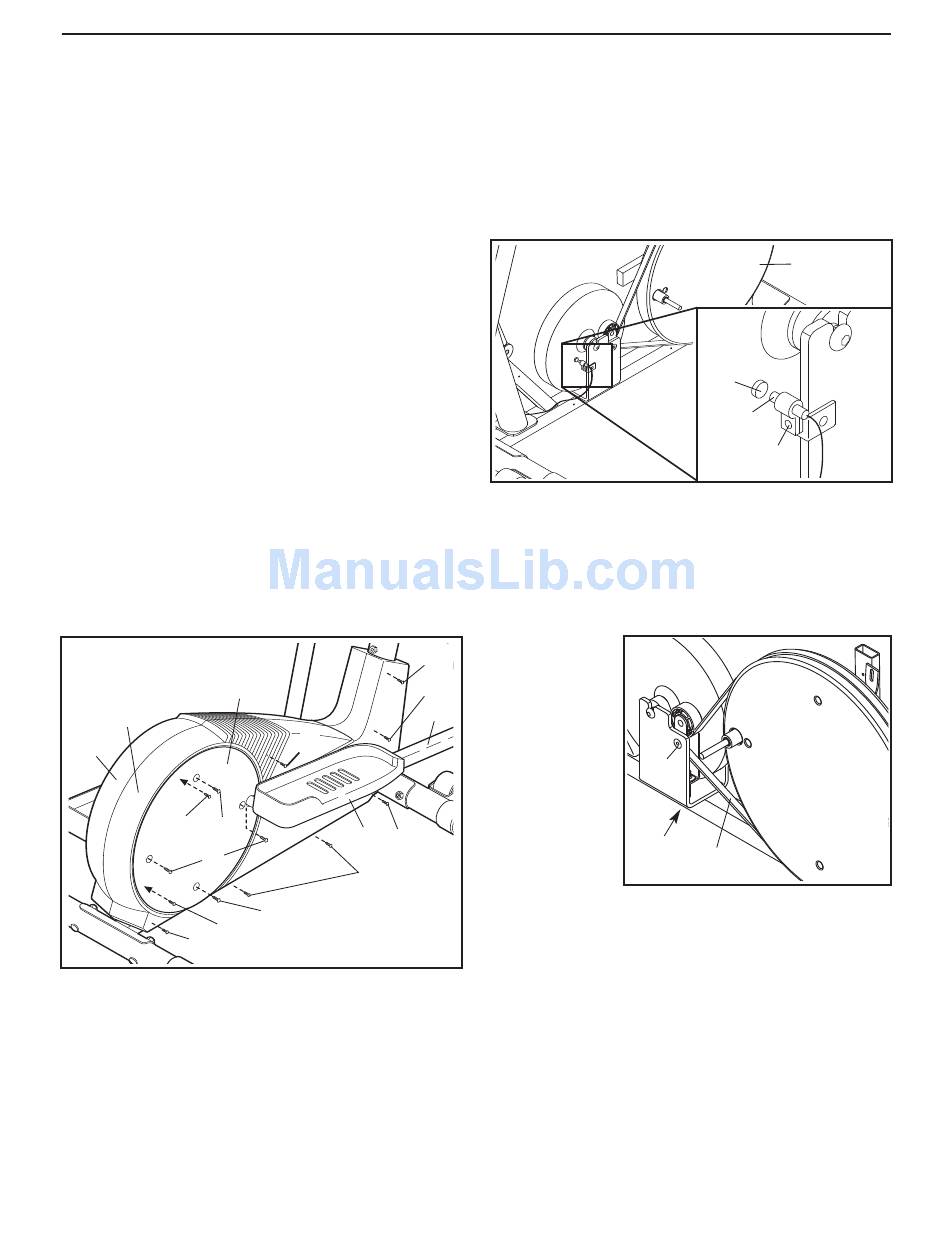

Next, see the drawing below and locate the Reed
Switch (53). Loosen, but do not remove, the indicated
Screw (52). Slide the Reed Switch slightly toward or
away from the Magnet (58) on the flywheel. Retighten
the Screw. Turn the left Pedal Disc (15) for a moment.
Repeat until the console displays correct feedback.
When the Reed Switch (53) is correctly adjusted, reat-
tach the Side Shields (3, 4), the right Pedal Disc (15),
the Pedal Arms (11, 12), and the Pedals (13, 14).
HOW TO ADJUST THE DRIVE BELT
If you can feel
the pedals slip
while you are
pedaling,
even when
the resistance
knob is turned
to the maxi-
mum setting,
the Drive Belt
(19) may
need to be
adjusted. To
adjust the
Drive Belt, you must remove both side shields. See
the instructions at the left and remove the side
shields.
Next, loosen the M8 x 22mm Flat Head Bolt (68) and
turn the M10 x 60mm Button Screw (62) until the
Drive Belt (19) is tight. Once the Drive Belt is tight,
tighten the Flat Head Bolt. Reattach the side shields.
