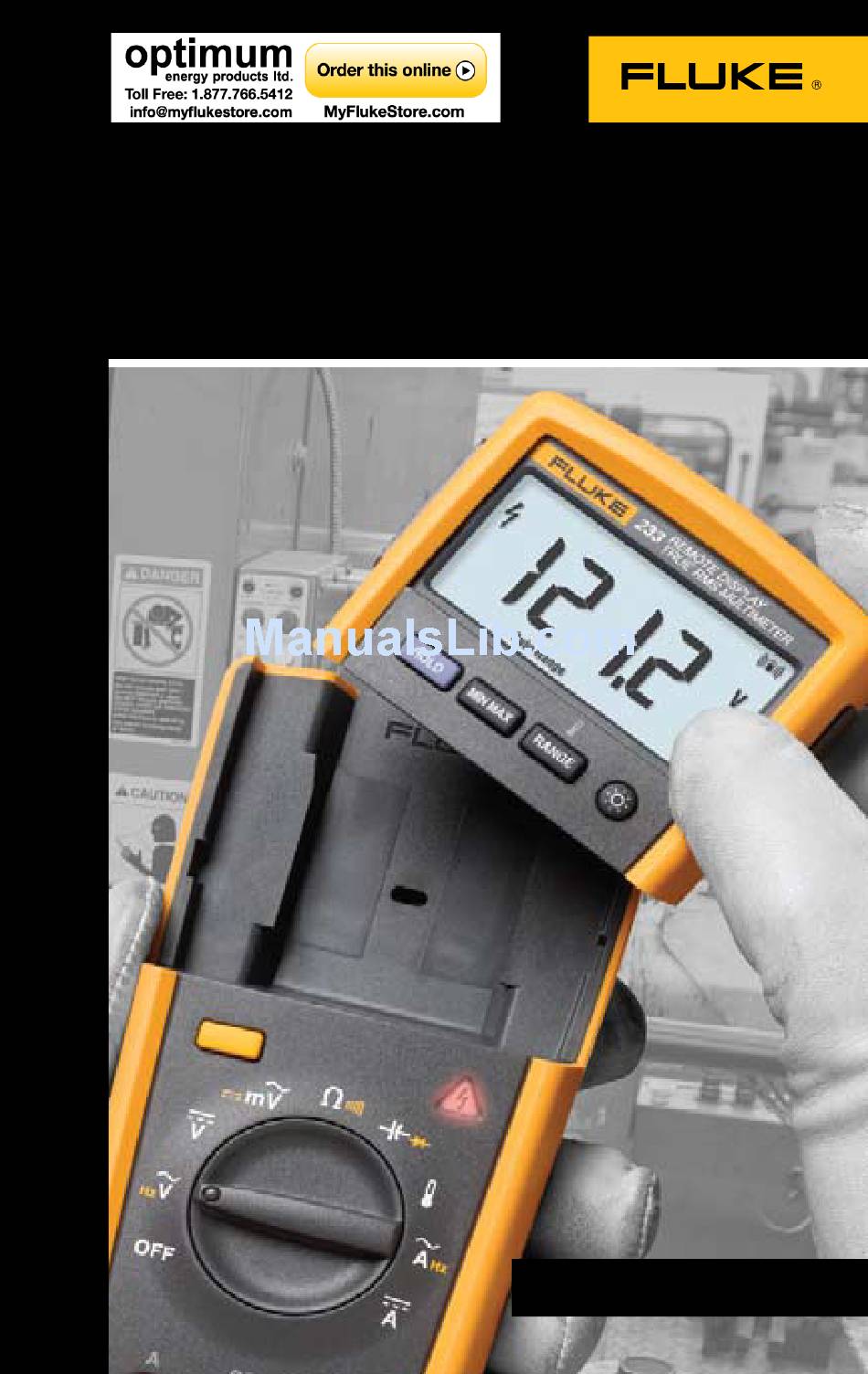

  • Page 1 Fluke 233 Remote Display Multimeter Imagine the possibilities Application Ideas...

  • Page 2: Table Of Contents

    233 remote display meter. These real-life uses should help you and your customers realize what a versatile, powerful tool the 233 is. They are only limited by their imagination in ways that it will help them be more productive.

  • Page 3: Automotive

    Automotive...
  • Page 5 Sometimes the meters can’t be mounted in a location that is easy to read while operating the lift trucks. With the Fluke 233, we could connect the base unit up to take mea- surements and mount the remote display on the instrument panel.
  • Page 6 Automotive “As a heavy duty charging system service technician and trainer, a large part of my job includes monitoring and com- paring voltages and current flow from a generator all the way to a set of batteries that may be up to 30 feet away on a longer truck.

  • Page 7: Cranes

    Cranes...
  • Page 9 This meter could very possibly save lives.” T.T., Texas “It would be nice to hook the Fluke 233 up to an overhead hoist, remove the display and be a safe distance away from the high voltage in the relay box. I could hook the meter up to check the amperage draw on the contactor coils to find intermittent problems when the coils get warm.
  • Page 10 F.P., Illinois “The Fluke 223 will allow our Maintenance Technicians to monitor overhead crane parameters while the crane operates without having to “ride the crane”. This will enhance safety on our cranes with catwalks.

  • Page 11: Electronics

    Electronics...
  • Page 13 This causes voltage interlocks and air interlocks to be open. The 233 opens up countless opportunities for this kind of troubleshooting. I can hardly...
  • Page 14 J.J., South Carolina “As a collector of vintage computing equipment, I often need to test and repair aging electronic circuits. Fluke 233 would ease the troubleshooting of display driver circuitry of an HP-35. With a detachable display, I would be able to monitor the outputs I’m testing without having to divert my attention...

  • Page 15: Facilities

    Facilities...
  • Page 17 Facilities “Doing maintenance in a nursing home, I get into all kinds of situations where the Fluke 233 would be of great value. Examples are working on overhead lights, rooftop HVAC units, PTAC units, or simply lighting in the hallways. Since we...
  • Page 18 Sometimes I have to climb over ductwork to the junction boxes. With Fluke 233 I could hook up leads and take the display into the ceiling with a flashlight sometimes having to”...

  • Page 19: Hospitals

    Hospitals...
  • Page 21 I can see where it may be much quicker to see the event occur on the Fluke 233 for this trouble shooting.” B.L., Texas...
  • Page 22 Hospitals “Would be very useful in a hospital setting, working in the OR’s, you could clamp on a meter and take the reading from outside the sterile area.” R.S., Connecticut “Here at the hospital we have hundreds of electronic VAV mixing boxes which require constant maintenance and calibration.

  • Page 23: Hvac

    HVAC...
  • Page 25 It would save a lot of time and I would not have to have a coworker yell out to me the readings on the Fluke meter.” D.M., Wisconsin...
  • Page 26 I can then adjust temperature and see the output at the stack. Having the 233 would make it unnecessary to have two people, one on the roof and one downstairs, plus two radios to communi- cate back and forth.”...

  • Page 27: Industrial Controls

    Industrial Controls...

  • Page 29: Industrial Controls

    Industrial Controls “It would be most helpful when checking voltages on eyes and switches on machinery while product was running to ensure that the controls were getting the correct signals from the eyes and switches. It would also be helpful in hard-to- access control panels that now require two people to work on.
  • Page 30 Industrial Controls “A meter with a remote display would be very useful for startup and troubleshooting of control panels and I/O Cabi- nets. Frequently, the meter needs to be inside the cabinet connected to test points while you need to be in front of the cabinet actuating the circuit being tested.

  • Page 31: Manufacturing

    Manufacturing...
  • Page 33 Manufacturing “A meter like this would be a tremendous safety benefit when working on various packaging machines and conveyor lines. These systems get quite large and often the control panel is located on the opposite side of the various motors and electri- cal connections.
  • Page 34 The problem is, we don’t always have the second person available to help out so I have to run very long jumpers from the top of machine to my Fluke 87 on the ground. I hate running jumpers this long (sometimes 15-18 feet long) it just gets to be a tangled mess, not to mention the clips coming loose because of machine movement.

  • Page 35: Networks

    Networks...
  • Page 37 DC power in the control panel and when we notice a voltage drop by 10% we add a power supply. With the new Fluke 233 it will make the job much easier and there is no need to keep going back and forth to and from the control panel to check the DC power, so we save time and effort to solve the problem.”...
  • Page 38 “There have been many occasions when I have been work- ing on large AM & FM broadcast transmitters when I certainly could have used a 233. It would be very handy to be able to attach the meter leads to a circuit and leave the meter inside the transmitter, close the interlocked doors, turn on the trans- mitter and read the display.

  • Page 39: Electrical Contractors

    Electrical Contractors...

  • Page 41: Electrical Contractors

    F.N., California “As an electrical contractor, I can imagine many uses for Fluke 233. I would mostly use it to identify wires and circuits. I currently use the beeper and a probe but the lines must be de-energized.
  • Page 42 Electrical Contractors “I would use the Fluke 233 to troubleshoot circuitry. It would replace the need to have two men to troubleshoot 3-way switching, or to look at a ceiling box voltage while switching from the ground. I would also appreciate being able to simul- taneously do voltage and amperage checks without having to move from branch circuit breaker to load.”...

  • Page 43: Nfpa 70E

    NFPA 70E...

  • Page 45: Nfpa 70E

    W.S., Montana “I would use the Fluke 233 for monitoring energized equip- ment more safely while reducing the risk of an arc flash. We would be able to de-energize and open the equipment, install the Fluke 223, and close and re-energize the equip- ment.

  • Page 47: Utilities

    Utilities...
  • Page 49 S.A., Colorado “If I had one of the Fluke 233 meters we would use it when working on one of the high power transmitters. Often times, we need to monitor test points in one location, but the con- trols are in an entirely different location.”...
  • Page 50 Utilities “I would GREATLY benefit from the Fluke 233 in the test- ing and commissioning of distribution and transmission substations. On the relay rack panels we install, we use rear mounted link blocks for voltage and control. But we need to also be at the front of the panels to measure the...

  • Page 51: Nuclear

    Nuclear...
  • Page 53 D.D., Carolina “Fluke 233 would be handy at a nuclear power plant during various aspects of battery testing (when test equipment is staged away from the battery string), or switchgear testing whenever one has to be remote during breaker actuation.
  • Page 56 Imagine ways to be more productive Fluke 233 Remote Display Keeping your world up and running. ®...
