4-Way Digital Optical Selector
Your RadioShack 4-Way Digital Optical Selector lets you con-
nect up to four optical home or portable audio components
such as a digital receiver, MD (MiniDisc) player, CD/DVD play-
er, or satellite receiver to your home theater system (via a ste-
reo receiver) with a digital optical input. The selector allows you
to switch from one component to another just by turning the se-
lector knob – no more disconnecting and connecting cables or
moving equipment around. You can play any of the four compo-
nents you connect and enjoy the output through your home the-
ater system.
The selector's features include:
Toslink Jacks — let you connect Toslink digital optical cable to
provide interference and distortion free signal transmission.
Four Optical Inputs, each with 1 Toslink jack — let you con-
nect up to four audio/video sources to the optical selector.

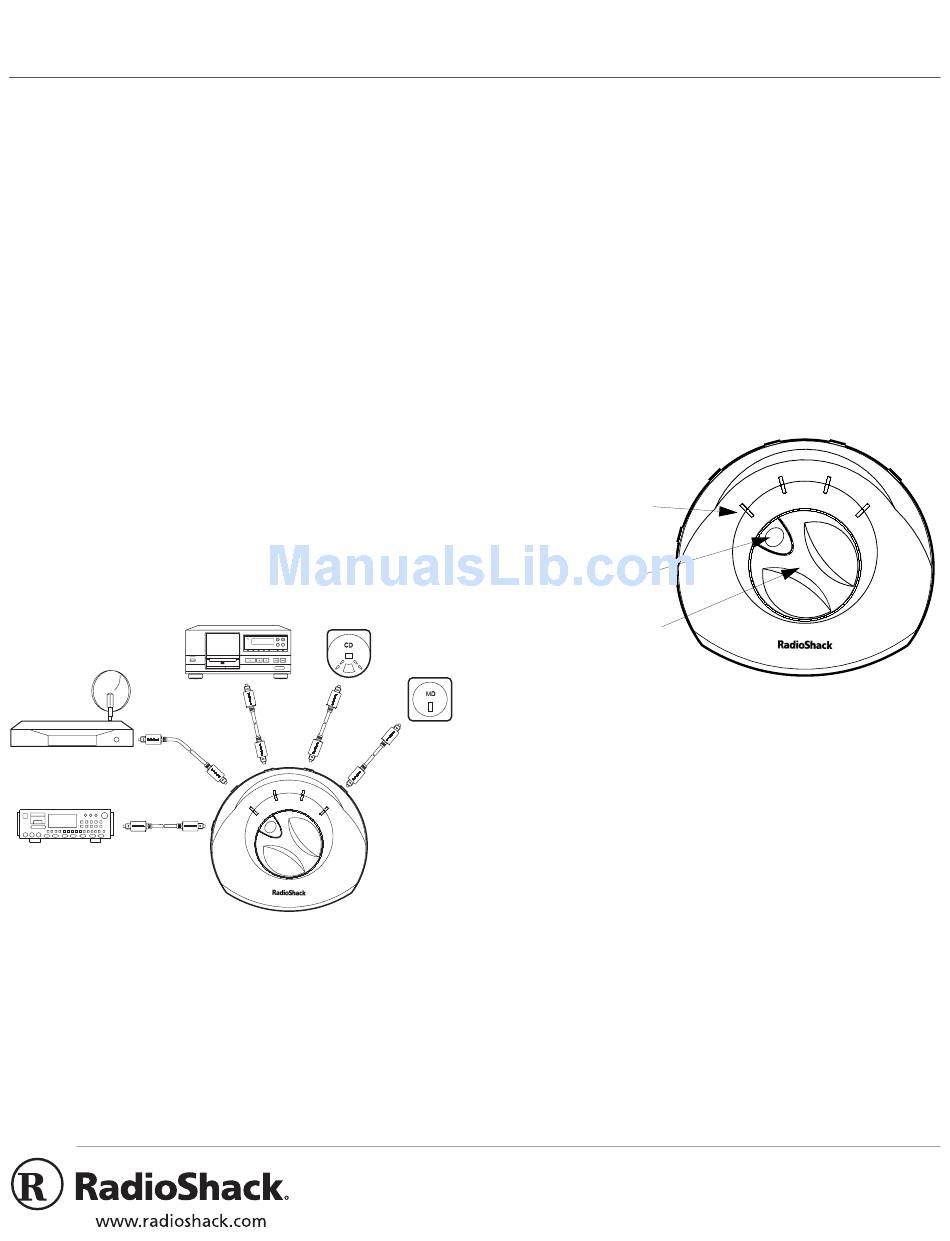

CONNECTIONS
Connect your audio sources' (such as satellite receiver, CD/
DVD player, or portable MiniDisc player) digital optical output to
the selector's
,
,
,
input jacks using fiber optical cable with
A
B
C
D
a Toslink connector at each end (available at your local Ra-
dioShack store).
Home CD Changer
Satellite Receiver
Stereo Receiver
with Optical Input
DISC
TRACK
MIN
SEC
DISC
O S R
BEST
PREVIOUS
CLEAR
TIME
MODE
HI-LITE
PROGRAM
RANDOM
REPEAT
C D - F I L E
25-DISC
POWER
PLAY
PAUSE
STOP
ASMS / SEARCH
FILE-TYPE CD MECHANISM
LABEL SIDE
1Bit DAC
OPTICAL DIGITAL OUTPUT
[B]
[C]
[A]
[D]
Note: If your audio source's output jack is a
mini optical jack, use a Toslink to
adapter (available at your local RadioShack store).
Connect the selector's output jack to your home theater sys-
tem's stereo receiver's input jack using a fiber optical cable.
OPERATION
To watch and hear your connected sources through your home
theater system, turn on your home theater system and the au-
dio source you want to hear. Then, press in the lock release
button on the selector's dial and rotate the dial to the indicator
corresponding with the source you want (
cator you select appears green. Release the button to lock the
selector in place.
Indicator
(green when selected)
Lock Release Button
Portable
CD Player
The sound from the selected source comes through your home
entertainment system's speakers.
Mini
Disc
Player
©
RadioShack and RadioShack.com are registered trademarks used by Tandy Corporation.
OWNER'S MANUAL — Please read before using this equipment.
1
/
8
[B]
[A]
Selector Dial
2000 Tandy Corporation.
All Rights Reserved.
1
/
-inch (3.5 mm)
8
-inch (3.5 mm) optical plug
,
,
, or
). The indi-
A
B
C
D
[C]
[D]
