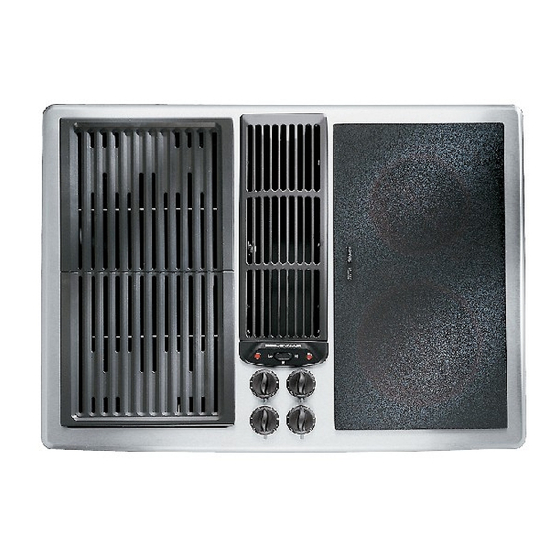

Jenn-Air JED8130AD Product Dimensions

PRODUCT MODEL NUMBERS
JED8130AD JED8230AD
ELECTRICAL REQUIREMENTS:
Before You Make the Electrical Connection:
To properly install your cooktop, you must determine the type of electrical
connection you will be using and follow the instructions provided for it here.
A 4-wire or 3-wire, single phase, 120/240 volt, 60 Hz., AC only electrical
supply is required on a separate, 40-amp circuit (45" [114.3 cm] models) or
40-amp circuit (30" [76.2 cm] models), fused on both sides of the line.
The cooktop should be connected directly to the junction box in the cabinet
through the flexible metal conduit. The flexible, armored cable extending from
the fuse box or circuit breaker box should be connected directly to the
cooktop wiring box.
Locate the junction box in the cabinet to allow as much slack as possible
between the junction box and the cooktop so that the cooktop can be moved if
servicing becomes necessary in the future.
A UL listed or CSA approved conduit connector must be provided at each end
of the power supply cable (at the cooktop wiring box and at the junction box
in the cabinet).
If the house has aluminum wiring follow the procedure below:
1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using
special connectors and/or tools designed and UL listed for joining copper to
aluminum.
Follow the electrical connector manufacturer's recommended procedure.
Aluminum/copper connection must conform with local codes and industry
accepted wiring practices.
PRODUCT DIMENSIONS
30" (76.2 cm) Cooktop
B
A
F
A. Tie down bolt (on each side of cookop)
B. 30" (76.2 cm)
C. 21 " (55.3 cm)
D. Grease containers
E. Wiring box cover
F. Blower
B
A*
C
D**
A. 6 " (15.9 cm)
B. 3 " (8.9 cm)
C. Grease containers
D. 2" (5.1 cm)
*A minimum clearance of
removal of the grease containers. Installed dimension for the
grease containers is 5 " (14.0 cm).
**A minimum clearance of " (5.1 cm) is recommended between
the motor/blower and cabinet for proper cooling.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
30" (76.2 CM) AND 45" (114.3 cm) ELECTRIC
DOWNDRAFT COOKTOP
JED8345AD
C
D
E
G
C
H
F
E
E. 13 " (34.9 cm)
F. 11 " (30.0 cm)
G. 4" (10.2 cm)
H. 13 " (35.1 cm)
" (15.9 cm) is recommended for
CUTOUT DIMENSIONS
H
I
J
A. 29" ± " (73.6 cm ± 0.2 cm) on 30" (76.2 cm) models
43 " ± " (109.9 cm ± 0.2 cm) on 45" (114.3 cm) models
B. 21" ± " (53.3 cm ± 0.2 cm) maximum on both 30" (76.2 cm) and
45" (114.3 cm) models
C. 9 " (23.8 cm) on both 30" (76.2 cm) models and 45" (114.3 cm)
models
D. 7 " (19.2 cm) on both 30" (76.2 cm) and 45" (114.3 cm) models
E. 1 " (4.8 cm) minimum space to front edge of cooktop
F. Floor exhaust option
G. 6 " (15.6 cm) for 6" vent system
H. 9 " (21.9 cm) on both 30" (76.2 cm) and 45" (114.3 cm) models
I. 13" (33.0 cm) on both 30" (76.2 cm) and 45" (114.3 cm) models
J. Wall exhaust option
45" (114.3 cm) Cooktop
A
F
A. Tie down bolt (on each side of cookop)
B. 45" (114.3 cm)
C. 21 " (55.3 cm)
D. Grease containers
E. Wiring box cover
F. Blower
B
A*
C
D**
A. 6 " (15.9 cm)
B. 3 " (8.9 cm)
C. Grease containers
D. 2" (5.1 cm)
*A minimum clearance of
removal of the grease containers. Installed dimension for the
grease containers is 5 " (14.0 cm).
**A minimum clearance of " (5.1 cm) is recommended between
the motor/blower and cabinet for proper cooling.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
A
D
C
E
F
G
C
B
D
E
G
C
H
F
E
E. 13 " (34.9 cm)
F. 26 " (68.0 cm)
G. 4" (10.2 cm)
H. 13 " (35.1 cm)
" (15.9 cm) is recommended for
Page 1 of 2
Ref. W10298937B
2/24/12
