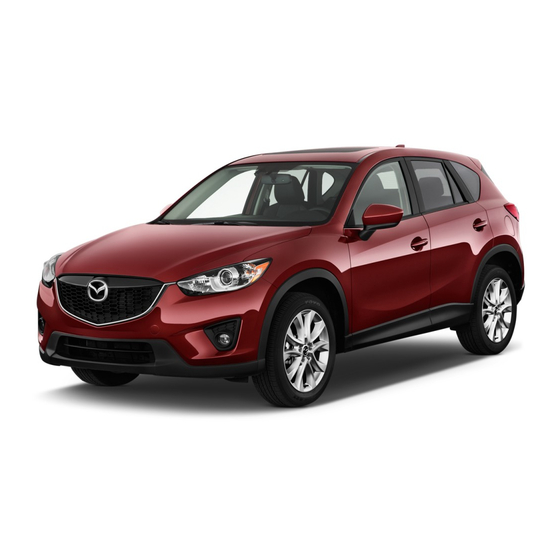

Mazda 2013 CX-5 Engine & Mechanical

Mazda 2013 CX-5 Engine & Mechanical

Hide thumbs Also See for 2013 CX-5:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
2013 CX-5
ENGINE & MECHANICAL
2013 CX-5
ENGINE
Type
Valve gear
Displacement
Bore and stroke
Compression ratio
Horsepower SAE net
Torque, SAE net lb-ft
Redline
Fuel system
Recommended fuel
DRIVETRAIN
Type
4WD system
Transmission
Transmission
Gear ratios: 1st
2nd
3rd
4th
5th
6th
Reverse
Final drive
ELECTRICAL SYSTEM
Type
Battery
Alternator
Starter
CHASSIS
Front suspension
Rear suspension
Shock absorbers
Steering
Steering ratio
Steering wheel turns
Min. turning circle
Brakes
Wheels
Tires
Curb weight
CAPACITIES
Seating
Washer fluid tank
STANDARD
OPTIONAL
LUXURY PACKAGE
GX
SKYACTIV-Drive 6-speed Sport mode automatic transmission (optional on GX; standard on GS,GT)
NAVIGATION SYSTEM
GS
SKYACTIV-G 2.0L Inline 4-cylinder
DOHC 16-valve
1,997 cc
83.5 x 91.2 mm
13.0:1
155 @ 6,000 rpm
150 @ 4,000 rpm
6,500 rpm
Direct injection
Regular (Unleaded)
Front-wheel drive (standard on GX,GS)
All-Wheel Drive (optional on GX, GS; standard on GT)
Active torque split
SKYACTIV-MT 6-speed manual transmission (GX)
SKYACTIV 6MT
3.700
1.947
1.300
1.029
0.837
0.680
3.724
4.705
12 Volt
75D23L
12 Volt - 100 amp
1.0kW
Independent, strut type, coil springs, stabilizer bar
Independent, Multi-Link type, coil springs, torsion bar stabilizer
Telescopic-type, double acting
Rack and pinion column assist-type electric power steering
15.5:1
2.7 (lock to lock)
11.2m (curb to curb)
Power-assisted 4-wheel disc brakes
Anti-lock Braking System w/ Electronic Brake Force Distribution (EBFD)
297mm ventilated front discs
303mm ventilated rear discs
17" alloy wheels on GX
17" alloy wheels (Optional on GX, Standard on GS)
19" alloy wheels (GT)
225/65R17 all-season tires (GX, GS)
225/55R19 all-season tires (GT)
2WD 6MT: 1,459 kg
2WD 6AT: 1,488 kg
4WD 6AT: 1,555 kg
5
4.5L
REAR ENTERTAINMENT SYSTEM
NOT AVAILABLE
GT
SKYACTIV 6AT Sport
3.552
2.022
1.452
1.000
0.708
0.599
3.893
4.624

Advertisement

loading

Related Manuals for Mazda 2013 CX-5

Summary of Contents for Mazda 2013 CX-5

  • Page 1 2013 CX-5 ENGINE & MECHANICAL STANDARD OPTIONAL LUXURY PACKAGE NAVIGATION SYSTEM REAR ENTERTAINMENT SYSTEM NOT AVAILABLE 2013 CX-5 ENGINE Type SKYACTIV-G 2.0L Inline 4-cylinder Valve gear DOHC 16-valve Displacement 1,997 cc Bore and stroke 83.5 x 91.2 mm Compression ratio 13.0:1...

  • Page 2: Internal Dimensions

    Fuel tank 56L (2WD) 58L (4WD) Engine Oil Capacity 4.9L EXTERNAL DIMENSIONS (mm) Wheelbase 2,700 Track (fr/rr) 1,584 / 1,587 (17") 1,584 / 1,588 (19") Overall length 4,555 Overall width 1,840 2,165 (mirror to mirror) Overall height 1,670 1,710 (with antenna) Ground clearance 215 (2WD) 210 (4WD)
  • Page 3 2013 CX-5 ENGINEERING FEATURES STANDARD OPTIONAL LUXURY PACKAGE NAVIGATION SYSTEM REAR ENTERTAINMENT SYSTEM NOT AVAILABLE 2013 CX-5 SKYACTIV-G 2.0L DOHC 16-valve 4-cylinder engine SKYACTIV-MT 6-speed manual transmission SKYACTIV-Drive 6-speed Sport mode automatic transmission AWD (*GX only available with 6AT and Convenience Package)

  • Page 4: Exterior Features

    2013 CX-5 EXTERIOR FEATURES STANDARD OPTIONAL LUXURY PACKAGE NAVIGATION SYSTEM REAR ENTERTAINMENT SYSTEM NOT AVAILABLE 2013 CX-5 Body coloured power exterior mirrors with side turn lamps Body coloured door handles Body coloured lift gate garnish Body coloured rear roof spoiler...

  • Page 5: Interior Features

    2013 CX-5 INTERIOR FEATURES STANDARD OPTIONAL LUXURY PACKAGE NAVIGATION SYSTEM REAR ENTERTAINMENT SYSTEM NOT AVAILABLE 2013 CX-5 Comfort and Convenience Cruise control Steering wheel mounted cruise controls Bluetooth with Audio Profile Convenience Package Steering wheel controls for Bluetooth Convenience Package Radio (AM/FM;ETR)
  • Page 6 Cloth side door trim Leather-like side door trim Storage Front console with cup holders Rear seat centre armrest with cup holders Over head console with sunglass holder Side door pockets with bottle holder Front seat back pockets...
  • Page 7 2013 CX-5 SAFETY & SECURITY FEATURES STANDARD OPTIONAL LUXURY PACKAGE NAVIGATION SYSTEM REAR ENTERTAINMENT SYSTEM NOT AVAILABLE 2013 CX-5 Curtain and side airbags with rollover sensor Passenger airbag sensor Front seat belt pretensioners Speed sensing power door locks (Double Action)
