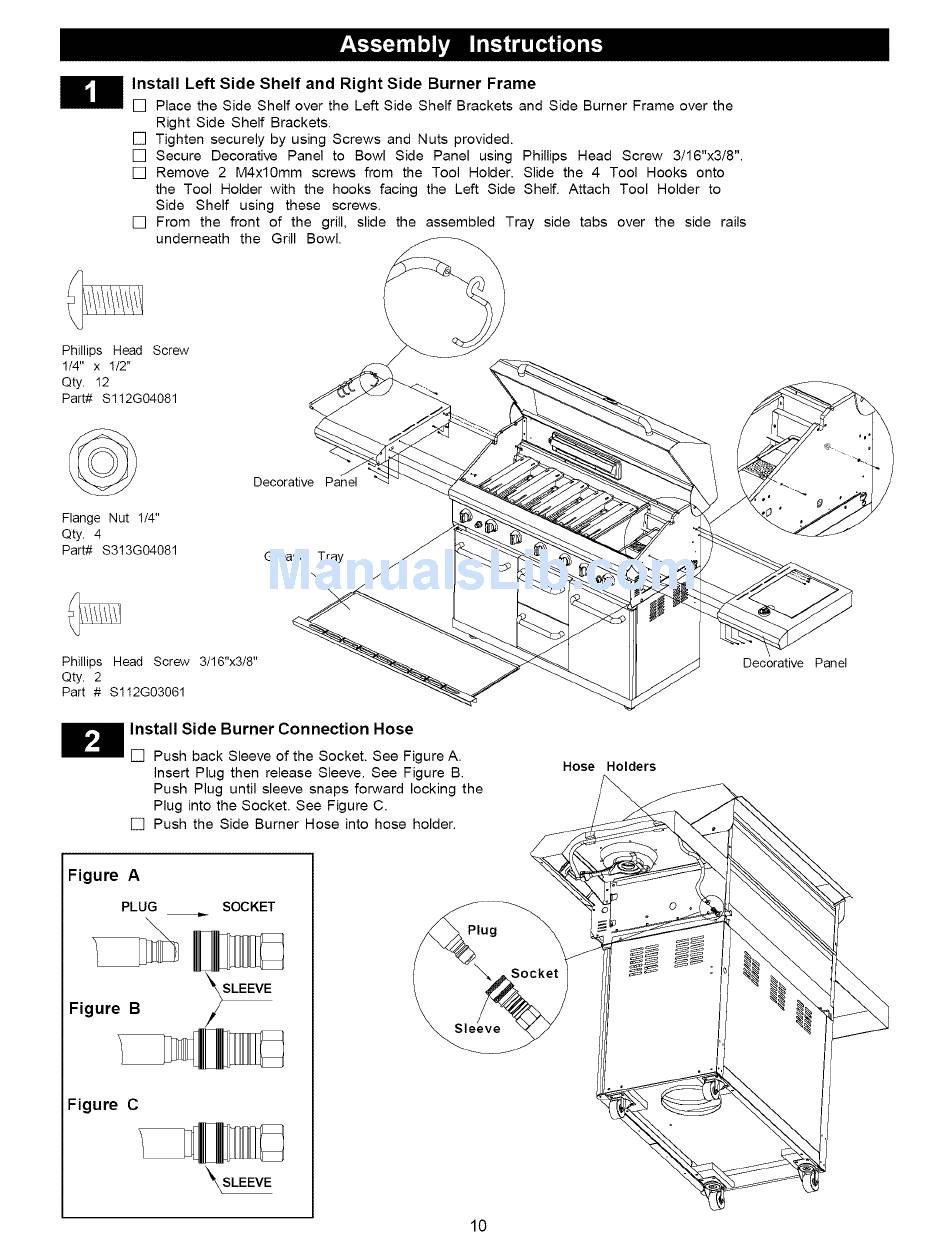

Install Left Side Shelf and
Right
Side Burner Frame
[] Place the Side Shelf over the Left Side Shelf Brackets and Side Burner Frame over the
Right Side Shelf Brackets.
[] Tighten securely by using Screws and Nuts provided.
[] Secure Decorative Panel to Bowl Side Panel using Phillips Head Screw 3/16"x3/8".
[] Remove 2 M4xl0mm screws from the Tool Holder. Slide the 4 Tool Hooks onto
the Tool Holder with the hooks facing the Left Side Shelf. Attach Tool Holder to
Side Shelf using these screws.
[] From the front of the grill, slide the assembled Tray side tabs over the side rails
underneath the Grill Bowl.
Phillips Head Screw
1/4" x 1/2"
Qty. 12
Part# $112G04081
©
Flange Nut 1/4"
Qty. 4
Part# $3!3G04081
Decorative Panel
Grease Tray
\
Phillips Head Screw 3/16"x3/8"
Qty. 2
Part # $1!2G03061
Install Side Burner Connection Hose
[] Push back Sleeve of the Socket. See Figure A.
insert Plug then release Sleeve. See Figure B.
Push Plug until sleeve snaps forward locking the
Plug into the Socket. See Figure C.
[] Push the Side Burner Hose into hose holder.
Hose Holders
Decorative Panel
Figure A
PLUG
Figure B
Figure C
SOCKET
SLEEVE
_\SLEEVE
Plug
