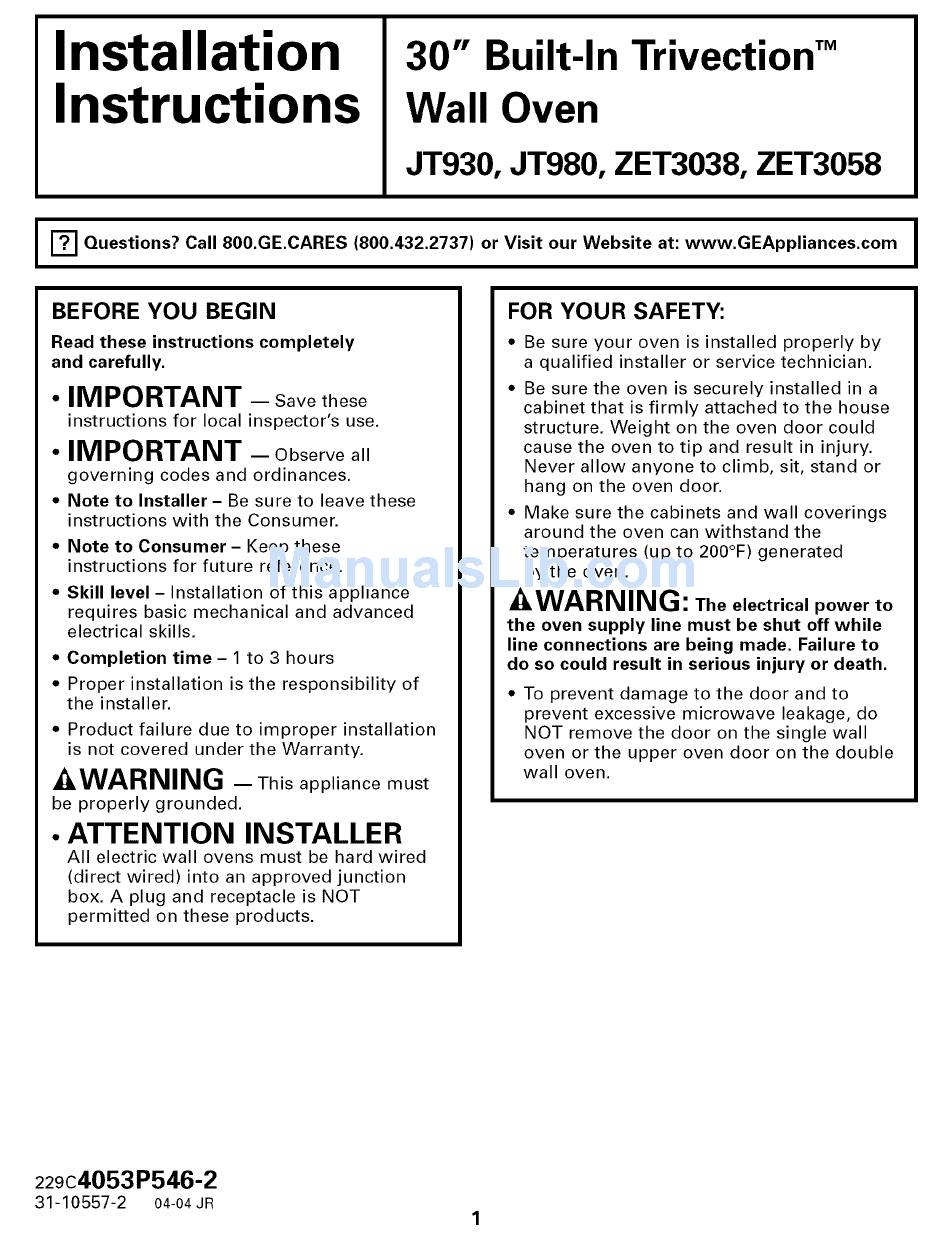

30" Built-In Trivection Ilnstallation nstructions Wall Oven JT930, JT980, ZET3038, ZET3058 I I'_'1 Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com BEFORE YOU BEGIN FOR YOUR SAFETY: Read these instructions completely • Be sure your oven is installed...
Installation Instructions PREPARE TO INSTALL THE OVEN TOOLS YOU WILL NEED PARTS INCLUDED Metal Bottom Trim Drill with 1/8" Bit Safety Glasses (Extension may be required) 12 Screws Plastic Bottom Trim Straight Edge or Square Adjustable Wrench (for 1-7/16" Nut) Pencil Phillips Screwdriver Metal Bottom...
Installation Instructions PRE-INSTALLATION PRE-INSTALLATION (CONT.) All installation information on the following NOTE: To prevent damage to the door pages is to be used for SINGLE and DOUBLE to prevent excessive microwave leakage, oven installation! NOT remove the door on single wall oven models...
Page 4
Installation Instructions SINGLE BUILT-IN OVEN CUTOUT OPTIONS CUTOUT OPTIONS FOR SINGLE WALL MOUNT--SINGLE BUILT-IN OVEN OPTION (CONT.) BUILT-IN OVENS NOTE: If the cabinet does not have a front Skip to Step 3 for Double Built-In Oven models. frame and the sides are less than 3/4"...
Page 5
• A 2" min. clearance between oven top overlap of the single wall oven. warming drawer cutouts is required. • If you are replacing a GE/Monogram electric double oven with the combined installation • Additional clearance may be required of an Advantium and single...
Page 6
Installation Instructions SINGLE BUILT-IN OVEN CUTOUT OPTIONS (CONT.) UNDER COUNTER--SINGLE BUILT-IN OVEN OPTION Top and/or side fillers may be necessary if unit is positioned between existing cabinets. sure they are attached securely, since they will 36" Typical 1 1/4" at bottom anchor the oven in the Countertop _.:and 11/16"...
Page 7
Installation Instructions DOUBLE BUILT-IN OVEN CUTOUT I-_ CUTOUT FOR DOUBLE BUILT-IN E_ CUTOUT FOR DOUBLE BUILT-IN OVEN OVEN (CONT.) Cutout Width If the cabinet does not have a solid bottom, 28 1/2" Min 7" from side cutout braces or runners must be installed level...
Page 8
Installation Instructions REMOVE THE LOWER OVEN DOOR ON DOUBLE WALL OVEN MODELS ONLY To prevent damage _-I ON DOUBLE WALL OVEN to the door and to MODELS, REMOVE THE LOWER prevent excessive DOOR ONLY (CONT.) microwave exposure, do NOT remove the door on the Close door to the door removal...
Installation Instructions ELECTRICAL CONNECTIONS ELECTRICAL REQUIREMENTS ATTENTION INSTALLER All electric wall ovens must be hard wired This appliance must be supplied with the proper voltage and frequency, and connected (direct wired) into an approved junction box. to an individual, properly grounded branch A plug and receptacle...
Page 10
Installation Instructions ELECTRICAL CONNECTIONS (CONT.) TURN OFF ELECTRICITY NEW CONSTRUCTION FOUR-CONDUCTOR BRANCH Turn off the circuit breaker or remove fuses to CIRCUIT CONNECTION the oven branch circuit. • When installing in new construction, • When installing in a mobile home, CONNECT CONDUIT •...
Installation Instructions THREE-CONDUCTOR BRANCH CIRCUIT CONNECTION When connecting to a three-conductor branch circuit, if local codes permit: Connect the bare oven ground conductor with the crimped neutral (white) lead to the branch circuit neutral (white or gray in color), using a wire nut.
Page 12
Installation Instructions SECURE THE OVEN IN THE OPENING SLIDE THE OVEN INTO THE DRILL THE PILOT HOLES AND OPENING MOUNT THE OVEN Loop (do not tie) the correct length NOTE: Before drilling the pilot holes, make string around the conduit before sure the oven is pushed...
Page 13
Installation Instructions To install a single metal bottom trim assembly (on some models), see Step To install a metal bottom trim with a plastic bottom trim (on some models), see Steps 11 and 12. INSTALL THE METAL INSTALL THE PLASTIC BOTTOM BOTTOM TRIM TRIM (ON SOME MODELS) With...
Page 14
Installation Instructions REPLACE THE LOWER OVEN DOOR ON DOUBLE WALL OVEN MODELS ON DOUBLE WALL OVEN MODELS, REPLACE THE LOWER DOOR: Firmly grasp both sides of the door the top. , Hinge arm Bottom edge of slot Indentation With the door at the same angle as the removal...
Installation Instructions FINAL CHECKLISTS OPERATION CHECKLIST PRE-TEST CHECKLIST Remove all items from the inside Remove all protective film, the oven. Check to be sure that all wiring secure and not pinched or in contact Check that conduit is securely connected with moving parts,...
