Service Manual
User Manual
DEALER: This manual MUST be given to the user of the product.
USER: BEFORE using this product, read this manual and save for
future reference.

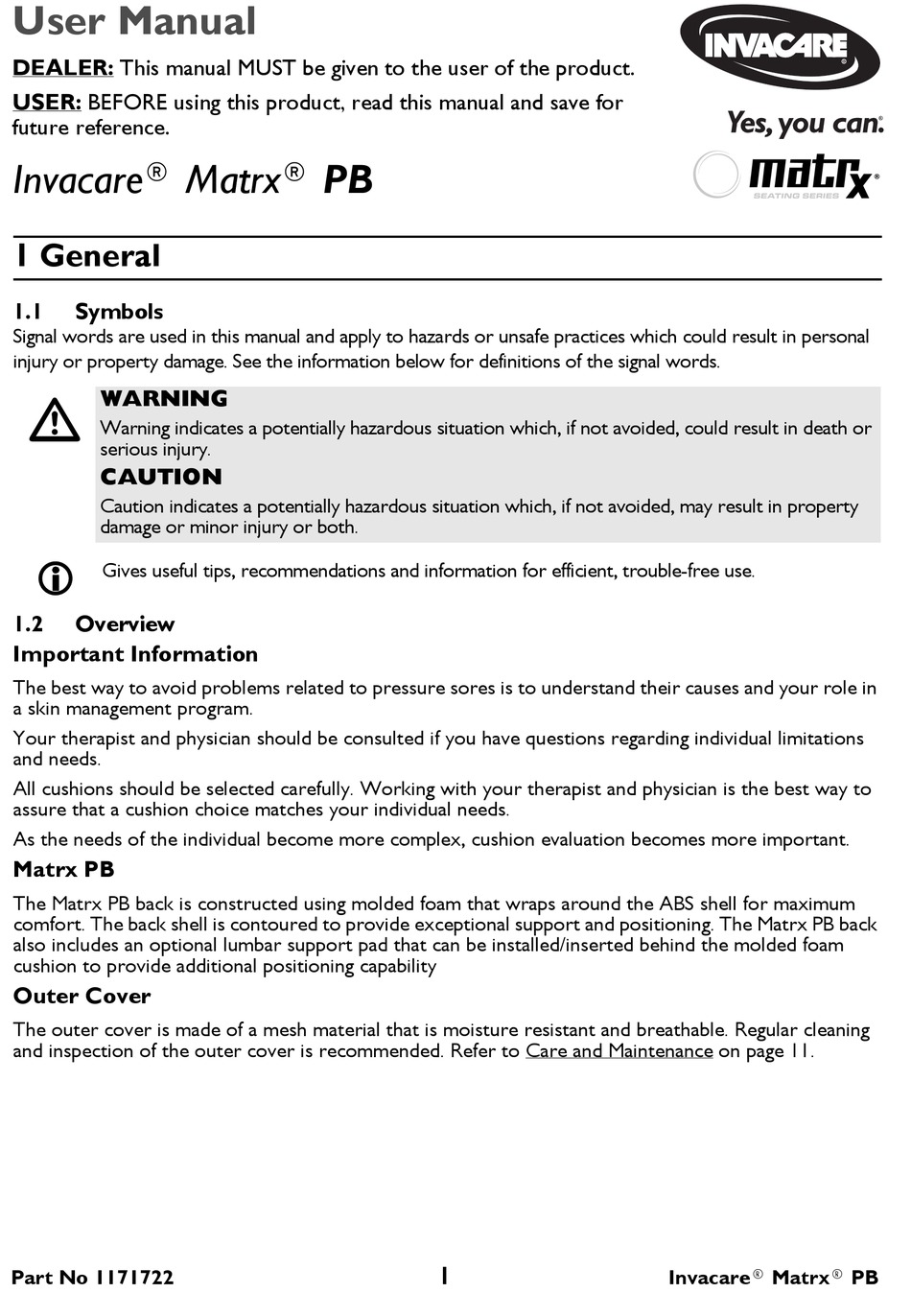

Invacare® Matrx® PB
1 General
1.1
Symbols
Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal
injury or property damage. See the information below for definitions of the signal words.
WARNING
Warning indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
Caution indicates a potentially hazardous situation which, if not avoided, may result in property
damage or minor injury or both.
Gives useful tips, recommendations and information for efficient, trouble-free use.
1.2
Overview
Important Information
The best way to avoid problems related to pressure sores is to understand their causes and your role in
a skin management program.
Your therapist and physician should be consulted if you have questions regarding individual limitations
and needs.
All cushions should be selected carefully. Working with your therapist and physician is the best way to
assure that a cushion choice matches your individual needs.
As the needs of the individual become more complex, cushion evaluation becomes more important.
Matrx PB
The Matrx PB back is constructed using molded foam that wraps around the ABS shell for maximum
comfort. The back shell is contoured to provide exceptional support and positioning. The Matrx PB back
also includes an optional lumbar support pad that can be installed/inserted behind the molded foam
cushion to provide additional positioning capability
Outer Cover
The outer cover is made of a mesh material that is moisture resistant and breathable. Regular cleaning
and inspection of the outer cover is recommended. Refer to Care and Maintenance on page 11.
Part No 1171722
1
Invacare® Matrx® PB
Advertisement
Table of Contents
Related Manuals for Invacare Matrx PB
Summary of Contents for Invacare Matrx PB
- Page 1 As the needs of the individual become more complex, cushion evaluation becomes more important. Matrx PB The Matrx PB back is constructed using molded foam that wraps around the ABS shell for maximum comfort. The back shell is contoured to provide exceptional support and positioning. The Matrx PB back...
-
Page 2: Intended Use
Intended Use The Matrx PB is contoured to provide midline support and positioning. The extended range of sizes provides exceptional support and comfort for a wide range of user needs. Invacare® Matrx® PB... -
Page 3: Accessories Warning
After any adjustments, repair or service and before use, make sure that all attaching component parts are secure. DO NOT install the Matrx PB assembly onto back canes with an outside diameter greater than 1- inch or less than 3/4-inch. Otherwise, injury or damage may occur. - Page 4 7 in (18 cm) 29 in (74 cm) HDBXw16 HDBXw20 5 in (13 cm) DHDXw16 DHDXw20 7 in (18 cm) 30 in (76 cm) HDBXw16 HDBXw20 5 in (13 cm) DHDXw16 DHDXw20 7 in (18 cm) Invacare® Matrx® PB Part No 1171722...
-
Page 5: Hardware Kit Contents
Before Installation Mounting Configuration WARNING When establishing the mounting position for the Matrx PB, ensure the stability of the wheelchair is not compromised. Adjusting the forward and aft position of the backrest will alter the user’s center of gravity within the wheelchair. - Page 6 ) back posts. The cane clamps can be extensions mounted directly onto the replacement back canes in order to allow proper installation of the Matrx PB. Cane replacements are available from Motion Concepts (part# TRX2810). • 1” (25 mm) back post - Cane clamps are PBCR installed without plastic inserts.
- Page 7 ). These alternate slots will limit the range of available depth and/or recline angle adjustment. To install the Matrx PB onto the mounting plates: Slide the lower mounting pins into the hooked slots at the bottom of each mounting plate (see image B).
- Page 8 (including back canes) is wider than the actual Matrx PB back width. The long pins will accommodate a wider base seat size up to 1” (25 mm) wider than the actual back width.
- Page 9 Lever levers. Refer to One-Hand Cord Release Mechanism on page 10. Lift entire backrest up and forward to disengage the lower pins from the lower slots in the mounting plates. Lower Mounting Pin Part No 1171722 Invacare® Matrx® PB...
- Page 10 Installing a Headrest Clamp WARNING Headrests that have been fitted onto the Matrx PB back are not intended for use during transport, and will not provide adequate support in the event of a crash. Users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry.
-
Page 11: Care And Maintenance
WARNING: Risk of Injury Always have a dealer inspect the product for damage before transferring the product to a different user. If any damage is found, DO NOT use the product. Otherwise injury may occur. Part No 1171722 Invacare® Matrx® PB... -
Page 12: Warranty
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare/Motion Concepts warrants this product to be free from defects in materials and workmanship for two years of use by original purchaser.
