Back Panel Overview - Fostex PM0.4d Owner's Manual

Step 1: Make sure that all equipment has been powered down.
Step 2: Confirm that all gain controls on the speakers and the source are set to minimum.
Step 3: Connect the source to the PM0.4d.
Step 4: Power up all the equipment and then turn on the PM0.4d last.
Step 5: Set the gain of both speakers at medium setting and slowly bring up the gain of the console.
Step 6: Adjust the gain of both monitors for balance and for best signal to noise ratio.
Once the above steps have been completed, you are ready to use your PM0.4d. It is recommended
that you now play some familiar audio material and make any final adjustments, as far as placement
or level, to get the optimum performance in your monitoring environment.
1. Input
Both the TS and RCA jacks are electroni-
cally unbalanced input.
2. Continuously variable gain control
This control adjusts the input level to the
internal amplifiers.
3. Power Switch
Turns the power to the amplifier section
on or off. On-position is the spot side.
4. AC IN
Connects the supplied AC cord.
• Auto Stand-by Mode
When no input signal continues for about
13 minutes or so, the PM0.4d will go into
the stand-by mode automatically. This is
indicated by the red lighting power LED.
In the normal operation mode, the power
LED is lit in blue. If the input audio signal
comes in again, it will automatically re-
turn to the normal operation mode again.

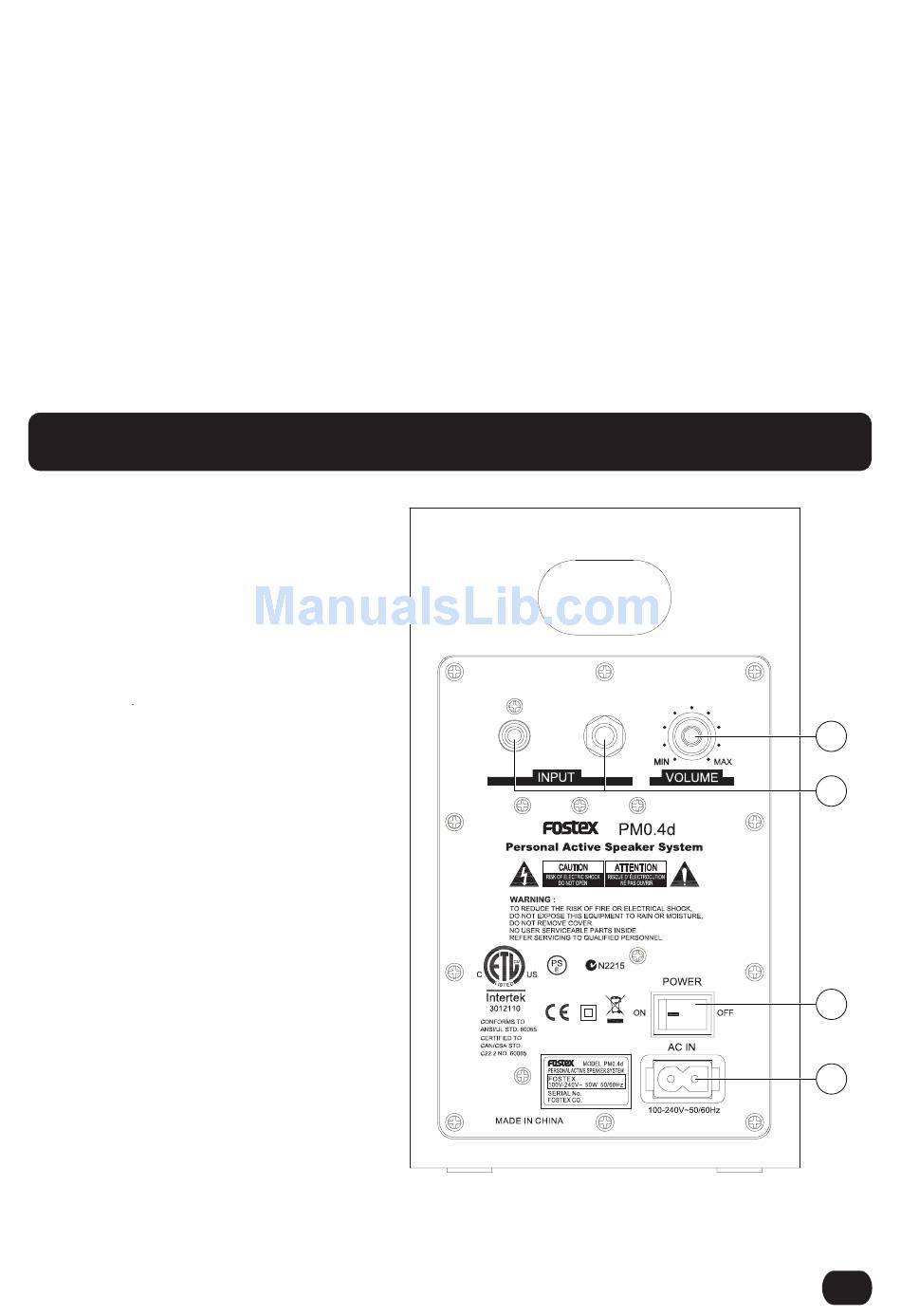

Back Panel Overview

2
1
3
4
