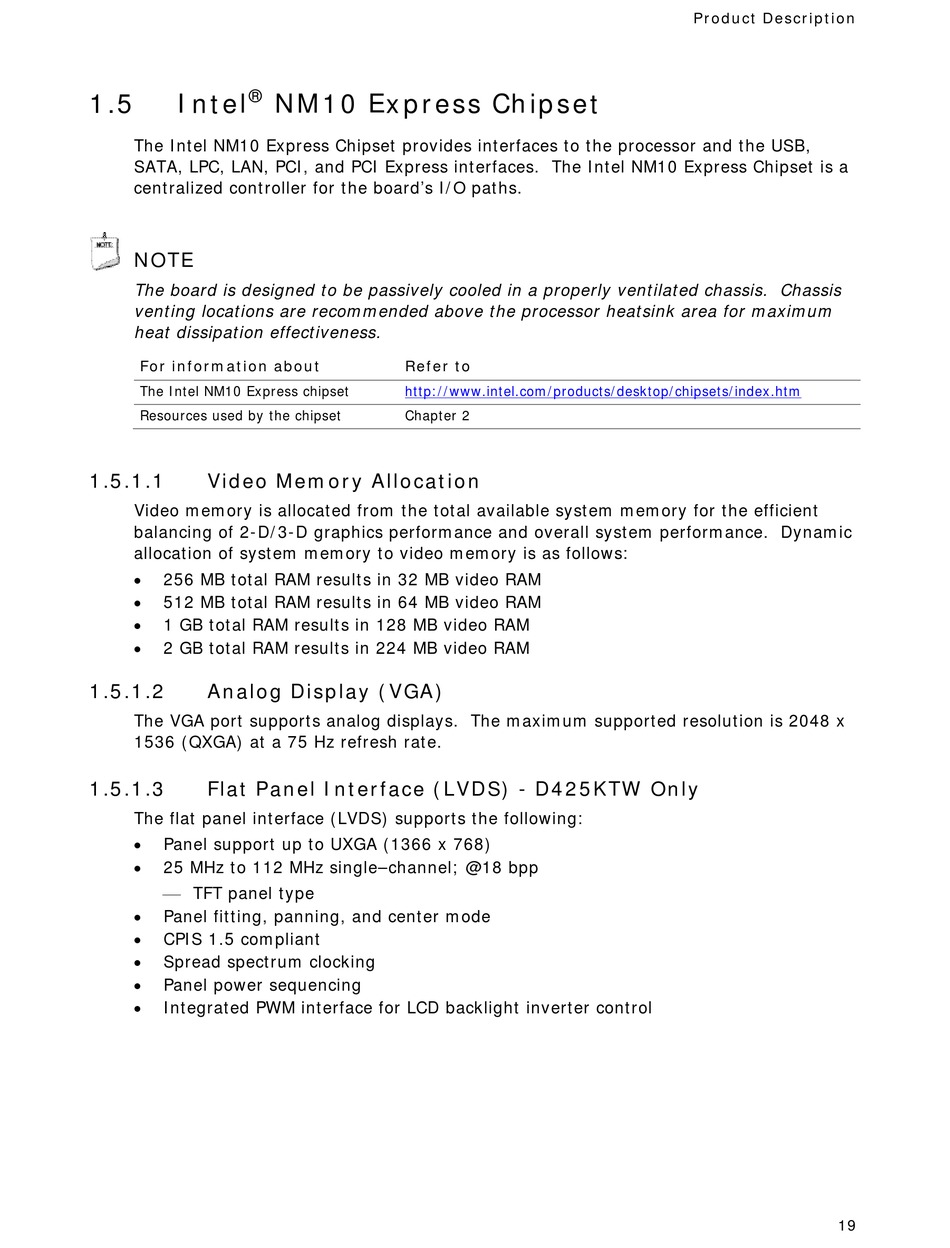

1.5 Intel
The Intel NM10 Express Chipset provides interfaces to the processor and the USB,
SATA, LPC, LAN, PCI, and PCI Express interfaces. The Intel NM10 Express Chipset is a
centralized controller for the board's I/O paths.
NOTE
The board is designed to be passively cooled in a properly ventilated chassis. Chassis
venting locations are recommended above the processor heatsink area for maximum
heat dissipation effectiveness.
For information about
The Intel NM10 Express chipset
Resources used by the chipset
1.5.1.1 Video Memory Allocation
Video memory is allocated from the total available system memory for the efficient
balancing of 2-D/3-D graphics performance and overall system performance. Dynamic
allocation of system memory to video memory is as follows:
256 MB total RAM results in 32 MB video RAM
•
512 MB total RAM results in 64 MB video RAM
•
1 GB total RAM results in 128 MB video RAM
•
2 GB total RAM results in 224 MB video RAM
•
1.5.1.2 Analog Display (VGA)
The VGA port supports analog displays. The maximum supported resolution is 2048 x
1536 (QXGA) at a 75 Hz refresh rate.
1.5.1.3 Flat Panel Interface (LVDS) - D425KTW Only
The flat panel interface (LVDS) supports the following:
• Panel support up to UXGA (1366 x 768)
• 25 MHz to 112 MHz single–channel; @18 bpp
 TFT panel type
Panel fitting, panning, and center mode
•
CPIS 1.5 compliant
•
Spread spectrum clocking
•
Panel power sequencing
•
Integrated PWM interface for LCD backlight inverter control
•
NM10 Express Chipset
Refer to
http://www.intel.com/products/desktop/chipsets/index.htm
Chapter 2
Product Description
19
